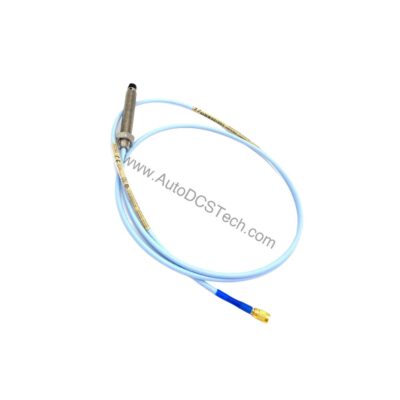

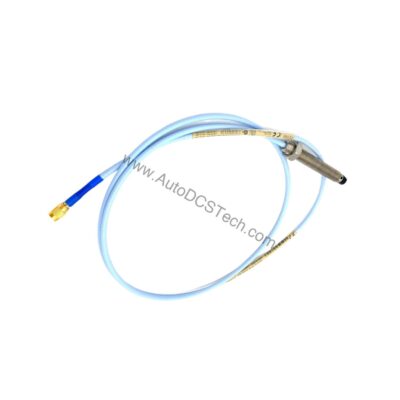

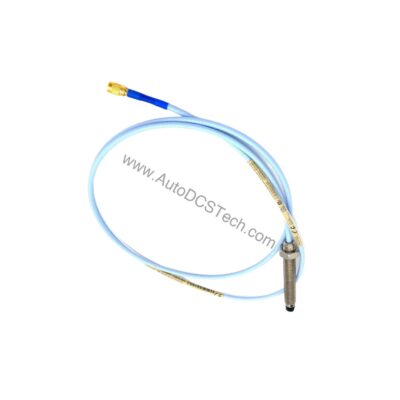

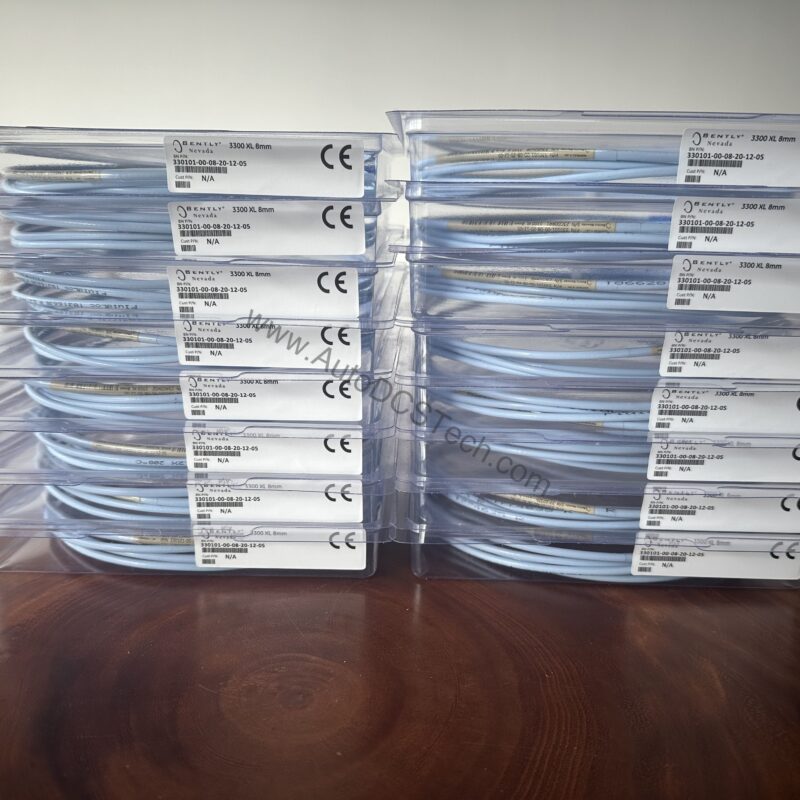

330101-00-66-20-02-00: 3300 XL 8 mm Probe
The 330101-00-66-20-02-00 is the 3300 XL 8 mm Probe covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.0 in.
On this unit 3300 xl 8 mm probe is the figure that decides fit and function. In a machine protection or condition-monitoring installation 3300 xl 8 mm probe is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 0.0 in against the existing mount is therefore the first check before a replacement, not an afterthought.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 330101-00-66-20-02-00 |
| Unthreaded Length Option | 0.0 in |
| Overall Case Length Option | 6.6 in |
| Total Length Option | 2.0 meters (6.6 feet) |
| Connector and Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Probe Temperature Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Probe Temperature Range (Extended) | -52°C to +218°C (-62°F to +425°F) for tip |
| Probe Relative Humidity | Less than 3% change in ASF when tested in 93% humidity per IEC 68-2-3 |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-330101-00-66-20-02-05-3300-xl-8-mm-probe-3-8-24-unf-thread-wi | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 330101-00-66-20-02-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
