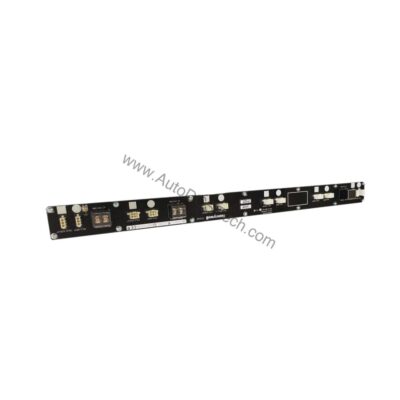

Honeywell 8C-SHEDA1 Series 8 Header Board for Power and IOLink Distribution

Technical Specifications Breakdown

Key parameters for the 8C-SHEDA1 are listed below for quick reference:

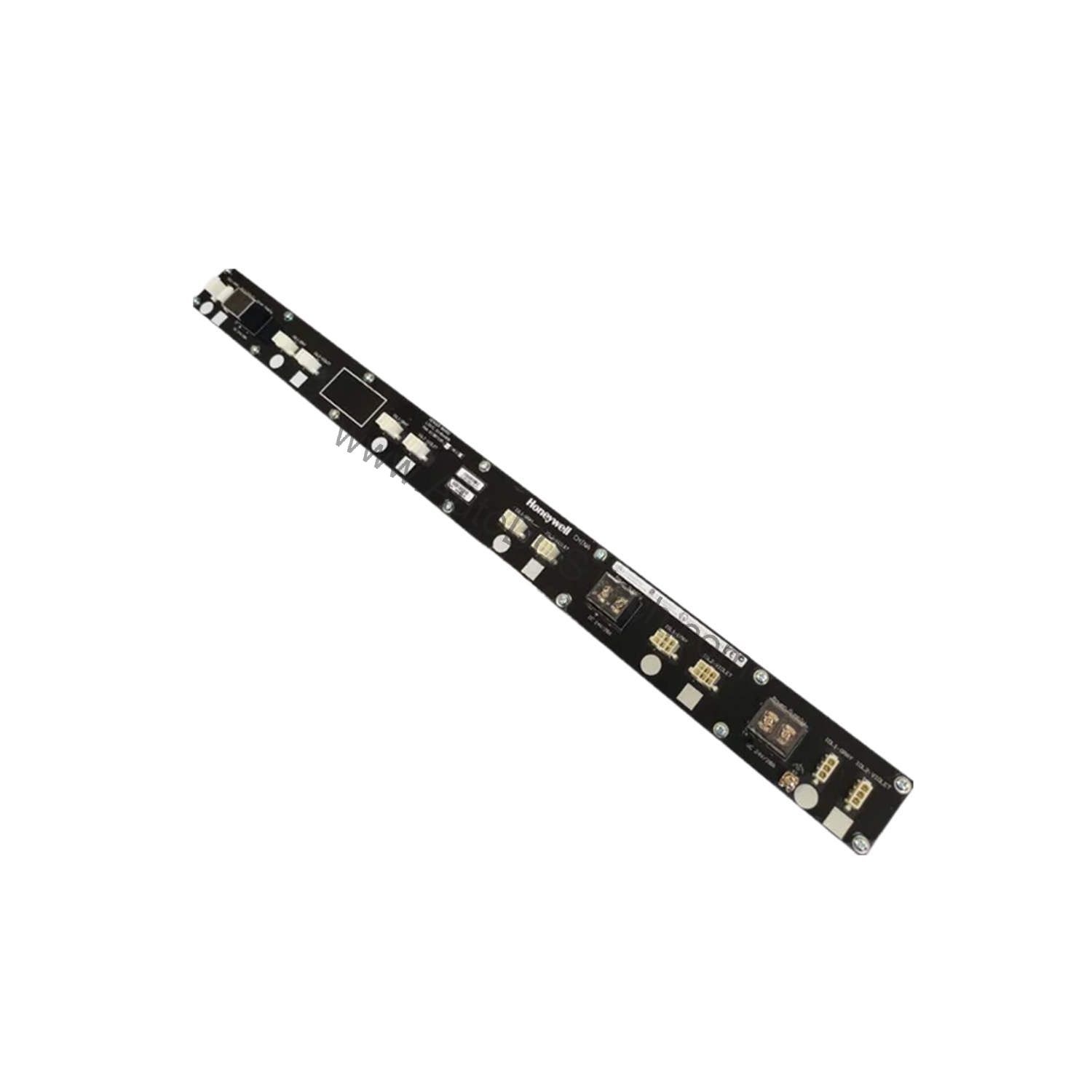

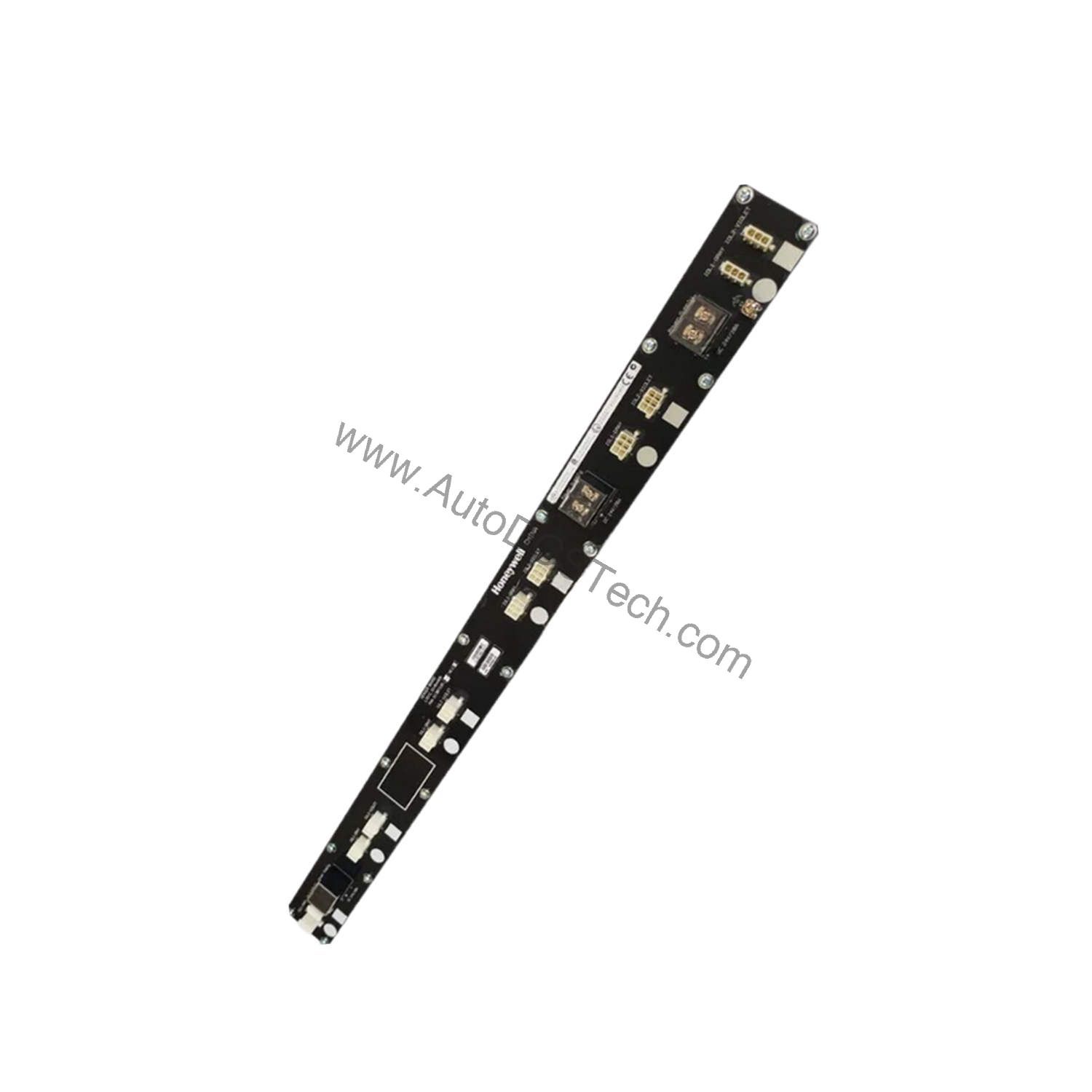

This header board is engineered to distribute power and IOLink communication to one or more columns of mounting plates on either side of a cabinet that houses the power system. The IOTA receives its power and IOLink communication through the combination power/IOLink cable from the header board. One pair of header boards can provide redundant power and IO communication, enhancing system reliability.

Industry Applications

Redundant Control Systems

In critical processes where downtime is not an option, the ability to create redundant power and communication paths is invaluable. By using a pair of 8C-SHEDA1 header boards, you can design a cabinet that continues to operate even if one power path fails. This redundancy is particularly useful in industries such as oil and gas, chemical processing, and power generation, where continuous operation is essential.

Distributed IO Architectures

Modern control systems often distribute IO modules throughout a cabinet to reduce wiring and improve signal integrity. The 8C-SHEDA1 supports this architecture by providing four connectors for combination power/IOLink cables to IO modules. The daisy-chain capability means you can connect multiple IO modules in series, and disconnecting one module does not affect the others. This feature simplifies maintenance and increases system flexibility, especially in large cabinets with many IO points.

Cabinet Expansion

As your process grows, so does your need for IO. The header board includes connectors for extending power and IOLink to adjacent cabinets. This modular approach allows you to scale your control system without redesigning the entire cabinet layout. You can add new cabinets and IO modules as needed, while maintaining a clean and organized wiring scheme.

Installation and Setup Guidance

When installing the 8C-SHEDA1, follow these practical steps to ensure a smooth setup:

• Mounting: Secure the header board to the cabinet's mounting plate using the appropriate hardware. Ensure it is positioned to allow easy access to the connectors.
• Power Connection: Connect the 24 VDC power input to the designated power connector. Verify that the power supply is off during installation to avoid electrical shock.
• Combo Cable Connections: Attach the combination power/IOLink cables to the four combo cable connectors. These connectors are keyed to prevent incorrect insertion. Ensure the cables are routed neatly and secured to avoid strain on the connectors.
• IOLink Extension: If you need to extend IOLink to adjacent cabinets, use the IOLink extension connectors. This allows you to daisy-chain the communication signal across multiple cabinets.
• Redundancy: For redundant power and communication, install a second header board and connect it to the same power system and IOLink network. This provides a backup path in case of a failure.

Always refer to the Honeywell documentation for detailed wiring diagrams and safety instructions. If you are unsure about any aspect of the installation, consult a qualified engineer.

Maintenance and Reliability

The 8C-SHEDA1 is designed for long-term reliability in industrial environments. To ensure optimal performance, follow these maintenance guidelines:

• Periodic Inspection: Inspect the header board and all connections regularly for signs of wear, corrosion, or loose connections. Tighten any loose connectors as needed.
• Environmental Considerations: The header board is rated for an ambient temperature range of 0 to 60 degrees Celsius. Ensure the cabinet ventilation is adequate to keep the temperature within this range, especially in hot environments.
• Cleanliness: Keep the header board free of dust and debris. Use a dry, lint-free cloth to clean the surface. Do not use any solvents or cleaners that could damage the components.
• Cable Management: Check that all cables are properly secured and not under tension. Over time, vibration can loosen connections, so periodic checks are recommended.

Reliable Power and IOLink Distribution for Your Control Cabinet

The Honeywell 8C-SHEDA1 Series 8 Header Board solves this challenge by providing a centralized, robust method for delivering 24 VDC and IOLink throughout your enclosure. Instead of complex point-to-point wiring, this header board simplifies the infrastructure, making installation and maintenance more straightforward.

Compatibility and Integration

The 8C-SHEDA1 is part of the Honeywell Series 8 system, designed to work with Series 8 IO modules and IOTA devices. The combination power/IOLink cable is daisy-chained to allow connection to multiple IO modules. This integration simplifies wiring and reduces the number of cables needed in the cabinet.

If you are integrating the header board into an existing Honeywell system, verify that your IO modules and IOTA are compatible with the Series 8 header board. The header board provides the necessary power and communication infrastructure, so your IO modules can operate reliably.

Selection Guide and Purchasing Advice

When selecting the 8C-SHEDA1 for your application, consider the number of IO modules you need to support and whether you require redundant power and communication. The header board provides four combo cable connectors, so you can connect up to four daisy-chained chains of IO modules. For larger systems, you can use multiple header boards or extend to adjacent cabinets using the IOLink extension connectors.

At AutoDCSTech, we offer the Honeywell 8C-SHEDA1 header board and other Series 8 components. Our team can help you determine the right configuration for your specific needs. We understand that every control system is unique, and we are here to provide expert advice and support.

Please verify current lifecycle status and availability with AutoDCSTech before ordering. We are committed to helping you keep your automation systems running efficiently.
