Introduction

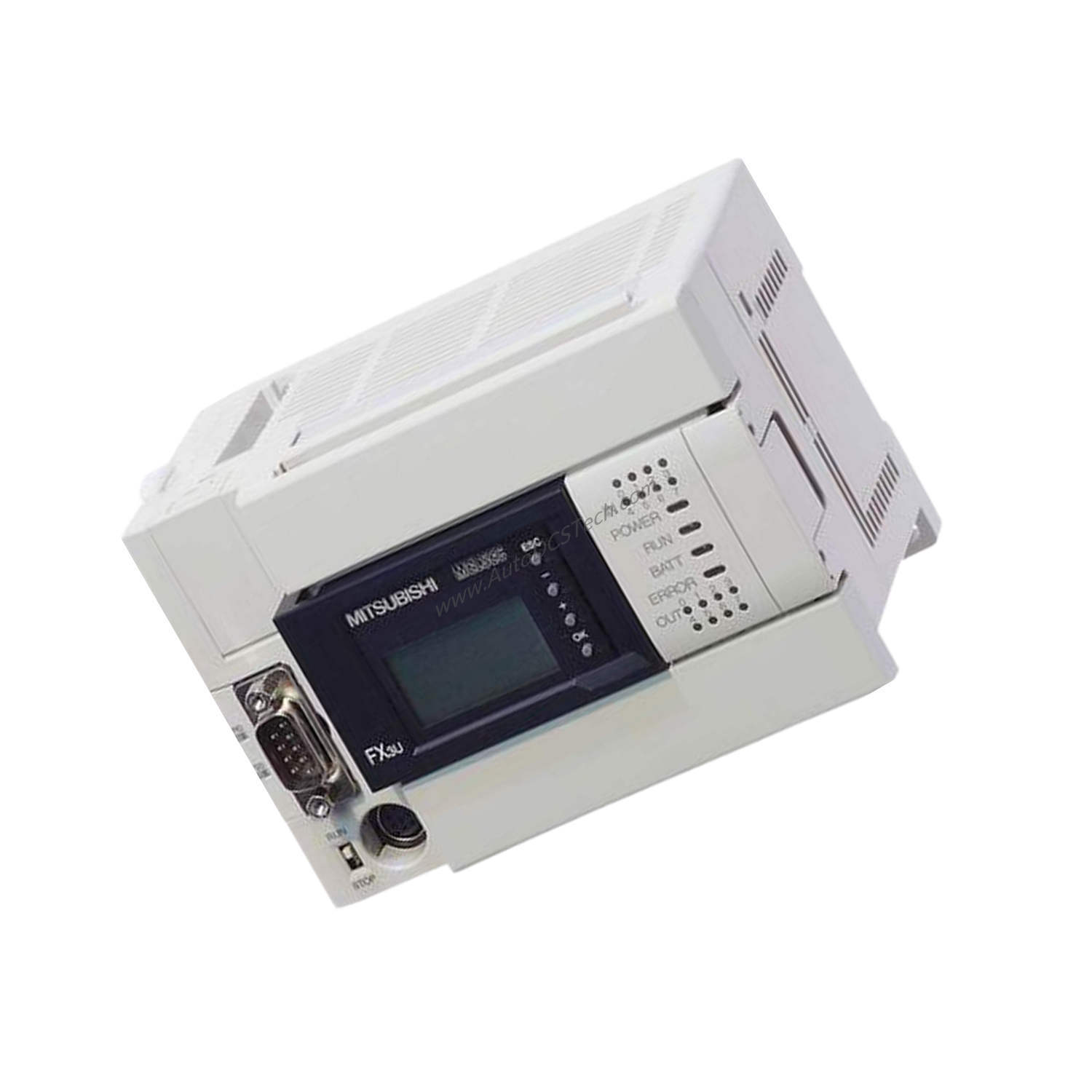

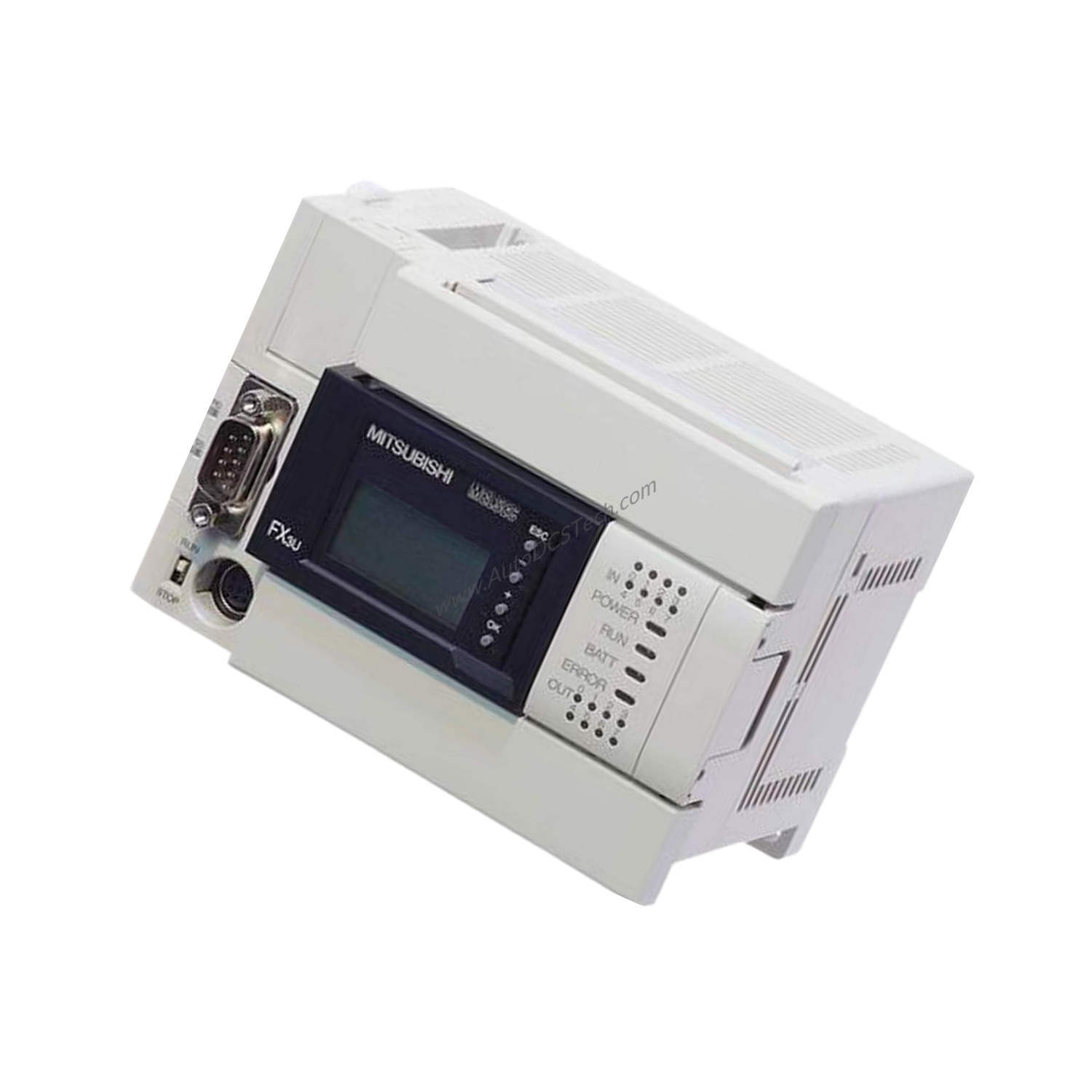

When a packaging line requires precise control of multiple actuators and sensors, the Mitsubishi FX3U-64MR-ES-A delivers a robust solution. This main unit from the MELSEC-F series integrates 64 I/O points—32 inputs and 32 relay outputs—handling diverse signals in a single compact chassis. Engineers value its expandability and straightforward programming for mid-scale automation tasks.
Technical Specifications Breakdown
- Power Supply: 100-240V AC ensures global compatibility. The unit consumes 45W, keeping energy costs predictable.
- Memory: 64K steps of program memory with RAM buffer battery backup retain logic during power loss.
- Cycle Times: LD instruction executes in 65 ns, MOV in 642 ns, enabling fast logic scans for time-critical processes.
- Environmental: Operates from 0 °C to 55 °C with IP10 protection, suitable for controlled industrial environments.
- Dimensions: 220x90x86 mm (WxHxD) and 1 kg weight simplify panel mounting.
Industry Applications
Material Handling Systems
In conveyor sorting, the FX3U-64MR-ES-A reads 32 digital inputs from photoelectric sensors and drives 32 relay outputs to activate solenoid valves and motor contactors. The 64 I/O capacity covers multiple zones without additional expansion.
Packaging Machinery
For case packers, the unit coordinates sealing, labeling, and indexing sequences. Relay outputs handle inductive loads like clutches and heaters, while the 64K-step memory stores complex product changeover routines.
Installation & Setup Guidance
Mount the FX3U-64MR-ES-A on a DIN rail inside an enclosure rated at least IP10. Connect the 100-240V AC supply to the dedicated terminals. Wire inputs according to sink/source configuration (positive logic). For relay outputs, use appropriate snubber circuits for inductive loads. The RS-422 port enables connection to HMIs or programming tools.
Maintenance & Reliability
- Buffer Battery: Replace every 5 years under normal conditions to retain program memory.
- Relay Contacts: Rated for mechanical endurance; monitor switching frequency for high-cycle applications.
- Ambient Temperature: Keep below 55 °C to ensure long-term reliability. Ensure adequate ventilation around the 220x90x86 mm chassis.
Compatibility & Integration
The FX3U-64MR-ES-A integrates seamlessly with MELSEC-F series expansion modules, increasing local I/O to 256 points and local plus remote I/O to 384 points. The RS-422 port supports programming and operator interface connectivity. USB option simplifies direct PC connection for parameter setup.
Selection Guide & Purchasing Advice
Before ordering, verify your system requires 32 relay outputs and 32 inputs. If you need transistor outputs or higher I/O counts, consider the FX3U series variants. SpareTechPLC stocks the FX3U-64MR-ES-A with full traceability. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: What is the maximum number of expansion modules I can add?
A: The FX3U-64MR-ES-A supports up to 256 local I/O points and 384 local plus remote I/O points, allowing flexible system scaling.
Q: Does this unit include a built-in power supply for sensors?
A: The main unit provides 100-240V AC input; sensor power must be supplied externally as per your system design.
Q: Can I use the RS-422 port for Modbus communication?
A: The RS-422 port supports Mitsubishi proprietary protocol; for Modbus, use a dedicated communication module.
Q: What is the typical program scan time?
A: With LD instruction at 65 ns and MOV at 642 ns, scan time depends on program size but remains fast for most applications.
Q: Is the buffer battery replaceable?
A: Yes, the unit includes a replaceable buffer battery to retain program memory during power-off.
Troubleshooting & Common Issues
- Power LED Off: Check 100-240V AC supply and fuse. Verify line voltage matches specifications.
- Outputs Not Energizing: Confirm relay output wiring and load compatibility. Test with a known good output.
- Communication Failure: Verify RS-422 cable pinout and baud rate settings. Ensure no ground loops.
- Program Loss: Replace buffer battery immediately and reload program from backup.
