Product Overview

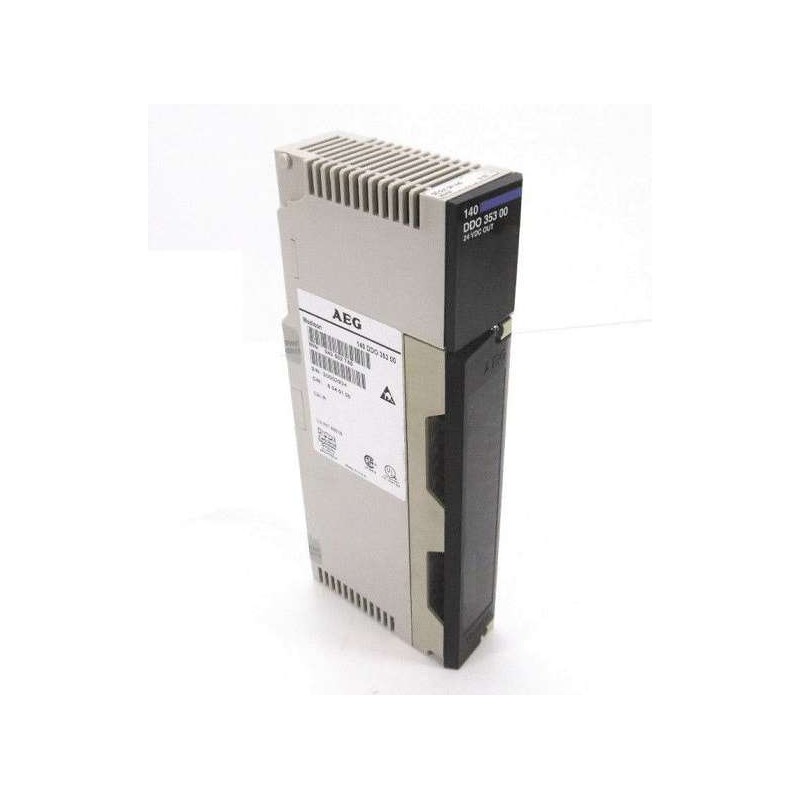

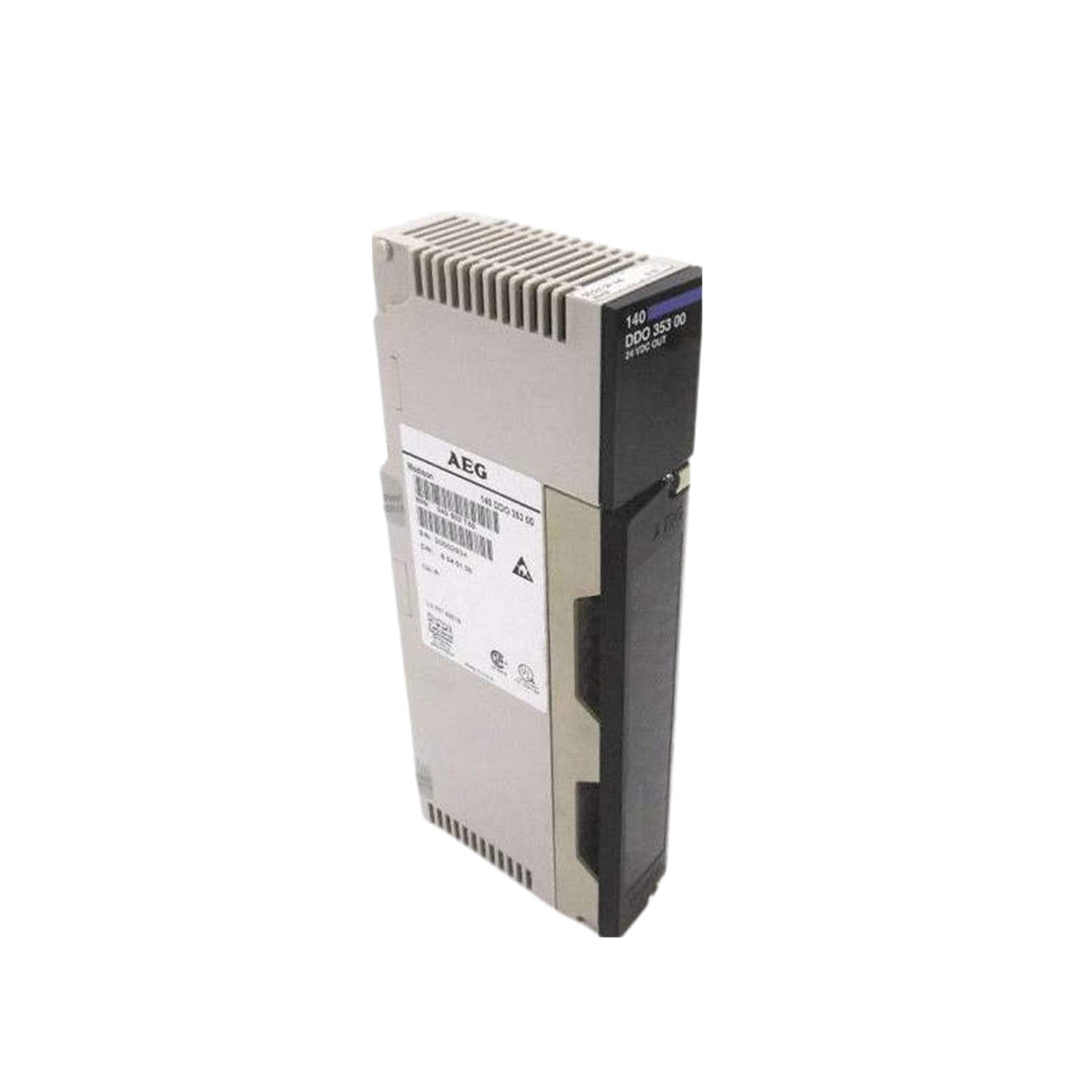

The Schneider Electric 140DDO35300C is a discrete output module designed for the Modicon Quantum automation platform. It provides 32 outputs organized into 4 groups of 8, each using positive source logic for straightforward control of solenoids, contactors, and indicator lights. This module is ideal for applications requiring reliable switching of 24V DC loads in industrial environments.
Technical Specifications Breakdown
Key parameters for the 140DDO35300C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Output Type | Discrete Outputs |
| Number of Outputs | 32 |
| Output Groups | 4 Groups |
| Output Logic | Positive Source Logic |
| Discrete Output Voltage | 24V DC |
| Output Voltage Limits | 19.2 to 30V DC |
| Maximum Load Current Per Module | 16 Amps |
| Maximum Load Current Per Group | 4 Amps |
| Addressing Requirement | 2 Output Words |
| CE Marked | Yes |
Industry Applications
This module is well-suited for discrete manufacturing lines, packaging machinery, and material handling systems where 24V DC actuators and sensors are common. Its 4-amp per group limit ensures safe distribution of load current across output banks, reducing the risk of overcurrent faults. For maintenance engineers, the positive source logic simplifies troubleshooting because the load is switched on the high side, making it easier to detect open circuits.
Installation & Setup Guidance
When installing the 140DDO35300C, ensure the backplane power is off. Insert the module into any standard slot of the Modicon Quantum rack. The module requires 2 output words for addressing; configure the I/O map accordingly in your programming software. Verify that the 24V DC supply is within the 19.2 to 30V DC limits before powering up. Each group is protected by a 5A fuse; confirm fuse integrity before commissioning.
Maintenance & Reliability
Periodically inspect the module's LED indicators: the green Active LED confirms bus communication, and the red Fault LED signals external faults like loss of field power or blown fuses. The module features conformal coating (Humiseal 1A33) for protection against moisture and contaminants. Operate within the ambient temperature range of 32 to 140 °F (0 to 60 °C) and maintain relative humidity below 95% without condensation to ensure long service life.
Compatibility & Integration
The 140DDO35300C integrates seamlessly with Modicon Quantum automation platforms. It uses positive source logic (sourcing outputs) and requires 2 output words for addressing. The module is compatible with standard Quantum backplanes and can be mixed with other I/O modules in the same rack. It is certified to UL 508 and CSA C22.2 No 142, ensuring compliance with North American industrial standards.
Selection Guide & Purchasing Advice
When selecting the 140DDO35300C, verify that your system requires 32 discrete outputs at 24V DC with positive source logic. If your application demands higher current per channel or different voltage levels, consider alternative modules. SpareTechPLC stocks this module and can provide lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If the module's Fault LED is red, check for loss of field power or a blown fuse. Each output point has a 3A fuse, and each group has a 5A fuse. Use a multimeter to verify 24V DC at the output terminals. If the Active LED is off, ensure the backplane bus is communicating and the module is properly seated. Response time is ≤1 ms for both state transitions, so fast switching applications are supported.
