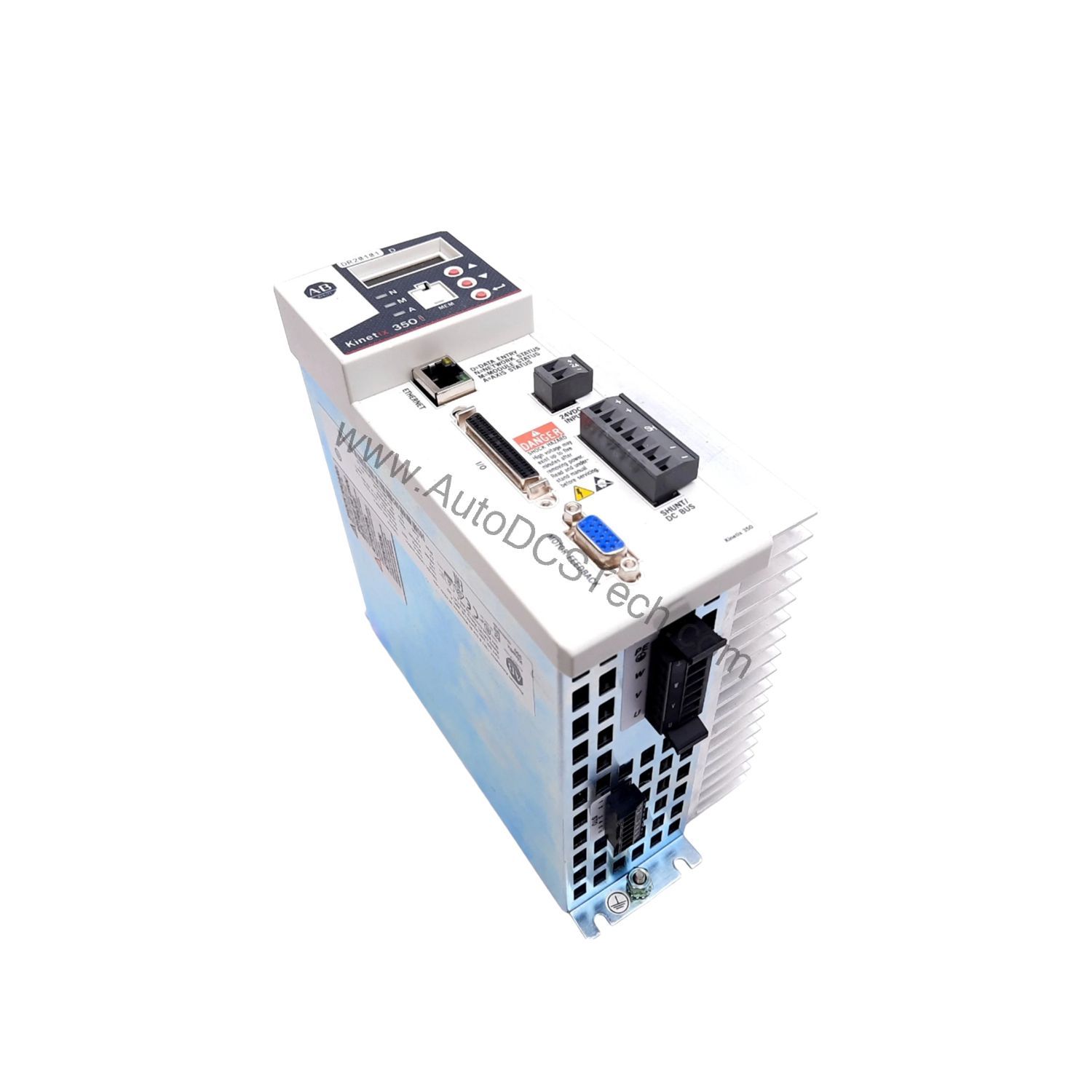

Technical Specifications Breakdown
Key parameters for the 2097-V33PR5-LM are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Voltage | 80-132VAC, 1-Phase; 80-264VAC, 1-Phase; 80-264VAC, 3-Phase |
| Input Frequency | 48…62 Hz |
| Continuous Output Current (rms) | 8.0 A |
| Continuous Output Current (0-pk) | 11.3 A |
| Peak Output Current (rms) | 24.0 A |
| Continuous Power Output | 2.00 kW |
| Safe Torque-Off | Yes |
| Dimensions | 9.37 x 7.29 x 4.1 in (238 x 186.1 x 104.1 mm) |
| Weight | 4.4 lbs (2.0 kg) |
Industry Applications for the Kinetix 350
Common uses include packaging machinery, labeling systems, and material handling equipment. The 2 kW power rating and 8.0 A continuous output current make it well-suited for indexing tables, conveyors, and pick-and-place stations. Engineers appreciate the EtherNet/IP connectivity for seamless integration into existing control networks, reducing commissioning time and improving data visibility.
Installation and Setup Guidance
Mount the drive in a clean, dry enclosure with adequate ventilation. The 2097-V33PR5-LM accepts multiple AC input configurations: single-phase 80-132VAC or 80-264VAC, and three-phase 80-264VAC. Ensure the supply voltage matches your facility’s nominal voltage. Use properly sized conductors and follow local electrical codes. The drive’s compact dimensions (9.37 x 7.29 x 4.1 in) allow for efficient panel layout. Configure parameters via the integrated EtherNet/IP interface using Rockwell Automation’s Studio 5000 environment.
Maintenance and Reliability
Periodically inspect the drive for dust accumulation and ensure cooling fans (if present) operate freely. Verify that all power connections remain tight. The drive’s Safe Torque-Off function provides a hardware-based safety stop, reducing risk during maintenance. For long-term reliability, operate within the specified input voltage and frequency ranges (48…62 Hz).

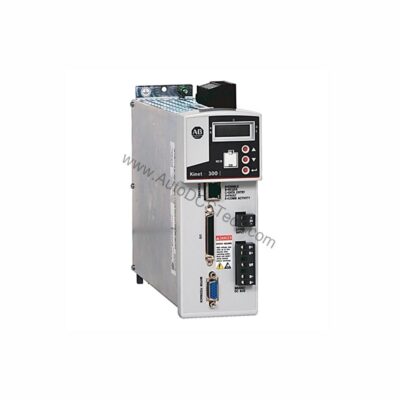

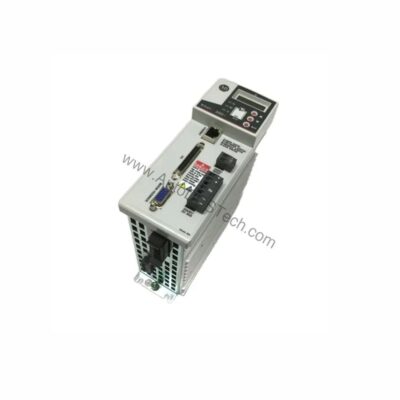

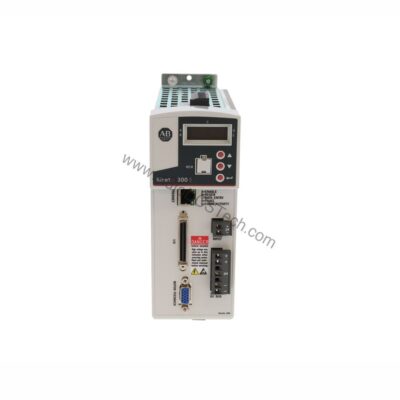

Reliable Single-Axis Motion Control with the Kinetix 350 Drive
This EtherNet/IP-based drive is engineered for straightforward integration into Rockwell Automation systems, offering a compact solution for applications requiring up to 2 kW of continuous power. With flexible AC input voltage support and built-in Safe Torque-Off, it provides both performance and safety in one package.

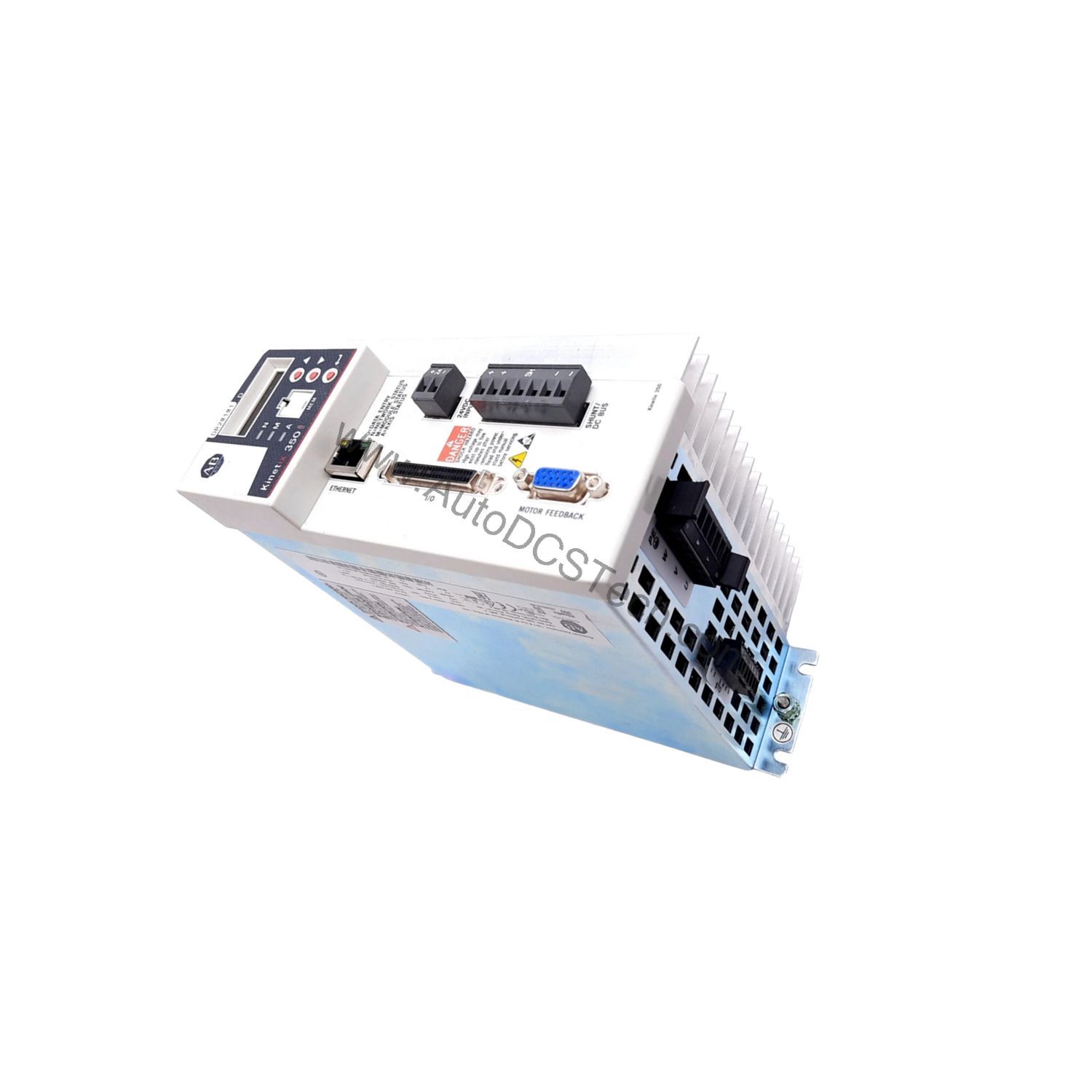

Compatibility and Integration
The 2097-V33PR5-LM is part of the Kinetix 350 family and communicates via EtherNet/IP. It integrates directly with Allen-Bradley CompactLogix and ControlLogix controllers. Use standard RJ45 cables for network connectivity. The drive supports indexing and point-to-point moves without a separate motion controller, simplifying system architecture.
Selection Guide and Purchasing Advice
When selecting a servo drive, match the continuous and peak current ratings to your motor’s requirements. The 2097-V33PR5-LM provides 8.0 A continuous (rms) and 24.0 A peak (rms), suitable for many 2 kW servo motors. For assistance with compatibility or lifecycle status, contact AutoDCSTech. Our team can verify stock and provide alternative options if needed.
Troubleshooting and Common Issues
If the drive fails to enable, check the Safe Torque-Off input wiring and ensure the control power back-up supply (20…26V DC) is present. For communication faults, verify EtherNet/IP cable integrity and IP address settings. Overcurrent faults may indicate a motor wiring issue or mechanical binding. Always consult the product manual for detailed fault codes and recovery procedures.
Availability & Condition at AutoDCSTech
| Part Number | 2097-V33PR5-LM |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
