The Evolution of Reliable Discrete Control

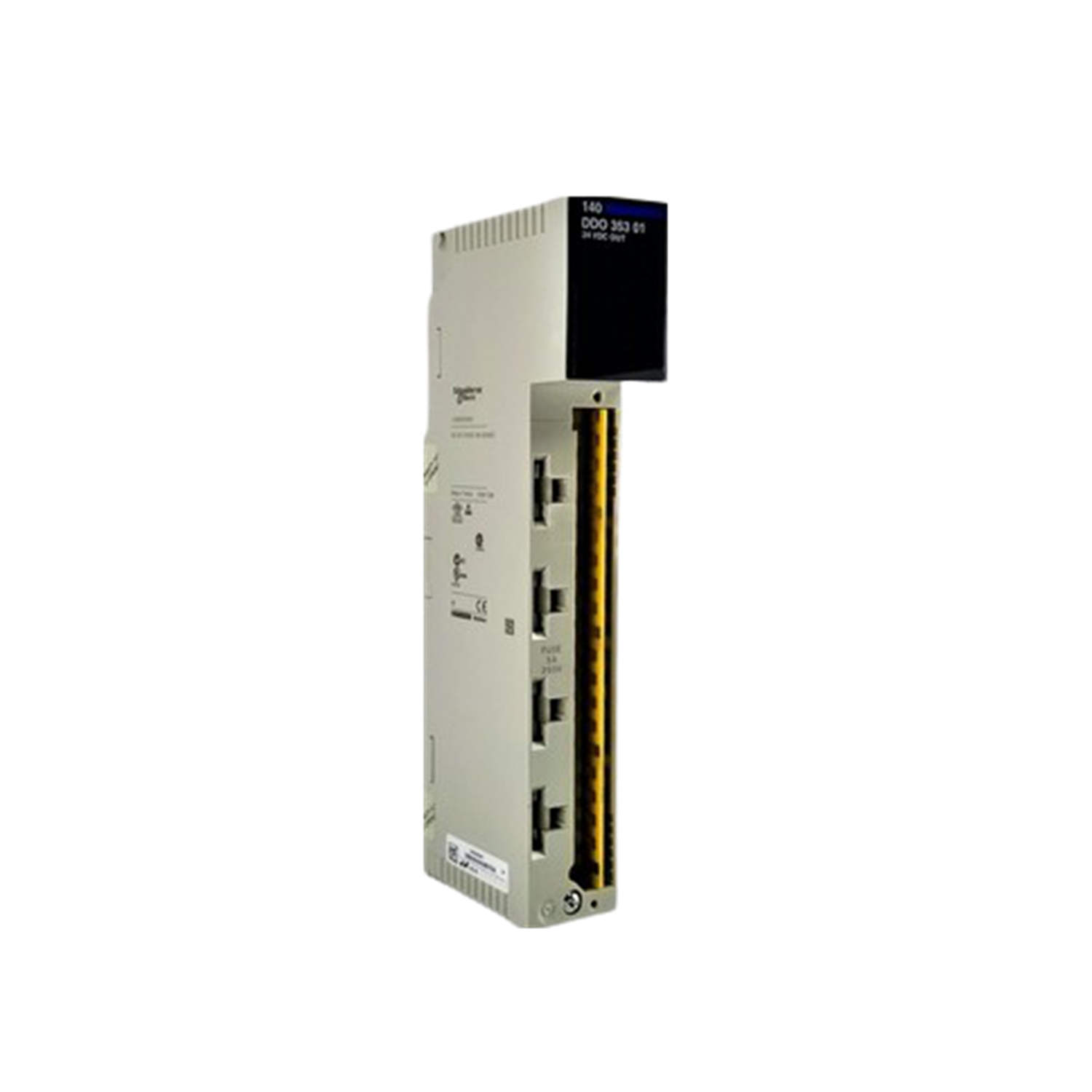

Industrial automation has progressed from simple relay panels to sophisticated programmable logic controllers. In this landscape, the discrete output module remains a critical link between the controller and field devices. The Schneider Electric 140DDO35301C, part of the Modicon Quantum series, exemplifies this evolution by offering 32 channels of robust, positive logic output at 24 V DC. For engineers seeking a dependable component for high-density switching applications, this module provides a proven solution.

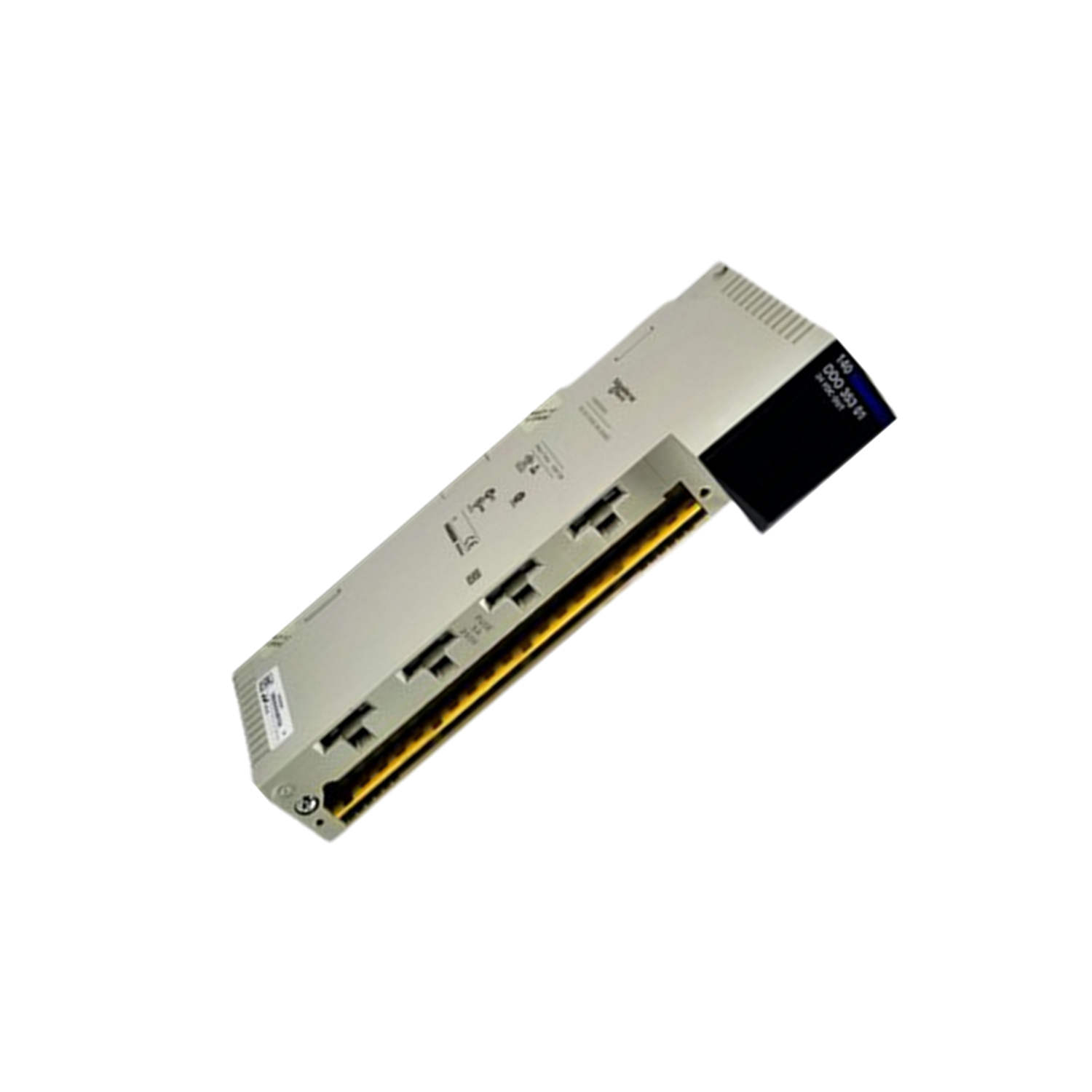

Technical Specifications Breakdown
Key parameters for the 140DDO35301C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Discrete output module |
| Product Line | Modicon Quantum |
| Part Number | 140DDO35301C |
| Output Channels | 32 |
| Output Type | Positive logic (source) |
| Output Voltage | 24 V DC |
| Surge Current | 2 A |
| Max Leakage Current | 1 mA |
| Power Dissipation | 5 W |
| Bus Current Requirement | 330 mA |
| Ambient Temperature (Operation) | 0 to 60 °C |
| Standards | UL 508, CSA |
| Protective Treatment | Conformal coating |
| Marking | CE |
Industry Applications
This module excels in applications requiring numerous 24 V DC outputs, such as conveyor system control, packaging machinery, and material handling. Its 32 channels allow efficient grouping of actuators like solenoids and indicator lights. The positive logic (source) output simplifies wiring in systems where the load is connected to ground. With a surge current capability of 2 A, it can handle inrush loads typical of electromechanical devices. The conformal coating enhances reliability in environments with humidity or mild contaminants, reducing failure rates and maintenance costs.
Installation & Setup Guidance
When installing the 140DDO35301C, ensure the Modicon Quantum backplane is powered off. Insert the module into any standard slot, aligning the guide rails. Secure it with the locking screws. The module requires 2 output words for addressing; configure the I/O mapping in your programming software accordingly. Verify the bus current requirement of 330 mA does not exceed the power supply capacity. For external wiring, use appropriate fuses per point (3 A) and per group (5 A) as per the module's internal protection design. Connect the 24 V DC field power to the designated terminals, observing polarity.
Maintenance & Reliability
The conformal coating provides a robust barrier against moisture and dust, extending service life in harsh conditions. Periodically inspect the module for any signs of physical damage or corrosion. The operating temperature range of 0 to 60 °C should be maintained; ensure adequate ventilation in the enclosure. The module's solid-state design minimizes wear, but routine checks of the associated fuses are recommended. If a blown fuse is indicated by the fault LED, replace it with the correct rating (3 A per point, 5 A per group) to avoid damage.
Compatibility & Integration
The 140DDO35301C integrates seamlessly into the Modicon Quantum automation platform. It communicates via the backplane bus, requiring no additional protocol converters. The standard format ensures compatibility with all Quantum racks and power supplies. For systems using other platforms, verify that the discrete output requirements match the module's specifications. The module is CE marked and complies with UL 508 and CSA standards, facilitating integration in global installations.
Selection Guide & Purchasing Advice
When selecting a discrete output module, consider channel count, voltage, and environmental protection. The 140DDO35301C offers 32 channels at 24 V DC with conformal coating, making it suitable for dense, reliable control. SpareTechPLC stocks this module and can assist with lifecycle status and availability. Contact us for pricing and lead times to ensure your project stays on schedule.
Troubleshooting & Common Issues
If outputs fail to energize, first check the field power supply and associated fuses. The module's fault LED (red) indicates a blown fuse or loss of field power. Verify the bus communication LED (green) is lit; if not, check backplane connection and addressing. High leakage current (above 1 mA) may indicate a damaged output; test with a multimeter. For surge current issues, ensure loads do not exceed 2 A per channel. The internal 5 A group fuses protect against overcurrent; replace only with specified ratings.
