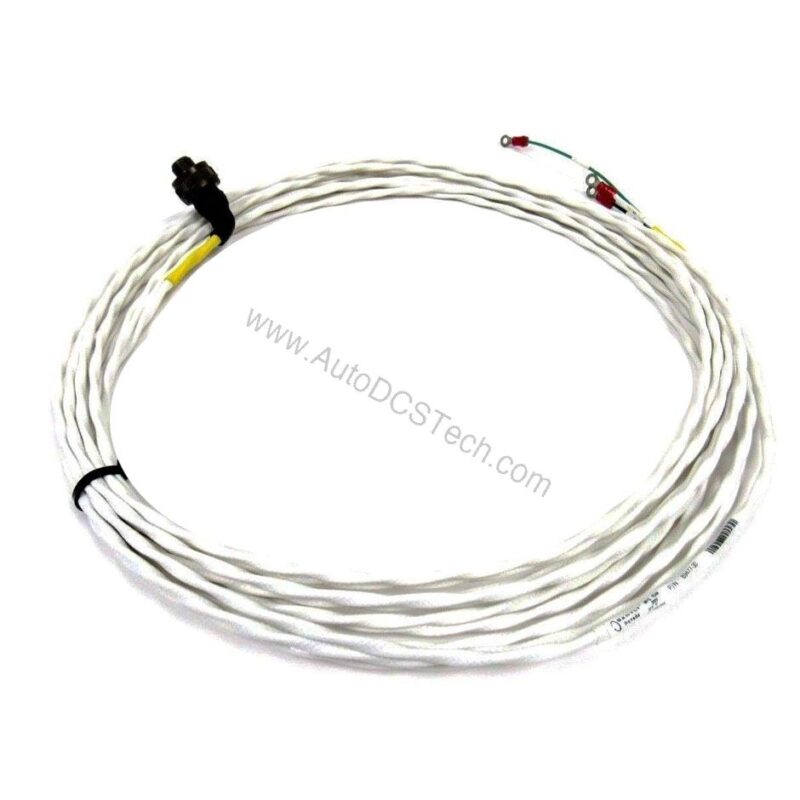

Introduction to the 89477-33 Interconnect Cable
When signal integrity is critical in industrial monitoring, the 89477-33 from Bently Nevada provides a dependable link between sensors and monitoring systems. This 33-foot interconnect cable is engineered to maintain signal quality over distance, reducing the risk of data corruption or loss. As part of the 89477 series, it is built to meet the rigorous demands of industrial environments.
Key Features and Technical Specifications

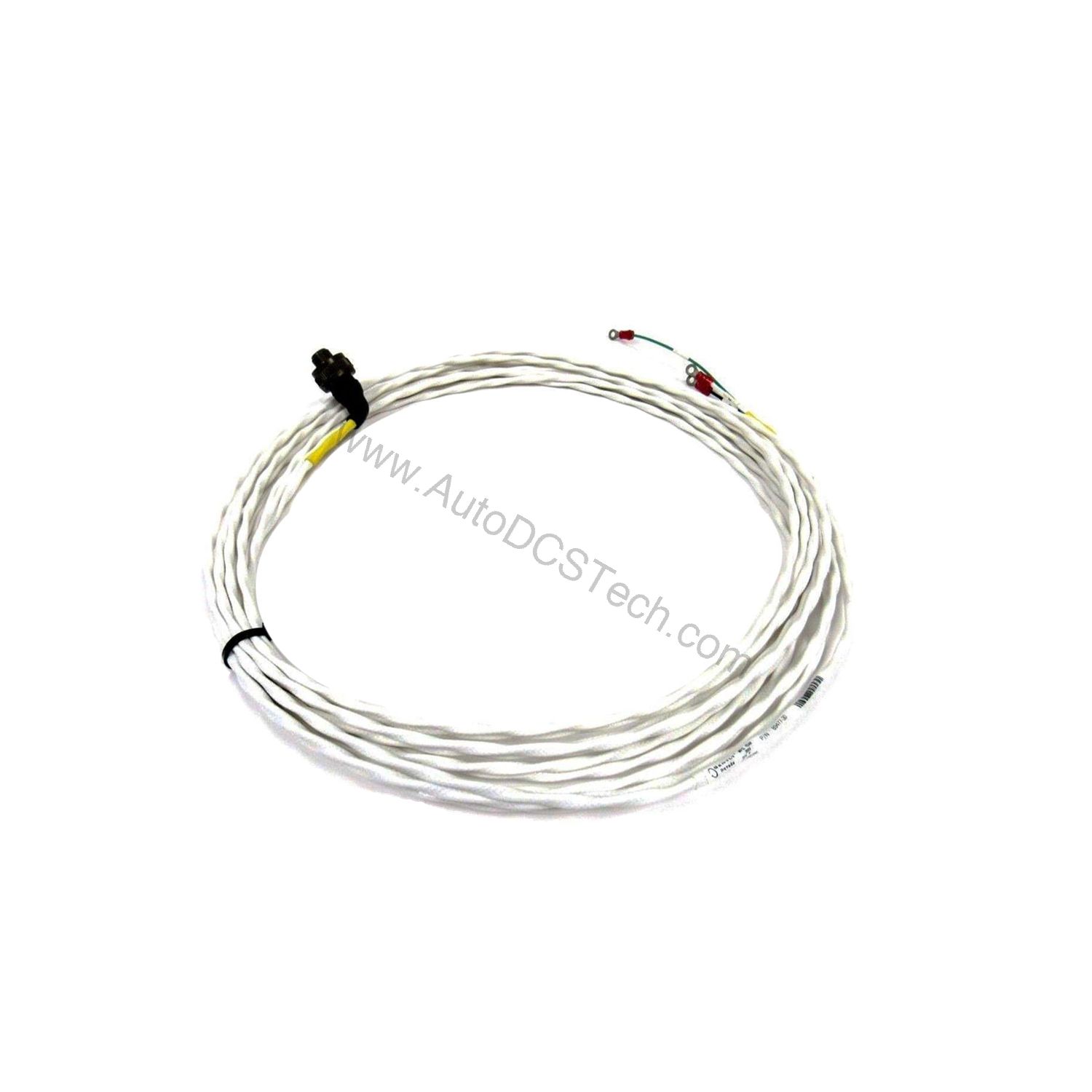

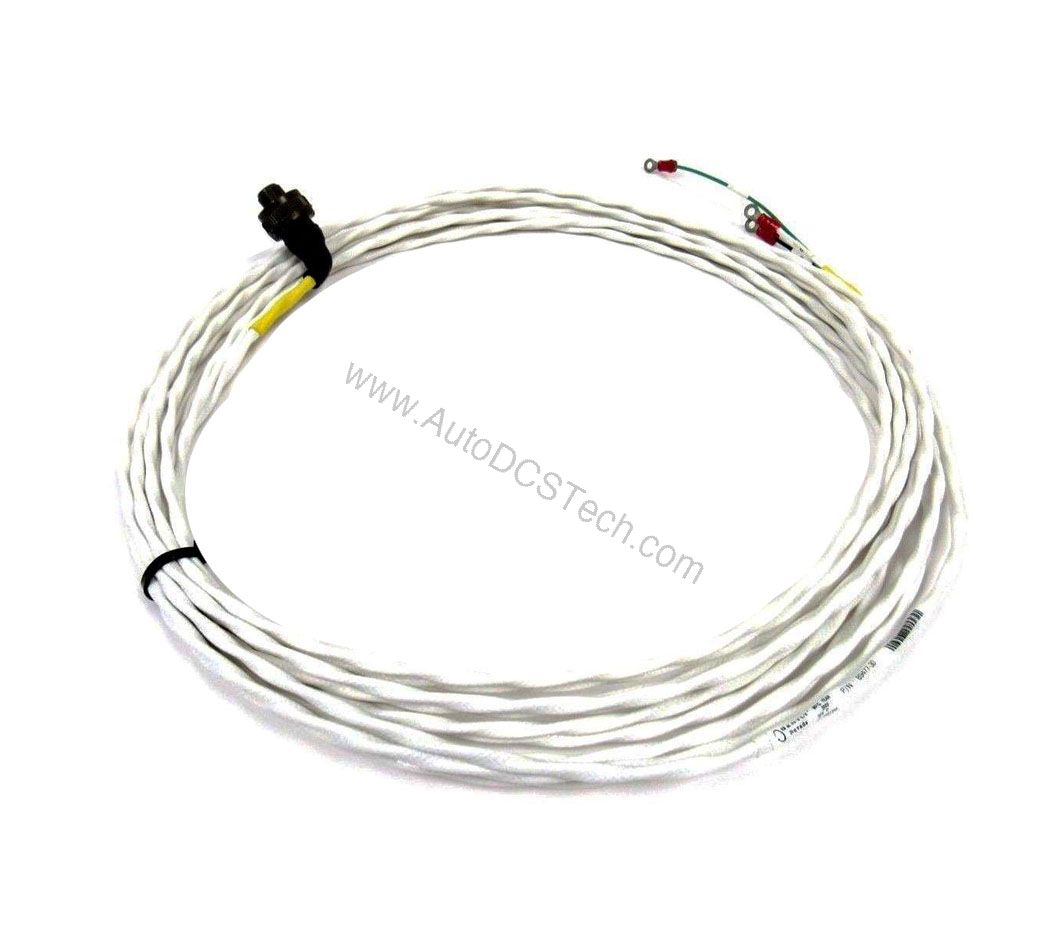

The 89477-33 is a two-conductor, 18 AWG twisted, shielded cable. This design minimizes electromagnetic interference, ensuring clean signal transmission. The cable features a right-angle two-socket plug at one end and terminal lugs at the other, facilitating secure connections in tight spaces. With a minimum length of 2.0 ft (0.6 m) and a maximum of 99 ft (30 m), the 89477-33 offers flexibility for various installation layouts.
- Model: 89477 Interconnect Cable
- Length: 33 ft (10.06 m)
- Conductor: Two-conductor, 18 AWG
- Shielding: Twisted, shielded
- Connector 1: Right-angle two-socket plug
- Connector 2: Terminal lugs
The 89477-33 is supplied as new and original in factory packing, backed by a 12-month factory warranty. This ensures reliability and peace of mind for critical applications.
Applications and Use Cases
The 89477-33 is ideal for connecting vibration sensors, proximity probes, and other monitoring devices in industrial machinery. Its shielded construction makes it suitable for environments with high electromagnetic noise, such as motor control centers and power generation plants. The right-angle plug allows for easy routing in confined spaces, while the terminal lugs provide a secure, solderless connection to terminal blocks. This cable is commonly used in rotating equipment monitoring, including turbines, compressors, and pumps.
Installation and Setup
When installing the 89477-33, ensure the right-angle plug is properly aligned with the sensor socket to avoid damaging the pins. Route the cable away from high-voltage lines and heat sources to maintain signal integrity. Use the terminal lugs for a secure connection to the monitoring system, and verify that the cable is not kinked or stressed at the connectors. For best performance, follow the manufacturer's guidelines for cable routing and strain relief.
Maintenance and Reliability
Regular inspection of the 89477-33 is recommended to ensure ongoing reliability. Check the cable for signs of wear, cuts, or abrasion, especially at connection points. Verify that the terminal lugs remain tight and free of corrosion. The shielded design helps prevent signal degradation, but periodic testing of the cable's continuity and insulation resistance can identify potential issues early. Following these practices extends the service life of the cable and maintains system accuracy.
Compatibility and Integration
The 89477-33 is designed for use with Bently Nevada monitoring systems and compatible sensors. Its two-conductor configuration supports standard signal transmission for vibration and position monitoring. The terminal lugs allow for straightforward integration with existing terminal blocks, making it a versatile choice for retrofits or new installations. For specific compatibility details, refer to the system's documentation or contact AutoDCSTech.
Troubleshooting Common Issues
If signal loss or noise is observed, first check the cable connections for looseness or corrosion. Verify that the cable is not routed near high-voltage sources. If the cable is damaged, replace it with a new 89477-33 to restore performance. For persistent issues, test the cable with a multimeter to check continuity and insulation resistance. If problems continue, consult the manufacturer's manual or contact AutoDCSTech for assistance.
Product Support and Availability
The 89477-33 is available from AutoDCSTech, a trusted supplier of industrial automation parts. It is in stock and ready to ship, ensuring minimal downtime for your operations. For ordering or technical inquiries, contact AutoDCSTech for prompt assistance.
