Introduction to the 89477-30 Interconnect Cable
When signal integrity is critical in industrial monitoring, the 89477-30 from Bently Nevada delivers a dependable link. This interconnect cable is engineered for precise data transmission between sensors and monitoring equipment. Its robust construction minimizes signal degradation, making it a trusted choice for demanding environments.
Key Features and Technical Specifications

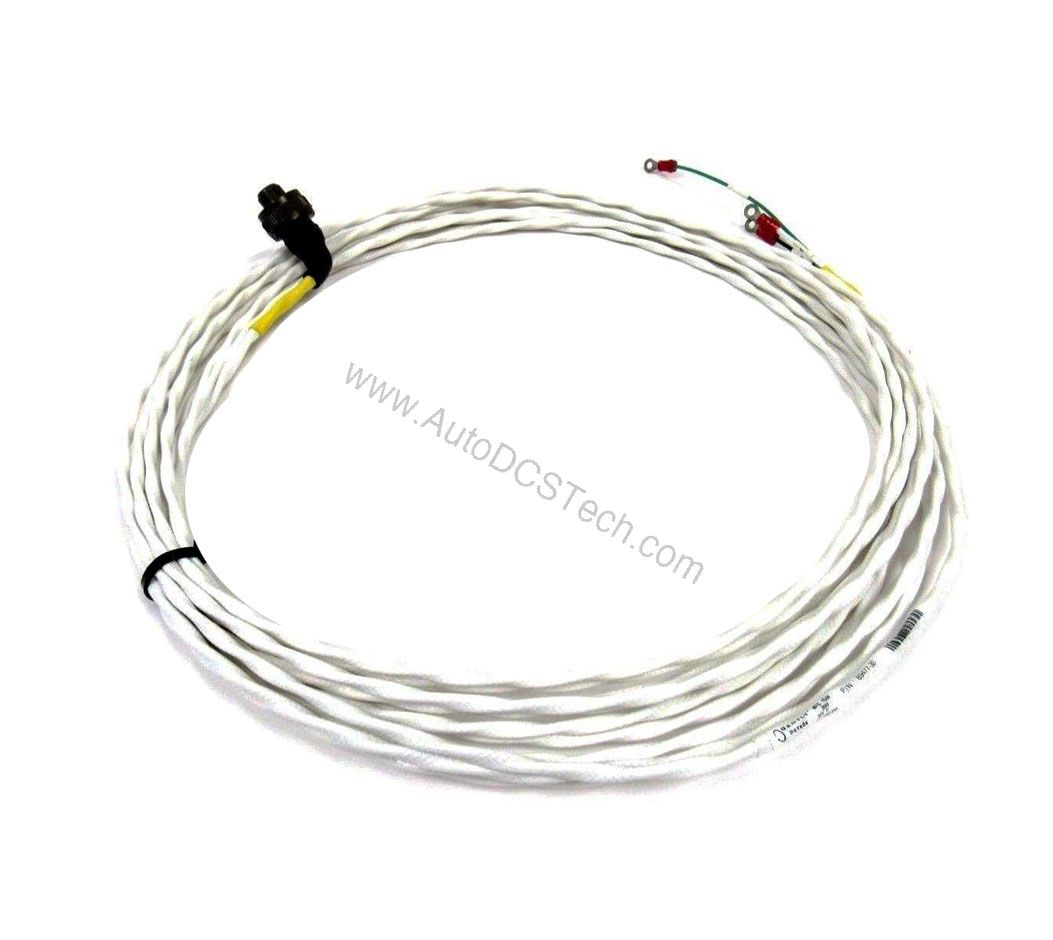

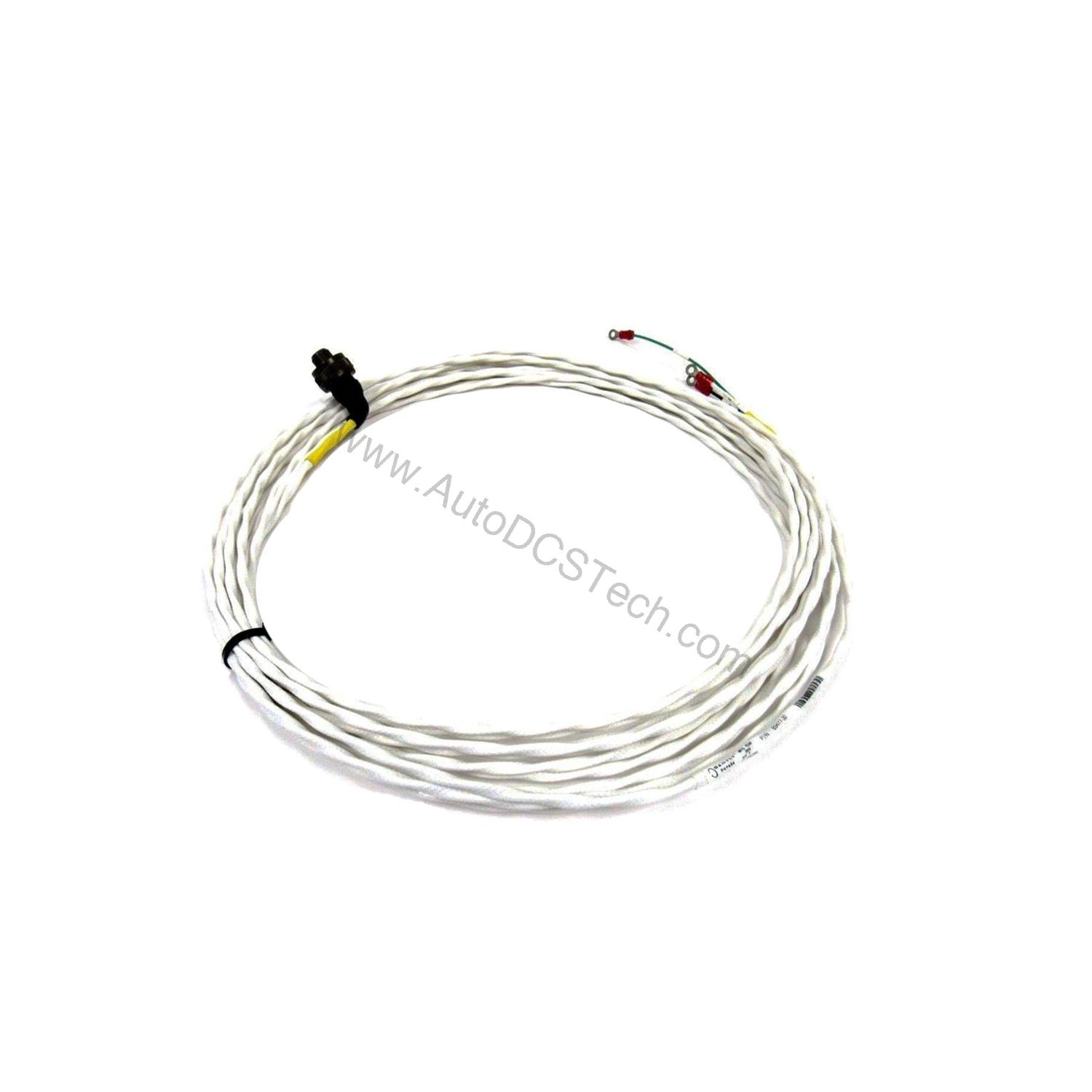

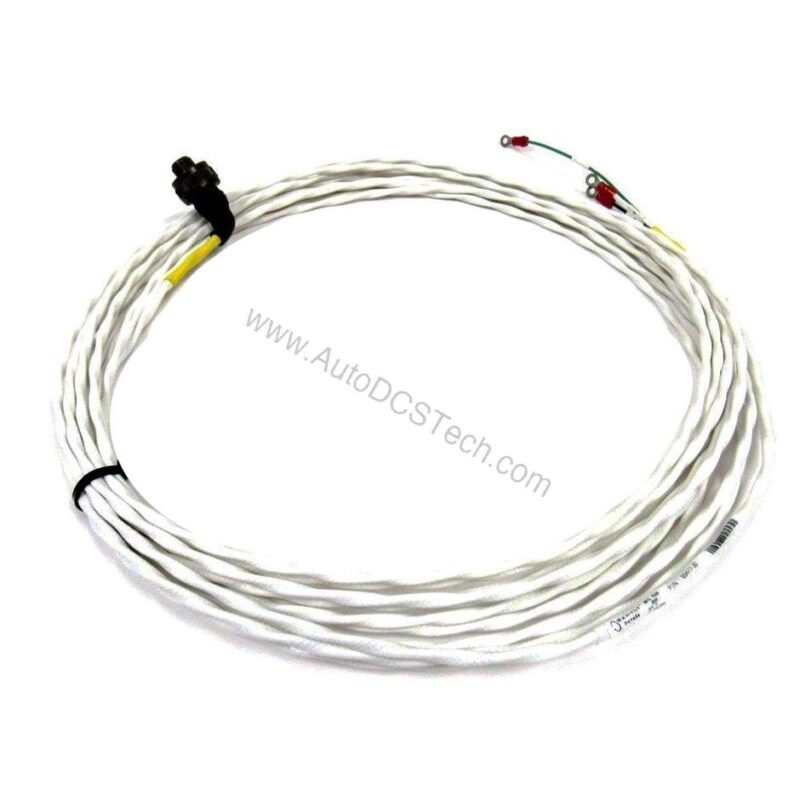

The 89477-30 is a two-conductor, 18 AWG twisted, shielded cable. It comes with a right-angle two-socket plug at one end and terminal lugs at the other, facilitating secure connections. The cable length is 30 ft, with a minimum available length of 2.0 ft (0.6 m) and a maximum of 99 ft (30 m). This flexibility allows for tailored installations.
- Two-conductor 18 AWG twisted, shielded cable for noise reduction.
- Right-angle two-socket plug ensures compact routing.
- Terminal lugs provide reliable termination points.
- Available lengths from 2.0 ft to 99 ft to suit various layouts.
Applications and Use Cases
The 89477-30 is ideal for connecting vibration sensors and proximity probes to monitoring systems in rotating machinery. It is commonly used in turbines, compressors, and pumps where accurate signal transmission is essential. Its shielded design helps prevent electromagnetic interference, ensuring consistent performance. For retrofit projects, this cable offers a straightforward upgrade path.
Installation and Setup
Installing the 89477-30 is straightforward. Connect the right-angle plug to the sensor or instrument, and secure the terminal lugs to the corresponding terminals. Ensure the cable is routed away from high-voltage lines to maintain signal quality. The 30 ft length provides ample reach for most installations.
Maintenance and Reliability
Regular inspection of the cable for wear or damage is recommended to maintain optimal performance. The shielded construction protects against environmental noise, contributing to long-term reliability. Periodic checks of the connections can prevent intermittent faults.
Compatibility and Integration
The 89477-30 is designed for use with Bently Nevada monitoring systems. Its two-conductor configuration is compatible with standard sensor interfaces. For specific integration details, consult the system manual or contact AutoDCSTech.
Troubleshooting Common Issues
If signal loss occurs, verify the cable connections are secure and the cable is not damaged. Check for proper routing away from interference sources. If issues persist, test with a known-good cable to isolate the problem.
Availability
The 89477-30 is available from AutoDCSTech. Contact us for current stock and delivery options.
