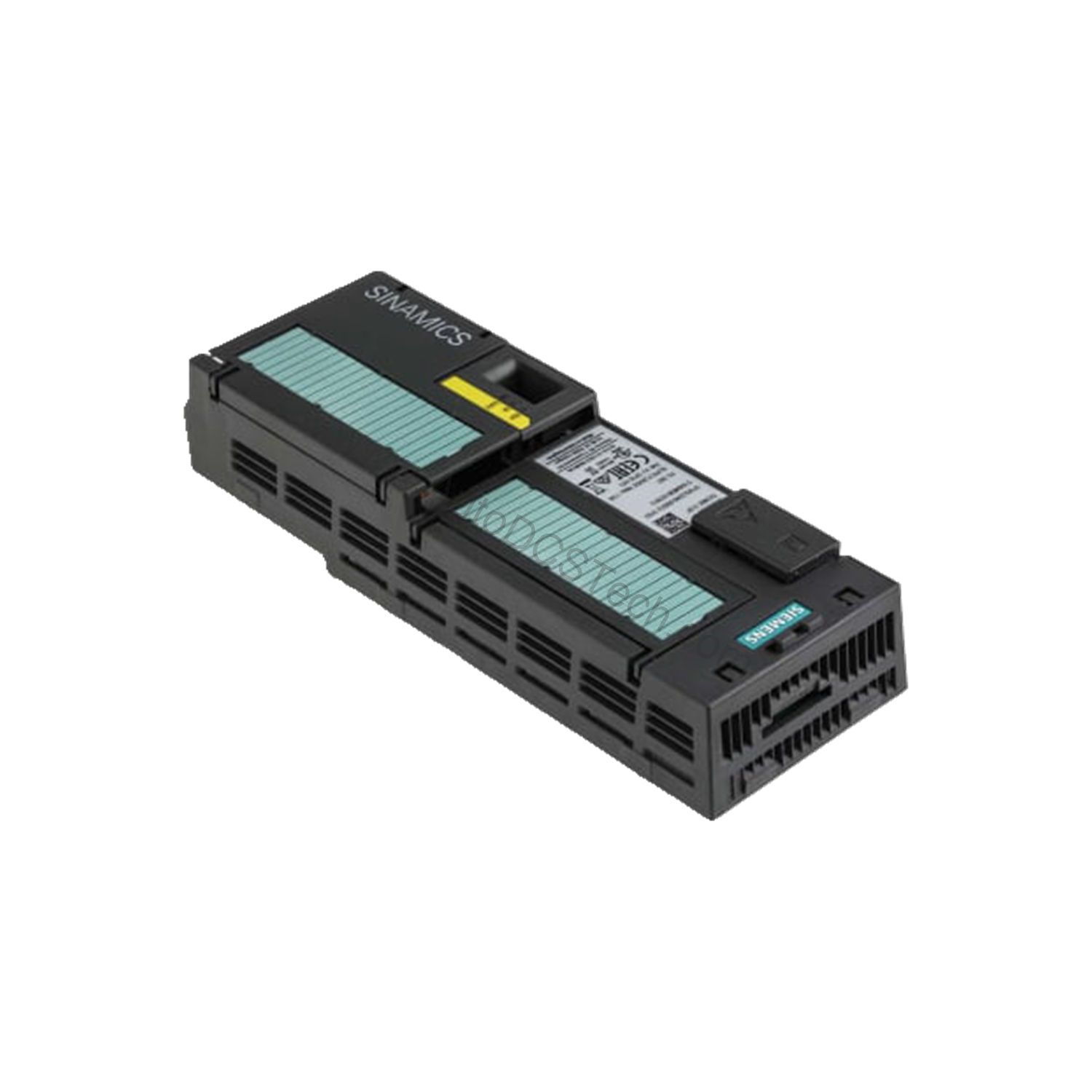

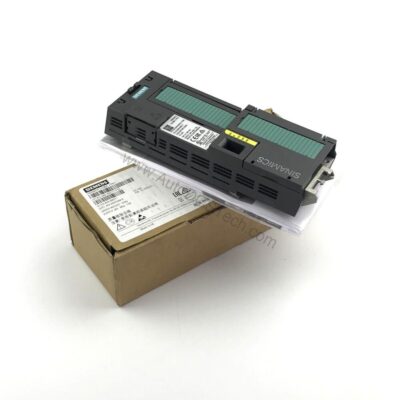

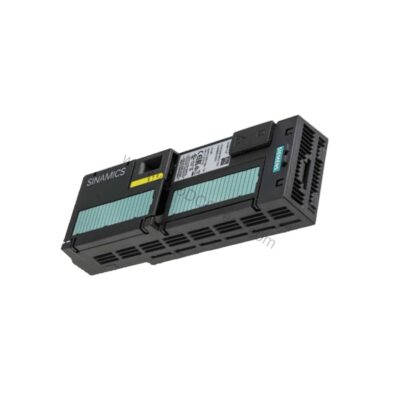

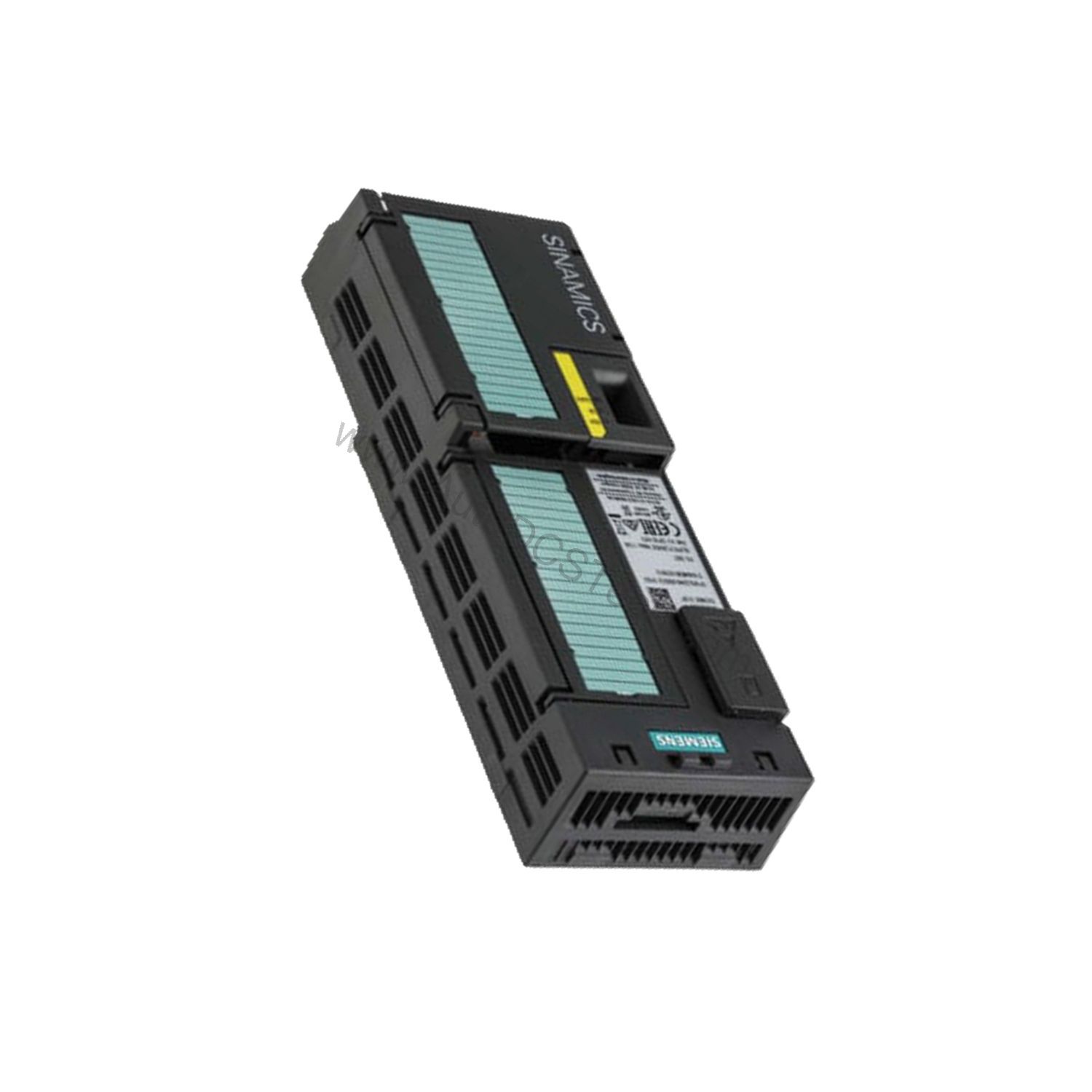

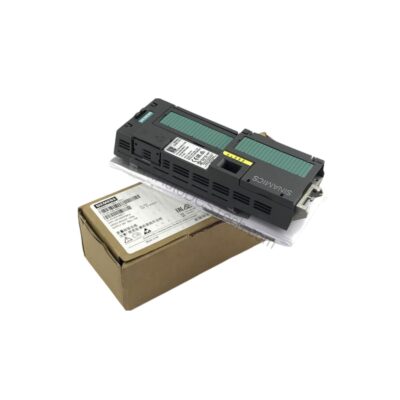

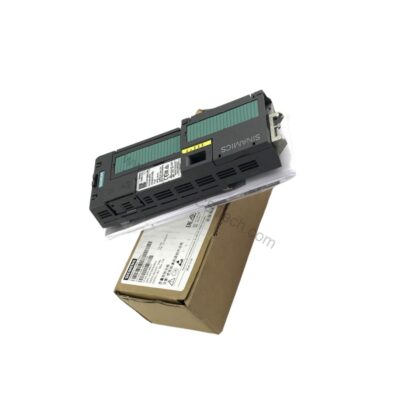

6SL3244-0BB13-1FA0 SINAMICS CU240E-2 PN-F Control Unit

Introduction to the 6SL3244-0BB13-1FA0

This SINAMICS CU240E-2 PN-F control unit is engineered to handle complex drive tasks with precision. It supports a wide operating voltage range via the Power Module at DC 24 V, or an external supply from DC 20 to 29 V. With a maximum power consumption of 0.50 A and a power loss of 5.50 W, it operates efficiently in demanding industrial environments.

Key Features and Technical Specifications

The 6SL3244-0BB13-1FA0 offers a robust set of I/O and communication features that make it a versatile choice for modern drive systems.

• Communication via PROFINET and EtherNet/IP for seamless integration.
• 6 standard digital inputs with switching levels: 0→1 at 11 V and 1→0 at 5 V.
• 1 fail-safe digital input (using 2 × DI standard) for safety applications.
• 2 digital outputs as relay changers.
• 2 analog/digital inputs (differential input) and 2 analog outputs (non-isolated).
• Closed-loop control techniques include V/f linear, V/f with flux current control (FCC), V/f ECO, sensorless vector control, and encoderless torque control.
• Ambient temperature range: -10 to 55 °C (14 to 131 °F) for operation; storage from -40 to 70 °C (-40 to 158 °F).
• Relative humidity max 95% during operation.
• Degree of protection IP20 / UL open type.
• Net weight 0.49 kg (1.08 lb); dimensions: 73.0 mm width, 199.0 mm height, 46.0 mm depth.
• Complies with CE, UL, cUL, RCM, and SEMI F47 standards.

One standout feature is the fail-safe digital input, which enhances safety without compromising on flexibility. This allows engineers to implement safety functions while using standard digital inputs for normal operation.

Installation and Setup

Proper installation is critical for optimal performance. The 6SL3244-0BB13-1FA0 is designed for panel mounting with a compact footprint. Ensure adequate clearance for ventilation and cable routing. The signal cable conductor cross-section ranges from 0.05 to 1.50 mm² (AWG 28 to AWG 16), providing flexibility for various wiring needs. Always follow the Siemens installation manual for detailed wiring and mounting instructions.

Maintenance and Reliability

To maintain long-term reliability, periodic inspection of the control unit is recommended. Check for dust accumulation on the enclosure and ensure that ambient temperature stays within the specified range. The IP20 protection rating means it should be installed in a clean, dry environment. Regular verification of the fail-safe input functionality, as per the manufacturer's safety manual, helps ensure continued safe operation.

Compatibility and Integration

The 6SL3244-0BB13-1FA0This makes it suitable for a wide range of industrial applications, from conveyors to pumps and fans. Its sensorless vector control capability allows for motor control without an encoder, reducing system cost and complexity.

Troubleshooting Common Issues

If communication issues arise, verify the network settings and cable connections. For input signal problems, check the switching levels: ensure that the voltage for a 0→1 transition is at least 11 V and for 1→0 is below 5 V. If the fail-safe input triggers unexpectedly, review the safety logic and wiring. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 6SL3244-0BB13-1FA0 is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
