6XV1870-8AH50 Overview

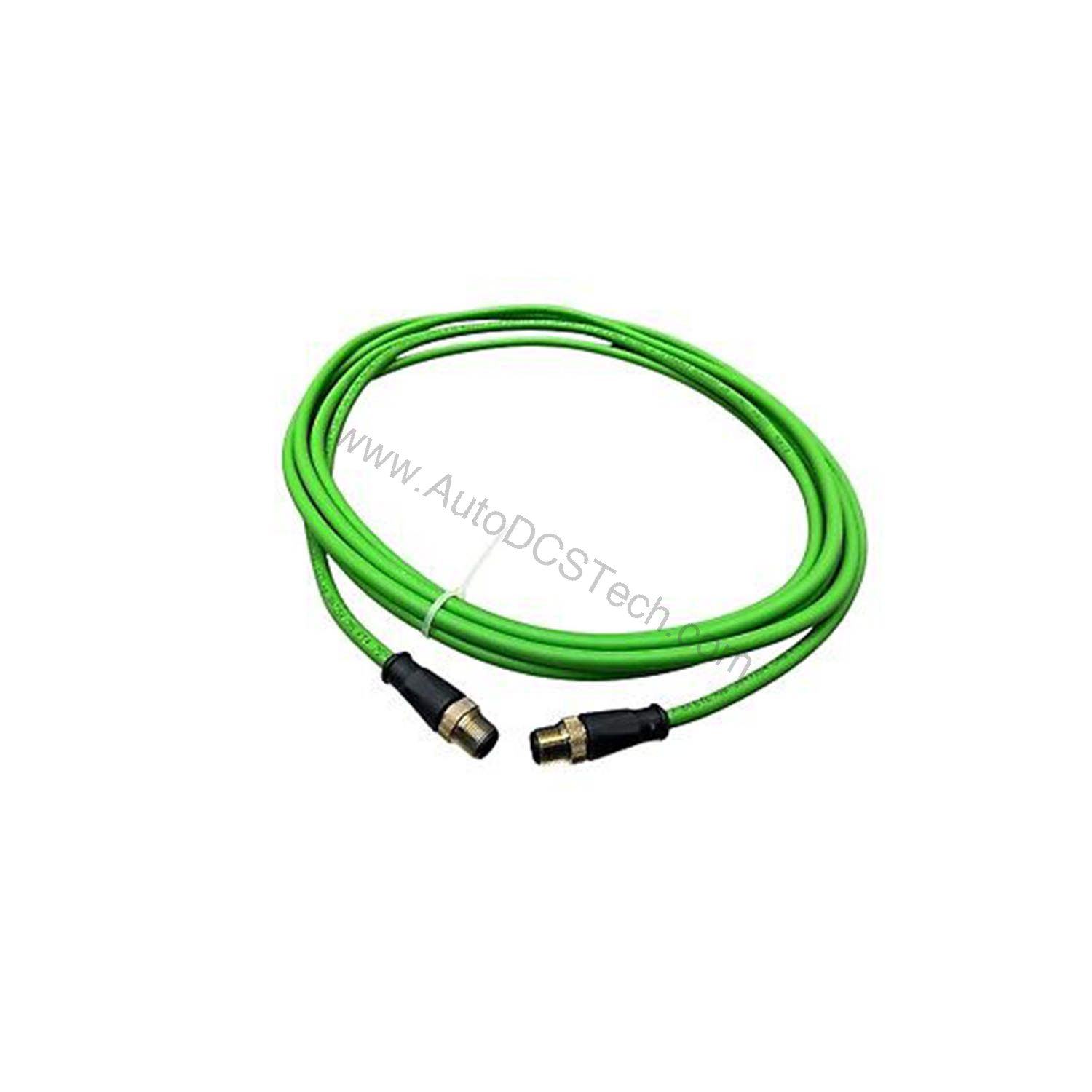

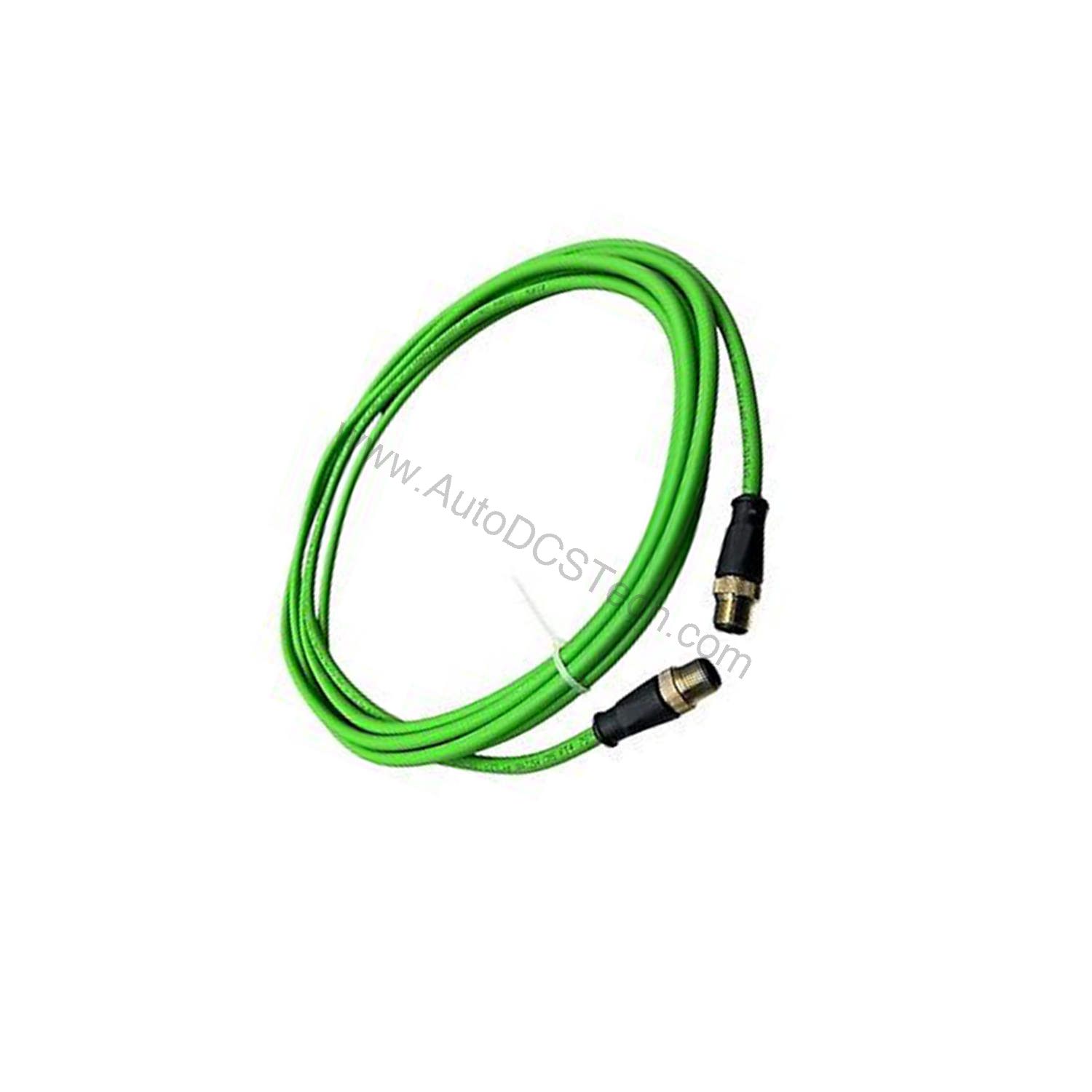

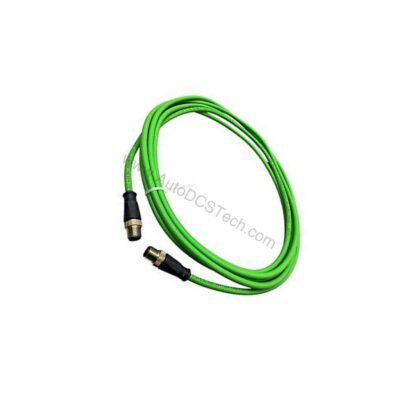

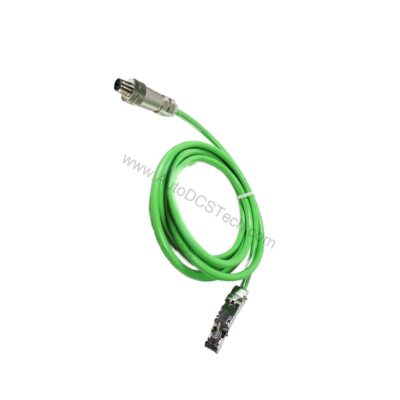

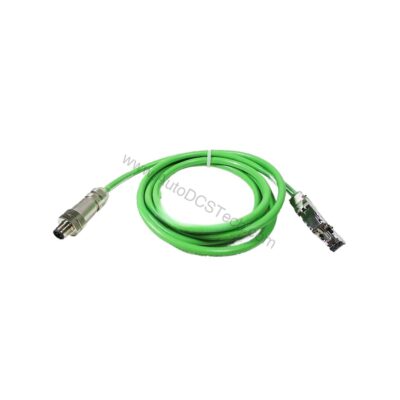

When network reliability in harsh industrial settings is non-negotiable, the 6XV1870-8AH50 delivers a pre-assembled, flexible cabling solution. This Siemens Industrial Ethernet connecting cable is designed for IP65/67-protected stations such as SIMATIC ET200 and SCALANCE XP-200. With a 5-meter length and two 4-pole M12 connectors (D-coded, 180° cable outlet), it simplifies installation while ensuring robust data transmission.
Key Features and Technical Specifications
- Length: 5.0 m pre-assembled with two M12 connectors.
- Connector type: 4-pole, D-coded, 180° cable outlet, screw locking.
- Cable design: 2YY (ST) CY 2x2x0.75/1.5-100 LI GN, 4 cores.
- Shielding: Overlapped aluminum-clad foil plus braided screen of tin-plated copper wires.
- Impedance: 100 Ω at 1 MHz to 100 MHz.
- Attenuation: ≤0.063 dB/m at 10 MHz; ≤0.213 dB/m at 100 MHz.
- Operating voltage: 80 V RMS.
- Bending cycles: 3,000,000 (drag chain suitable).
- Temperature range: -25 °C to +75 °C (operation, storage, transport).
- Protection class: IP65, IP67.
Applications and Use Cases
For example, it links ET200 I/O modules to SCALANCE XP-200 switches in outdoor or wash-down areas. Its drag-chain capability suits continuous flexing applications, such as robotic arms or moving machine parts. The robust shield maintains signal integrity in electrically noisy plants.
Installation and Setup
Because the cable is pre-assembled with M12 connectors, installation is straightforward. Simply plug the connectors into the D-coded ports and tighten the screw locking. Ensure the bending radius does not fall below 32.5 mm for single bends or 49 mm for multiple bends. For continuous flexing, maintain a radius of at least 100 mm.
Maintenance and Reliability
With a flame-resistant outer sheath (UL 1685 / CSA FT4) and UV resistance, the 6XV1870-8AH50 is built for long service life. The cable withstands up to 3 million bending cycles at 100 mm radius, 4 m/s speed, and 4 m/s² acceleration. Periodic inspection of the connectors and cable for wear is recommended, especially in high-flex applications.
Compatibility and Integration
This cable is designed for Industrial Ethernet networks, specifically for SIMATIC ET200 and SCALANCE XP-200 devices. It supports Cat5e structured cabling standards. The D-coded M12 connectors ensure proper mating with industrial switches and I/O modules.
Troubleshooting and Common Issues
If signal loss occurs, check the connector locking and verify the cable is not bent beyond its minimum radius. For flexing applications, ensure the cable is not twisted. If the cable is exposed to chemicals, note that it has conditional resistance to mineral oil and grease.
Product Support and Availability
Contact AutoDCSTech for current availability and lifecycle status of the 6XV1870-8AH50. Our team can provide technical support and ensure you receive genuine Siemens components.
Comparison with Similar Cables
Compared to standard Ethernet patch cords, the 6XV1870-8AH50 offers superior shielding and mechanical endurance. Unlike fixed-installation cables, it supports continuous flexing. Its IP65/67 rating makes it suitable for direct exposure to dust and water, which many office-grade cables cannot handle.
Availability & Condition at AutoDCSTech
| Part Number | 6XV1870-8AH50 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
