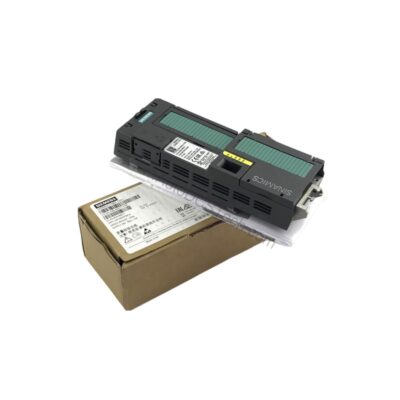

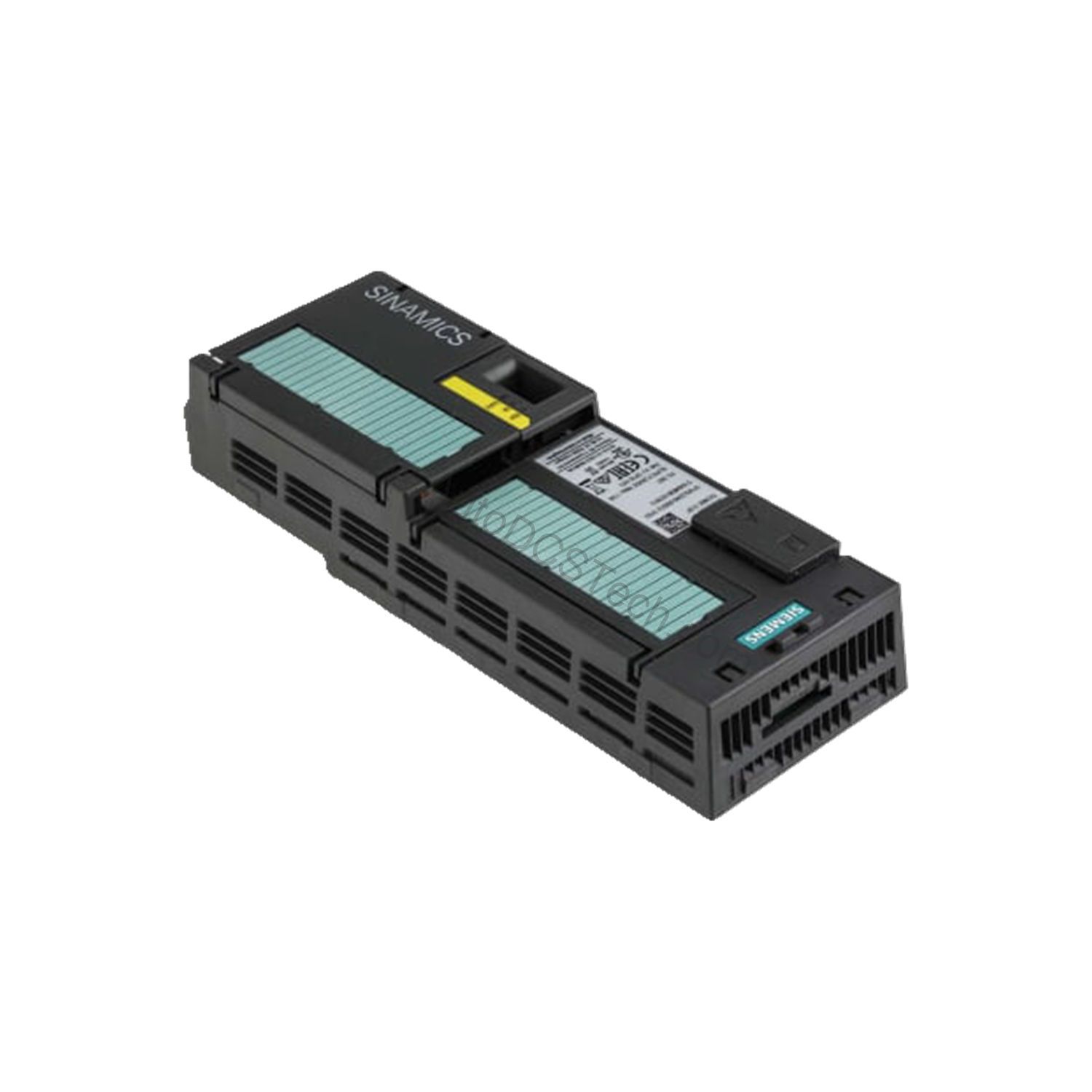

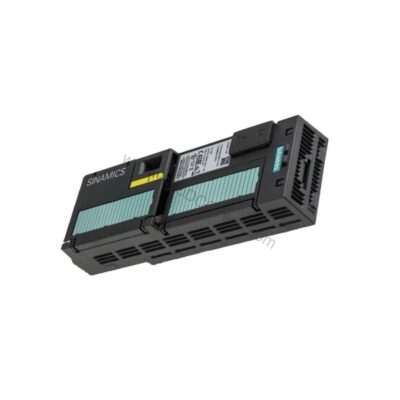

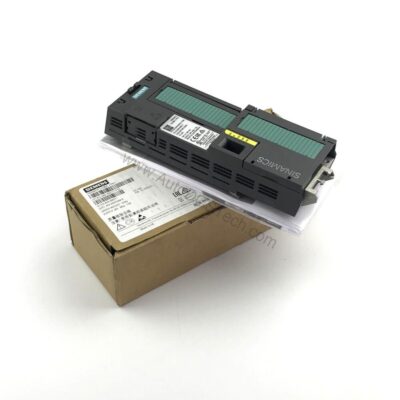

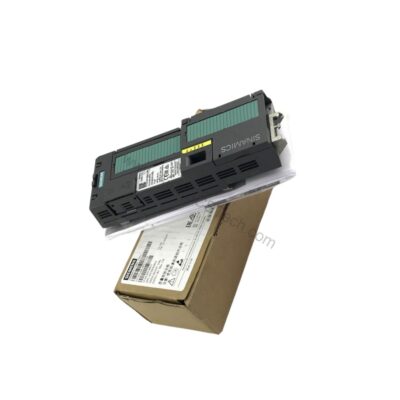

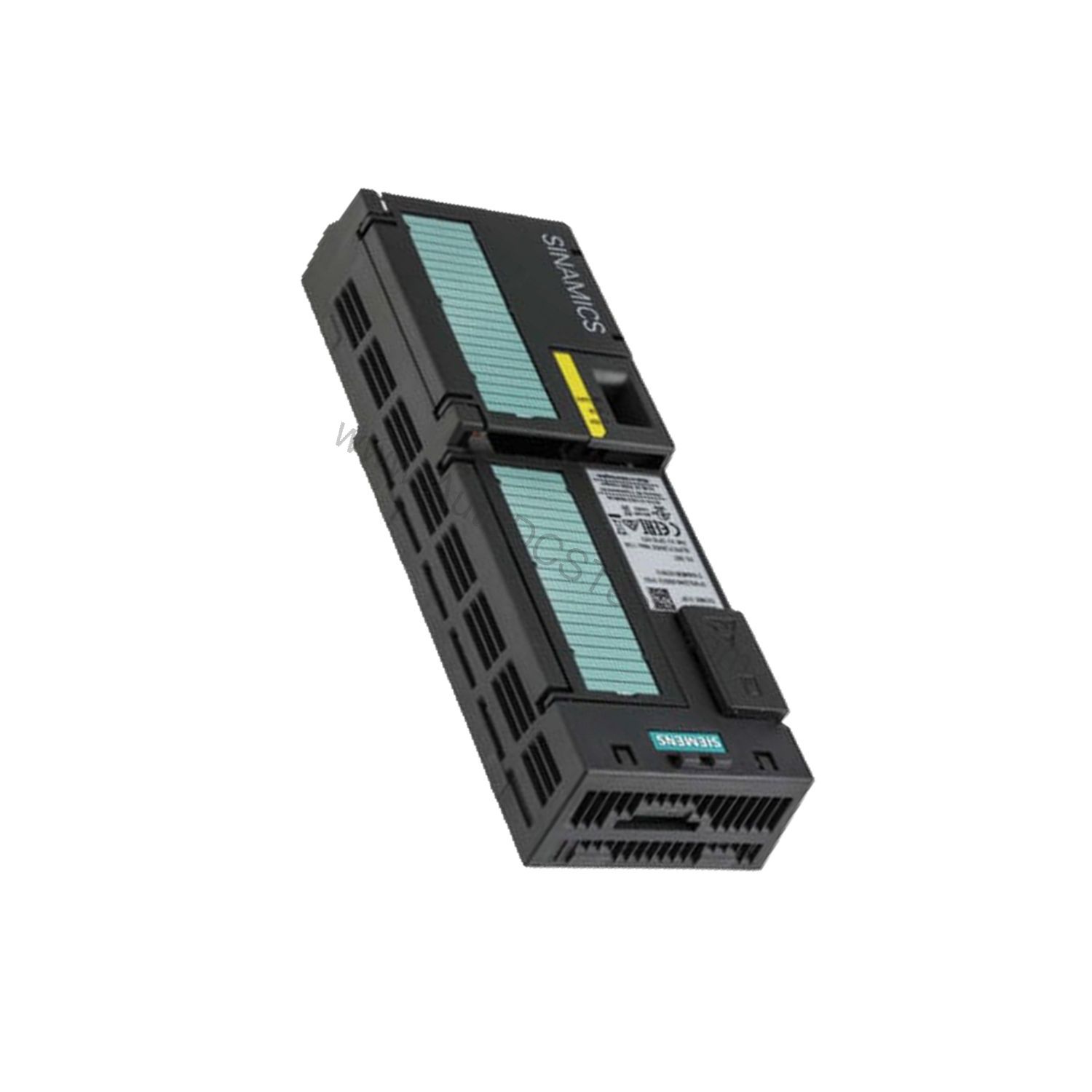

6SL3244-0BB13-1PA1 Siemens SINAMICS G120 CU240E-2 DP-F Control Unit

Introduction to the 6SL3244-0BB13-1PA1

When a control unit fails in a production line, downtime costs escalate quickly. The 6SL3244-0BB13-1PA1 from Siemens provides a dependable solution for SINAMICS G120 drives. This CU240E-2 DP-F Control Unit integrates safety functions and fieldbus communication in a compact design.

Part of the SINAMICS G120 family, this E-type Control Unit supports Safety Integrated STO (Safe Torque Off) and F-type functions including SS1, SLS, SSM, and SDI. It communicates via PROFIBUS DP, making it suitable for existing industrial networks.

Key Features and Technical Specifications

The 6SL3244-0BB13-1PA1 is engineered for precise motor control and safety. Its technical parameters are listed below:

• Control Unit Type: CU240E-2 DP-F
• Safety Functions: STO, SS1, SLS, SSM, SDI
• Communication: PROFIBUS DP
• Digital Inputs: 6 DI
• Digital Outputs: 3 DQ
• Analog Inputs: 2 AI
• Analog Outputs: 2 AQ
• Safety Inputs: Max. 3 F-DI
• Interfaces: PTC/KTY, USB, SD/MMC
• Degree of Protection: IP20
• Ambient Temperature: 0 to +50 °C

These specifications ensure reliable operation in industrial environments. The integrated safety functions help reduce machine risk without external components.

Installation and Setup

Mounting the 6SL3244-0BB13-1PA1 is straightforward. Ensure the control unit is installed in a clean, dry enclosure with adequate ventilation. Connect the PROFIBUS DP cable to the designated terminal. Wire the digital and analog I/O according to your application needs. For safety functions, follow the wiring diagrams in the official SINAMICS G120 manual.

Before power-up, verify all connections and set the correct PROFIBUS address. Use the integrated USB interface for commissioning via SINAMICS Startdrive or STARTER software.

Maintenance and Reliability

Regular inspection of the 6SL3244-0BB13-1PA1 ensures long-term performance. Check for dust accumulation on the enclosure and ensure cooling fans (if any) operate correctly. Verify that all connectors are secure and free from corrosion.

The ambient temperature range of 0 to +50 °C should be maintained. Avoid exposing the unit to excessive heat or moisture. Periodic firmware updates can enhance functionality and security.

Solving Engineering Challenges

Safety Integration

Traditional safety circuits require additional relays and wiring. The 6SL3244-0BB13-1PA1 simplifies this by embedding safety functions directly into the control unit. This reduces complexity and improves response times.

Fieldbus Communication

PROFIBUS DP connectivity allows seamless integration into existing automation systems. Engineers can monitor and control the drive remotely, reducing manual intervention.

Environmental Resilience

With an IP20 rating and an operating range of 0 to +50 °C, this control unit is built for typical industrial cabinets. It withstands moderate dust and temperature variations.

Compatibility and Integration

The 6SL3244-0BB13-1PA1 is designed for use with SINAMICS G120 Power Modules. It supports PROFIBUS DP networks, enabling integration with Siemens PLCs and third-party controllers. The USB and SD/MMC interfaces simplify data transfer and firmware updates.

For applications requiring safety, the integrated F-DI inputs allow connection of safety sensors. This eliminates the need for a separate safety PLC in many cases.

Common Issues and Troubleshooting

If the control unit does not communicate on PROFIBUS, check the network address and termination resistors. Verify that the PROFIBUS cable is properly shielded and grounded.

If safety functions do not activate, confirm that the F-DI inputs are correctly wired and that the safety parameters are configured in the drive. Refer to the SINAMICS G120 safety manual for detailed diagnostics.

Product Support and Availability

The 6SL3244-0BB13-1PA1 is available from AutoDCSTech. As a standard stock item, it can be returned within the returns guidelines. Contact AutoDCSTech for current availability and lifecycle status.
