Introduction to the Siemens 6SL3060-4AF00-0AA0 DRIVE-CLIQ Cable

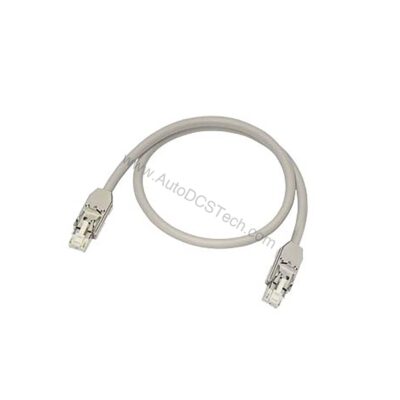

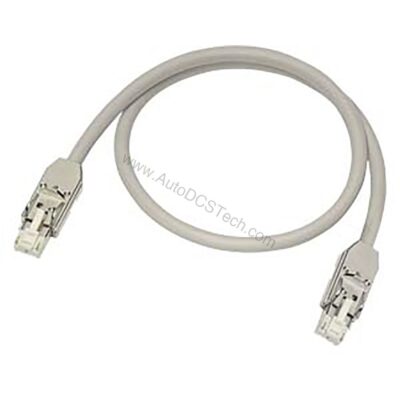

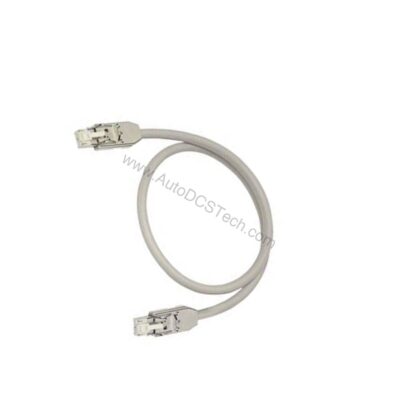

When connecting SINAMICS S120 components in machine tool applications, signal integrity and mechanical reliability are non-negotiable. The 6SL3060-4AF00-0AA0 from Siemens addresses this need with a precision-engineered DRIVE-CLIQ cable. This 0.21-meter link provides a secure, IP20-rated connection between drive components, ensuring consistent data transmission in compact control cabinets.
As part of the SINAMICS DRIVE-CLIQ family, this cable is built to Siemens' exacting standards. The grey jacket and standardized connectors simplify identification and installation. For engineers retrofitting or expanding S120 systems, this cable offers a straightforward solution for short-distance communication links.
Key Features and Technical Specifications
The 6SL3060-4AF00-0AA0 is defined by a few critical parameters that determine its suitability for specific layouts. The table below summarizes the essential data from the manufacturer.
- Cable Type: DRIVE-CLIQ interface cable
- Length: 0.21 meters
- Protection Rating: IP20/IP20
- Net Weight: 0.023 kg
- Color: Grey
- Compatibility: SINAMICS S120 with machine tools
The 0.21-meter length is particularly useful for connecting adjacent modules within a rack or cabinet. This short run minimizes cable slack, reducing the risk of interference and improving airflow. The IP20 rating indicates protection against solid objects larger than 12.5 mm, making it suitable for enclosed industrial environments.
Applications and Use Cases
In machine tool applications, the 6SL3060-4AF00-0AA0For instance, it can link a Motor Module to a Control Unit or connect a Sensor Module to a central controller.
Moreover, this cable supports the DRIVE-CLIQ communication protocol, which is essential for real-time data exchange in S120 systems. Consequently, it helps maintain precise synchronization between drives and controllers, a critical factor in high-speed machining operations. Therefore, this cable is a reliable choice for both new installations and field replacements.
Installation and Setup
Installing the 6SL3060-4AF00-0AA0 is straightforward, but attention to detail ensures optimal performance. First, verify that the connectors are clean and undamaged before mating. Then, align the keyed connectors correctly to avoid pin damage.
When routing the cable, avoid sharp bends and keep it away from power cables to minimize electromagnetic interference. Although the cable is IP20 rated, ensure that the cabinet enclosure provides adequate protection against dust and moisture. Finally, secure the cable with cable ties or clips to prevent strain on the connectors.
Maintenance and Reliability
Routine inspection of the 6SL3060-4AF00-0AA0 is simple but important. Periodically check the cable jacket for cuts or abrasions, especially near connection points. Verify that the connectors are firmly seated and that locking mechanisms are engaged.
Environmental factors such as temperature and humidity can affect cable longevity. Therefore, maintain the cabinet within the specified operating range. Since this cable is a passive component, it requires minimal maintenance, but regular checks help prevent unexpected downtime.
Compatibility and Integration
The 6SL3060-4AF00-0AA0 is specifically designed for SINAMICS S120 drive systems used in machine tools. It is compatible with DRIVE-CLIQ interfaces, which are standard on S120 components.
For engineers planning a new S120 system, this cable can be specified in the initial design. For upgrades, it can replace longer or damaged cables, provided the length meets the layout requirements. Always consult the S120 documentation to confirm the exact number of DRIVE-CLIQ connections needed.
Troubleshooting and Common Issues
Although the 6SL3060-4AF00-0AA0 is reliable, issues can arise if it is mishandled. One common problem is intermittent communication due to loose connectors. Therefore, ensure that connectors are fully tightened and locked.
Another issue is cable damage from repeated flexing or sharp edges. Inspect the cable path for potential abrasion points. If communication errors persist, test the cable with a known-good spare to isolate the fault. In such cases, replacing the cable is often the simplest solution.
Product Support and Availability
The 6SL3060-4AF00-0AA0 is available through AutoDCSTech. We stock this cable for immediate shipment, ensuring minimal lead time for your projects. Contact our team for pricing and delivery details.
Availability & Condition at AutoDCSTech
| Part Number | 6SL3060-4AF00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
