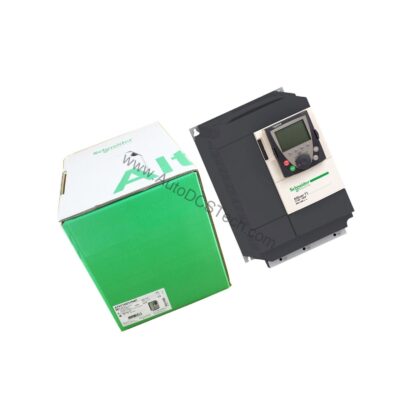

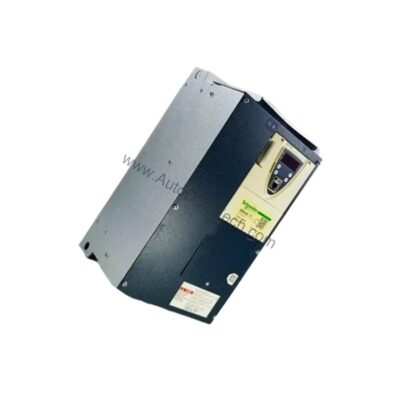

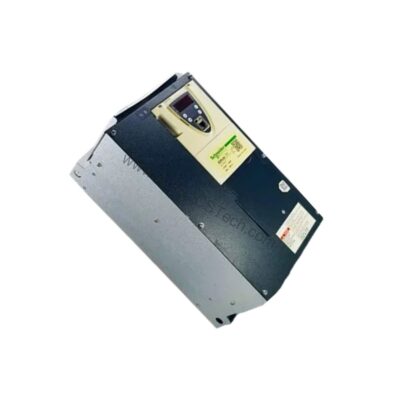

Schneider ATV71HD15M3X Altivar 71 Variable Speed Drive 15 kW 230V

Technical Specifications Breakdown

Key parameters for the ATV71HD15M3X are listed below for quick reference:

Evaluating the Schneider ATV71HD15M3X for Your Application

When selecting a variable speed drive for demanding industrial machinery, the Schneider Electric ATV71HD15M3X stands out as a robust solution. This unit from the Altivar 71 series is engineered to handle complex, high-power motor applications with precision and reliability. Its compact design integrates advanced control features, making it a strong candidate for both new installations and upgrades.

Industry Applications and Operational ROI

Typical applications include conveyors, pumps, fans, and hoists in manufacturing, material handling, and process industries. The sensorless flux vector control (SFVC) and flux vector control (FVC) with encoder feedback provide high torque accuracy (±5% in closed-loop) and speed regulation (±0.01% with encoder). Such performance reduces energy waste and mechanical stress, translating to lower total cost of ownership. The adjustable switching frequency (1 to 16 kHz) allows optimization between audible noise and thermal management, further enhancing operational efficiency.

Installation and Setup Guidance

Mount the drive vertically within ±10 degrees to ensure proper heat dissipation via the integrated heat sink. For electrical connections, use terminals rated for 35 mm² (AWG 2) for power (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) with a tightening torque of 47.8 lbf·in. Control wiring uses 2.5 mm² (AWG 14) terminals with 5.3 lbf·in torque. The graphic terminal simplifies parameter configuration, including acceleration/deceleration ramps (0.01 to 9000 s) and PI regulator tuning. For motor cable runs, use shielded cable up to 50 m or unshielded up to 100 m. Note that this unit lacks an internal EMC filter; external filtering may be required for compliance in sensitive environments.

Maintenance and Reliability Considerations

Operating temperature range is 0 to 50°C (without derating), with storage from -25 to 70°C. The drive features comprehensive protection against overcurrent, short-circuit, thermal overload, and phase loss. Periodic inspection of cooling fans and heat sink cleanliness is recommended to maintain performance. The IP21/IP41/IP54 ratings (depending on enclosure kit) ensure dust and moisture resistance in typical industrial settings. With a shock resistance of 15 gn and vibration tolerance per IEC 60068-2-6, this unit is built for rugged environments.

Compatibility and Integration

The ATV71HD15M3X supports Modbus and CANopen communication protocols via RJ45 and SUB-D connectors. It can be integrated with various option cards (e.g., EtherNet/IP, Profibus DP, DeviceNet) for network connectivity. The drive is compatible with both asynchronous and synchronous motors, and includes a built-in adjustable PI regulator for closed-loop process control. Multiple discrete and analog I/O points (7 digital inputs, 2 relay outputs, 2 analog inputs, 1 analog output) provide flexibility for external sensors and actuators.

Selection Guide and Purchasing Advice

Before ordering, verify that the 3-phase 230 V AC supply matches your facility's voltage. The 15 kW rating suits medium-power applications; for higher loads, consider the next size in the Altivar 71 range. AutoDCSTech offers this unit with detailed specifications and availability checks. Please confirm lifecycle status and stock with our team to ensure timely delivery for your project.
