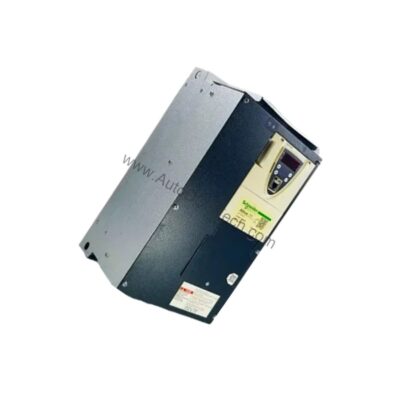

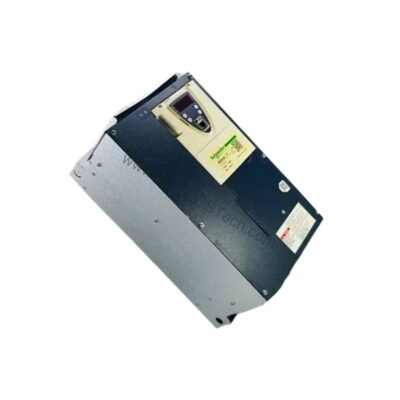

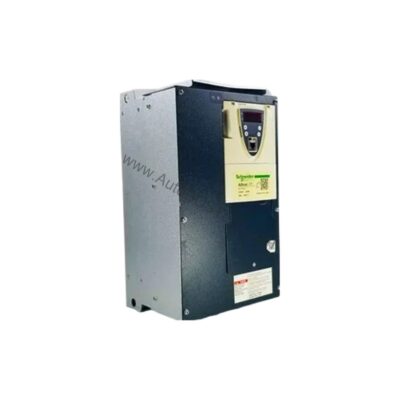

Schneider Electric ATV71HD18N4 Altivar 71 Variable Speed Drive 18.5 kW

Selecting the Right Variable Speed Drive for Complex High-Power Machines

When managing demanding industrial applications, choosing a reliable variable speed drive is critical for both performance and longevity. The Schneider Electric ATV71HD18N4, part of the Altivar 71 series, offers a robust solution for controlling asynchronous and synchronous motors in complex, high-power machinery. This guide helps you evaluate its key features against your operational needs.

Technical Specifications Breakdown

Key parameters for the ATV71HD18N4 are listed below for quick reference:

Real-World Applications for High-Power Motor Control

The ATV71HD18N4 is engineered for complex, high-power machines, making it suitable for applications such as conveyors, pumps, fans, and compressors in industries like manufacturing, water treatment, and material handling. Its 18.5 kW capacity and wide output frequency range (0.1 to 599 Hz) allow precise speed control for both constant and variable torque loads. The integrated EMC filter minimizes electromagnetic interference, which is crucial in sensitive environments or when complying with EMC standards.

Installation and Setup Guidance

Proper installation ensures reliable operation. The drive has an IP20 rating, meaning it must be installed in a clean, dry indoor enclosure to protect against dust and accidental contact. Mount the unit vertically within +/- 10 degrees, as specified. Use shielded cable up to 164.04 ft (50 m) or unshielded cable up to 328.08 ft (100 m) for motor connections. The integrated heat sink requires adequate ventilation; ensure clearance around the drive to maintain airflow. For power wiring, terminals accept up to 35 mm² (AWG 2) conductors with a tightening torque of 47.8 lbf.in (5.4 N.m).

Maintenance and Reliability

Routine inspection of the drive and its environment is recommended to maintain reliability. Check for dust accumulation on the heat sink and ensure ambient temperature stays within the -10 to 50 °C operating range. The drive includes comprehensive protection features such as thermal protection for both the drive and motor, overcurrent protection, and protection against input phase loss. For storage, the unit can withstand temperatures from -25 to 70 °C.

Compatibility and Integration

The ATV71HD18N4 supports multiple communication protocols natively, including Modbus and CANopen via RJ45 and SUB-D connectors. This allows seamless integration into existing automation networks. It also accepts various option cards for protocols like EtherNet/IP, Profibus DP, and DeviceNet, offering flexibility for system expansion. The drive includes 7 discrete inputs, 2 analog inputs, 1 analog output, and 2 relay outputs for versatile control and feedback.

Selection Guide and Purchasing Advice

When evaluating this drive, consider your motor power requirements (18.5 kW / 25 hp), supply voltage (380-480 V AC 3-phase), and environmental conditions. The IP20 rating suits cabinet installation. For applications needing advanced communication or I/O expansion, the option card slots provide future-proofing. AutoDCSTech offers the ATV71HD18N4 as a genuine Schneider Electric product, backed by our commitment to quality and availability. Contact our team to verify current lifecycle status and ensure it meets your project timeline.
