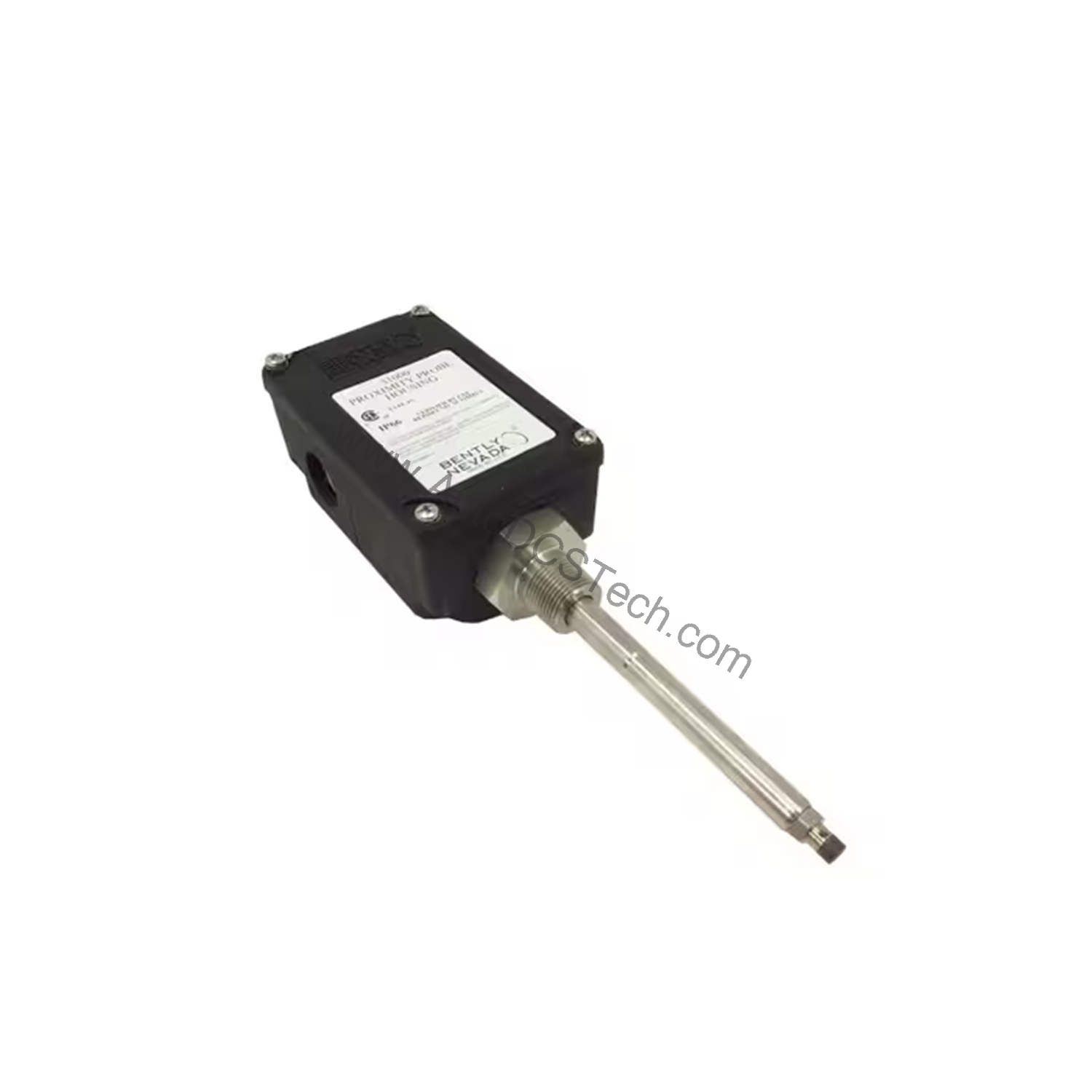

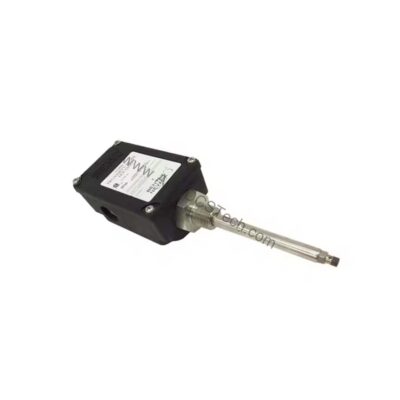

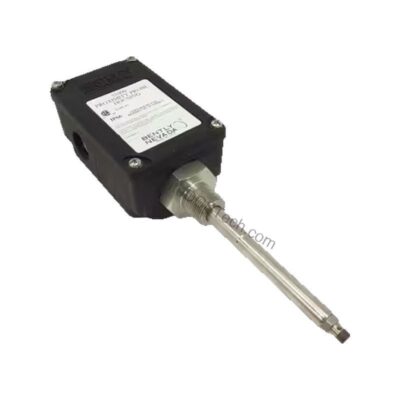

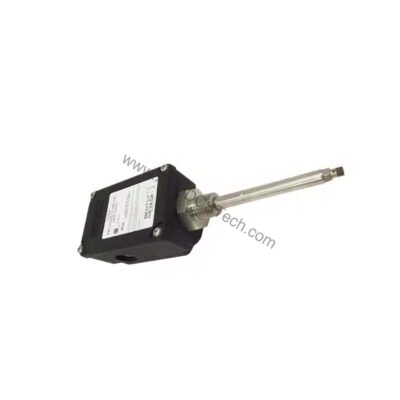

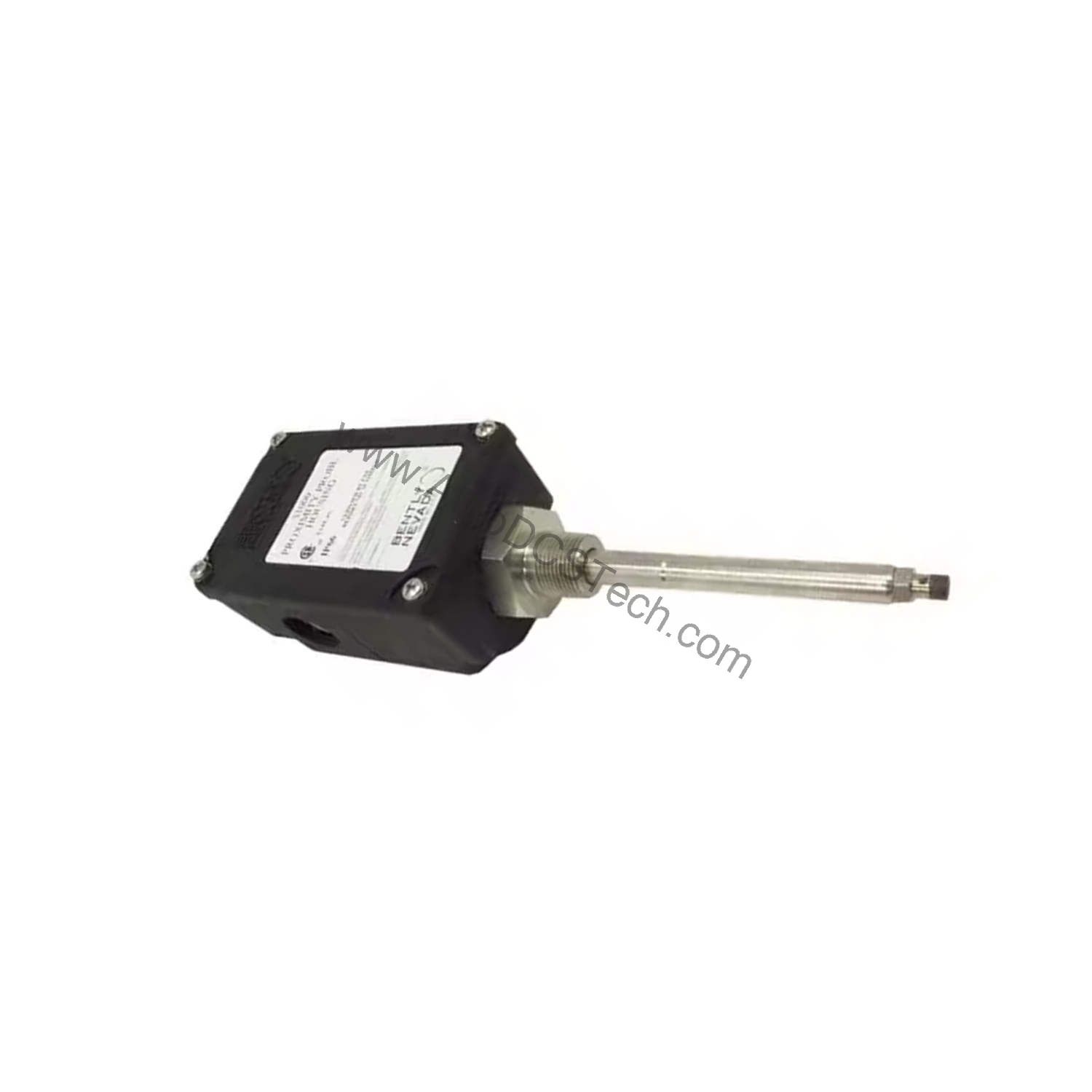

Bently Nevada 32000-29-05-10-072-07-02 Metric Proximity Probe Housing

Technical Specifications Breakdown

Key parameters for the 32000-29-05-10-072-07-02 are listed below for quick reference:

Industry Applications: Failure Mode Prevention

This housing is engineered for continuous vibration monitoring in critical rotating assets such as steam turbines, centrifugal compressors, and large pumps. The 8 mm probe, combined with a 100 mm standoff and 72 mm penetration, allows precise gap setting for accurate shaft displacement measurements. The Type 4X/IP66 enclosure prevents moisture and particulate ingress, a common cause of false readings and premature probe failure. By using this housing, maintenance teams reduce unplanned downtime and avoid costly repairs from undetected bearing wear or imbalance.

Installation & Setup Guidance

When installing the housing, ensure the 3/4-14 NPT mounting thread is properly sealed to maintain the IP66 integrity. The standoff adapter must be torqued to manufacturer specifications to avoid probe tip damage. Route the 0.5 m probe cable through the PG21 x M20 fitting, using the provided plugs for unused ports. Verify that the probe connector protector is securely fastened before powering the system.

Maintenance & Reliability

Inspect the O-ring and exterior screws periodically for signs of corrosion or wear, especially in chemically aggressive environments. The glass-reinforced PPS housing is impact-rated to withstand 4 Joule impacts at extreme temperatures (-39°C and +115°C) and 7 Joule impacts at room temperature, as certified by BASEEFA and CSA. Clean the exterior with a mild detergent and water; avoid abrasive cleaners that could damage the conductive fiber layer.

Robust Protection for Precision Vibration Monitoring

The Bently Nevada 32000-29-05-10-072-07-02 is a Metric Proximity Probe Housing designed to safeguard sensitive 3300 XL 8 mm probes in demanding industrial environments. This housing provides a sealed, impact-resistant enclosure that ensures reliable vibration measurements in rotating machinery, even in hazardous areas. With its Type 4X and IP66 ratings, the housing protects against water ingress, dust, and corrosive atmospheres, making it a critical component for predictive maintenance programs.

Compatibility & Integration

The housing is designed specifically for Bently Nevada 3300 XL 8 mm proximity probes with connector protectors. The 3/4-14 NPT thread is common in North American installations, while the standoff adapter allows flexible positioning in metric or imperial mounting brackets.

Selection Guide & Purchasing Advice

When ordering a replacement or new installation, verify that the probe cable length (0.5 m), standoff (100 mm), and penetration (72 mm) match your machine train geometry. The 32000-29-05-10-072-07-02 is a factory-configured assembly, ensuring consistent performance. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
