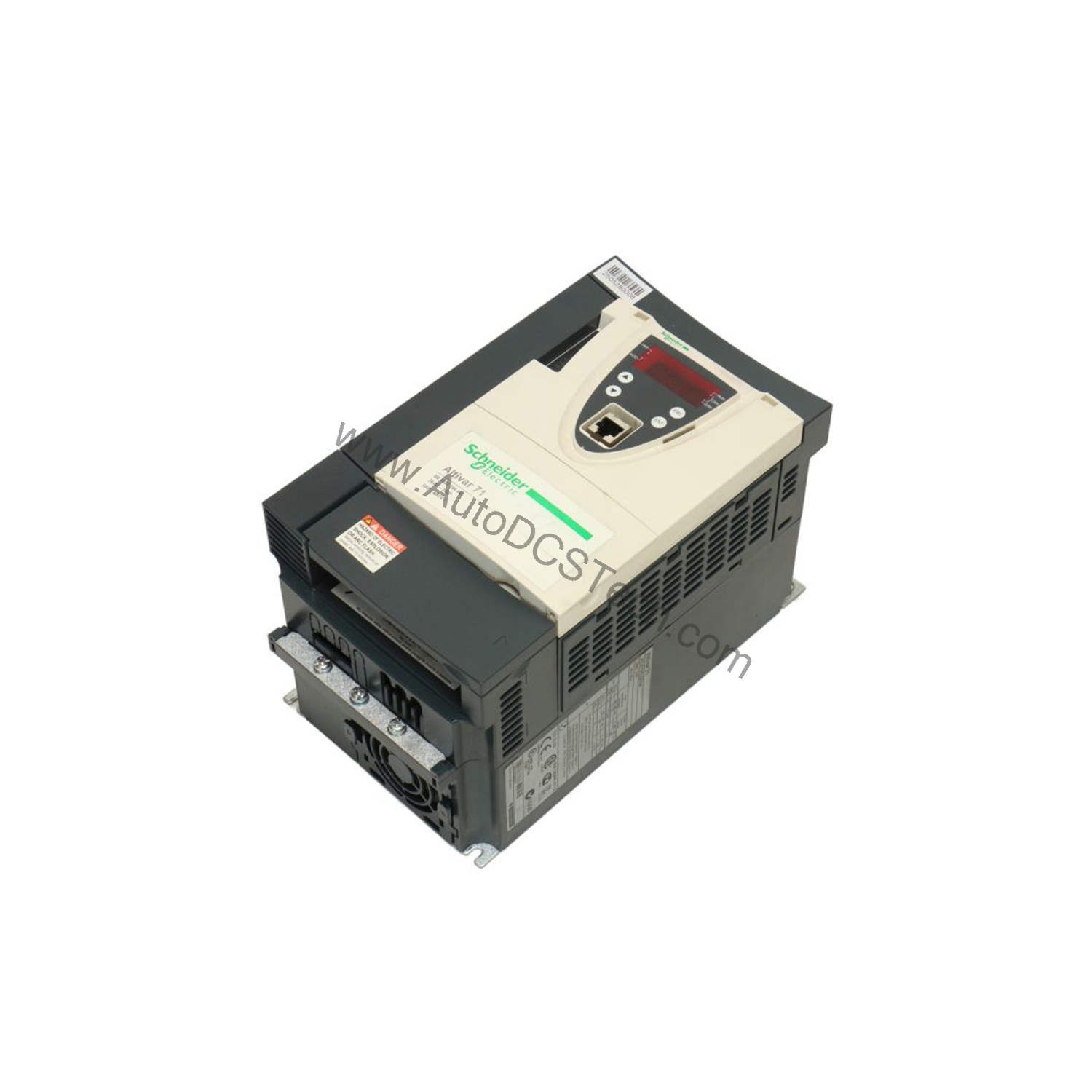

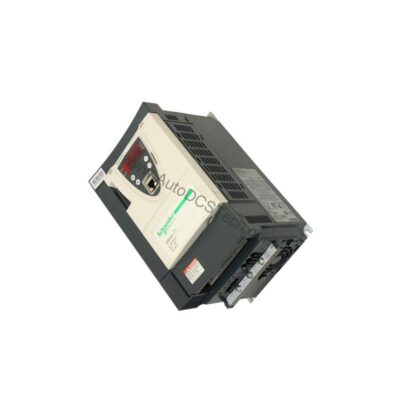

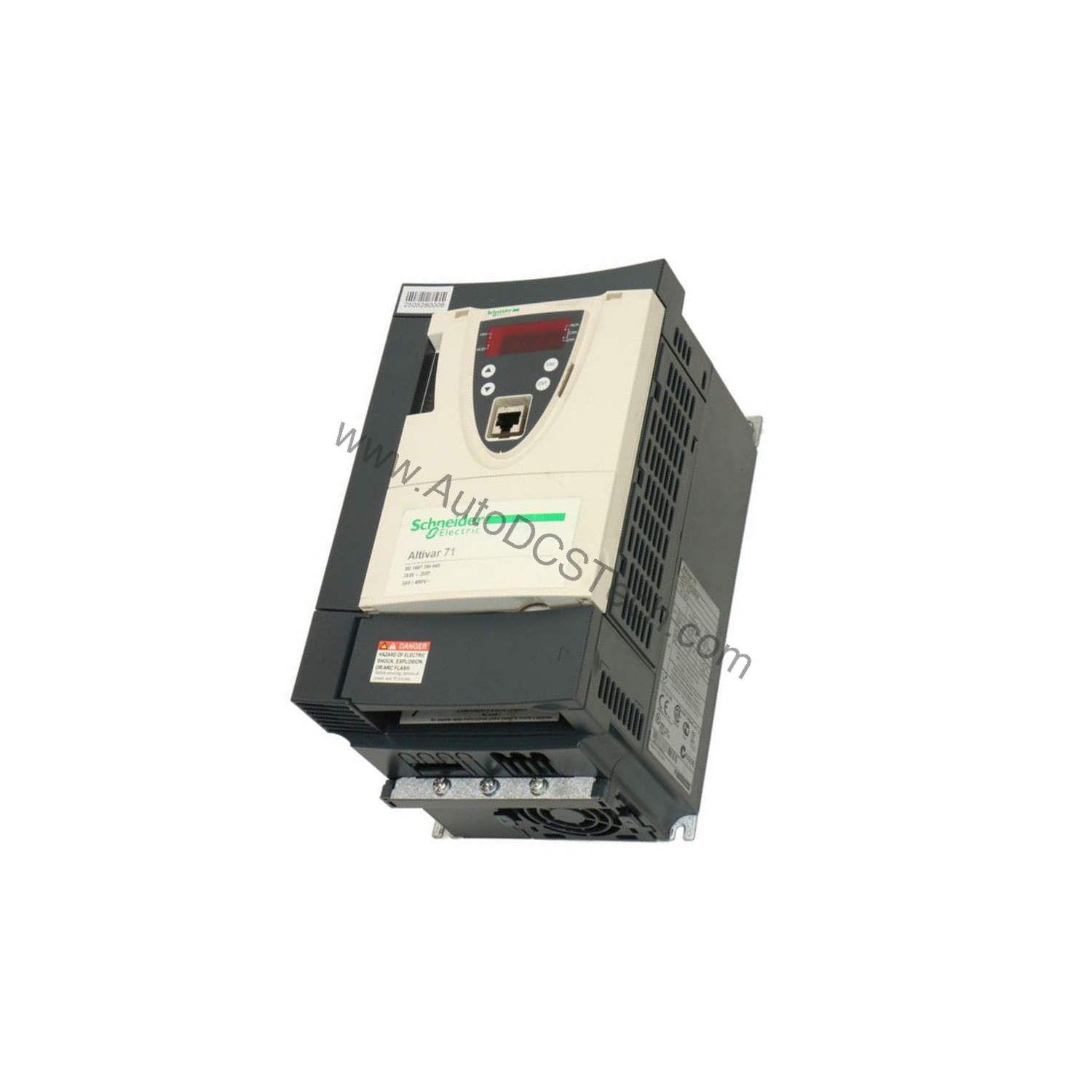

Schneider ATV71HU30N4 Variable Speed Drive for Efficient Motor Control

Optimize Motor Control with the Schneider ATV71HU30N4 Variable Speed Drive

In industrial automation, precise motor control directly impacts energy consumption, equipment longevity, and operational costs. The Schneider ATV71HU30N4 variable speed drive delivers efficient performance for complex, high-power machines, helping you reduce energy waste and maintenance expenses. As part of the Altivar 71 series, this drive offers robust features tailored for demanding applications.

Technical Specifications Breakdown

Key parameters for the ATV71HU30N4 are listed below for quick reference:

Cost-Effective Applications for Complex Machinery

The ATV71HU30N4 is designed for complex, high-power machines, including conveyors, pumps, fans, and compressors. By precisely adjusting motor speed to match load requirements, this drive reduces energy consumption by up to 30% compared to fixed-speed operation. The integrated EMC filter minimizes electrical noise, preventing interference with sensitive equipment and avoiding costly downtime. With a 0.1-599 Hz output frequency range, it accommodates diverse speed control needs, enhancing process efficiency.

Installation and Setup Guidance

Install the drive in a vertical position (±10 degrees) to ensure proper airflow through the heat sink. Use shielded cable up to 164 ft (50 m) or unshielded cable up to 328 ft (100 m) for motor connections. The IP20 rating requires installation in a clean, dry enclosure to protect against dust and moisture. Connect the 3-phase input (380-480 VAC) to terminals L1/R, L2/S, L3/T, and the motor to U/T1, V/T2, W/T3. Tighten power terminals to 12.4 lbf·in (1.4 N·m) and control terminals to 5.3 lbf·in (0.6 N·m). For optimal performance, configure acceleration/deceleration ramps between 0.01 and 9000 seconds.

Maintenance and Reliability

Regularly inspect the heat sink for dust buildup, as overheating can reduce drive lifespan and increase repair costs. The operating temperature range of -10 to 50 °C allows installation in most industrial environments. The drive includes comprehensive protection against overcurrent, overvoltage, undervoltage, phase loss, and overheating, minimizing unplanned downtime. With a nominal switching frequency of 4 kHz (adjustable up to 16 kHz with derating), you can balance motor noise and thermal performance.

Compatibility and Integration

The ATV71HU30N4 supports Modbus and CANopen communication protocols via RJ45 and SUB-D 9 connectors, enabling seamless integration with PLCs and SCADA systems. Optional communication cards (e.g., EtherNet/IP, Profibus DP, DeviceNet) expand connectivity for multi-vendor environments. The drive also features 7 discrete inputs, 2 relay outputs, and 2 analog inputs/outputs for flexible control. This compatibility reduces integration costs and simplifies system upgrades.

Selection Guide and Purchasing Advice

When selecting a variable speed drive, consider your motor power, voltage, and environmental conditions. For higher power requirements, explore other Altivar 71 models. At AutoDCSTech, we offer this drive with detailed technical support to ensure you choose the right solution. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting and Common Issues

If the drive fails to start, check the input power supply (380-480 VAC, 3-phase) and ensure the control circuit is properly wired. An LED indicator on the front panel provides diagnostic status. For communication issues, verify Modbus settings (baud rate, parity) and cable connections. If the drive trips on overcurrent, inspect motor cables for shorts or ground faults. Always consult the manual for detailed fault codes and corrective actions.
