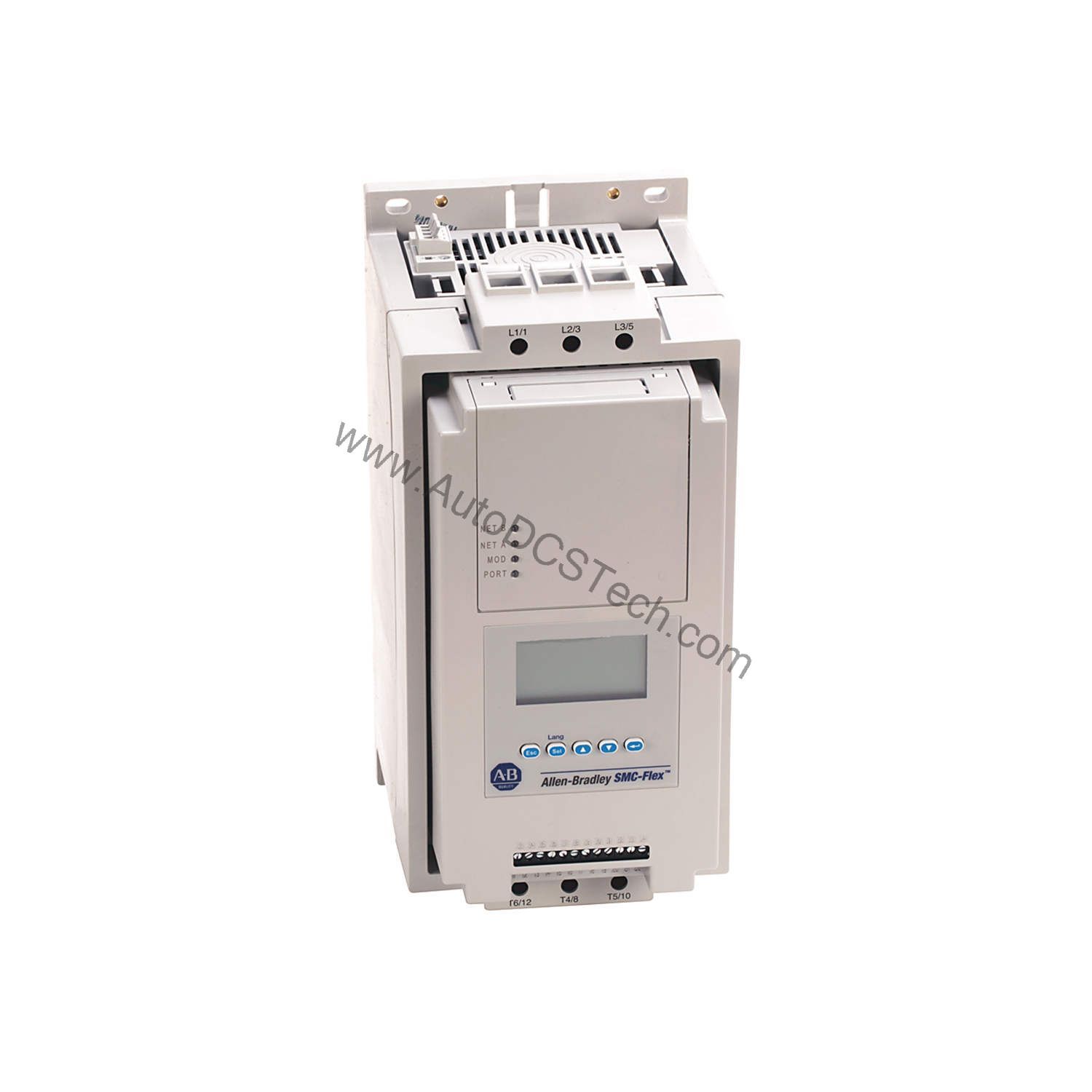

Allen-Bradley 150-F780NBED SMC Flex Open Smart Motor Controller 780A

Optimize Motor Control with the Allen-Bradley 150-F780NBED SMC Flex Controller

Industrial motor starting often faces challenges like mechanical stress, voltage sags, and equipment wear. The Allen-Bradley 150-F780NBED SMC Flex open smart motor controller directly addresses these issues by providing solid-state starting and stopping with advanced braking control. This Bulletin 150 controller is engineered for demanding applications requiring precise current management and reduced inrush.

Technical Specifications Breakdown

Key parameters for the 150-F780NBED are listed below for quick reference:

Industry Applications and Cost-Benefit Analysis

The built-in braking control option reduces mechanical wear and downtime by providing controlled deceleration. For facilities running 600 Hp motors at 460V AC, the 150-F780NBED delivers significant operational ROI through lower maintenance costs and improved process control. The open enclosure suits panel-mounted installations where ambient conditions are managed.

Installation and Setup Guidance

Mount the controller in a clean, dry cabinet with adequate ventilation. Ensure the 3-phase input line voltage (200..480V AC) matches your supply. Connect the control voltage (100...120V AC) to terminals as per the wiring diagram. Set the motor full-load current parameters using the integrated keypad or software. Verify all power connections are torqued to manufacturer specifications before energizing.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. Check ambient temperature and ensure cooling fans (if present) operate freely. The solid-state design inherently reduces contact wear compared to electromechanical starters. Schedule annual thermal imaging scans to detect potential hot spots.

Compatibility and Integration

The SMC Flex platform integrates with Allen-Bradley PLCs via standard discrete I/O or optional communication modules. The braking control option works with compatible motors to provide smooth deceleration without external braking resistors in many applications. Confirm motor and load compatibility with the 780A rating.

Selection Guide and Purchasing Advice

When selecting a motor controller, verify that the 150-F780NBED's 780A current rating and 600 Hp @ 460V AC capacity match your motor nameplate. For open enclosure installations, ensure the environment is non-hazardous and free from conductive dust. AutoDCSTech offers this unit with fast shipping and expert support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
