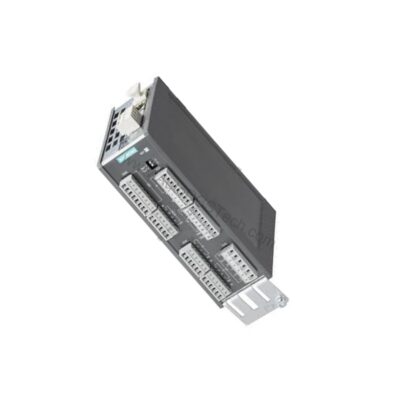

6SL3055-0AA00-3AA1 24V SINAMICS Terminal Module TM31

Introduction to the Siemens 6SL3055-0AA00-3AA1 SINAMICS Terminal Module TM31

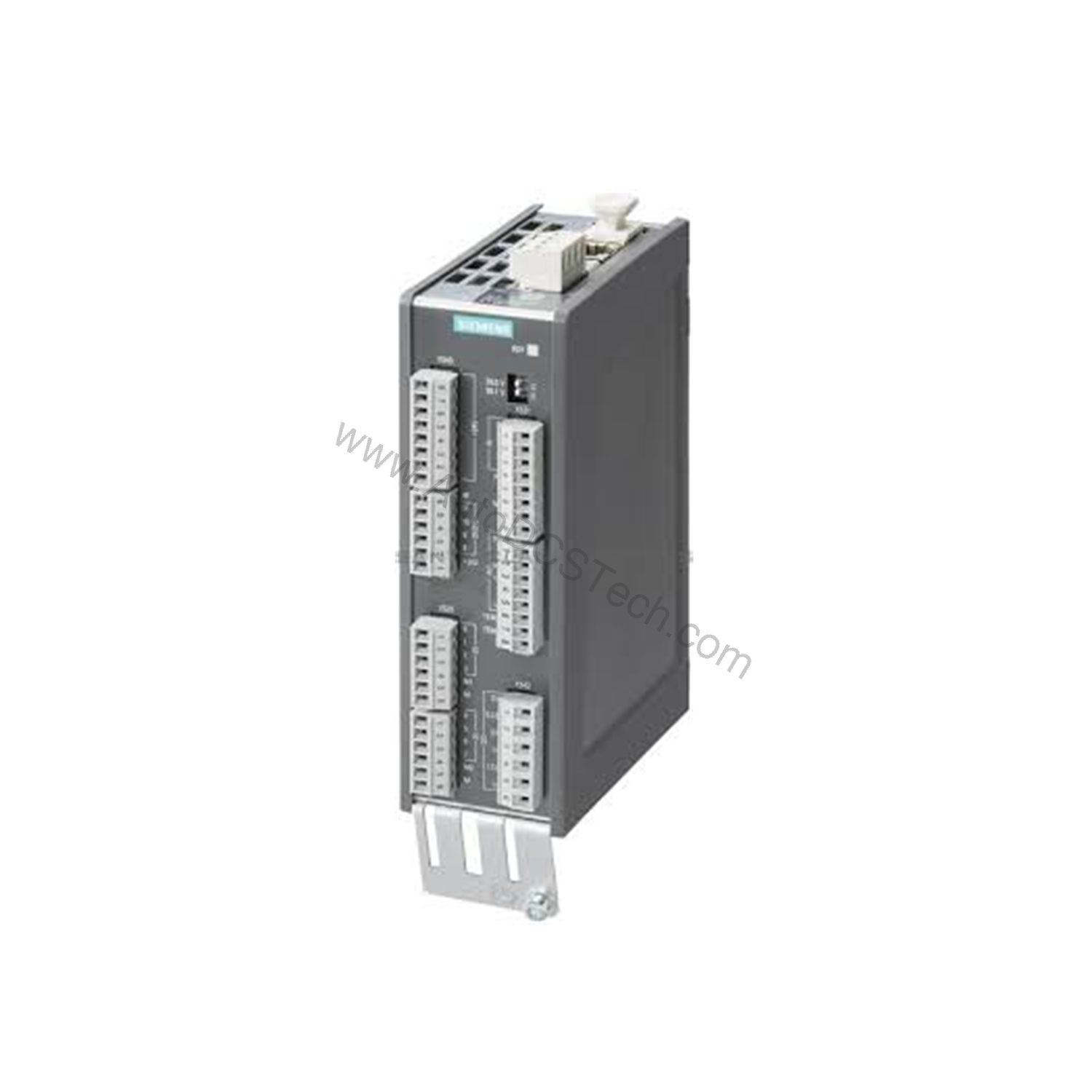

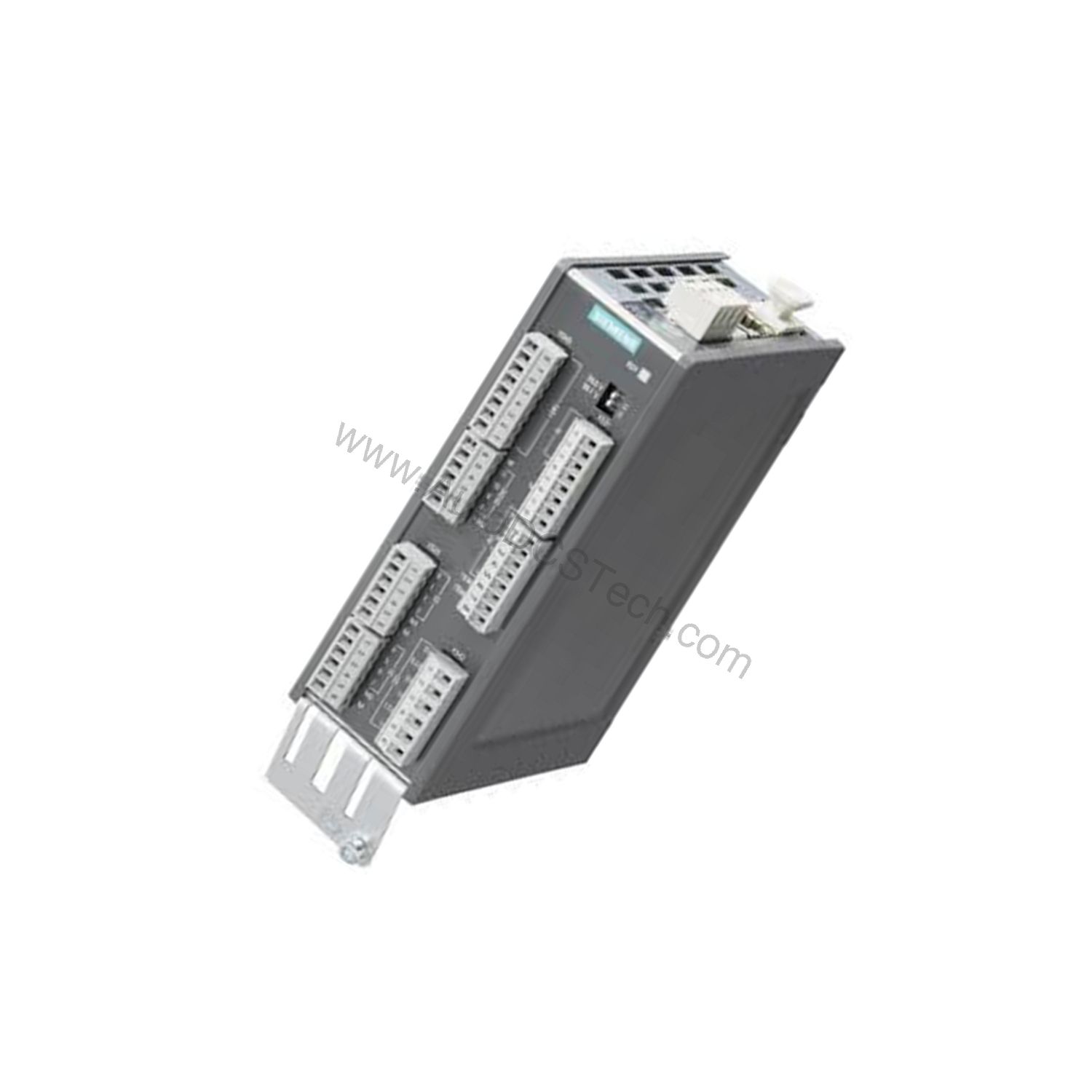

When a drive system demands precise signal handling and reliable expansion, the 6SL3055-0AA00-3AA1 from Siemens delivers. This SINAMICS Terminal Module TM31 is an add-on board designed for DIN rail mounting. It expands your SINAMICS drive with both digital and analog input and output capabilities. The module operates with a 24 V DC power supply, drawing 0.50 A. Its compact dimensions—50 mm wide, 150 mm high, and 111 mm deep—fit neatly into control cabinets. The net weight is 0.49 kg, making it easy to handle during installation.

Key Features and Technical Specifications

The 6SL3055-0AA00-3AA1 offers a rich set of I/O options, all in one unit. Here are the core specifications:

• Digital inputs: 8 inputs, voltage range -3 to 30 V DC, with low signal at -3 to 5 V and high signal at 15 to 30 V.
• Digital inputs/outputs: 4 parameterizable channels, each can be configured as input or output. As outputs, they provide 24 V DC with 100 mA current carrying capacity and short-circuit protection.
• Analog inputs: 2 inputs, configurable for voltage (-10 to 10 V, 11-bit + sign resolution) or current (-20 to 20 mA, 10-bit + sign resolution).
• Analog outputs: 2 outputs, voltage range -10 to 10 V, current range -20 to 20 mA, with short-circuit protection and 11-bit + sign resolution.
• Relay outputs: 2 changeover contacts, rated for 8 A at 250 V AC or 30 V DC, with switching capacity up to 2000 VA AC and 240 W DC.
• Sensor input: 1 dedicated sensor input for direct connection of sensors.
• DRIVE-CLiQ interfaces: 2 interfaces for communication with SINAMICS drives.
• Power requirements: 24 V DC, 0.50 A; protection rating up to 20 A.
• Power loss: Maximum 10.0 W.
• Mechanical data: Dimensions 50 x 150 x 111 mm, weight 0.49 kg.

These specifications ensure the module handles a wide range of industrial signals with accuracy and speed. For example, the digital inputs have a delay time of 50 µs for L to H transitions and 100 µs for H to L, enabling fast response in control loops.

Applications and Use Cases

The 6SL3055-0AA00-3AA1Use it in conveyor systems to monitor sensors and control actuators. In packaging machinery, the analog inputs can read position or pressure sensors, while the relay outputs switch solenoids or indicators. The module's ability to mix digital and analog signals makes it suitable for retrofitting older machines with modern control. Its DIN rail mounting simplifies integration into existing panels, reducing downtime during upgrades.

Installation and Setup

Mounting the 6SL3055-0AA00-3AA1 is straightforward. The module clips onto a standard 35 mm DIN rail. Ensure the power supply provides 24 V DC with sufficient current (0.50 A nominal). For wiring, use conductors with cross-sections up to 2.5 mm² (AWG 14) on the line side, and 1.5 mm² (AWG 16) for I/O connections. The PE conductor uses an M4 screw. Connect DRIVE-CLiQ cables to the two interfaces for communication with the drive. Always follow the SINAMICS manual for detailed wiring diagrams and safety instructions.

Maintenance and Reliability

Regular inspection of the 6SL3055-0AA00-3AA1 ensures long-term reliability. Check that all terminal screws are tight and that the module is securely fastened to the DIN rail. Periodically verify that the 24 V supply is stable and within tolerance. The module's short-circuit protection on outputs prevents damage from wiring faults. Since the module has no moving parts, maintenance is minimal. Keep the enclosure clean and free from dust to avoid overheating. Follow the manufacturer's guidelines for periodic checks.

Compatibility and Integration

The 6SL3055-0AA00-3AA1 is part of the SINAMICS family, designed to work with SINAMICS drives via DRIVE-CLiQ. It connects to the drive's control unit, expanding I/O capabilities without additional hardware. The module supports both digital and analog signals, making it versatile for various control architectures. For integration, ensure the drive firmware supports TM31. Refer to the SINAMICS documentation for compatible drive models and configuration steps.

Troubleshooting Common Issues

If the module does not respond, first check the 24 V power supply and the status LEDs. Verify that DRIVE-CLiQ cables are properly connected and not damaged. For digital inputs, confirm the signal voltage is within -3 to 30 V range; low signals should be below 5 V, high signals above 15 V. If an output is not switching, check the load current—digital outputs are rated for 100 mA, relay outputs for 8 A. For analog inputs, ensure the input resistance matches the sensor (100 kOhm for voltage, 250 Ohm for current). If issues persist, consult the SINAMICS troubleshooting guide or contact AutoDCSTech for support.

Product Support and Availability

The 6SL3055-0AA00-3AA1 is available at AutoDCSTech. We stock this module and can ship promptly. For technical questions or to verify compatibility with your system, contact our team. We are here to help you keep your automation running smoothly.
