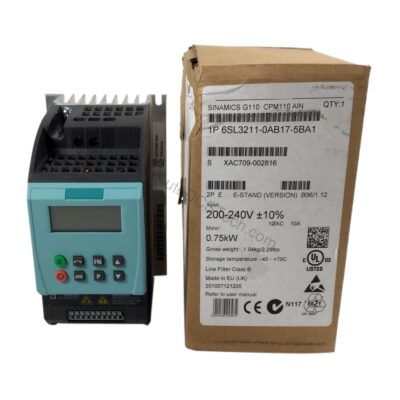

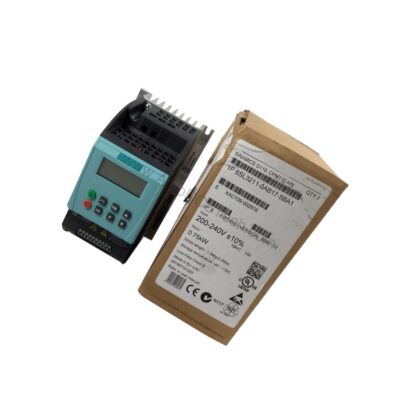

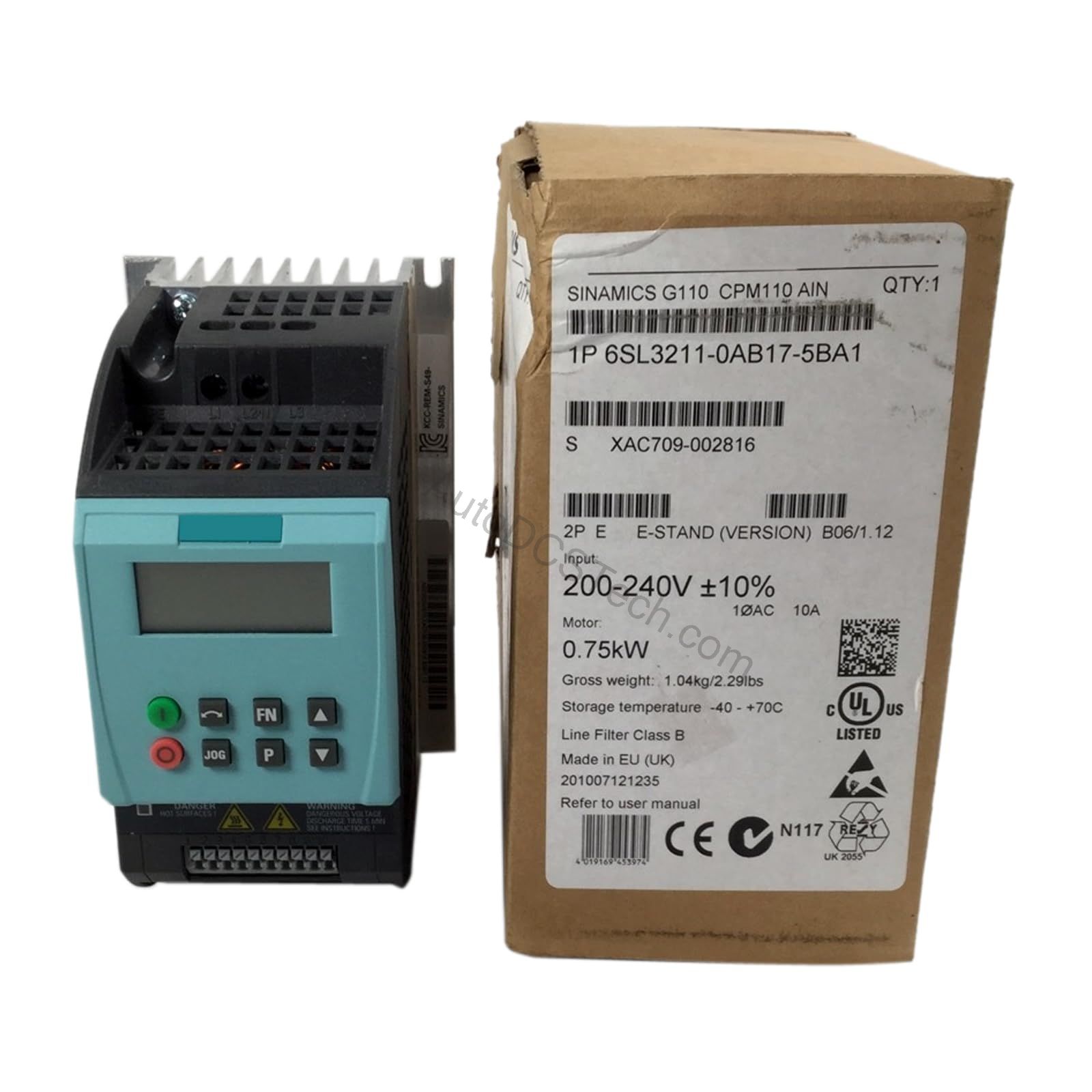

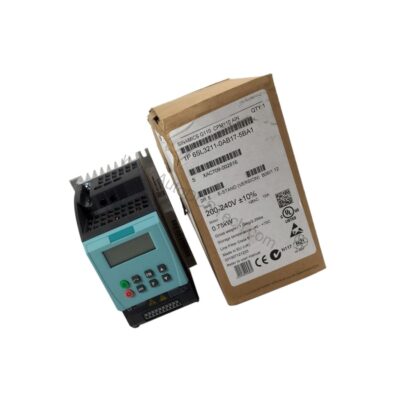

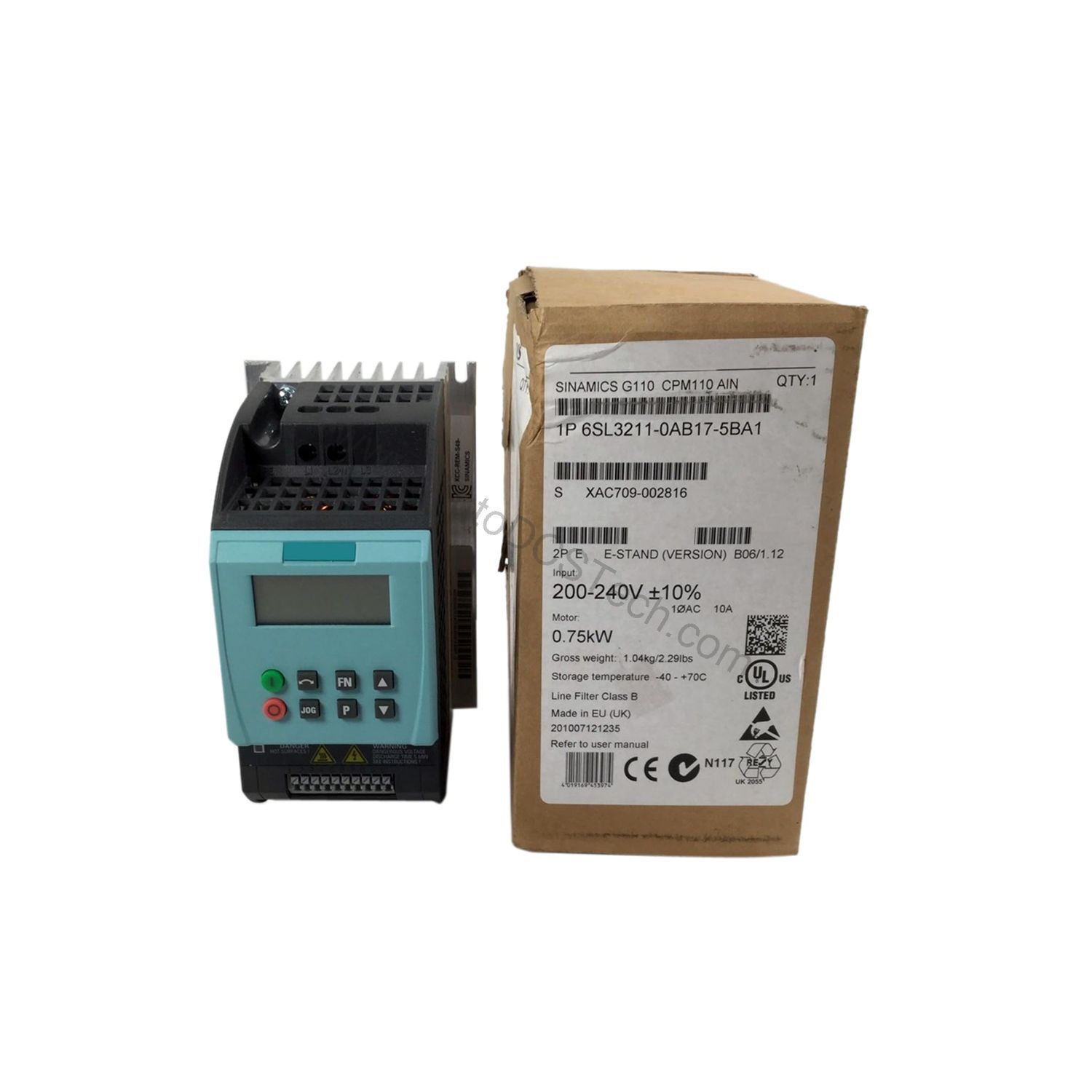

6SL3211-0AB17-5BA1 0.75 kW SINAMICS AC Drive

Key Features and Technical Specifications of the 6SL3211-0AB17-5BA1

The 6SL3211-0AB17-5BA1 is a single-phase input drive designed for three-phase output. Its specifications are tailored for light-duty applications. Here are the core parameters you need to know:

• Input: 1 AC phase, 200–240 V ±10%, 47–63 Hz, rated current 10.00 A.
• Output: 3 AC phases, rated power 0.75 kW, rated current 3.90 A.
• Control: V/f linear, square-law, or parameterizable; output frequency 0–650 Hz (limited to 550 Hz in production).
• Communication: RS485 interface for basic integration.
• I/O: 3 digital inputs, 1 analog input (0–10 V, scalable or usable as 4th digital input), 1 digital output (isolated optocoupler, NPN).
• Protection: IP20 / UL open type, frame size FSA.
• Environmental: Operating temperature -10 to 40 °C, storage -40 to 70 °C, max 95% RH (no condensation).
• Standards: UL, cUL, CE, C-Tick (RCM); CE marking per Low-Voltage Directive 2006/95/EC.

One distinctive feature is the analog input that can be configured as a 4th digital input, giving you flexibility in wiring. This is particularly useful when you need extra control signals without adding an expansion module.

Real-World Applications for the 6SL3211-0AB17-5BA1

In HVAC systems, the 6SL3211-0AB17-5BA1 can adjust motor speed based on demand, leading to significant energy savings. For packaging lines, the linear V/f mode provides stable operation. The RS485 port allows connection to a PLC or SCADA for remote monitoring, which helps in predictive maintenance.

Installation and Setup Guidance

Mount the drive vertically on a flat, non-flammable surface to ensure proper cooling. Maintain sufficient clearance around the unit for airflow. For wiring, follow the terminal labels and torque specifications provided in the manual. Ensure the input voltage matches your supply (200–240 V AC). The digital inputs are active-high (positive logic) – verify your PLC output type. If you use the analog input as a digital input, configure the parameter accordingly. Always use shielded cables for RS485 communication to minimize interference.

Maintenance and Reliability Tips

Regular inspection is key to long service life. Check for dust buildup on the heatsink and fan (if present) every 6 months. Verify that all terminals remain tight. Since the drive operates up to 40 °C, ensure ambient temperature stays within limits. The IP20 rating means it's not dust-tight, so install in a clean environment or an enclosure. By following these simple steps, you can minimize downtime and extend the drive's lifespan.

Compatibility and Integration Options

The RS485 interface enables communication with Siemens S7 PLCs and other Modbus RTU masters (if supported). The drive supports V/f control, so it can be used with any standard three-phase AC induction motor rated for 0.75 kW. For setpoint control, you can use the analog input (0–10 V) or the RS485. The digital output can signal a fault or running status to a PLC. This makes the 6SL3211-0AB17-5BA1 a flexible component in a mixed-vendor automation environment.

Troubleshooting Common Issues

If the drive trips on overcurrent, check for motor winding faults or mechanical jams. If the drive does not start, verify that the enable signal is present on the correct digital input. For communication errors, check the RS485 wiring and baud rate settings. If the analog input is not responding, confirm it is not configured as a digital input. Always refer to the manual for detailed fault codes. For persistent issues, contact AutoDCSTech for support.

Product Support and Availability

The 6SL3211-0AB17-5BA1 is available from AutoDCSTech. Contact our team for current stock and delivery options. We are here to help you integrate this drive into your system.
