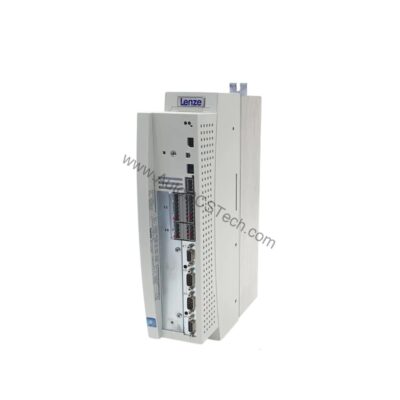

Lenze EVS9323-ETV004 Servo Controller 2 HP 3-Phase 480V

Technical Specifications Breakdown

Key parameters for the EVS9323-ETV004 are listed below for quick reference:

Industry Applications for the Lenze Servo Controller

The EVS9323-ETV004 is a versatile component suited for a wide range of motion control tasks.

• Conveyor Systems: Maintain precise speed control for consistent product flow, even under varying loads.
• Packaging Machinery: Achieve accurate positioning for cutting, sealing, and labeling operations.
• Material Handling: Control the acceleration and deceleration of lifts and transfer mechanisms with the safe standstill function enhancing operator safety.

By choosing this controller, you benefit from reduced downtime and improved product quality through reliable, repeatable motion.

Installation & Setup Guidance

Proper installation is critical for optimal performance. The EVS9323-ETV004 is designed for panel mounting, so ensure the enclosure provides adequate ventilation and meets the IP20 rating requirements. Connect the 3-phase supply within the rated voltage range (400 to 480 Volts AC) and respect the permissible fluctuation limits (320 to 528 Volts AC). Use the LED display to verify input power and status during commissioning. Always follow local electrical codes and the manufacturer's manual for wiring and configuration.

Maintenance & Reliability

Regular inspection of the controller and its connections is recommended to ensure long-term reliability. Check for dust accumulation on the enclosure and ensure the ambient temperature stays within the -10 to 60°C operating range. Periodically verify that all mounting screws are tight and that no moisture is present. The safe standstill function should be tested as part of routine safety checks to confirm it engages correctly.

Compatibility & Integration

The EVS9323-ETV004 is part of the Lenze Series 9300, which is known for its modularity and ease of integration. It works with Lenze motors and drives, and can be integrated into existing control systems using standard analog and digital I/O. The vector control method ensures compatibility with a wide range of motor types, making it a flexible choice for system designers.

Selection Guide & Purchasing Advice

When selecting a servo controller, consider your specific application requirements: power rating, voltage, and control features. The EVS9323-ETV004 offers a balanced combination of power, precision, and safety. At AutoDCSTech, we stock this controller and provide expert support to help you choose the right component for your system. Contact us for availability and lifecycle status before ordering. Our team is ready to assist with any technical questions.

Troubleshooting & Common Issues

If the controller fails to operate, check the input power supply for correct voltage and phase. The LED display can indicate fault conditions; refer to the manual for specific codes. Overheating can occur if the ambient temperature exceeds the rated range—ensure proper cooling. If the safe standstill function is not engaging, verify the wiring and safety circuit. For persistent issues, consult a qualified technician.
