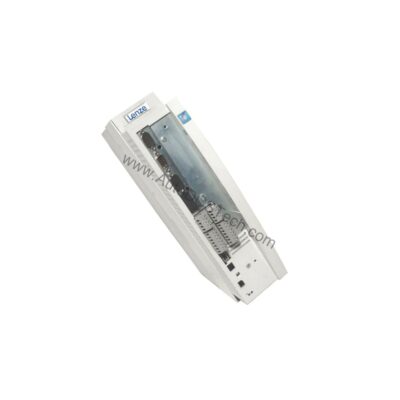

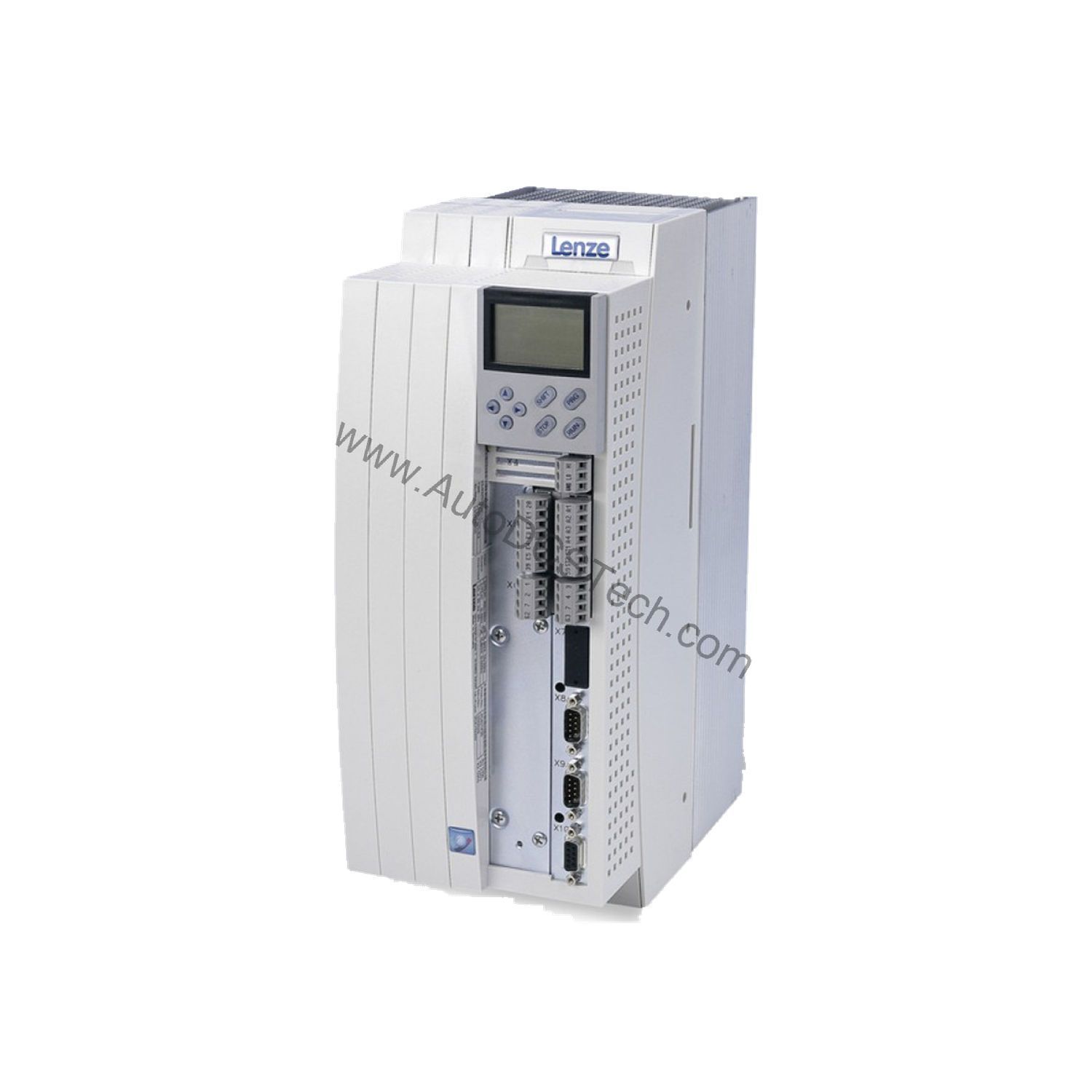

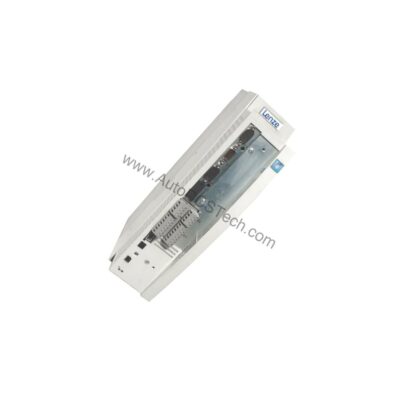

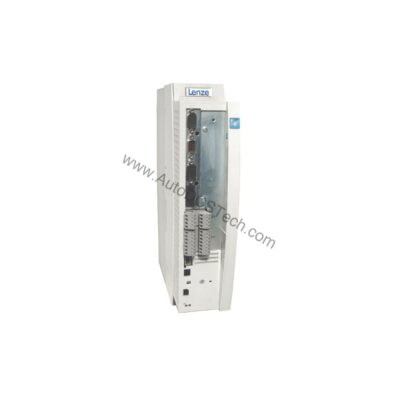

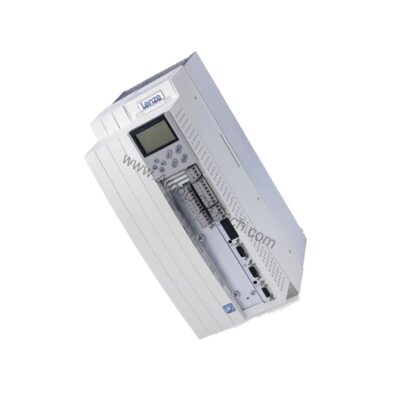

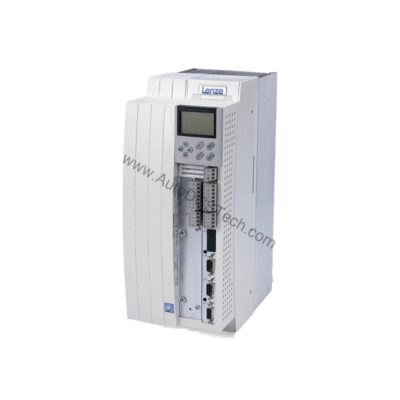

Lenze EVF9337-EVV060 Series 9300 Frequency Inverter, 250 HP, IP20

Technical Specifications Breakdown

Key parameters for the EVF9337-EVV060 are listed below for quick reference:

The Lenze EVF9337-EVV060: High-Power Motor Control for Demanding Applications

When production lines demand reliable speed control for large motors, the Lenze EVF9337-EVV060 from the Series 9300 stands out as a robust solution. This frequency inverter is built to handle a rated motor power of 250 HP, making it suitable for heavy-duty industrial processes such as conveyors, pumps, and fans. Its design focuses on delivering consistent performance while minimizing downtime, a key factor in controlling operational costs.

Industry Applications and Performance Benefits

This frequency inverter is well-suited for industries such as:

• Material Handling: Conveyor systems benefit from smooth acceleration and deceleration, reducing mechanical stress and extending belt life.
• Water and Wastewater: Pumps and blowers can be adjusted to varying flow demands, cutting energy usage significantly.
• HVAC: Large fans and compressors operate efficiently at partial loads, improving overall system efficiency.

In each scenario, the ability to fine-tune motor speed not only improves process control but also reduces wear on driven equipment, lowering total cost of ownership.

Installation and Setup Guidance

Mount the EVF9337-EVV060 on the back panel of a control cabinet, ensuring adequate clearance for airflow and heat dissipation. The IP20 rating means it is protected against solid objects larger than 12 mm, but it is not sealed against water ingress, so install it in a dry, indoor environment. Verify that the supply voltage is within 340-456V AC and that the supply frequency is within 45-65 Hz before energizing. Use properly sized cables for the 285A mains current to prevent overheating and voltage drops.

Maintenance and Reliability

To ensure long-term reliability, perform periodic inspections of the unit. Check for dust accumulation on cooling fins and fans, as overheating is a common cause of premature failure. The operating temperature range of 0 °C to +50 °C should be maintained; ensure the cabinet ventilation is adequate. Regularly verify that all electrical connections are tight and free of corrosion. Following these simple steps can extend the life of the inverter and prevent costly downtime.

Cost-Efficiency Through Reliable Design

The EVF9337-EVV060 is engineered to optimize energy consumption. By precisely controlling motor speed to match load requirements, this inverter reduces wasted energy compared to fixed-speed operation. This translates directly into lower electricity bills and a faster return on investment. Additionally, its robust construction minimizes the risk of unexpected failures, reducing maintenance and replacement costs over the equipment's lifespan.

Compatibility and Integration

The EVF9337-EVV060 is part of Lenze's Series 9300, designed for seamless integration into existing automation systems. It provides reliable variable-speed control for standard three-phase AC motors. While specific communication protocols are not detailed, the inverter can be integrated into a control cabinet alongside other Lenze components for an unified drive solution. For complex setups, consult the Lenze documentation or contact AutoDCSTech for expert guidance.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, confirm that the voltage and current ratings match your motor and power supply. The EVF9337-EVV060 is a solid choice for 250 HP applications. AutoDCSTech offers this unit as a genuine Lenze product. Before ordering, verify the current lifecycle status and availability with AutoDCSTech to ensure it meets your project timeline. Our team can assist with compatibility questions and provide technical support to help you make the right decision.

Troubleshooting and Common Issues

If the inverter fails to start, check the input power supply for correct voltage and frequency. Overcurrent trips may indicate a motor or wiring fault. Ensure the motor is not mechanically jammed. If the unit overheats, inspect the cooling fans and clean any blocked air paths. Always disconnect power before performing any inspection or maintenance. For persistent issues, contact AutoDCSTech for professional assistance.
