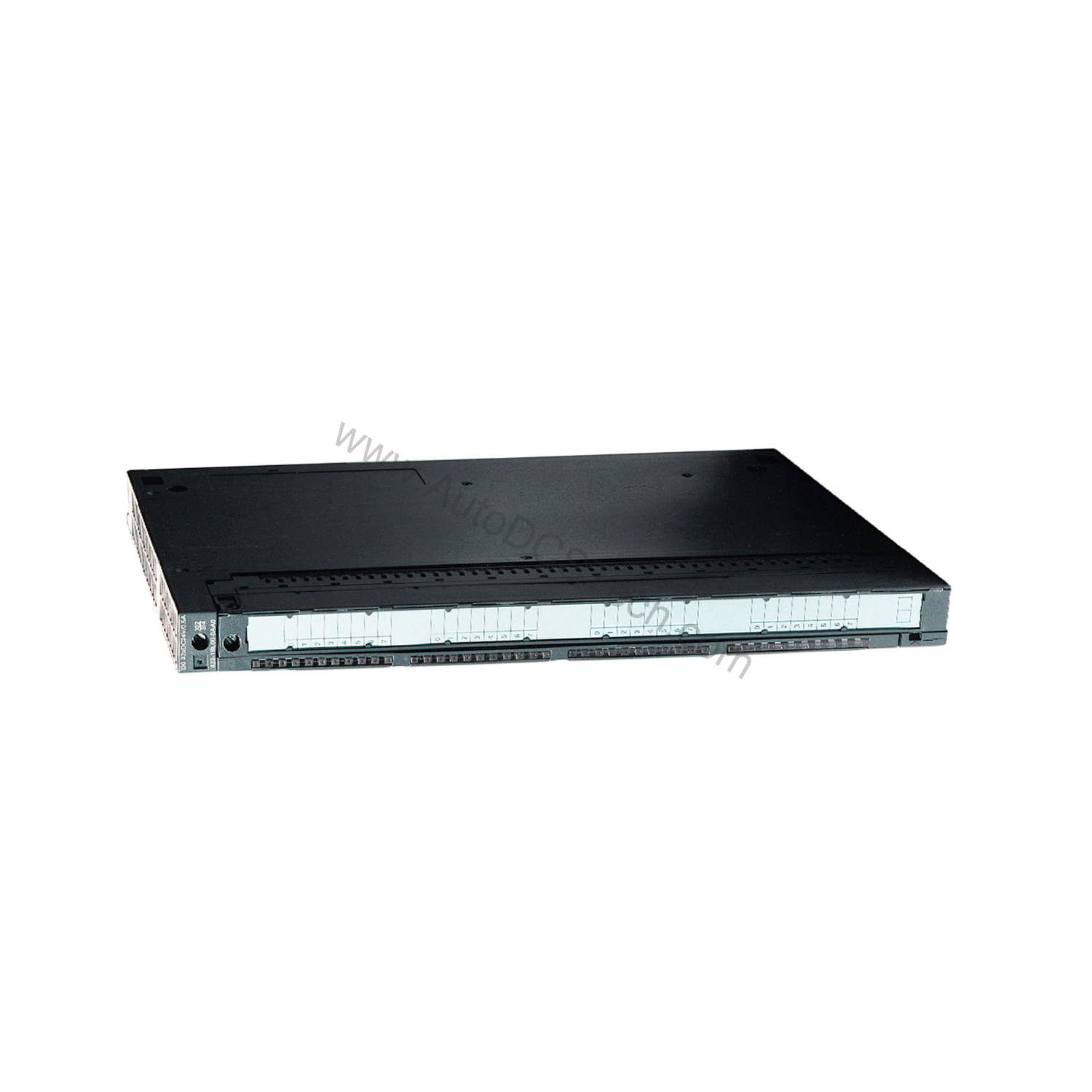

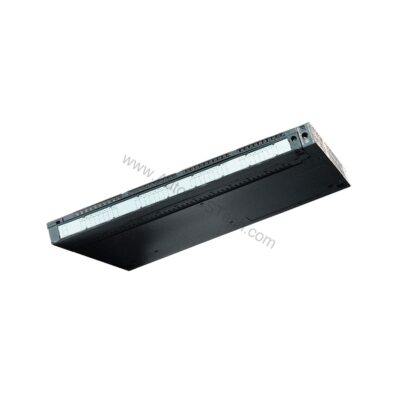

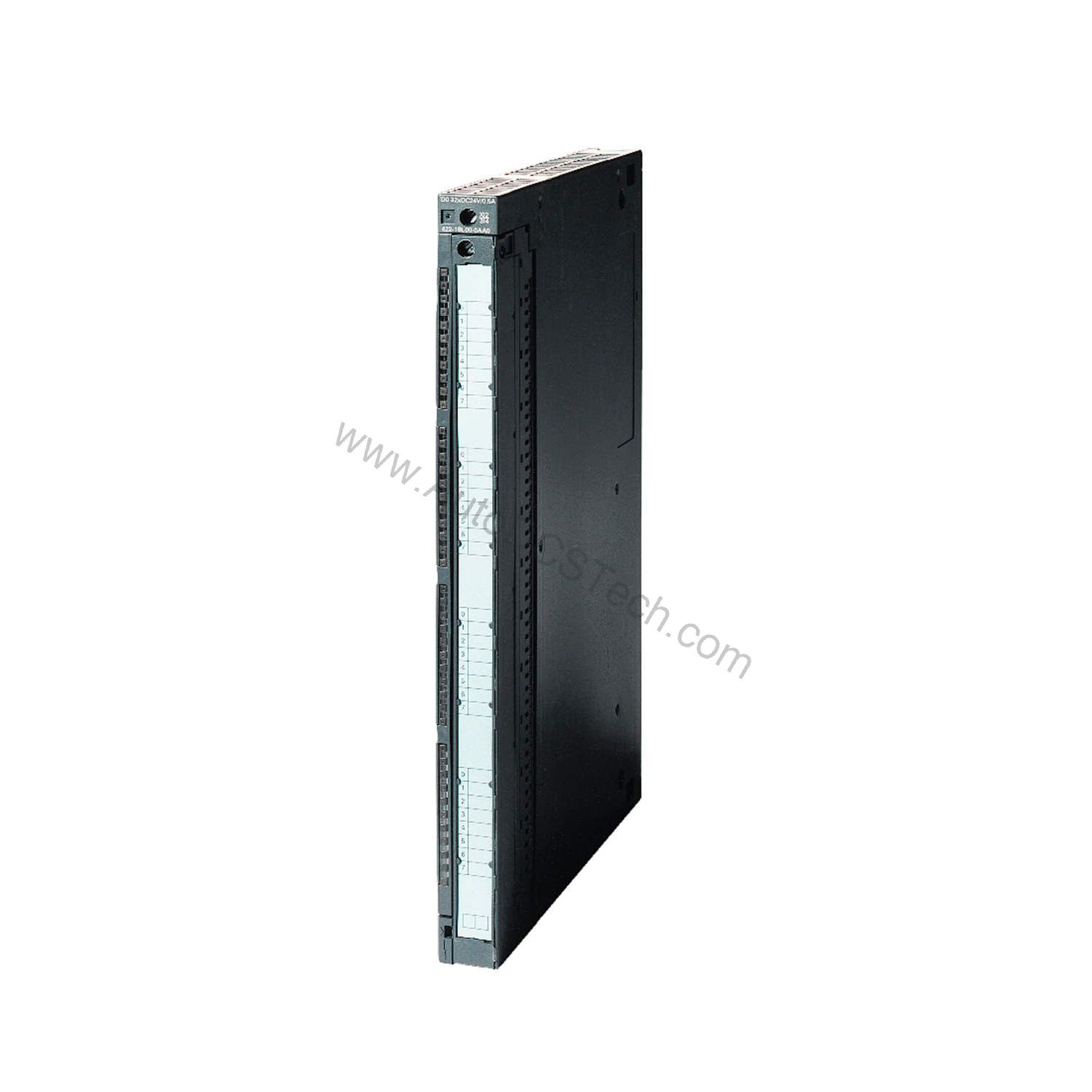

6ES7422-1FH00-0AA0 16 DO 120/230 V AC 2A

Introduction: Solving High-Voltage Output Challenges

When an automation system must switch high-voltage AC loads reliably, the 6ES7422-1FH00-0AA0 from Siemens provides a robust solution. This SIMATIC S7-400 digital output module handles 16 isolated outputs at 120/230 V AC with a rated current of 2 A per channel. It is engineered for applications where fused protection and high switching capacity are non-negotiable.

Consider a production line where motor starters and lamp loads demand precise, high-current switching. The 6ES7422-1FH00-0AA0 meets that need with a maximum lamp load of 50 W and support for NEMA Size 5 motor starters. Its isolated design ensures safe operation even in electrically noisy environments.

Key Features and Technical Specifications

The 6ES7422-1FH00-0AA0 delivers performance you can rely on. Below are the critical parameters extracted directly from the datasheet:

• Outputs: 16 digital outputs, isolated in groups of 4
• Load voltage: 120/230 V AC (permissible range 79–264 V AC, 47–63 Hz)
• Output current: Rated 2 A per channel; permissible range 10 mA to 2 A; surge current up to 50 A per cycle
• Short-circuit protection: Yes, via 8 A, 250 V fuse per group; minimum fuse shutdown current 100 A; response time max 100 ms
• Switching capacity: Lamp load max 50 W; resistive load max 10 Hz switching frequency
• Isolation: Between channels and backplane bus; tested with 1500 V AC
• Diagnostics: LED indicators for internal fault (fuse blown) and external fault (missing load voltage)
• Dimensions: 25 mm wide, 290 mm high, 210 mm deep; weight approx. 800 g

One distinctive feature is the per-group fuse protection. This design limits damage from overcurrent events, reducing downtime and repair costs. Additionally, the module supports parallel switching of two outputs for redundant control of a load, provided they share the same load voltage.

Real-World Applications

In manufacturing plants, the 6ES7422-1FH00-0AA0 is often used to control AC contactors, solenoid valves, and indicator lamps. Its high output current and fast response (0 to 1 in max 1 ms) make it suitable for processes that require rapid actuation. The module's ability to drive NEMA Size 5 motor starters means it can handle large inductive loads, which is critical in conveyor systems and pump stations.

Moreover, the isolated outputs allow mixing different load voltages within the same module, simplifying wiring in mixed-voltage cabinets. The module's wide permissible frequency range (47–63 Hz) ensures stable operation even with fluctuating power supply conditions.

Installation and Setup

Mounting the 6ES7422-1FH00-0AA0 is straightforward. The module fits into a standard S7-400 rack and connects to the backplane bus. Ensure that the load voltage L1 is within the permissible range (79–264 V AC) and that the frequency is between 47 and 63 Hz. Use shielded cables up to 1000 m or unshielded up to 600 m for output wiring.

For optimal thermal performance, consider the total current per group: up to 40 °C, max 4 A (6 A with fan assembly); up to 60 °C, max 2 A (5 A with fan subassembly) per 4 adjacent outputs. Always verify that the sum of output currents does not exceed these limits to prevent overheating.

Maintenance and Reliability

Regular inspection of the fuse status is essential. The module provides an LED indicator for fuse blown, enabling quick identification of faulty channels. Since the fuses are replaceable (8 A, 250 V, quick response), you can restore operation without replacing the entire module. This reduces maintenance costs and downtime.

To ensure long-term reliability, keep the module's environment within specified temperature limits and avoid condensation. Periodically check that all wiring connections are secure and that the load voltage is stable. Following these practices extends the service life of the 6ES7422-1FH00-0AA0 and the overall system.

Compatibility and Integration

It communicates via the backplane bus, drawing a maximum of 400 mA from the 5 V DC bus. The module is designed to work with the S7-400's diagnostic and status functions, although diagnostics are not parameterizable.

For redundant control applications, you can parallel two outputs from the same group, provided they share the same load voltage. This capability enhances system availability without additional hardware.

Troubleshooting Common Issues

If an output fails to activate, first check the load voltage L1. The module's external fault LED (EXTF) lights up when the load voltage is missing. If the internal fault LED (INTF) is on, a fuse may be blown. Replace the fuse with the specified 8 A, 250 V, quick-response type.

For intermittent issues, verify that the total current per group does not exceed the derating curves. Also, ensure that the output delay (max 1 ms for 0 to 1, and 1 AC cycle for 1 to 0) is acceptable for your application. If problems persist, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7422-1FH00-0AA0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Our team can provide datasheets, application notes, and technical assistance to ensure the module meets your requirements.
