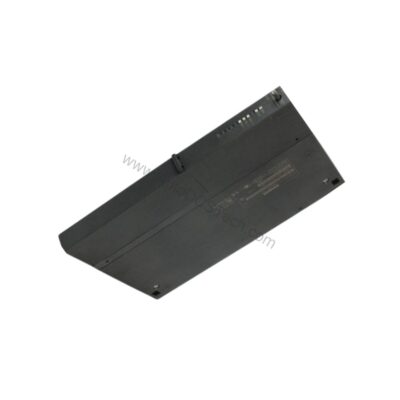

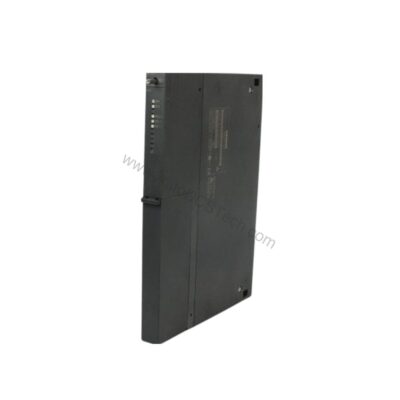

6ES7441-1AA03-0AE0 1-Channel CP 441-1 Siemens

Introduction: The Evolution of Point-to-Point Communication

In the landscape of industrial automation, the ability to reliably exchange data between controllers and field devices has always been a cornerstone of operational efficiency. Over the decades, point-to-point connections have evolved from simple serial links to versatile, protocol-rich interfaces that accommodate diverse equipment. The 6ES7441-1AA03-0AE0 from Siemens embodies this evolution, offering a robust solution for SIMATIC S7-400 systems that require dependable, flexible communication.

As manufacturing processes become more interconnected, the demand for modules that can handle various physical standards and protocols without compromising performance has grown. The CP 441-1 addresses this need by providing a single, configurable channel that supports TTY, RS-232C, and RS-422/485 interfaces. This adaptability ensures that legacy and modern devices can be integrated , reducing the complexity often associated with multi-vendor environments.

For engineers and plant operators, the 6ES7441-1AA03-0AE0 represents a strategic investment in connectivity. Its design prioritizes both flexibility and reliability, making it a suitable choice for applications ranging from simple printer output to complex data exchange between PLCs. By understanding its capabilities, users can optimize their communication architectures and enhance overall system performance.

Key Features and Technical Specifications

The 6ES7441-1AA03-0AE0 is engineered to deliver precise and reliable point-to-point communication. Below are the core specifications that define its functionality:

• Supply Voltage: Rated for 5 V DC and 24 V DC, ensuring compatibility with standard S7-400 backplane power.
• Input Current: Max 700 mA from 5 V backplane bus (without interface module); interface modules consume up to 300 mA at 5 V (and 45 mA at 24 V for TTY).
• Interfaces: One variable interface supporting 20 mA (TTY), RS-232C (V.24), and RS-422/485 (X.27).
• Cable Lengths: Shielded cables up to 1000 m (TTY), 10 m (RS-232), and 1200 m (RS-422/485).
• Transmission Rate: Max 38.4 kbit/s for RS-422/485 and RS-232; 19.2 kbit/s for TTY with 3964(R), ASCII, or printer protocols.
• Integrated Protocols: 3964(R), ASCII, and printer drivers for HP-Deskjet, HP-Laserjet, IBM-Proprinter, and user-defined printers.
• Communication Functions: Supports S7 extended communication with up to 8 connections.
• Memory Requirements: 1-5 KB for parameters, 0-55 KB for message texts per interface.
• Dimensions: 25 mm width, 290 mm height, 210 mm depth; weight approx. 720 g (interface module 100 g).

One distinctive aspect of this module is its ability to handle multiple physical standards on a single channel. This flexibility allows engineers to standardize on one module type for various field devices, simplifying inventory and reducing spare parts complexity. The support for long cable lengths (up to 1200 m for RS-422/485) is particularly valuable in large facilities where devices are distributed across extensive areas.

Applications and Use Cases

The 6ES7441-1AA03-0AE0 is well-suited for a range of industrial communication tasks. In manufacturing plants, it can connect S7-400 PLCs to barcode scanners, weigh scales, or operator panels that use serial interfaces.

Additionally, the module's ability to handle 3964(R) protocol enables robust data exchange between Siemens PLCs and other automation devices, such as drives or HMIs. The variable interface allows the same module to be configured for different physical layers, accommodating both legacy TTY devices and modern RS-232 or RS-485 equipment. This versatility is especially beneficial in retrofit projects where existing field wiring must be preserved.

In process industries, the long cable length capability of RS-422/485 (up to 1200 m) supports communication with remote I/O or analyzers located far from the control room. The module's compact design (25 mm width) also saves valuable rack space, allowing for more modules in the same chassis.

Installation and Setup

Installing the 6ES7441-1AA03-0AE0 is straightforward for technicians familiar with S7-400 systems. The module plugs directly into the backplane bus, and the interface module is attached to the front. Configuration is performed using STEP 7 software, which provides dedicated parameter assignment forms for the CP 441-1.

When setting up the module, it is essential to select the appropriate interface physics (TTY, RS-232C, or RS-422/485) based on the connected device. The configuration package on CD includes all necessary tools to define protocol parameters, transmission rates, and message formats. Proper termination and shielding of cables should be observed to ensure signal integrity, especially for long-distance RS-422/485 links.

For initial commissioning, verify that the supply voltage (5 V or 24 V DC) is within the specified range and that the backplane current does not exceed the maximum of 700 mA. The module's status LEDs provide real-time feedback on communication activity, aiding in troubleshooting.

Maintenance and Reliability

To ensure long-term reliability, periodic inspection of the module and its connections is recommended. Check that all cable connections are secure and that the interface module is properly seated. Environmental factors such as temperature, humidity, and vibration should be within the specifications outlined in the official Siemens documentation.

The module's solid-state design minimizes wear, but regular monitoring of communication errors can help detect potential issues early. The integrated diagnostics in STEP 7 can be used to monitor transmission statistics and identify intermittent faults. Following the manufacturer's guidelines for maintenance will help maximize the service life of the 6ES7441-1AA03-0AE0.

Compatibility and Integration

The 6ES7441-1AA03-0AE0 is designed for the SIMATIC S7-400 family, integrating with S7-300 and S7-400 CPUs. It supports S7 communication, enabling efficient data exchange with other Siemens controllers and HMI systems. The module's support for 3964(R) and ASCII protocols ensures compatibility with a wide range of third-party devices that use these standard serial protocols.

For printer connectivity, the module includes drivers for popular printer models, allowing direct printing of messages or reports without additional hardware. The user-defined printer option offers flexibility for custom printing requirements. This integration capability makes the module a versatile component in any S7-400-based automation solution.

Troubleshooting and Common Issues

While the 6ES7441-1AA03-0AE0 is reliable, users may encounter common issues such as communication timeouts or data errors. These can often be traced to incorrect protocol settings, mismatched baud rates, or improper cable termination. Using the diagnostic functions in STEP 7 can help identify the root cause.

If the module fails to communicate, verify that the interface physics selected in the configuration matches the actual hardware. Also, ensure that the supply voltage is present and that the backplane current is within limits. For long cable runs, check for signal reflections and ensure proper grounding. In most cases, these steps resolve the issue without requiring module replacement.

Product Support and Availability

The 6ES7441-1AA03-0AE0 is available through AutoDCSTech, an industrial automation parts supplier. For current pricing and lead times, contact AutoDCSTech directly. The module is typically in stock and ready to ship, ensuring minimal downtime for your operations.
