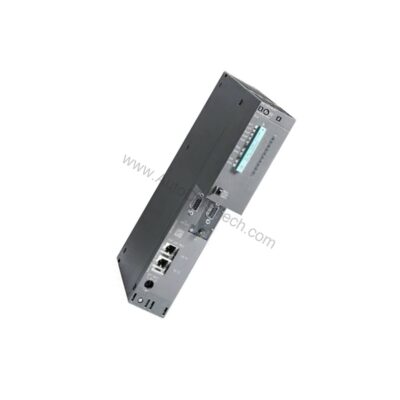

6ES7416-3ER05-0AB0 11.2 MB CPU 416-3 PLC

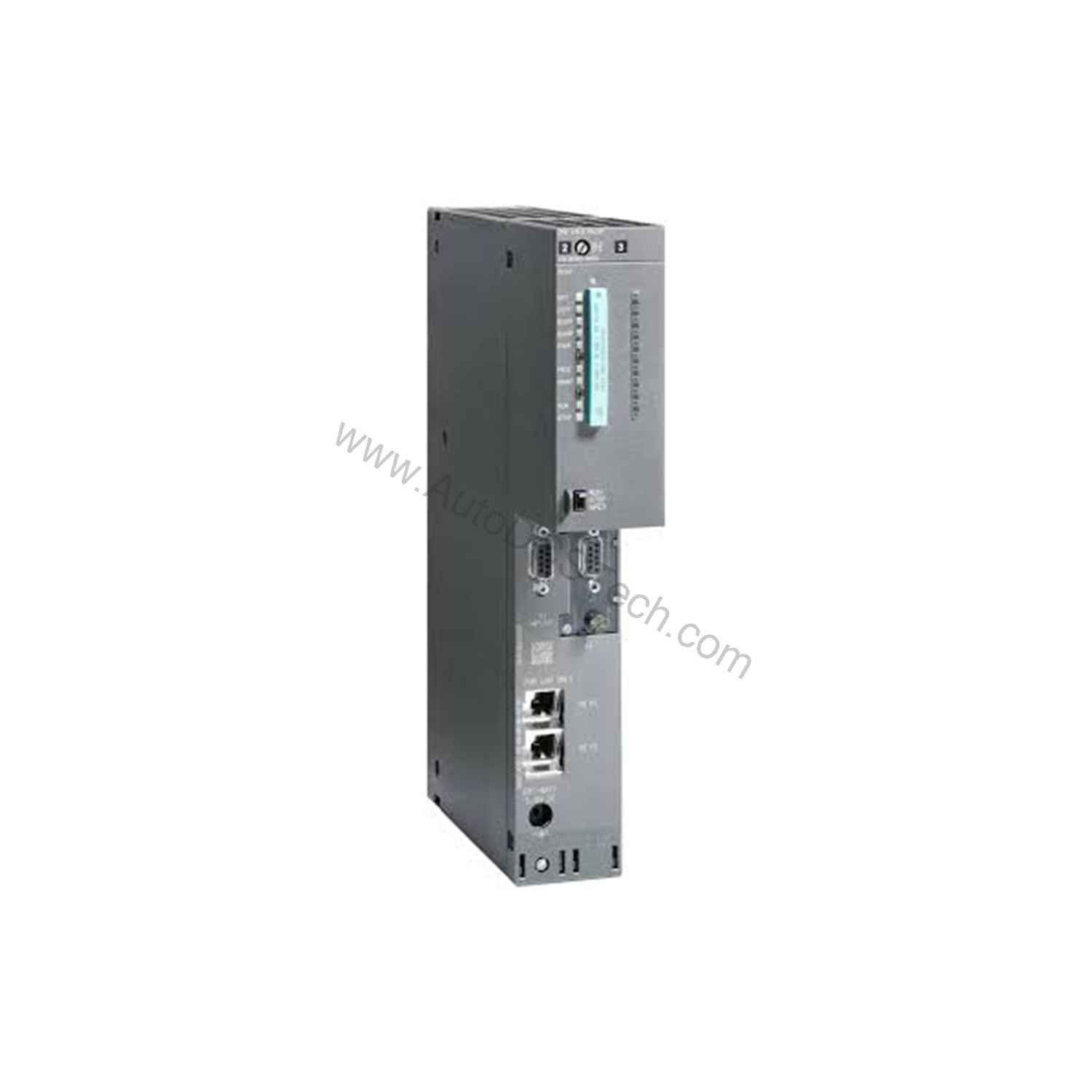

Introduction to the 6ES7416-3ER05-0AB0

When your production line demands high-speed processing and reliable multi-protocol communication, the 6ES7416-3ER05-0AB0 from Siemens delivers. This CPU 416-3 central processing unit is engineered for complex automation tasks, offering 11.2 MB of working memory (5.6 MB code, 5.6 MB data) to handle large programs and data sets.

With three interfaces—MPI/DP at 12 Mbit/s, PROFIBUS DP, and a pluggable IF module—this CPU supports flexible network topologies. Whether you are upgrading an existing line or designing a new system, the 6ES7416-3ER05-0AB0 ensures consistent, high-speed data exchange across your plant floor.

Key Features and Technical Specifications

The 6ES7416-3ER05-0AB0 is packed with features that make it a robust choice for mid-to-large automation projects. Below are the core specifications extracted from the official datasheet:

• Working memory: 11.2 MB total (5.6 MB for code, 5.6 MB for data), non-expandable

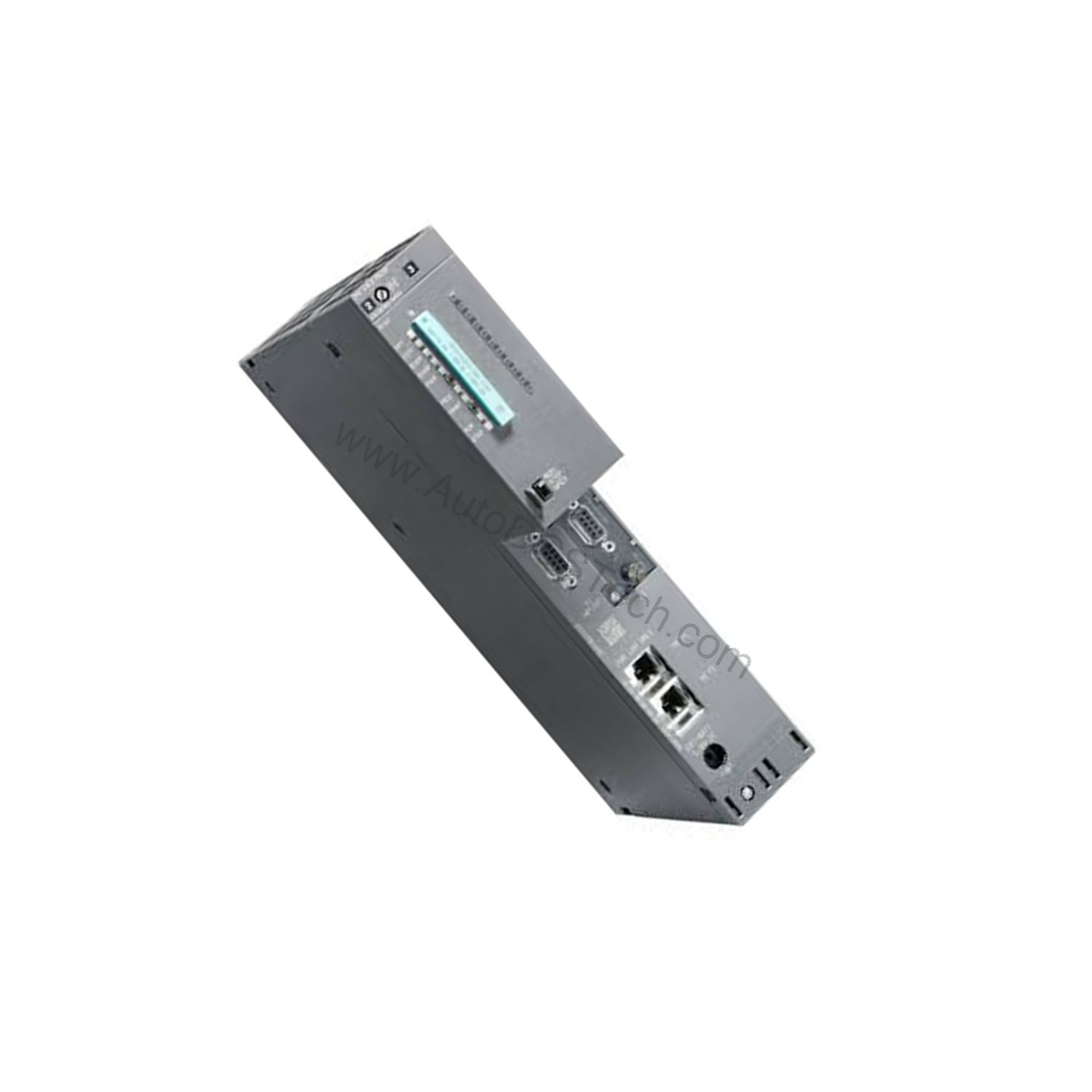

• Interfaces: 1x MPI/PROFIBUS DP (12 Mbit/s), 1x PROFIBUS DP, 1x pluggable IF module (IF 964-DP)
• Backplane bus current: 5 V DC, typ. 1.1 A, max. 1.3 A; 24 V DC, max. 450 mA (150 mA per DP interface)
• Power loss: typ. 5.5 W, max. 6 W
• Processing times: 30 ns for bit, word, and fixed-point operations; 90 ns for floating-point
• Digital channels: 131,072 inputs and outputs (central)
• Analog channels: 8,192 inputs and outputs (central)
• Dimensions: 50 mm x 290 mm x 219 mm (W x H x D), requires 2 slots
• Weight: approx. 0.9 kg

One standout feature is the isolation on all RS 485 interfaces, which protects against ground loops and electrical noise—critical in industrial environments. Additionally, the CPU supports isochronous mode for PROFIBUS, enabling synchronized motion control applications with minimal jitter.

Applications and Use Cases

The 6ES7416-3ER05-0AB0 is well-suited for industries such as automotive, food and beverage, chemical, and water treatment.

• High-speed packaging lines requiring precise timing and synchronization.
• Complex batch processes with extensive recipe management.
• Distributed control systems using PROFIBUS DP with multiple remote I/O stations.
• Applications needing isochronous mode for coordinated motion control.

For example, in a bottling plant, the CPU can manage hundreds of sensors and actuators, synchronize filling and capping stations, and communicate with a supervisory SCADA system—all in real time.

Installation and Setup

Proper installation is crucial for reliable operation. Here are some guidelines:

• Mount the CPU in a suitable S7-400 rack, ensuring adequate ventilation and clearance for heat dissipation.
• Connect the backplane bus via the rack's bus connectors; the CPU draws 5 V DC up to 1.3 A from the backplane.
• For the pluggable IF module, use the IF 964-DP (MLFB: 6ES7964-2AA04-0AB0) to add a third PROFIBUS DP interface.
• Use shielded twisted-pair cables for PROFIBUS connections, and ensure proper grounding to maintain signal integrity.
• Configure the CPU using STEP 7, setting the MPI addresses and PROFIBUS baud rates as per your network design.

Always refer to the S7-400 manual for detailed wiring and configuration instructions.

Maintenance and Reliability

To ensure long-term reliability, follow these maintenance practices:

• Periodically inspect the CPU and rack for dust accumulation; use dry compressed air to clean if necessary (ensure power is off).
• Check that all connectors are secure and that the battery (if used) has sufficient charge to maintain the hardware clock and retentive data.
• Monitor the diagnostic buffer via STEP 7; it can store up to 3,200 entries, helping you identify issues early.
• Verify that the ambient temperature stays within the specified range (refer to the manual) to avoid overheating.

By following these steps, you can minimize downtime and extend the service life of your CPU.

Buyer's Guide: Evaluating the 6ES7416-3ER05-0AB0

When selecting a PLC CPU, consider the following aspects to ensure it meets your needs:

Processing Power and Memory

The 11.2 MB working memory is substantial for most applications, but it is not expandable. If your program is likely to grow beyond 5.6 MB of code, you may need to optimize code or consider a higher-end CPU. However, for typical control logic, this capacity is ample.

Communication Capabilities

With MPI, PROFIBUS DP, and a pluggable interface, the 6ES7416-3ER05-0AB0 offers versatile connectivity. The MPI interface supports up to 44 connections, while each DP interface can handle up to 32 (1st) or 125 (2nd/3rd) DP slaves. This allows you to build extensive distributed I/O networks without additional CPs.

Isolation and Noise Immunity

All RS 485 interfaces are isolated, which is a key advantage in electrically noisy environments. This reduces the risk of communication errors and equipment malfunction, ensuring stable operation.

Programming and Engineering

The CPU is programmed with STEP 7 V5.3 SP2 or higher (with HW update). It supports multiple programming languages: LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph. This flexibility lets your team use the language they are most comfortable with.

Compatibility and Integration

The 6ES7416-3ER05-0AB0 integrates with a wide range of Siemens components:

• Supports up to 21 expansion devices and 63 connectable OPs (operator panels).
• Works with IM 460 and IM 463 interface modules for distributed I/O.
• Can act as a DP master or slave, with support for DPV1 and isochronous mode.
• Compatible with S7 communication, allowing data exchange with other S7 CPUs.
• Supports S5-compatible communication via CP 443-1 or CP 443-5 (up to 8 KB per job).

This makes it a versatile choice for mixed-vendor environments, though for best performance, pairing with Siemens ET 200 remote I/O is recommended.

Troubleshooting Common Issues

Even with robust design, issues can arise. Here are some common problems and solutions:

• Communication failure on PROFIBUS: Check baud rate settings and termination resistors. Ensure that the DP slave addresses are unique and within the allowed range.
• CPU stops in STOP mode: Use the diagnostic buffer to identify the cause. Common reasons include programming errors, hardware faults, or insufficient memory.
• High CPU load: If the CPU load exceeds 80%, optimize your program by reducing scan cycle time, using faster instructions, or moving non-critical tasks to a separate CPU.
• Battery alarm: Replace the backup battery with a new one (type: 6ES7971-0BA00) to maintain retentive data and the clock.

If problems persist, consult the official Siemens documentation or contact AutoDCSTech for expert support.

Product Support and Availability

The 6ES7416-3ER05-0AB0 is available from AutoDCSTech. We stock genuine Siemens parts and offer fast worldwide shipping. Contact our team for current pricing and lead times. Please verify the lifecycle status of this product before ordering, as Siemens may have discontinued it.
