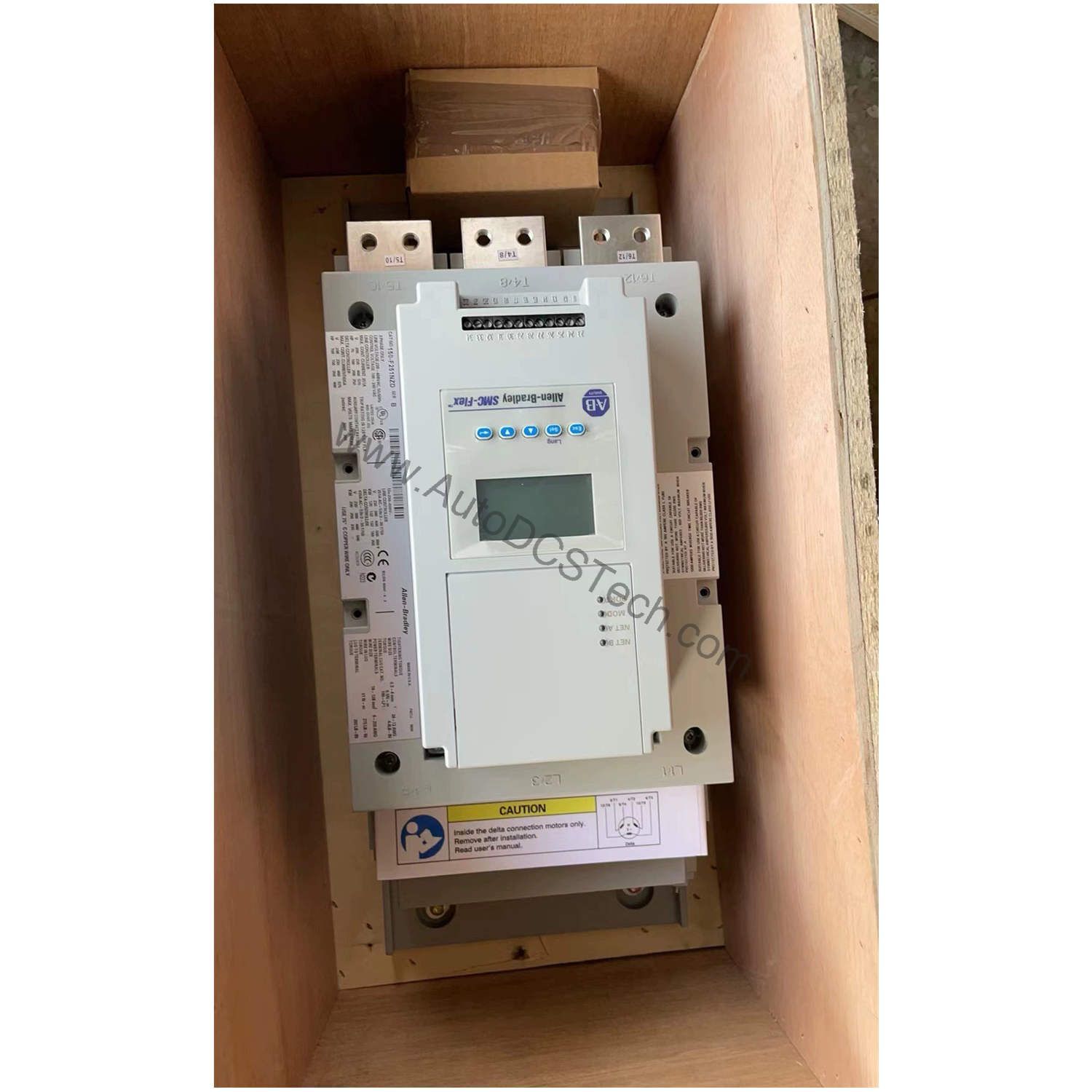

Allen-Bradley 150-F251NBR SMC Flex Smart Motor Controller, 251A

Optimize Motor Starting with the Allen-Bradley 150-F251NBR SMC Flex

Industrial motor starting can cause mechanical stress, voltage dips, and equipment wear. The Allen-Bradley 150-F251NBR SMC Flex Smart Motor Controller addresses these challenges by providing precise, programmable control over acceleration and deceleration. This solid-state controller, part of the SMC-Flex product family, is designed for standard squirrel-cage induction motors and wye-delta six-lead motors.

Technical Specifications Breakdown

Key parameters for the 150-F251NBR are listed below for quick reference:

Industry Applications for the SMC Flex Controller

This motor controller is well-suited for applications requiring reduced inrush current and controlled torque. Typical uses include conveyors, pumps, fans, compressors, and mixers. The dual ramp start mode is particularly useful for applications with variable load conditions, such as centrifugal pumps where soft start and soft stop reduce water hammer. The integrated metering provides real-time data on amps, volts, kW, kWh, power factor, and motor thermal capacity, enabling predictive maintenance and energy management.

Installation and Setup Guidance

Mount the open-style enclosure in a clean, dry, and well-ventilated cabinet. Ensure adequate clearance for heat dissipation. Connect the three-phase line voltage (200-460V AC, 50/60 Hz) to the input terminals. The control circuit requires 24V AC/DC. Use the four fully programmable auxiliary contacts for external bypass, status indication, or alarm signaling. The DPI ports allow connection of an optional HMI or communication module for remote monitoring. Always follow the manufacturer's wiring diagram and local electrical codes.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The open enclosure requires a clean environment to prevent contamination. The controller provides comprehensive protection and diagnostics, including power loss, line fault, voltage unbalance, phase reversal, undervoltage, overvoltage, controller temperature, stall, jam, overload, and communication fault. Use the front panel LED indicators (stopped, starting, stopping, at speed, alarm, fault) for quick status checks.

Compatibility and Integration

The DPI communication port supports expansion modules for network connectivity (e.g., DeviceNet, EtherNet/IP). The integrated human interface module allows local configuration and monitoring. Metering data can be accessed via the HMI or through the communication network for integration with plant SCADA systems.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the controller rating to your motor's full-load current and voltage. The 150-F251NBR is rated for 251 A and 200 Hp at 460V AC. For delta-connected motors, the applicable current range extends to 145-435 Amperes. Contact AutoDCSTech for current lifecycle status and availability before ordering. Our team can help verify compatibility with your specific motor and application requirements.

Troubleshooting and Common Issues

If the controller fails to start, check the control voltage (24V AC/DC) and verify that the line voltage is within 200-460V AC, 3-phase. The diagnostic system will indicate specific faults such as phase reversal, undervoltage, or overvoltage. For communication faults, inspect the DPI connection and ensure the expansion module is properly seated. Use the metering functions to monitor motor thermal capacity usage and identify potential overload conditions before they cause a trip.
