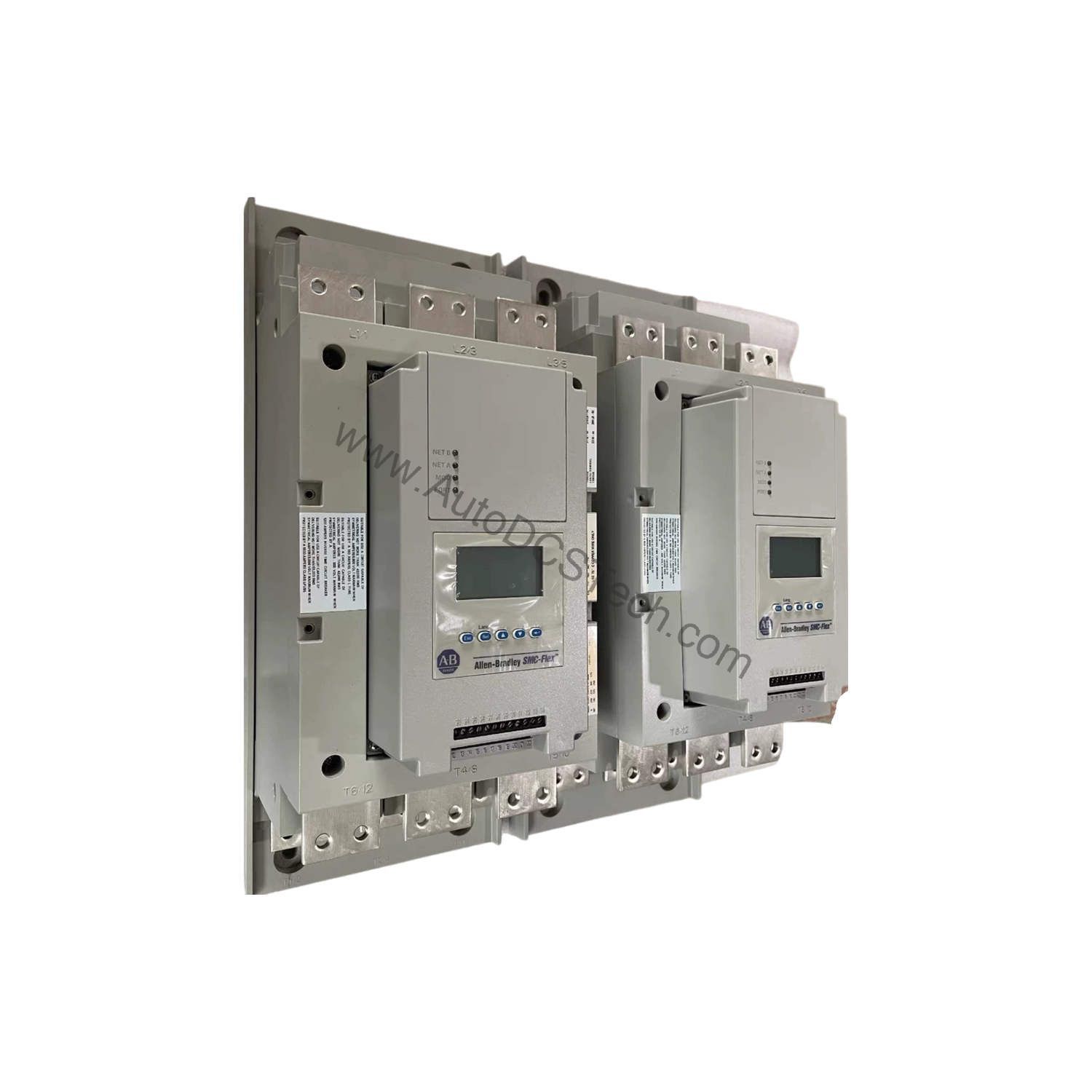

Allen-Bradley 150-F251FHD SMC-Flex Solid State Controller 251A IP65

Technical Specifications Breakdown

Key parameters for the 150-F251FHD are listed below for quick reference:

Industry Applications

• Material Handling Systems: Conveyors transporting fragile goods benefit from the soft start/stop modes, preventing product damage and reducing belt wear. The 200 Hp capacity supports heavy loads.
• Pump and Fan Control: In water treatment or HVAC, sudden starts cause pressure surges and pipe stress. The controller’s ramp reduces these effects, extending pump seal life and reducing leakage-related costs.
• Star-Delta Motor Retrofit: Replacing electromechanical star-delta starters with the 150-F251FHD simplifies wiring and provides solid-state starting, reducing mechanical wear and improving energy efficiency.

Installation & Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Ensure the IP65 enclosure is properly sealed after wiring. Connect the 200-208V AC 3-phase input line to the designated terminals. The control voltage range of 100-240V AC allows flexible integration with existing control systems. Use torque values specified in the manual for power connections to avoid overheating. Verify that the motor’s full-load current does not exceed 251 A.

Maintenance & Reliability

The modular power structure simplifies component replacement. Inspect the enclosure seals annually to maintain IP65 integrity. Check for signs of overheating or dust accumulation on heatsinks. The built-in diagnostic tools help identify issues before they cause failures, reducing mean time to repair. No internal adjustments are required under normal operation.

Cost-Effective Motor Starting with the Allen-Bradley 150-F251FHD

The Allen-Bradley 150-F251FHD is a Bulletin 150 SMC-Flex solid state controller designed to reduce mechanical stress and electrical inrush during motor starting. By limiting torque spikes and current surges, this controller extends equipment life and lowers operational costs. With a 251 A rating and 200 Hp at 460V AC, it handles demanding applications while maintaining system reliability.

Reducing Operational Costs Through Controlled Starting

Full-voltage starting of induction motors causes mechanical damage to gears, chains, belts, and driven loads. The 150-F251FHD eliminates these shock loads by ramping voltage and current smoothly. This reduces repair costs and unplanned downtime. Additionally, limiting inrush current prevents nuisance tripping of upstream breakers and complies with power company restrictions, avoiding penalty fees. The compact IP65 enclosure saves floor space and protects against dust and water ingress, lowering installation and maintenance expenses.

Compatibility & Integration

The SMC-Flex line supports modular communication capabilities, allowing integration with PLCs and SCADA systems. The controller works with standard squirrel-cage and star-delta induction motors. Use the control voltage terminals for start/stop commands from a remote source.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the current rating to your motor’s full-load amps. The 150-F251FHD is suitable for motors up to 200 Hp at 460V AC. For applications requiring IP65 protection, this model eliminates the need for a separate enclosure. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers competitive pricing and fast shipping for this and other Allen-Bradley drives.
