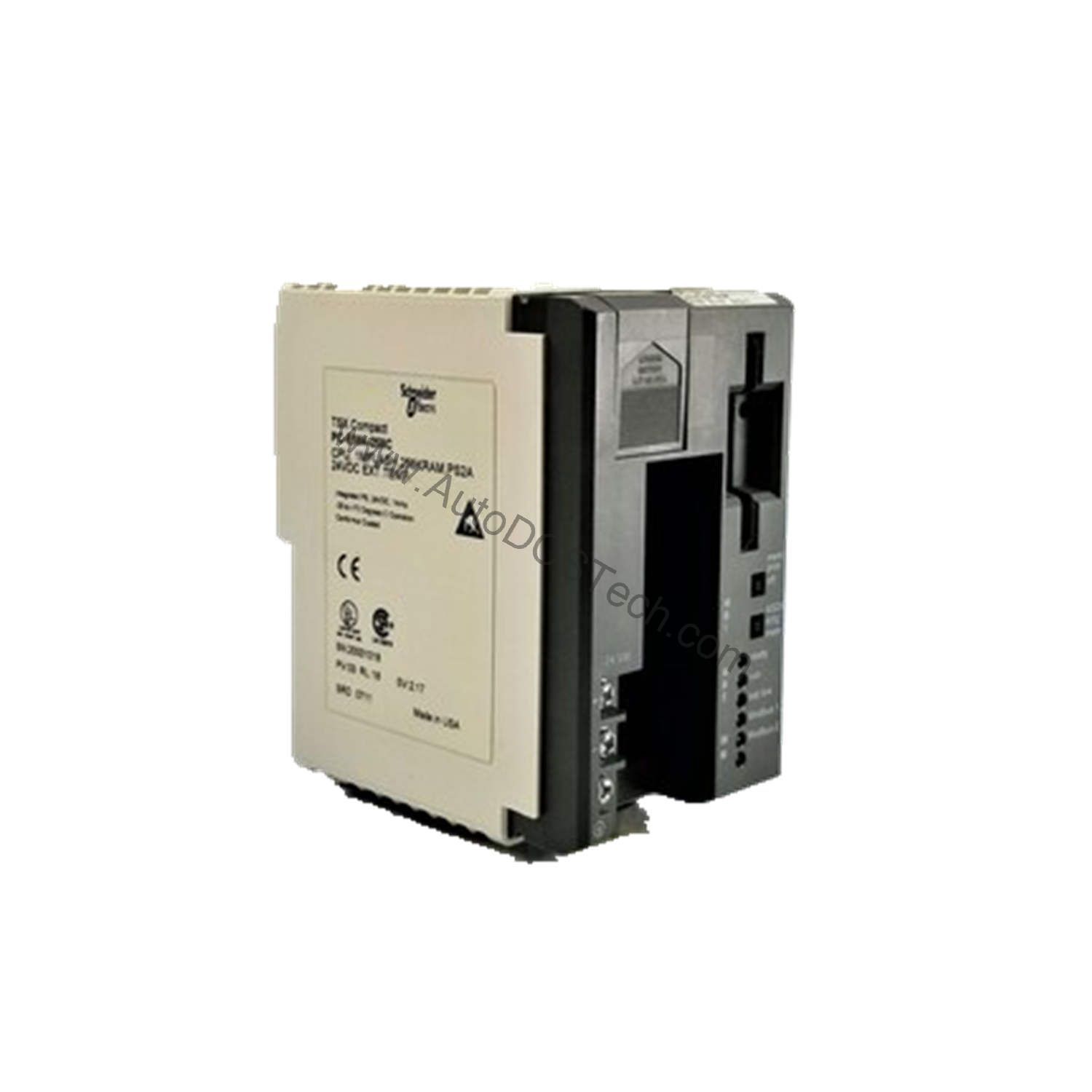

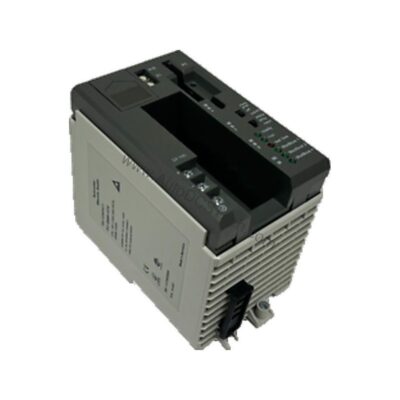

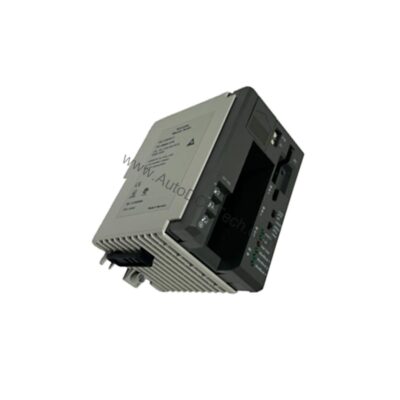

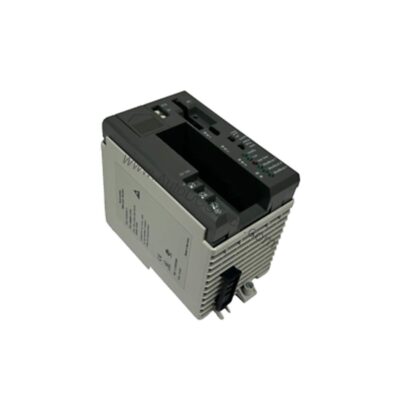

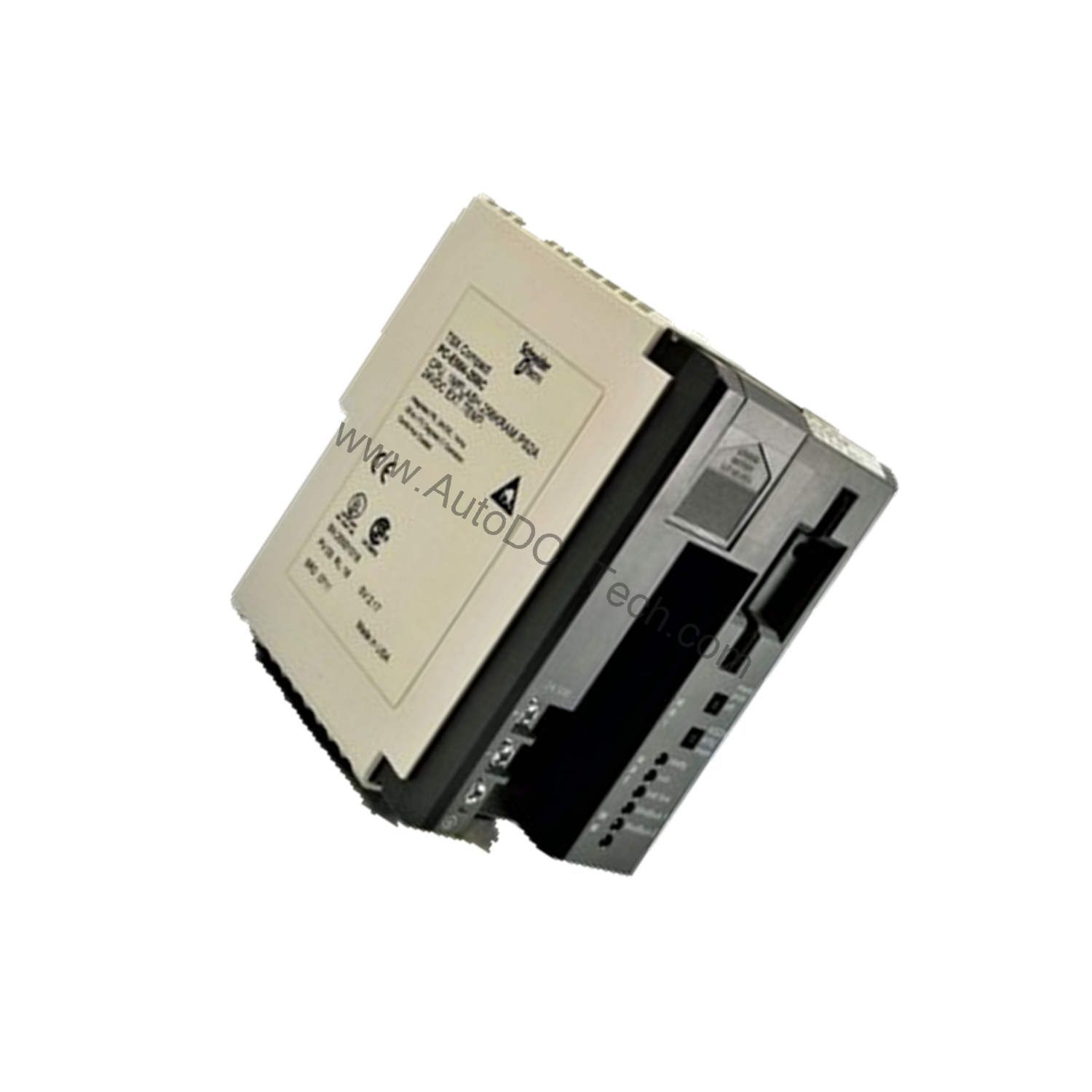

Schneider PC-E984-385 Modicon Programmable Controller 16k Memory

Technical Specifications Breakdown

Key parameters for the PC-E984-385 are listed below for quick reference:

Robust Programmable Controller for Demanding Applications

The Schneider Electric PC-E984-385 is a programmable controller from the Modicon series, designed to deliver reliable and efficient control in industrial environments. Its dual communication ports and fast scan time ensure responsive and connected operations.

Industry Applications

Its 512/512 I/O capacity supports large-scale sensor and actuator networks, while the 3 ms/k scan time enables real-time response in high-speed production lines. The Modbus and Modbus+ ports allow integration with existing SCADA and PLC networks, reducing retrofit costs.

Installation and Setup Guidance

Mount the controller in a clean, dry enclosure away from vibration. Ensure proper grounding and use shielded cables for Modbus connections to minimize noise. Configure the I/O mapping and communication parameters using the manufacturer's software. Verify that the total I/O does not exceed 512 inputs and 512 outputs per local drop.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. Check the communication ports for signal integrity. The unit's robust design supports continuous operation in industrial settings. For optimal performance, keep the ambient temperature within the specified range (not provided; verify with datasheet).

Compatibility and Integration

It supports up to 4 racks and 2 local housings, allowing flexible expansion. This controller can replace older Modicon models in existing installations, providing a cost-effective upgrade path.

Selection Guide and Purchasing Advice

When selecting a programmable controller, consider your I/O count, memory requirements, and communication needs. The PC-E984-385 offers a balanced profile for mid-range applications. Contact AutoDCSTech for lifecycle status and availability before ordering. We stock this model and can advise on alternatives if needed.

Troubleshooting and Common Issues

If the controller fails to communicate, verify the Modbus cable connections and termination resistors. For scan time errors, reduce the program size or optimize logic. If I/O points are unresponsive, check the power supply and module seating. Always consult the manual for specific error codes.
