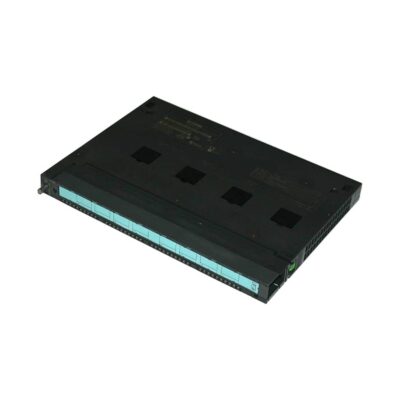

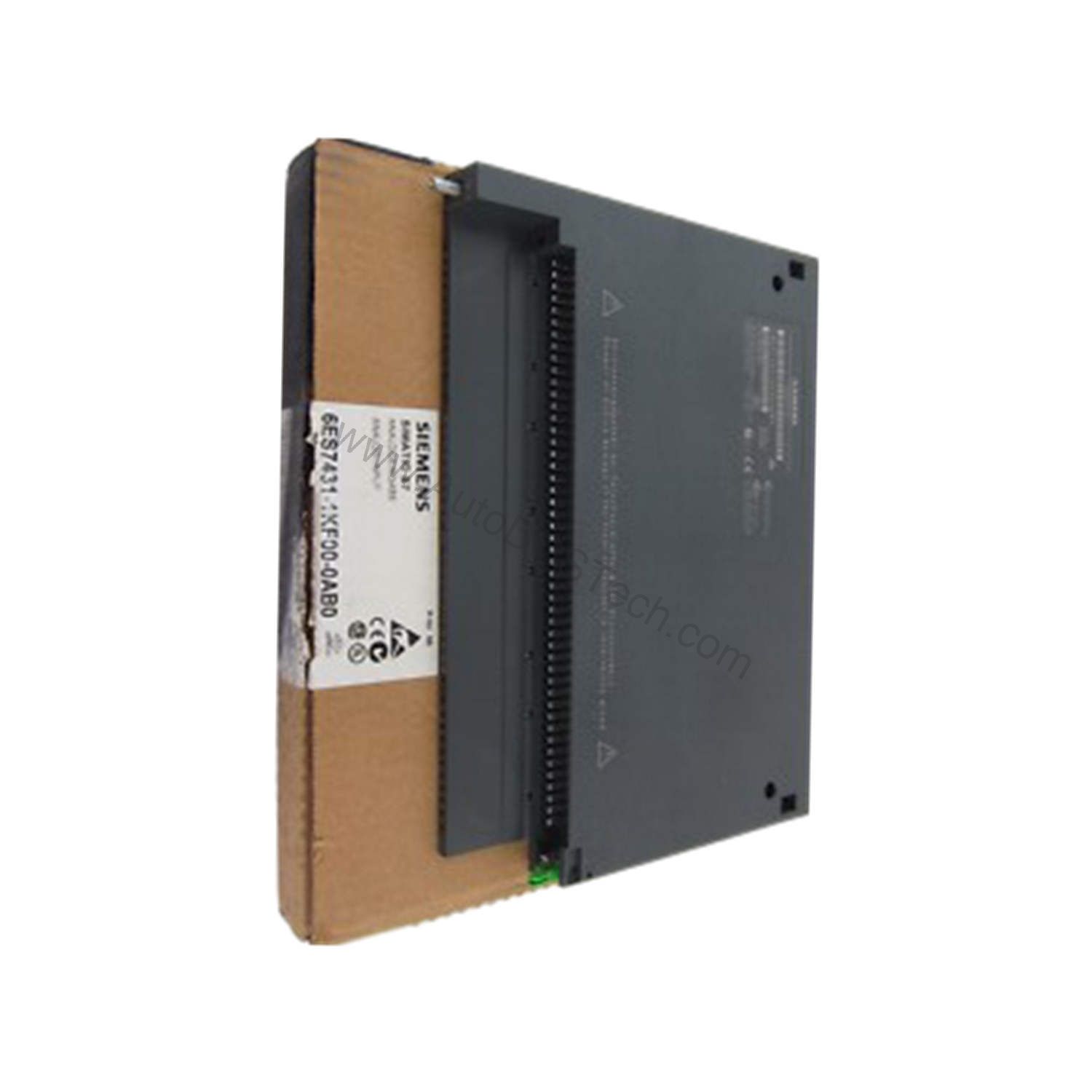

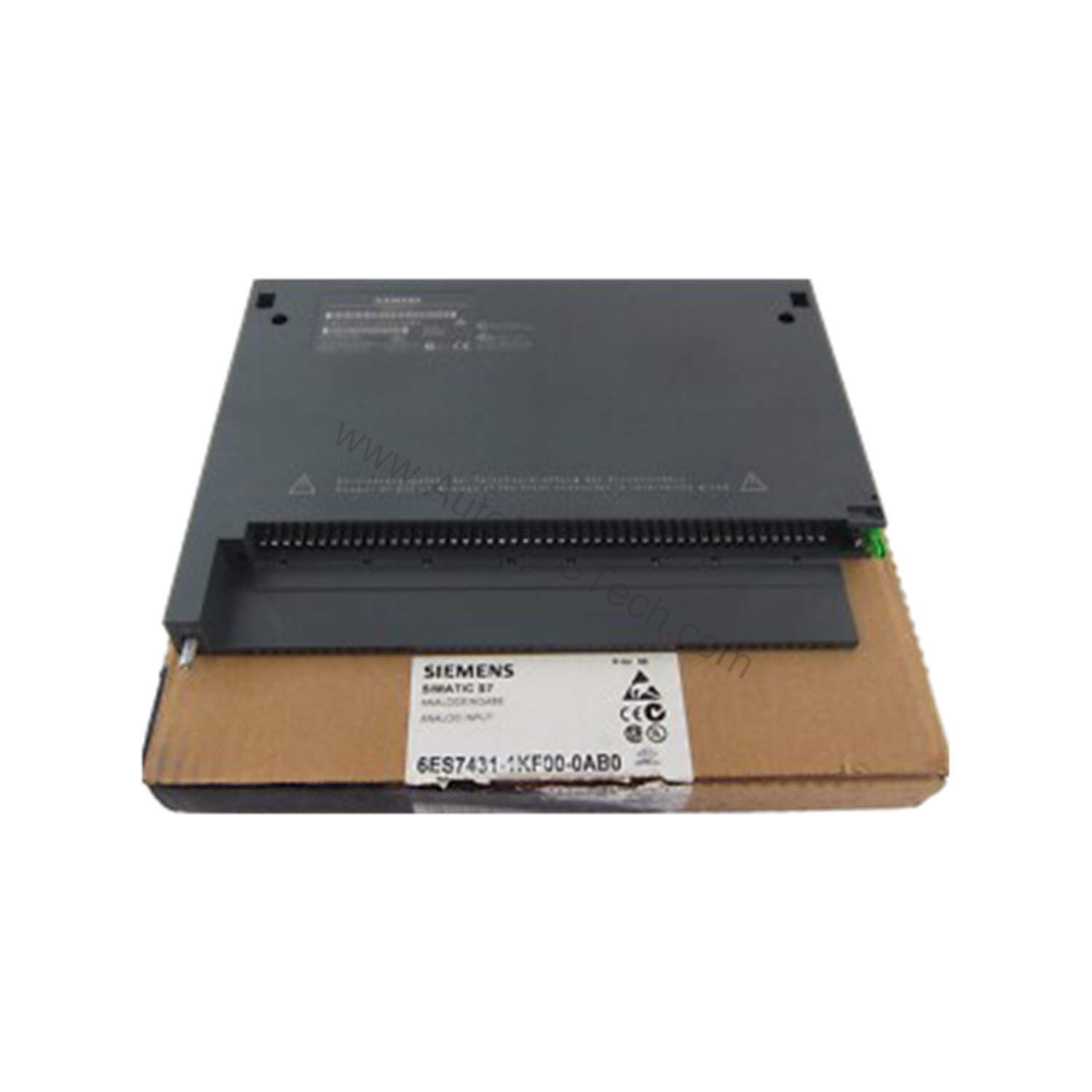

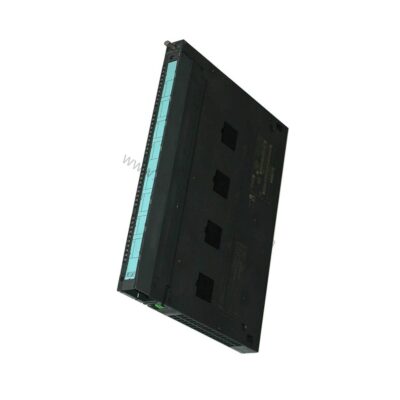

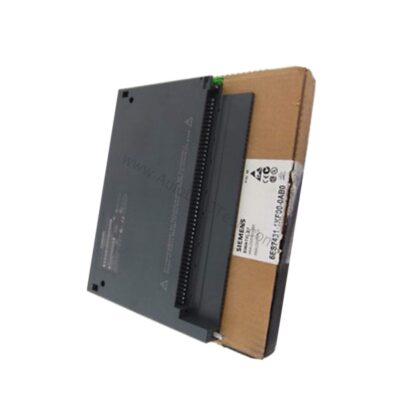

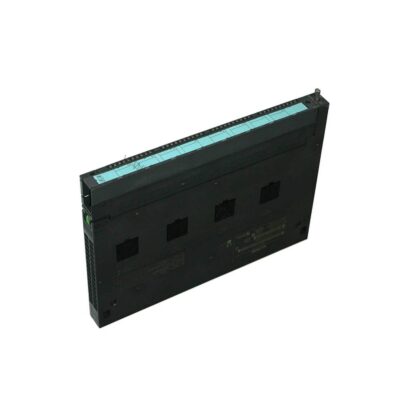

6ES7431-7QH00-0AB0 16 AI 16-bit Analog Input Module

Introduction to the 6ES7431-7QH00-0AB0

This SIMATIC S7-400 analog input module SM 431 offers 16 isolated inputs with 16-bit resolution, making it a versatile choice for voltage, current, resistance, thermocouple, and RTD measurements. Its isolated design helps protect against ground loops and electrical noise, ensuring signal integrity in demanding industrial environments.

Key Features and Technical Specifications

The 6ES7431-7QH00-0AB0 is engineered for flexibility and accuracy. Here are the core specifications you can rely on:

• 16 analog inputs – supports voltage and current measurement on all channels.
• 8 resistance inputs – for RTDs and resistors, with 2-, 3-, or 4-wire connection.
• 16-bit resolution – including sign, for high-precision conversion.
• Wide input ranges – voltage from ±25 mV to ±10 V, current from ±5 mA to ±20 mA.
• Thermocouple types – B, E, J, K, L, N, R, S, T, U with internal or external compensation.
• Resistance thermometer – Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000.
• Isolation – tested at 2120 V DC between bus and analog section, ensuring robust protection.
• Power loss – typical 4.5 W, efficient operation.

One standout feature is the permissible input voltage of 18 V continuous (75 V for 1 ms), which protects the module against overvoltage transients. This resilience reduces the risk of damage from wiring errors or surges, contributing to longer service life.

Applications and Use Cases

The 6ES7431-7QH00-0AB0 suits a wide range of industrial applications. In process control, it monitors temperature via thermocouples or RTDs, ensuring precise thermal management. For machine builders, the module handles analog sensors like pressure transmitters or flow meters, feeding critical data to the S7-400 PLC. Its ability to measure both voltage and current makes it adaptable to various signal types, from 4-20 mA loops to ±10 V outputs. Additionally, the module supports 2-wire transmitters, simplifying field wiring. Consequently, engineers can standardize on one module for multiple analog input needs, reducing inventory complexity.

Installation and Setup

Installing the 6ES7431-7QH00-0AB0 is straightforward within a S7-400 rack. The module fits in a standard slot and connects to the backplane bus. For 2-wire transmitters, a 24 V DC load voltage (L+) is required, with reverse polarity protection built in. When wiring, ensure shielded cables are used, especially for thermocouples and low-level signals (≤80 mV), where the maximum cable length is 50 m. For other inputs, shielded cables up to 200 m are permissible. Always follow the S7-400 installation manual for proper mounting and grounding to maintain isolation integrity.

Maintenance and Reliability

Regular inspection of the module and its connections helps maintain reliable operation. Periodically verify that all wiring is secure and that no moisture or contaminants have entered the enclosure. The module's isolation features reduce the risk of ground loop issues, but it is wise to check that the backplane bus and L+ supply are within specified limits. With a typical power loss of only 4.5 W, heat generation is minimal, yet ensure adequate ventilation in the control cabinet. Following these simple practices will extend the module's lifespan and prevent unexpected downtime.

Troubleshooting and Common Issues

If you encounter measurement errors, first verify that the input range and configuration match your sensor. For thermocouples, ensure correct type selection and proper cold-junction compensation. If readings are unstable, check for loose connections or excessive cable length. The module provides diagnostics and alarms, which can be monitored via the PLC. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for expert assistance.

Product Support and Availability

At AutoDCSTech, we stock the 6ES7431-7QH00-0AB0 and can provide technical guidance. Our team understands industrial automation and can help you integrate this module into your S7-400 system. Contact us for availability and delivery options.
