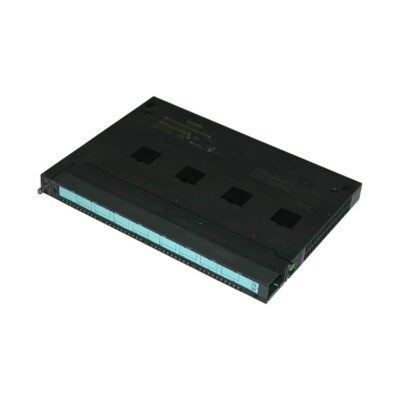

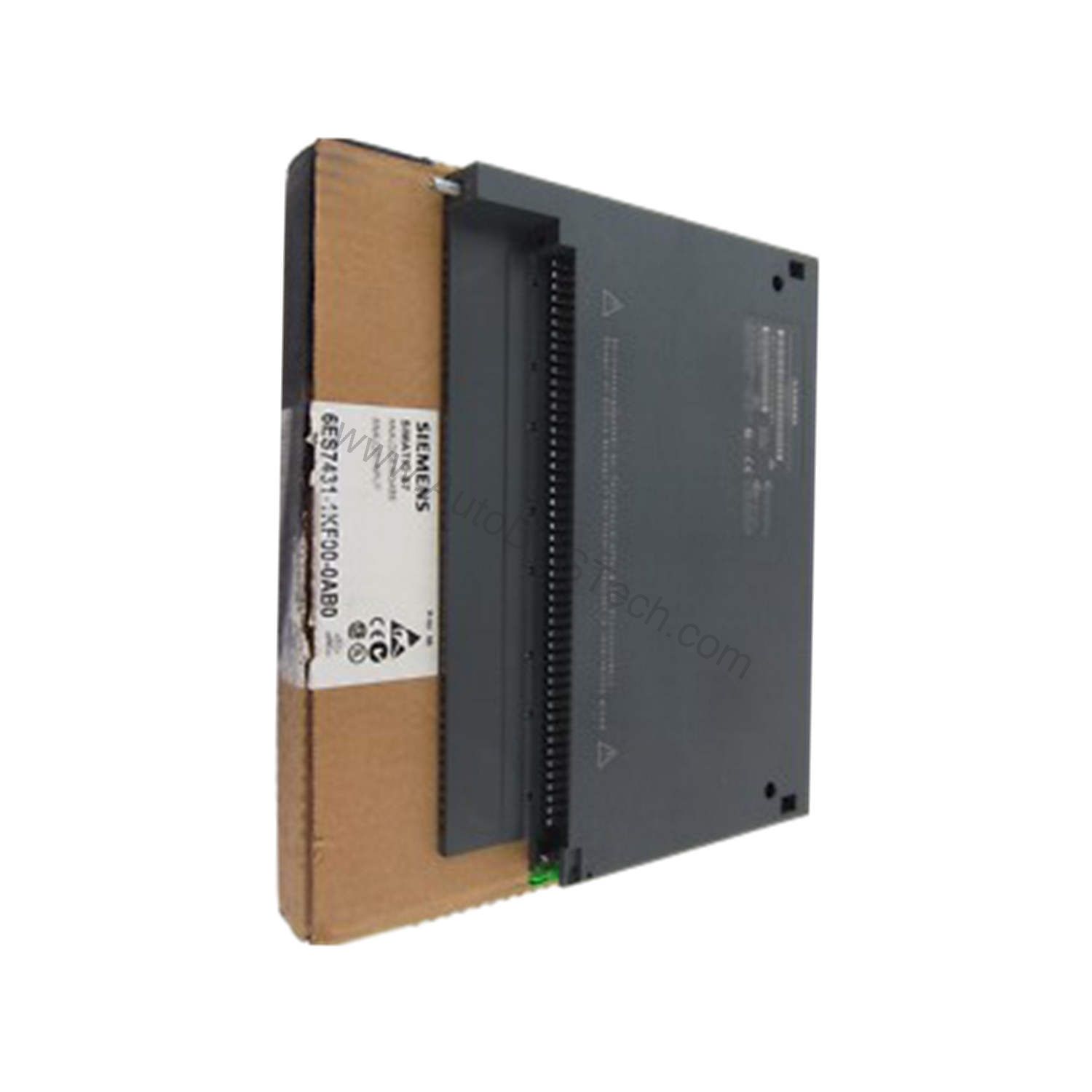

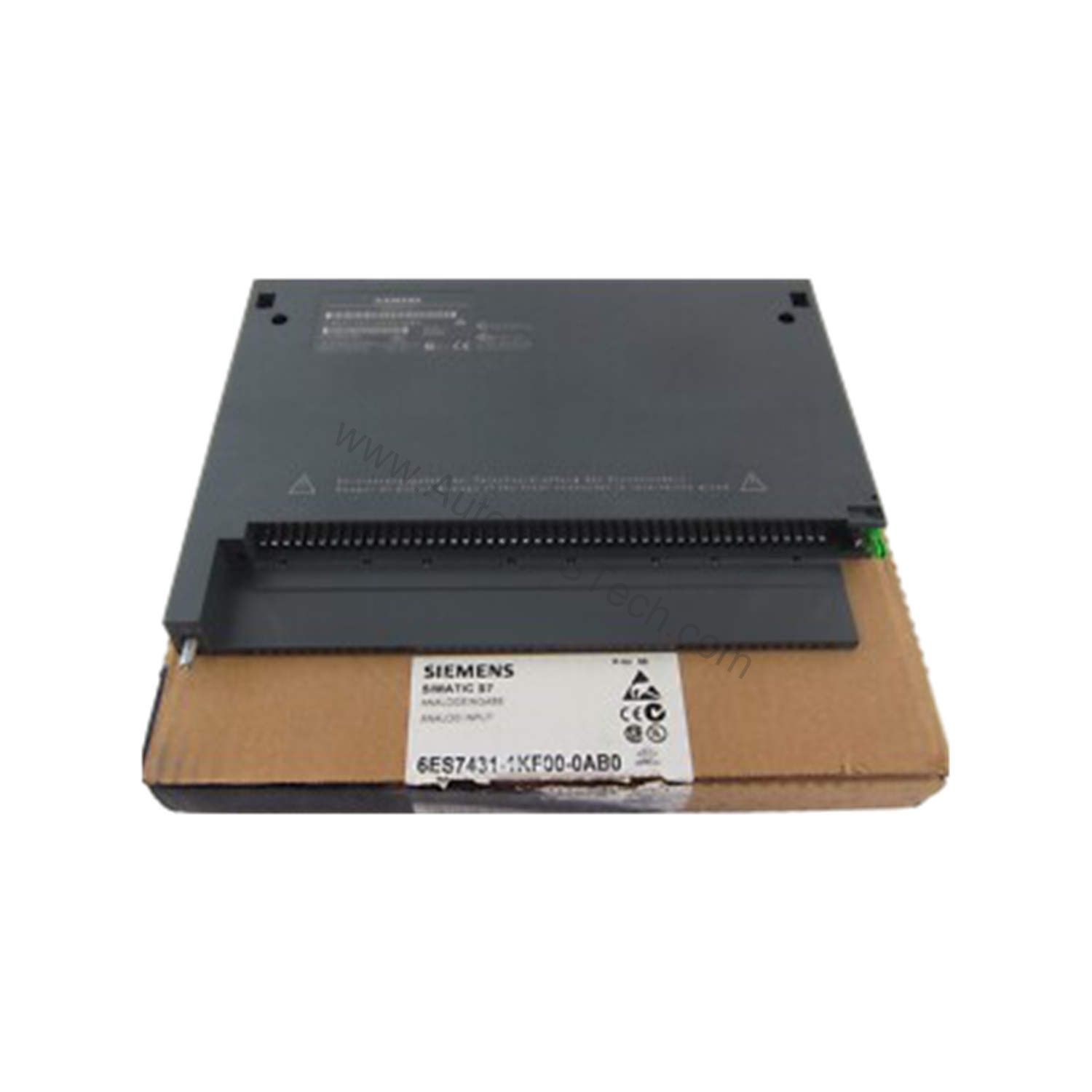

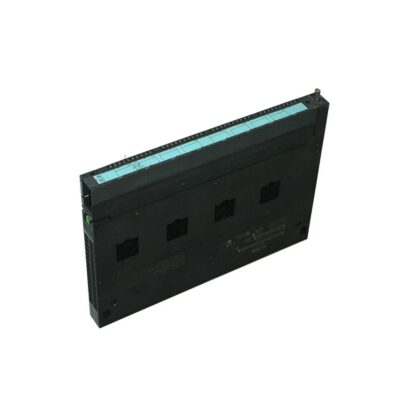

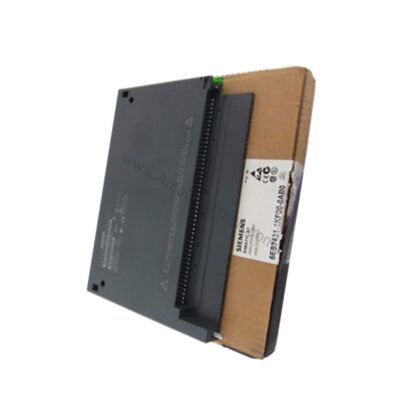

6ES7431-1KF20-0AB0 8 AI 14-bit Analog Input Module

Introduction to the 6ES7431-1KF20-0AB0

When your S7-400 system demands precise analog signal acquisition, the 6ES7431-1KF20-0AB0 from Siemens provides a reliable solution. This SIMATIC S7-400 analog input SM 431 module offers eight isolated inputs with 14-bit resolution, making it suitable for voltage, current, and resistance measurements. Its robust design ensures consistent performance in industrial environments.

Key Features and Technical Specifications

The 6ES7431-1KF20-0AB0 is engineered for accuracy and flexibility. Below are the core specifications derived directly from the datasheet:

• Analog Inputs: 8 channels for voltage/current, 4 for resistance measurement.
• Resolution: 14 bits with overrange, including sign.
• Supply Voltage: 24 V DC rated for load voltage L+ (only for 2-wire transmitters).
• Input Current from L+: Max 200 mA for 8 connected 2-wire transmitters.
• Backplane Bus Current: Max 1000 mA at 5 V DC.
• Power Loss: Typically 4.9 W.
• Voltage Input Ranges: 1 V to 5 V, -1 V to +1 V, -10 V to +10 V.
• Current Input Ranges: -20 mA to +20 mA, 4 mA to 20 mA.
• Resistance Range: 0 to 600 ohms.
• Destruction Limits: 18 V continuous for voltage, 40 mA permanent for current.
• Isolation: Tested with 2120 V DC between bus and analog section.
• Dimensions: 25 mm width, 290 mm height, 210 mm depth.
• Weight: Approximately 500 g.

The module supports shielded cable lengths up to 200 m, ensuring signal integrity over long runs. Its cycle time of 0.416 ms for all channels enables fast data acquisition.

Applications and Use Cases

For example, it can read temperature sensors, pressure transmitters, or flow meters with 4-20 mA outputs. Additionally, its resistance measurement capability makes it suitable for potentiometer-based position feedback. Consequently, engineers can rely on it for accurate data logging and closed-loop control.

Installation and Setup

Mounting the 6ES7431-1KF20-0AB0 is straightforward: simply insert it into a free slot on the S7-400 rack. Ensure the backplane bus connector is properly seated. For 2-wire transmitters, connect the 24 V DC supply to L+; the module provides reverse polarity protection. Use shielded cables for all analog inputs, and ground the shield at one end to minimize noise. Refer to the S7-400 manual for detailed wiring diagrams.

Maintenance and Reliability

Regular inspection of the module's connections and status LEDs helps maintain reliable operation. Because the module has no diagnostic functions, periodic verification of input signals is recommended. Keeping the enclosure clean and within specified temperature ranges extends service life. The module's isolation features protect against ground loops, reducing downtime.

Compatibility and Integration

It communicates via the backplane bus, so no additional network configuration is needed. The module supports both 2-wire and 4-wire transducers, offering flexibility in sensor selection. For resistance measurements, it supports 2-, 3-, and 4-wire connections, accommodating various wiring schemes.

Troubleshooting and Common Issues

If readings appear inaccurate, check the input range configuration and ensure the sensor wiring matches the selected mode. For 2-wire transmitters, verify that the 24 V supply is present. Overvoltage beyond 18 V can damage the inputs, so use appropriate surge protection. If the module fails to communicate, reseat it and check the backplane connection.

Product Support and Availability

AutoDCSTech stocks the 6ES7431-1KF20-0AB0 and can provide technical guidance. Contact us for current availability and lifecycle status. We are ready to support your automation projects.
