Key Features and Technical Specifications

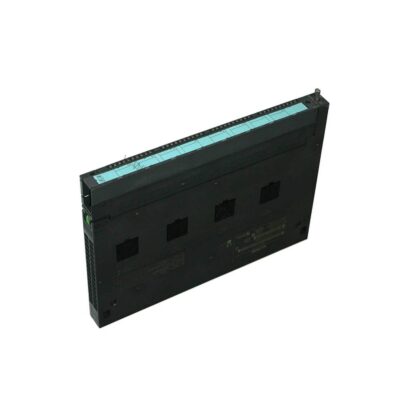

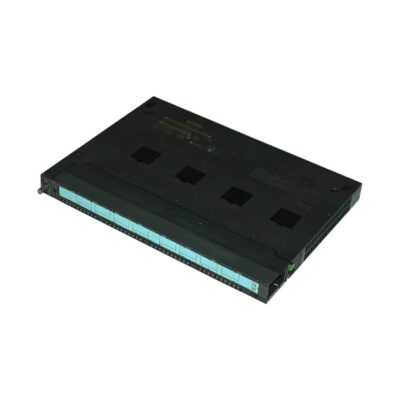

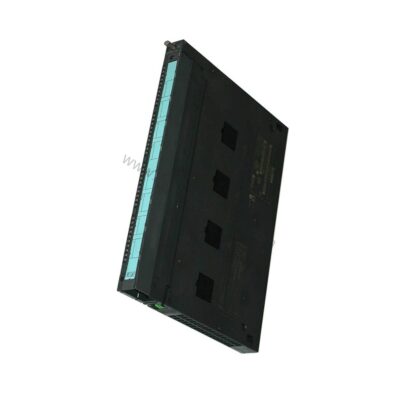

The 6ES7431-7KF10-0AB0 is designed for high-accuracy analog measurement in S7-400 systems. Below are its core specifications:
- 8 analog inputs, all configurable for resistance measurement
- 16-bit resolution with overrange (including sign)
- Input ranges: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000 (selectable characteristics for Europe/U.S.)
- Isolated analog inputs (internal/external potential separation)
- Diagnostic alarm and limit value alarm (parameterizable)
- Hardware interrupt (parameterizable)
- Backplane bus current: 5 V DC, max. 650 mA
- Power loss: typ. 3.3 W
- Dimensions: 25 mm width, 290 mm height, 210 mm depth
- Weight: approx. 650 g
One distinctive feature is the ability to connect RTDs using three-wire or four-wire connections, ensuring accurate measurements by compensating for lead resistance. The module also supports a maximum shielded cable length of 200 m (50 m for thermocouples with ±80 mV ranges), offering flexibility in field wiring.
Real-World Applications and Use Cases
The 6ES7431-7KF10-0AB0In the chemical industry, it monitors reactor temperatures with Pt100 sensors, ensuring process stability. In the food and beverage sector, it tracks pasteurization temperatures using Ni1000 sensors, maintaining product quality. Additionally, in power generation, the module monitors bearing temperatures in turbines, contributing to predictive maintenance strategies. Its diagnostic alarms enable early detection of sensor failures, reducing unplanned outages.
Installation and Setup Guidance
When installing the 6ES7431-7KF10-0AB0, ensure the module is correctly seated in the S7-400 rack and the backplane bus connector is engaged. For resistance measurements, use three-wire or four-wire connections to minimize lead resistance errors. Shielded cables are recommended, with a maximum length of 200 m for RTDs. Configure the input ranges and linearization characteristics via the engineering software, selecting the appropriate RTD type and characteristic (Europe/U.S.) as needed. Always follow the manufacturer's manual for detailed wiring and configuration steps.
Maintenance and Reliability Tips
To maintain optimal performance, periodically inspect the module for dust accumulation and ensure proper ventilation. Verify that all wiring connections are secure and free from corrosion. The module's diagnostic functions can be used to monitor channel status and detect wire breaks, allowing proactive maintenance. Regular calibration of connected sensors is recommended to sustain measurement accuracy.
Case Study: Precision Temperature Monitoring in Harsh Industrial Environments
In a chemical processing plant, an engineer faced a critical challenge: accurately monitoring temperature across multiple reactor zones while maintaining electrical isolation to prevent ground loops. The existing analog input modules suffered from signal drift and lacked diagnostic capabilities, leading to costly process upsets. The solution was the 6ES7431-7KF10-0AB0 from Siemens, a SIMATIC S7-400 analog input module engineered for demanding applications.
This module provides 8 analog inputs, each with 16-bit resolution, enabling precise measurement of resistance thermometers (RTDs) such as Pt100, Pt1000, Ni100, and Ni1000. With a conversion time of 20 ms at 50 Hz, it delivers fast and reliable data acquisition. The module's diagnostic alarm function alerts operators to wire breaks or out-of-range conditions, minimizing downtime and improving process safety.
Compatibility and Integration
The 6ES7431-7KF10-0AB0 is part of the Siemens SIMATIC S7-400 family, integrating with S7-400 PLCs. It communicates via the backplane bus, requiring a 5 V DC supply (max. 650 mA). The module supports parameterizable integration times and interference frequency suppression (none/60/50 Hz), making it adaptable to various industrial environments. For detailed integration guidelines, refer to the official Siemens documentation.
Troubleshooting Common Issues
If you encounter inaccurate readings, first check the sensor wiring and ensure proper three-wire or four-wire connections. Verify that the configured input range matches the sensor type. If a diagnostic alarm triggers, use the diagnostic information to identify the faulty channel. For persistent issues, consult the module's manual or contact AutoDCSTech for support.
Product Support and Availability
The 6ES7431-7KF10-0AB0 is available from AutoDCSTech, a leading supplier of industrial automation parts. In stock and ready to ship, this module comes with expert technical support to assist with integration and troubleshooting. Contact AutoDCSTech for pricing and delivery options.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7431-7KF10-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
