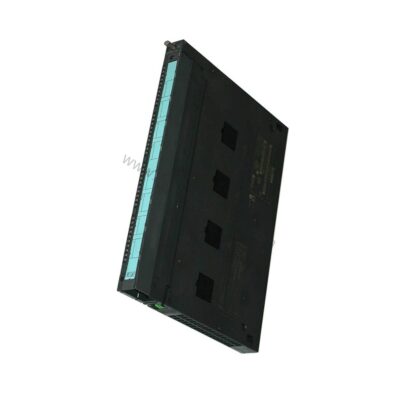

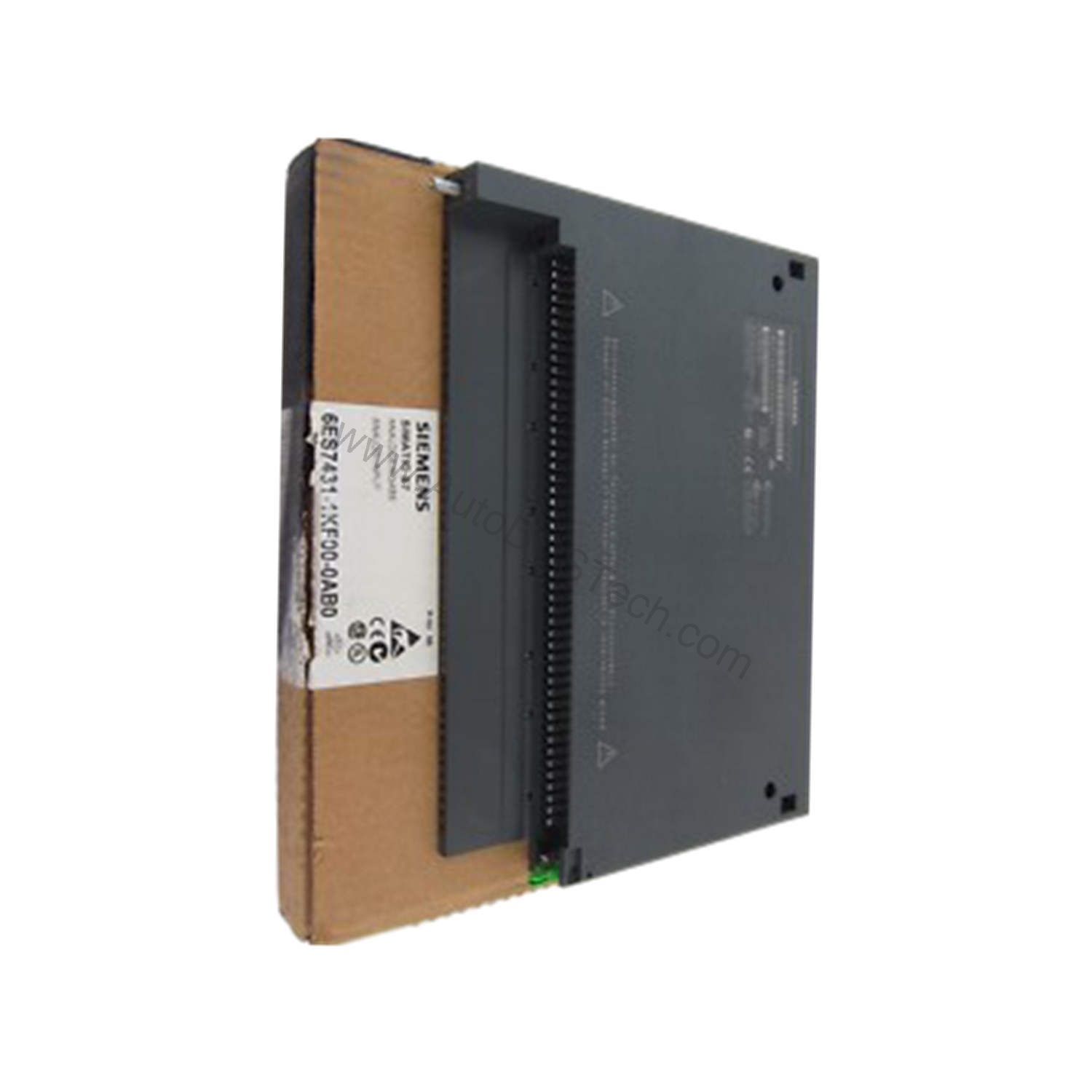

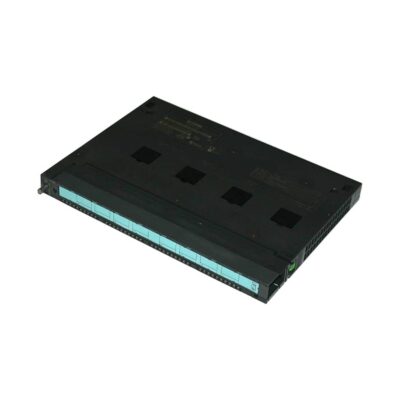

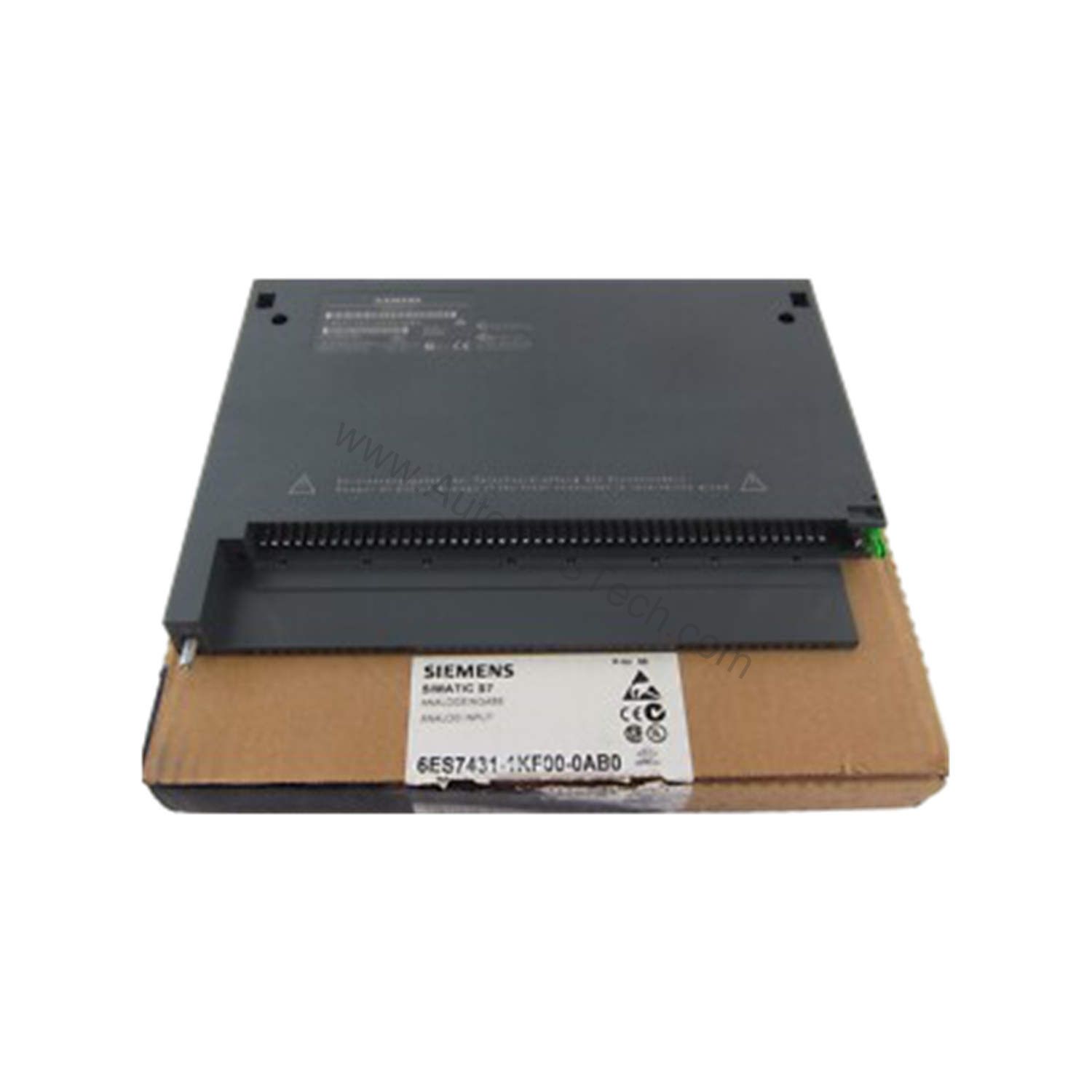

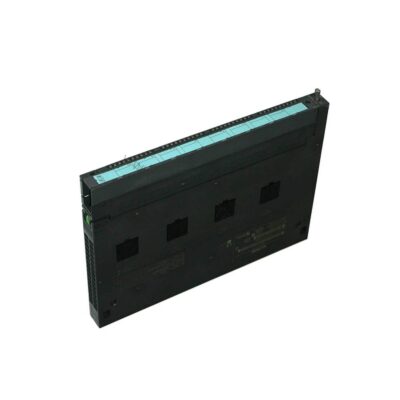

6ES7431-1KF00-0AB0 8 AI Analog Input Module

Introduction to the Siemens 6ES7431-1KF00-0AB0

When your S7-400 system demands precise and reliable analog signal acquisition, the 6ES7431-1KF00-0AB0 delivers. This SIMATIC S7-400 analog input module SM 431 provides eight isolated inputs with 13-bit resolution, supporting voltage, current, and resistance measurements. Built for industrial environments, it ensures accurate data capture for critical processes.

Key Features & Technical Specifications

The 6ES7431-1KF00-0AB0 is engineered for flexibility and accuracy. Below are its core specifications:

• 8 analog inputs for voltage or current measurement; 4 for resistance measurement.
• Isolated inputs with internal/external potential separation.
• 13-bit resolution with overrange, including sign.
• Input ranges: 1-5 V, -1 to +1 V, -10 to +10 V, -20 to +20 mA, 4-20 mA, and 0-600 ohms.
• Input resistance: 200 kΩ for voltage ranges, 80 Ω for current ranges.
• Constant measurement current for resistance transmitters: typ. 1.67 mA.
• Power loss: typ. 1.8 W; backplane bus current: 350 mA at 5 V DC.
• Dimensions: 25 mm width, 290 mm height, 210 mm depth; weight approx. 500 g.

One distinctive feature is the ability to measure resistance with two-, three-, or four-wire connections, allowing you to compensate for line resistances and achieve accurate readings.

Real-World Applications

In process industries, the 6ES7431-1KF00-0AB0Its isolated inputs protect against ground loops, a common source of measurement errors. For example, in a chemical plant, you can connect 4-20 mA transmitters from different zones without worrying about potential differences. The module's 50/60 Hz interference suppression ensures stable readings even in electrically noisy environments.

Installation & Setup

Mounting the 6ES7431-1KF00-0AB0 is straightforward: simply insert it into a free slot of your S7-400 rack. Ensure the backplane bus connector is properly seated. For wiring, use shielded cables up to 200 meters to maintain signal integrity. For resistance measurements, choose the appropriate connection method (2-, 3-, or 4-wire) based on your accuracy needs. Remember that the module does not require a load voltage L+; it is powered via the backplane bus.

Maintenance & Reliability

From a maintenance perspective, the 6ES7431-1KF00-0AB0 is designed for long-term reliability. With no moving parts and a typical power loss of only 1.8 W, it generates minimal heat. However, periodic inspection is recommended: check that all terminal connections are tight and that the module is free from dust and moisture. The isolation tested at 500 V DC between bus and local ground ensures robust protection against electrical surges. Following the manufacturer's manual for routine checks will extend the module's service life.

Compatibility & Integration

As part of the SIMATIC S7-400 family, the 6ES7431-1KF00-0AB0It communicates via the backplane bus, and its analog values are processed by the CPU. The module supports voltage measurement, current measurement (2-wire and 4-wire transducers), and resistance measurement, making it versatile for various sensor types. No additional communication protocols are required; it works within the standard S7-400 architecture.

Troubleshooting & Common Issues

If you encounter inaccurate readings, first verify the input range configuration and wiring. For resistance measurements, ensure you use the correct connection method to avoid line resistance errors. If the module fails to communicate, check the backplane bus connection and that the module is properly seated. The module does not have a diagnostics function, so rely on the CPU's diagnostic buffer for error messages. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech.

Product Support & Availability

The 6ES7431-1KF00-0AB0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Contact us for current stock and lifecycle status. We are ready to support your S7-400 system needs.
