6ES7422-7BL00-0AB0 32 DO 24V DC Digital Output Module

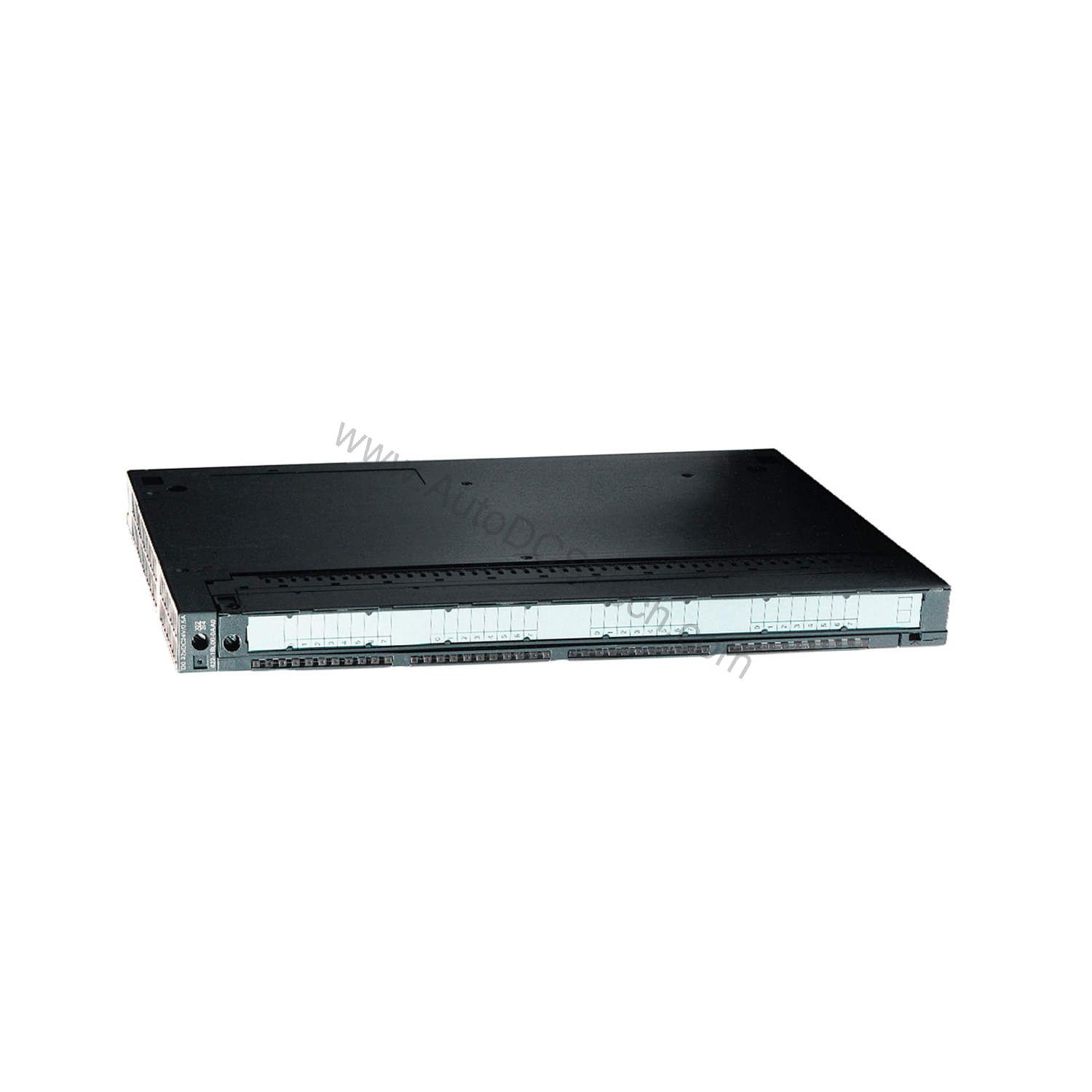

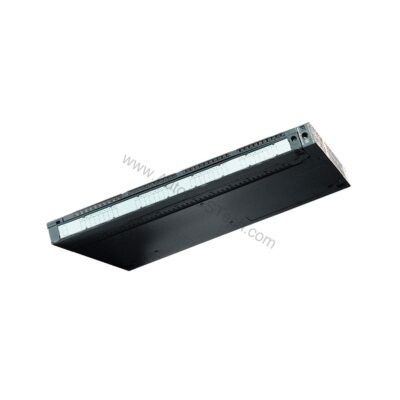

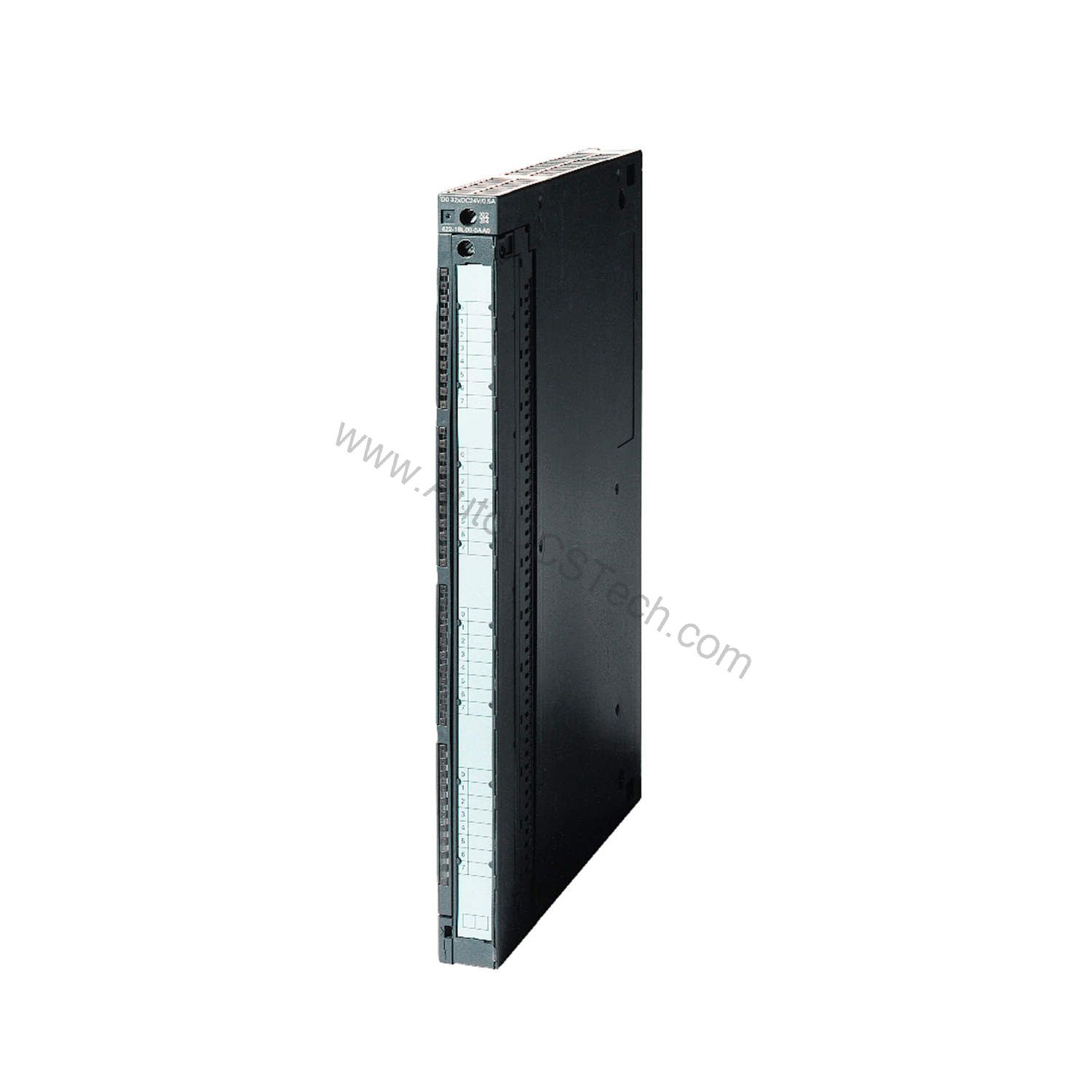

Introduction to the Siemens 6ES7422-7BL00-0AB0

This SM 422 digital output module offers 32 outputs with galvanic isolation, ensuring stable performance in demanding industrial environments.

Part of the SIMATIC S7-400 family, this module operates on a 24 V DC supply voltage with a permissible range of 20.4 V to 28.8 V. It draws a maximum input current of 120 mA from the load voltage and 200 mA from the backplane bus, with a power loss of 8 W.

Key Features and Technical Specifications

Engineered for precision, the 6ES7422-7BL00-0AB0 offers the following core specifications:

• Outputs: 32 digital outputs, optically isolated in groups of 8
• Output voltage: For signal "1", minimum L+ (-0.8 V)
• Output current: Rated 0.5 A per output; permissible range 5 mA to 0.6 A (0–60 °C)
• Off-state current: Maximum 0.5 mA for signal "0"
• Switching frequency: Up to 100 Hz with resistive load, 2 Hz with inductive load
• Aggregate current: Maximum 2 A per group (8 outputs) up to 60 °C
• Diagnostics: Parameterizable diagnostic alarm; internal/external fault detection
• Galvanic isolation: 500 V DC test voltage between channels and backplane bus

One distinctive feature is the limitation of inductive shutdown voltage to L+ (-45 V), which protects the module and connected loads from voltage spikes when switching inductive loads. This makes the module particularly suitable for driving contactors, valves, and relays.

Applications and Use Cases

In manufacturing lines, this module controls actuators, motor starters, and indicator lamps. Its high switching frequency (100 Hz) suits fast cycling applications like sorting machines. Furthermore, the diagnostic capability helps identify wiring faults quickly, minimizing downtime.

Installation and Setup

Mount the 6ES7422-7BL00-0AB0 on a standard S7-400 mounting rail. Ensure the load voltage L+ is within the permissible range (20.4–28.8 V DC) to avoid malfunction. Connect outputs in groups of 8, respecting the maximum aggregate current per group (2 A). Use shielded cables up to 1000 m or unshielded up to 600 m for reliable signal transmission.

Maintenance and Reliability

Regularly inspect the module for signs of overheating or loose connections. The module's robust design, with galvanic isolation and diagnostic alarms, helps prevent unexpected failures. Periodically verify the diagnostic messages to catch potential issues early. Follow Siemens' guidelines for cleaning and handling to ensure long service life.

Compatibility and Integration

This module is designed for the SIMATIC S7-400 PLC system. It connects to the backplane bus, drawing 200 mA from the 5 V DC bus. The 32 digital outputs can be configured via the PLC program. For detailed integration steps, refer to the S7-400 manual or contact AutoDCSTech for support.

Troubleshooting Common Issues

If an output fails to switch, first check the load voltage and ensure it is within range. Verify that the output current does not exceed 0.6 A per channel or 2 A per group. If the diagnostic alarm triggers, use the PLC diagnostics buffer to identify the faulty channel. For persistent issues, consult the official Siemens documentation.

Product Support and Availability

The 6ES7422-7BL00-0AB0 is available through AutoDCSTech. Contact our team for current stock and lead times. Please verify lifecycle status and availability before ordering.

Comparison with Similar Modules

Compared to standard 16-output modules, the 6ES7422-7BL00-0AB0 doubles the channel count while maintaining a compact 25 mm width. Its 0.5 A rated output current is higher than many competing modules, allowing direct drive of larger loads without external amplifiers. The integrated diagnostics reduce troubleshooting time, a significant advantage over modules without status feedback.
