6ES7440-1CS00-0YE0 1-Channel RS422/485 CP 440-1

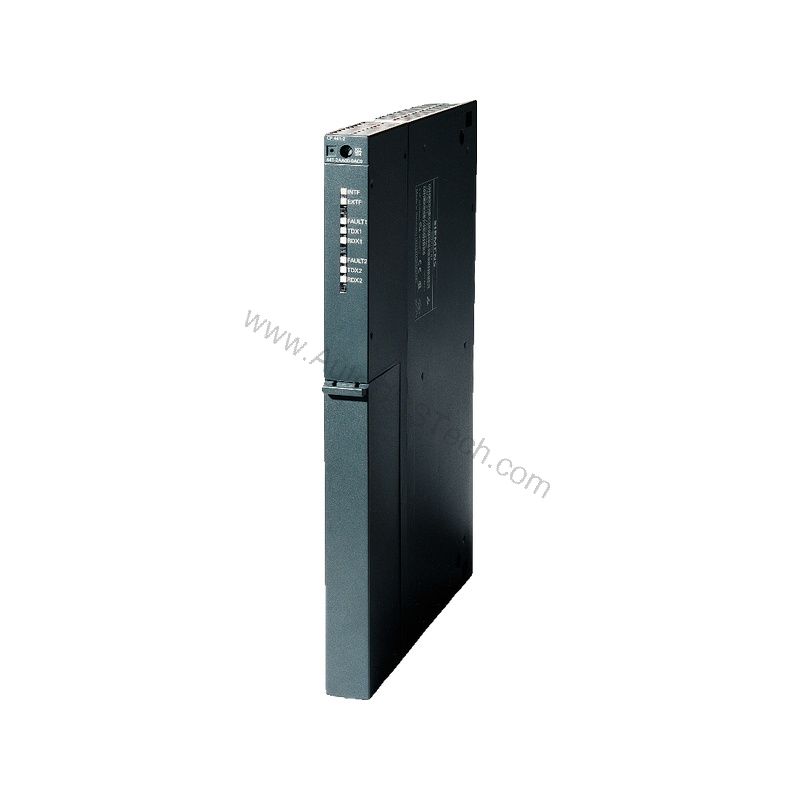

Introduction to the Siemens 6ES7440-1CS00-0YE0

This CP 440-1 communications module provides a single channel for serial links, supporting both 3964(R) and ASCII protocols. It is engineered to integrate into your existing automation architecture, ensuring data integrity across distances up to 1,200 meters.

Key Features and Technical Specifications

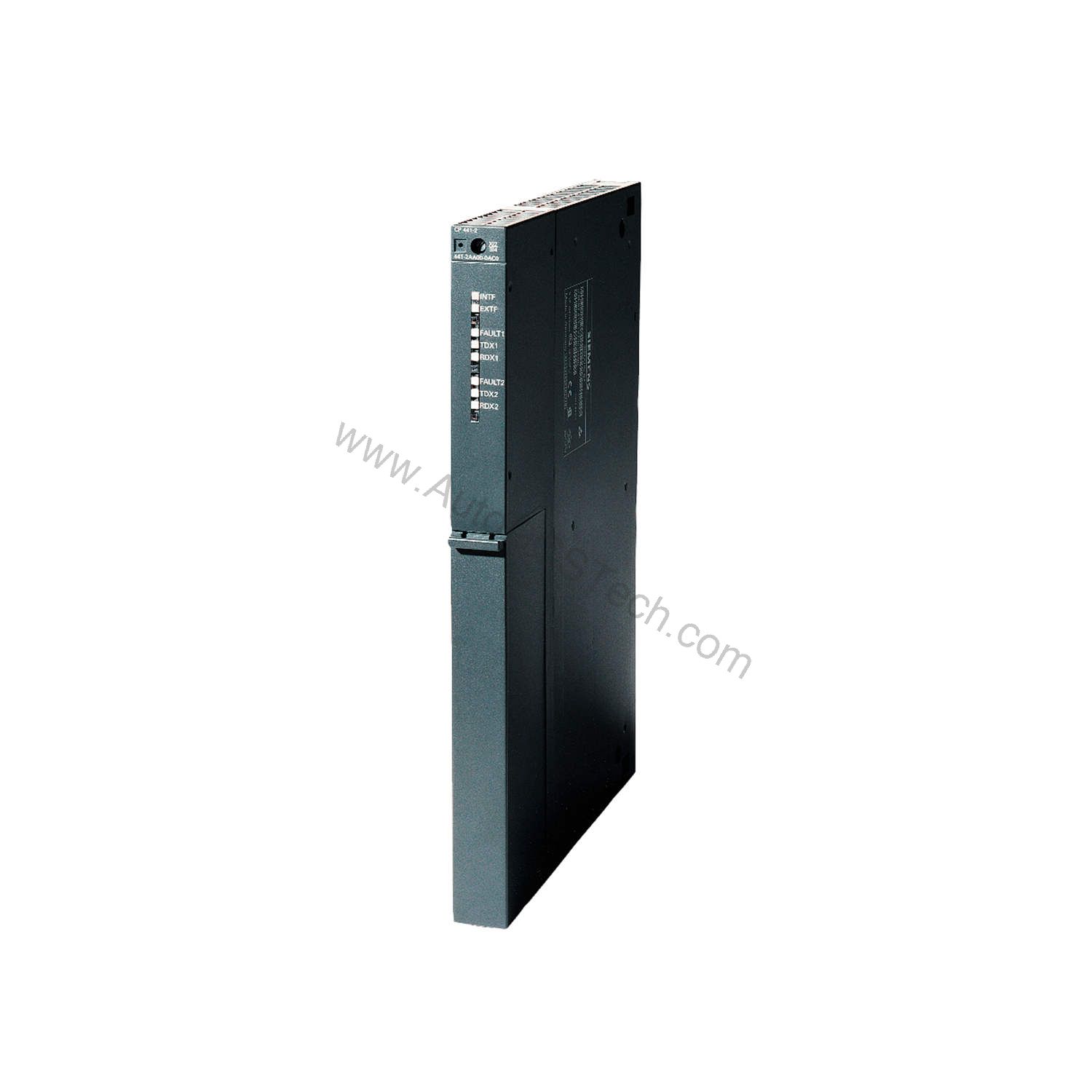

The 6ES7440-1CS00-0YE0 is built around a robust RS 422/485 interface (X.27) that offers flexibility for various industrial environments. Here are the core specifications:

• Supply voltage: 5 V DC and 24 V DC (rated)
• Input current from backplane bus: 360 mA max at 5 V DC
• Power loss: 1.7 W typical
• Number of interfaces: 1
• Physical interface: RS 422/485 (X.27)
• Cable length (shielded): up to 1,200 m
• Integrated protocol drivers: 3964(R) and ASCII
• Transmission rate (RS 422/485): up to 115.2 kbit/s with both protocols
• Configuration software: STEP 7 (own parameter assignment forms)
• Memory requirement: 1 to 5 Kbytes for parameters on S7-CPU memory card
• Dimensions (W x H x D): 25 mm x 290 mm x 210 mm
• Weight: approx. 600 g

One distinctive aspect is the dual voltage support (5 V DC and 24 V DC), which simplifies integration into different backplane configurations. Additionally, the module’s low power loss of 1.7 W helps maintain thermal stability within the control cabinet.

Installation and Setup

Installing the 6ES7440-1CS00-0YE0 is straightforward. It mounts directly onto the S7-400 backplane, requiring no additional power supply beyond the standard 5 V DC or 24 V DC from the rack. The configuration package on CD simplifies parameter assignment using STEP 7. Ensure that the shielded cable is properly grounded at both ends to maximize noise immunity.

Maintenance and Reliability

For long-term reliability, periodically inspect the module’s seating in the backplane and verify that all cable connections remain secure. Because the module has no moving parts, routine maintenance is minimal. However, it is advisable to keep the surrounding area free of excessive dust and moisture, which could affect performance. Following Siemens’ recommended inspection intervals will help prevent unexpected downtime.

Solving Communication Challenges

Many industrial sites face intermittent data transfer issues due to electrical noise or long cable runs. The 6ES7440-1CS00-0YE0 addresses this with its shielded RS 422/485 interface, which supports cable lengths up to 1,200 meters. This ensures that your point-to-point links remain stable even in harsh environments. Moreover, the module supports both 3964(R) and ASCII protocols, giving you flexibility to match existing equipment or legacy systems.

Compatibility and Integration

The 6ES7440-1CS00-0YE0 is designed for the SIMATIC S7-400 family. It works with STEP 7 configuration software, and its memory requirements are modest (1 to 5 Kbytes). The module supports point-to-point communication with 3964(R) and ASCII protocols, making it compatible with a wide range of serial devices such as barcode scanners, printers, and drives.

Troubleshooting Common Issues

If you experience communication errors, first check the transmission rate settings—they must match the connected device. Verify that the correct protocol (3964(R) or ASCII) is selected in the configuration. Also, inspect the shielded cable for damage and ensure it does not exceed 1,200 meters. If problems persist, consult the official Siemens documentation or contact AutoDCSTech for expert assistance.

Product Support and Availability

The 6ES7440-1CS00-0YE0 is available through AutoDCSTech. As an industrial automation parts supplier, we ensure genuine Siemens products and reliable delivery. Contact our team for current stock status and lead times.
