Technical Specifications Breakdown
Key parameters for the 25C-D043N114 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Line | PowerFlex 527 |
| Part Number | 25C-D043N114 |
| UPC | 887172530470 |
| Weight | 12.00 lbs (5.44 kg) |
| Voltage Class | 480 AC Volts |
| Output Current | 43 Amperes |
| Frame Size | E |
| Enclosure Type | IP20 NEMA (Open) |
| EMC Filtering Option | One |
| Phase Count | Three |
| Horsepower | 30 |
| Communication | EtherNet/IP (Dual Port) |
Industry Applications
This drive suits applications requiring variable speed control with network connectivity. Typical uses include conveyors, fans, pumps, and packaging machinery. The 30 HP normal duty rating handles moderate loads, while the 25 HP heavy-duty rating provides extra torque margin for demanding processes.
Cost-Benefit Perspective: The built-in EMC filter reduces external noise, potentially lowering installation costs. The dual-port EtherNet/IP simplifies wiring and supports device-level ring topologies, saving on switches and cabling.
Installation & Setup Guidance
Proper installation ensures reliable operation. Mount the drive in a clean, dry location with adequate ventilation. The IP20 open enclosure protects against small dust particles but does not guard against liquids. Maintain clearance around the unit for airflow. Connect the three-phase input and motor leads according to the wiring diagram. Configure the drive parameters via the integrated EtherNet/IP interface. Use the standard interface module for local setup and diagnostics.
Maintenance & Reliability
Regular inspection keeps the drive operating efficiently. Check for dust accumulation on the heatsink and clean with low-pressure air if needed. Verify that all power connections remain tight. Monitor ambient temperature and ensure the enclosure remains within the specified rating. Periodically review the EMC filter performance, especially in sensitive environments.

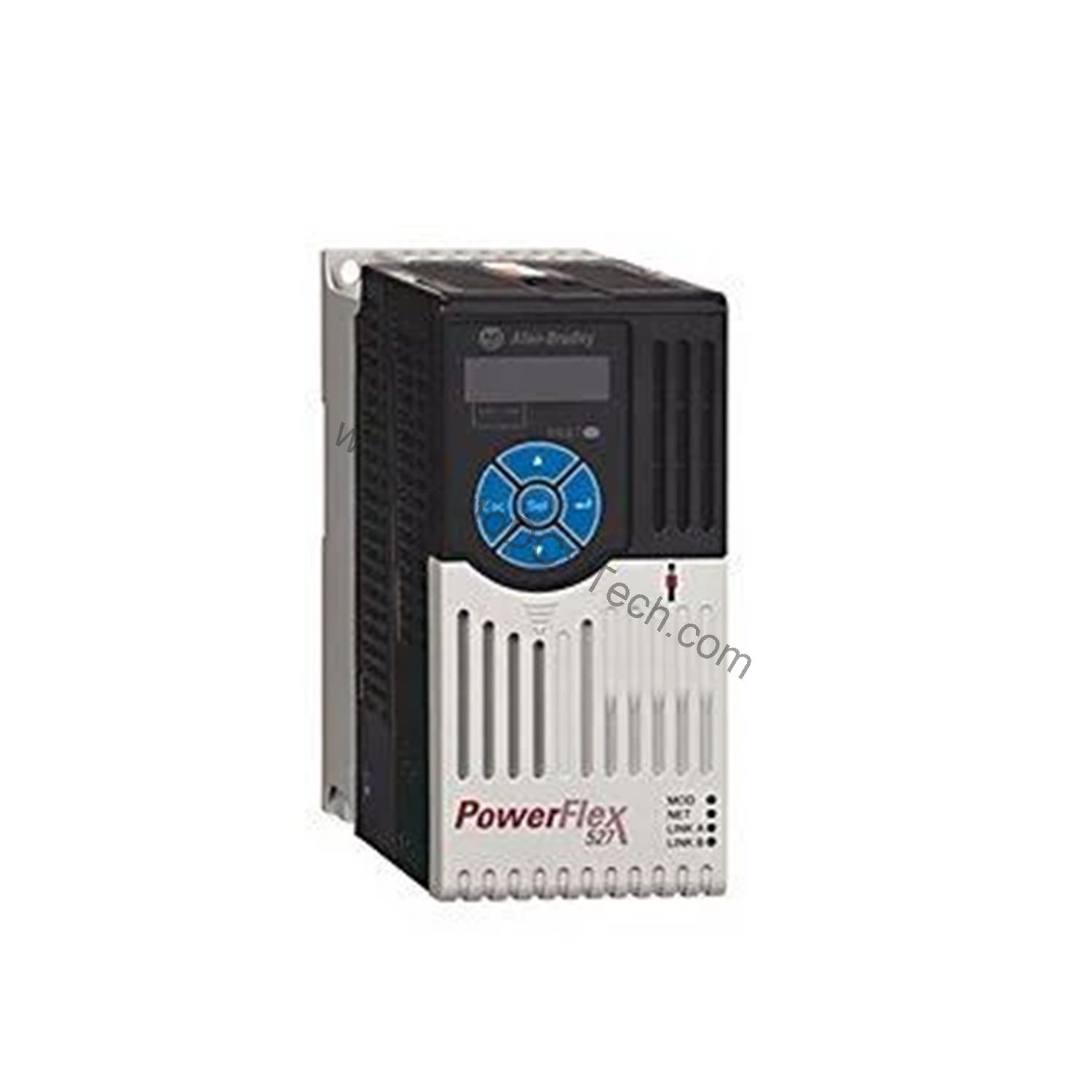

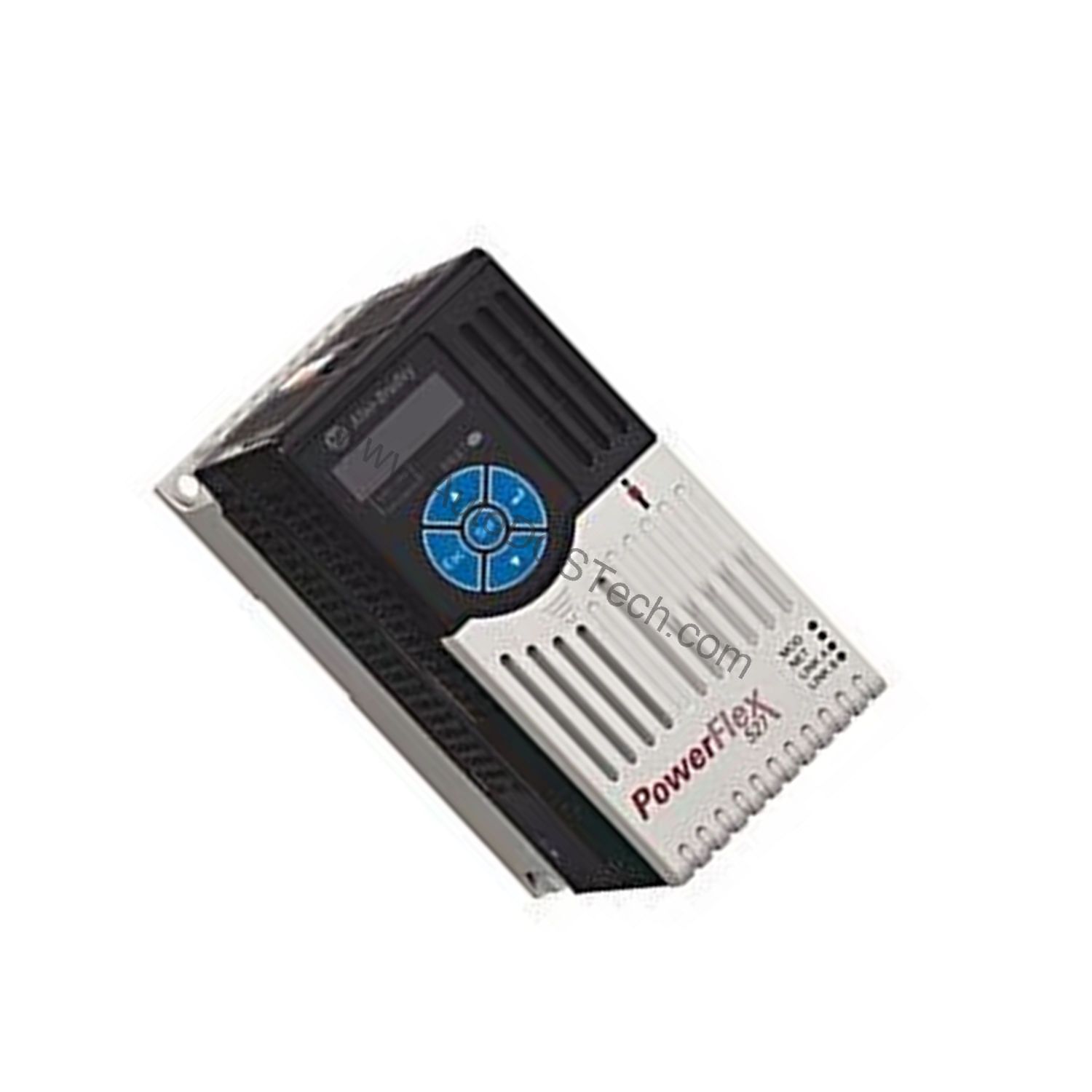

PowerFlex 527 Drive: Precision Motor Control for Modern Automation
Industrial automation demands precise speed and torque control. The Allen-Bradley 25C-D043N114 delivers exactly that. This adjustable frequency drive from the PowerFlex 527 series manages motor performance within an Allen-Bradley PLC environment. Its embedded dual-port EtherNet/IP enables seamless integration into networked control systems.
Compatibility & Integration
The 25C-D043N114 integrates directly with Allen-Bradley PLCs. The embedded dual-port EtherNet/IP supports explicit and implicit messaging. Use the drive's integrated safety features to meet functional safety requirements. The frame E design offers ample wiring space and straightforward mounting.
Selection Guide & Purchasing Advice
When selecting a drive, match the output current and horsepower to your motor's requirements. The 25C-D043N114 provides 43 amps and 30 HP normal duty. For heavy-duty applications, the 25 HP rating offers additional margin. Verify the input voltage matches your facility's supply (380...480V AC, 3-phase).
Contact AutoDCSTech to confirm availability and lifecycle status. We stock genuine Allen-Bradley parts and offer competitive pricing. Our team can assist with technical selection and cross-reference needs.
Troubleshooting & Common Issues
If the drive fails to start, check the input power and control wiring. Verify that the EtherNet/IP connection is active and the PLC is sending the correct run command. If the drive trips on overcurrent, inspect the motor and cabling for shorts. For communication faults, confirm the IP address and network settings. Always refer to the product manual for detailed diagnostics.
Safety Note: Only qualified personnel should service the drive. Disconnect power before opening the enclosure. Follow all local electrical codes.
Availability & Condition at AutoDCSTech
| Part Number | 25C-D043N114 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
