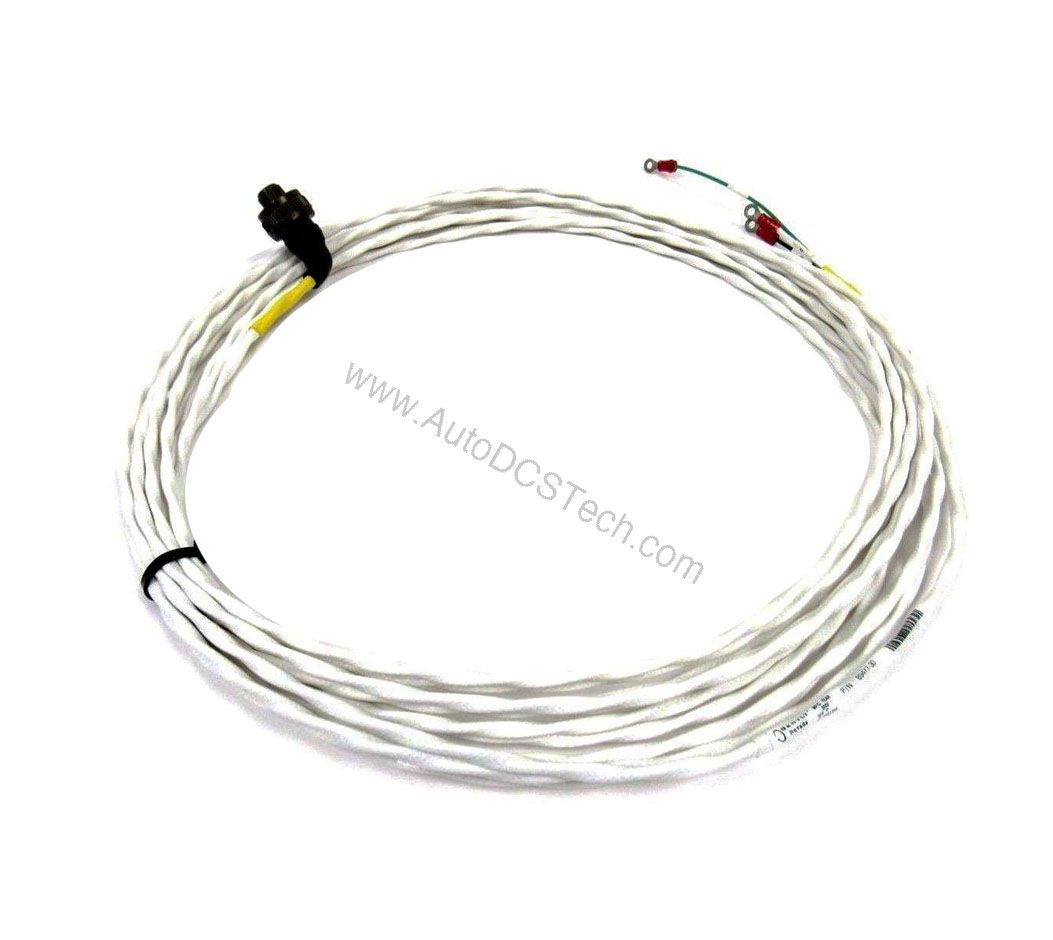

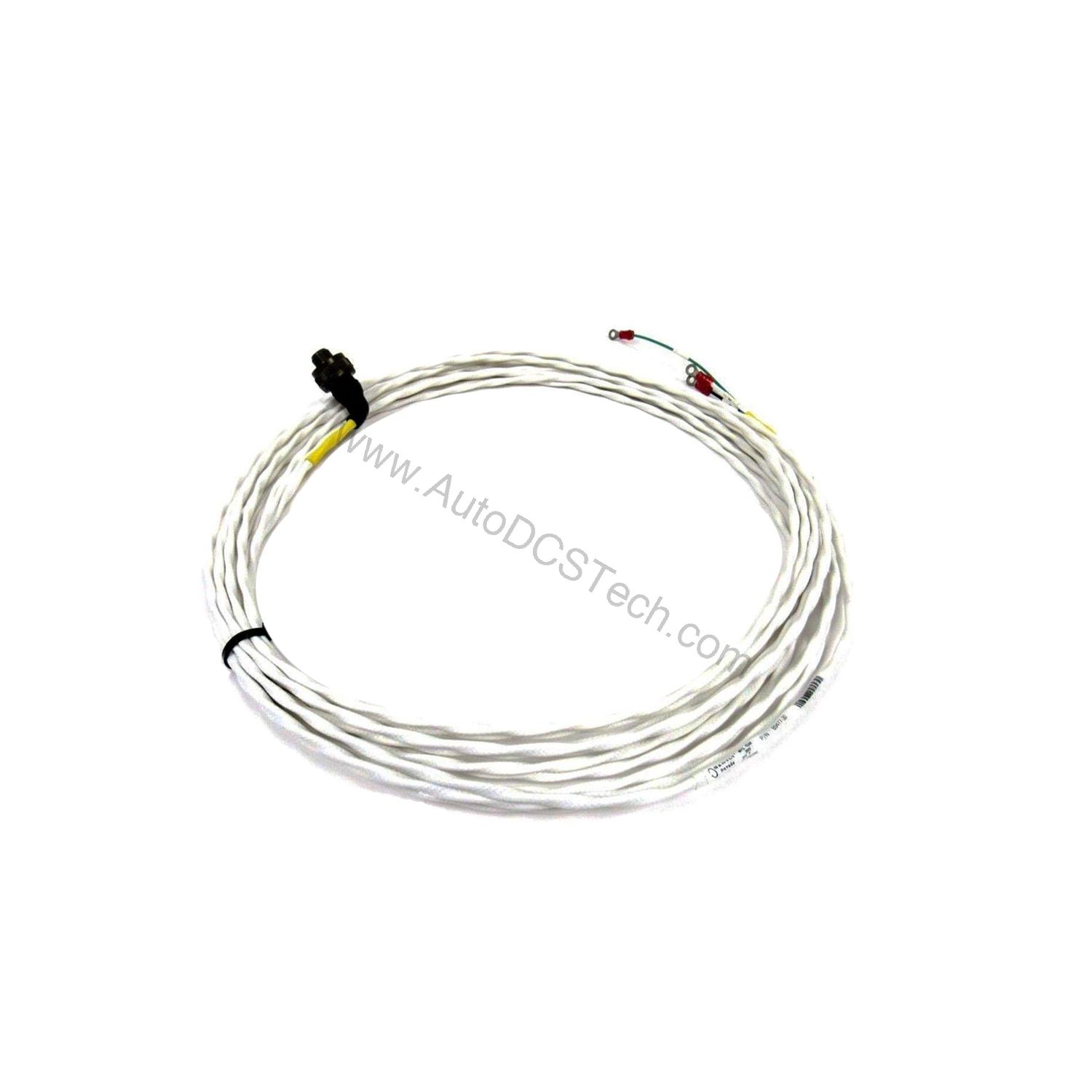

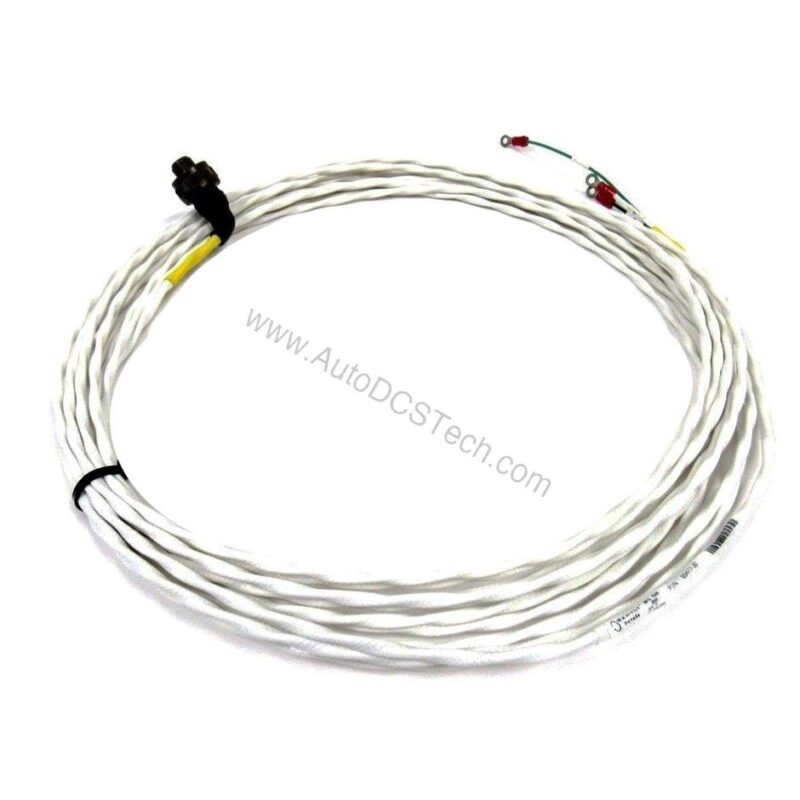

Introduction to the 89477-66 Interconnect Cable
When signal integrity is critical in rotating machinery monitoring, the 89477-66 from Bently Nevada provides a dependable link between sensors and monitoring systems. This 66-foot interconnect cable is part of the 89477 series, designed specifically for industrial environments where noise rejection and secure connections matter.
With a two-conductor 18 AWG twisted, shielded construction, the 89477-66 minimizes electromagnetic interference, ensuring accurate data transmission. Whether you are upgrading an existing system or installing new monitoring points, this cable offers the performance and durability expected from Bently Nevada.
Key Features and Technical Specifications
The 89477-66 is built to meet the rigorous demands of industrial applications. Below are the core specifications extracted from the official product data:
- Part Number: 89477-66
- Model: 89477 Interconnect Cable
- Brand: Bently Nevada
- Length: 66 ft (20.1 m)
- Conductor: Two-conductor 18 AWG twisted, shielded
- Connectors: Right angle two-socket plug at one end, terminal lugs at the other
- Minimum Length: 2.0 ft (0.6 m)
- Maximum Length: 99 ft (30 m)
One distinctive feature of the 89477-66 is its right-angle plug, which simplifies installation in tight spaces while maintaining a secure connection. The twisted pair and shielding reduce noise, making it ideal for low-level signal transmission.
Applications and Use Cases
The 89477-66 is commonly used in vibration monitoring systems, where it connects proximity probes or accelerometers to monitors. Its 66-foot length suits installations where sensors are mounted remotely from the monitoring rack, such as on large rotating equipment like turbines, compressors, and pumps.
Furthermore, the cable's robust construction ensures reliable performance in harsh industrial settings, including areas with high electromagnetic interference. By maintaining signal integrity, the 89477-66 helps prevent false readings and costly downtime.
Installation and Setup
Installing the 89477-66 is straightforward. The right-angle plug connects to the sensor or instrument, while the terminal lugs attach to the monitoring system's terminal block. For best results, route the cable away from high-voltage power lines and avoid sharp bends that could damage the shielding.
Before installation, verify the required length and ensure the cable path is clear. The 66-foot length provides ample reach for most applications, but if a different length is needed, Bently Nevada offers options from 2 to 99 feet.
Maintenance and Reliability
To maintain optimal performance, inspect the 89477-66 periodically for signs of wear, such as cuts, abrasions, or loose connections. The shielded design protects against external interference, but physical damage can compromise signal quality.
Given its industrial-grade construction, the cable is designed for long service life. However, regular checks are recommended, especially in high-vibration environments where connectors may loosen over time.
Compatibility and Integration
The 89477-66 is compatible with Bently Nevada monitoring systems that accept two-wire interconnect cables. Its terminal lugs make it easy to integrate with standard terminal blocks, while the right-angle plug fits sensor housings with limited clearance.
For systems requiring longer runs, the maximum length of 99 feet (30 m) ensures flexibility in system design. Always consult the system manual to confirm compatibility with your specific monitor model.
Troubleshooting Common Issues
If signal loss or noise occurs, first check the cable for physical damage. Ensure the right-angle plug is fully seated and the terminal lugs are tight. Also, verify that the cable is not routed near interference sources.
If problems persist, test the cable with a multimeter to check continuity. The 89477-66 is a passive component, so any failure is likely due to external factors or installation issues.
Availability and Support
The 89477-66 is available from AutoDCSTech in new, original factory packaging. With a 12-month warranty, you can order with confidence. Contact AutoDCSTech for current stock and pricing.
