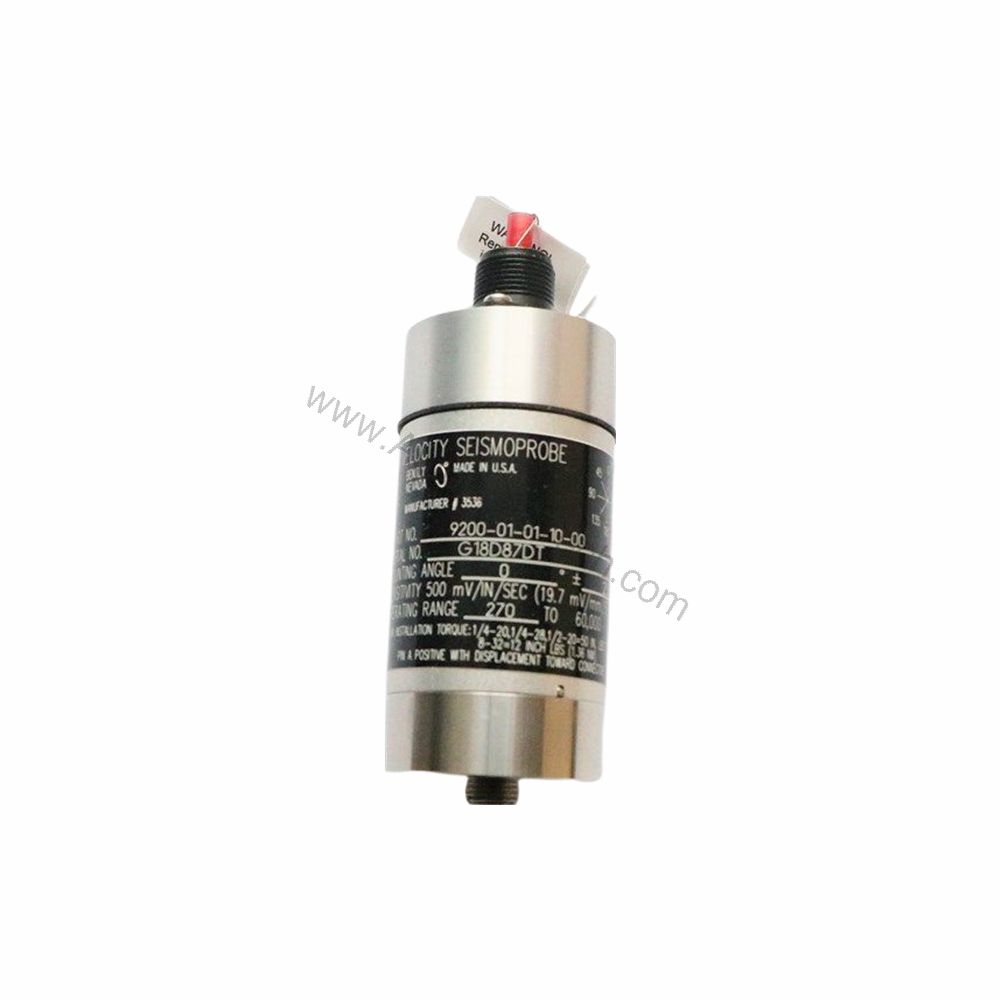

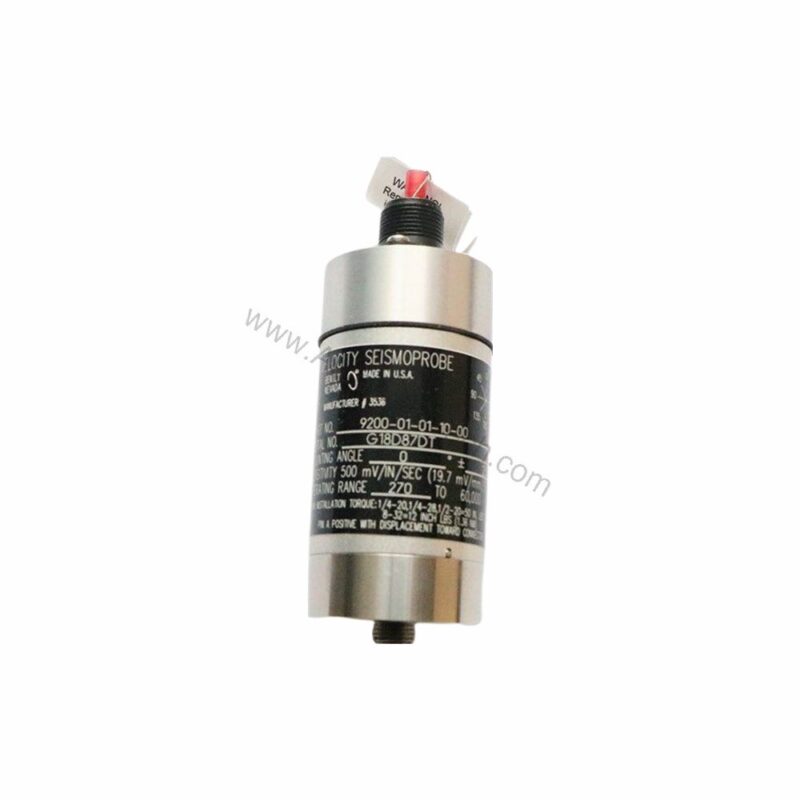

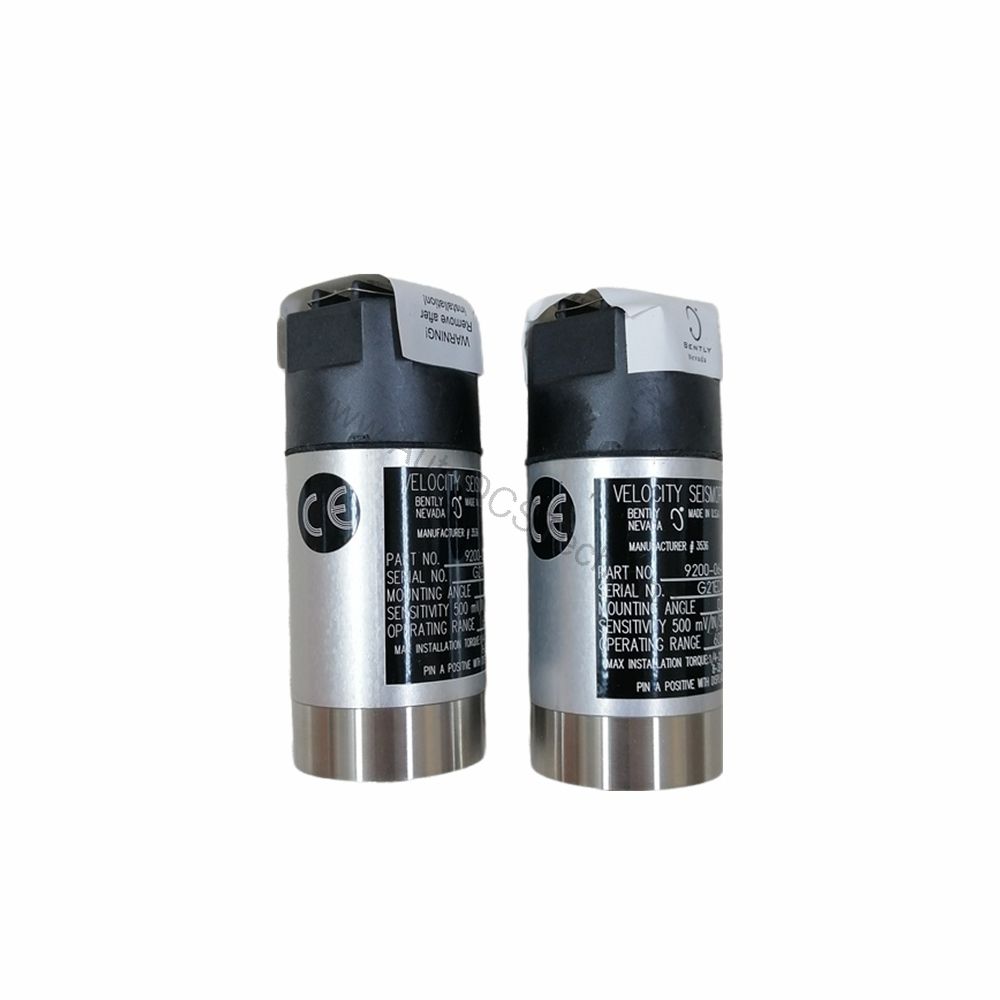

Introduction to the 9200-01-50-01-04
When rotating machinery experiences subtle yet damaging vibration, engineers need a transducer that captures every nuance. The 9200-01-50-01-04 from Bently Nevada is a two-wire velocity seismoprobe transducer engineered for this exact challenge. It converts casing vibration into a proportional electrical signal, enabling condition monitoring teams to detect faults before they escalate. With a sensitivity of 20 mV/mm/s (±5% when properly terminated), this transducer provides reliable data for predictive maintenance programs.
Part of the Model 9200 series, this unit is built for industrial environments where dust and moisture threaten sensor integrity. Its anodized aluminum case (A204) and neoprene gasket offer robust protection. The transducer operates across a wide temperature range, ensuring consistent performance in demanding settings.
Key Features and Technical Specifications
The 9200-01-50-01-04 stands out with several engineering-focused features:
- Two-wire configuration: Simplifies wiring and reduces installation complexity.
- Mounting angle option 01: 0° ±2.5°, with a minimum operating frequency of 4.5 Hz (270 cpm).
- Connector option 50: 50 feet (15.2 meters) of integral cable, ideal for remote monitoring.
- Mounting base option 01: Circular base with 1/4-20 UNC stud for secure attachment.
- Agency approval option 04: ATEX/IECEx certified for hazardous area use.
- Dynamic operating range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
- Velocity range: 25 mm/s (1 in/s) at +22°C casing vibration at 100 Hz with a 10 kΩ load.
- Coil resistance: 1.25 kΩ ±5%.
- Locked coil inductance: 125 mH typical.
- Operating temperature: -29°C to +121°C (-20°F to +250°F) for the 9200 model.
- Relative humidity: Up to 95% noncondensing; 100% non-submerged with integral cable.
- Weight: 300 grams (10.5 ounces) typical.
One distinctive spec is the sensitivity temperature coefficient of 0.2%/°C, which ensures minimal drift across temperature variations—critical for long-term monitoring accuracy.
Real-World Applications and Use Cases
In a petrochemical plant, a 9200-01-50-01-04 transducer mounted on a cooling tower fan detected a gradual increase in casing vibration. The 4.5 Hz minimum frequency captured low-speed rotational issues that other sensors missed. This early warning allowed maintenance crews to replace a worn bearing during scheduled downtime, avoiding an unplanned shutdown that could have cost thousands in lost production.
Similarly, in a power generation facility, the transducer's ATEX/IECEx approval made it suitable for installation in gas compressor areas where explosive atmospheres are a concern. Its dust and moisture resistance ensured reliable operation despite harsh environmental conditions.
Installation and Setup Guidance
Proper installation is vital for accurate vibration measurement. The 9200-01-50-01-04 should be mounted on a flat, rigid surface using the circular base with its 1/4-20 UNC stud. Ensure the mounting angle is within ±2.5° of the calibrated orientation to maintain sensitivity accuracy. The integral cable (50 feet) must be routed without sharp bends or strain, and the transducer should be terminated with a 10 kΩ load across terminals A and B for correct output.
When installing in hazardous areas, follow all local electrical codes and the ATEX/IECEx installation requirements. Verify that the transducer is properly grounded and that the cable shield is connected to avoid electromagnetic interference.
Maintenance and Reliability Tips
Although the transducer is rugged, periodic inspection is recommended. Check the mounting stud for tightness, as vibration can loosen connections over time. Inspect the cable for cuts or abrasions, especially where it exits the transducer. The neoprene gasket should be examined for deterioration; replace it if cracked or compressed.
Because the transducer is passive (no active electronics), it has a long service life. However, verify the coil resistance (1.25 kΩ ±5%) with an ohmmeter during routine checks to confirm the coil is intact. Any significant deviation may indicate a damaged coil.
For long-term reliability, keep the transducer within its operating temperature range and avoid exposure to corrosive chemicals that could damage the aluminum case.
Compatibility and Integration
The 9200-01-50-01-04 is designed to interface with Bently Nevada monitoring systems, such as the 3500 series, but it can also connect to other data acquisition systems that accept velocity transducer inputs. The two-wire configuration simplifies integration into existing loops. The 50-foot cable length provides flexibility in locating the transducer away from the monitoring equipment.
Before integration, confirm that the monitoring system's input impedance matches the 10 kΩ calibration load to ensure accurate sensitivity. If the system uses a different load, sensitivity may shift by up to ±5%.
Common Issues and Troubleshooting
If the transducer output is lower than expected, check the termination resistance. A load other than 10 kΩ can alter sensitivity. Also verify the mounting angle; if the transducer is tilted beyond ±2.5°, the output will be reduced.
If no output is present, measure the coil resistance across pins A and B. An open circuit indicates a broken coil, requiring replacement. A short circuit (near 0 Ω) may indicate a wiring fault. In both cases, contact AutoDCSTech for a replacement unit.
When operating in high-humidity environments, ensure the cable entry is sealed to prevent moisture ingress. The transducer is rated for 100% humidity only when the integral cable is used; otherwise, keep it dry.
Product Support and Availability

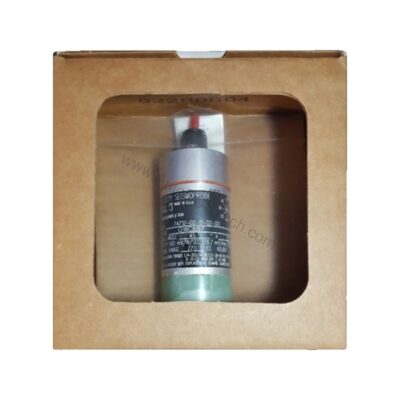

The 9200-01-50-01-04 is available from AutoDCSTech, an industrial automation parts supplier. This unit is new and in original factory packing, backed by a 12-month warranty. For technical assistance or to place an order, contact AutoDCSTech directly.
