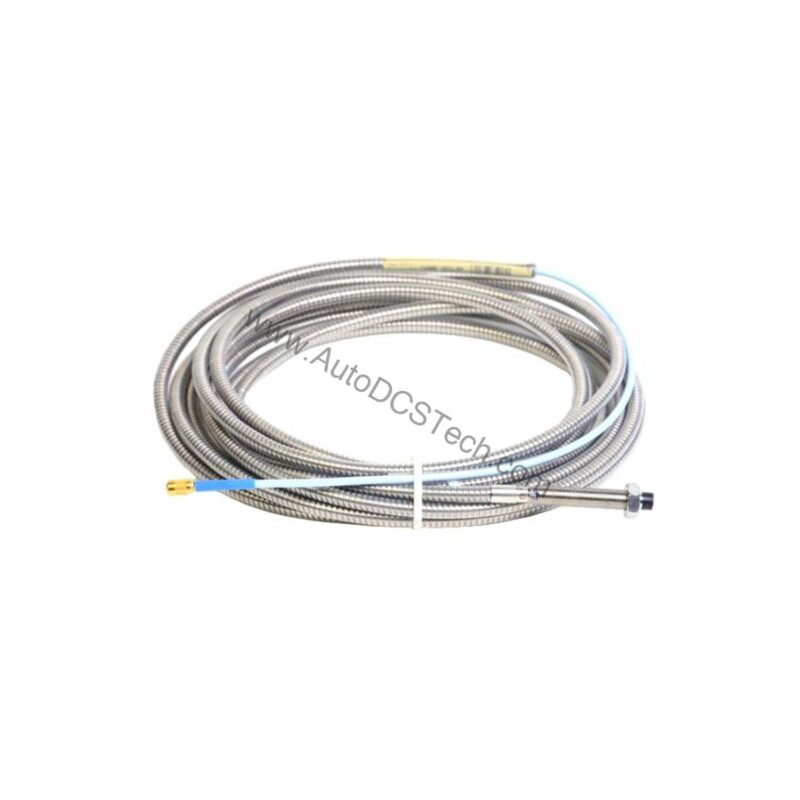

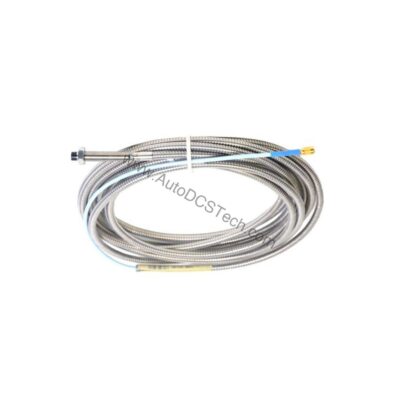

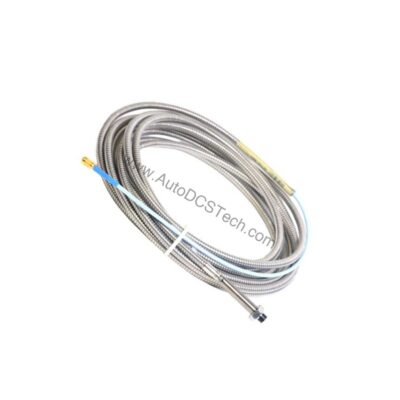

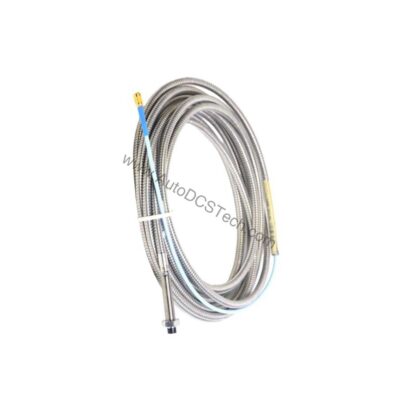

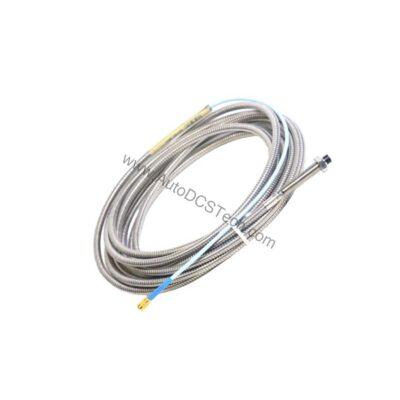

330102-00-79-05-02-05: 3300 XL 8 mm Proximity Probe
The 330102-00-79-05-02-05 is the 3300 XL 8 mm Proximity Probe covered on this page. The attribute that decides whether it fits the existing installation without modification is 3/8-24 UNF.
What separates this variant from its siblings is 3300 xl 8 mm proximity probe. In a machine protection or condition-monitoring installation 3300 xl 8 mm proximity probe is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 3/8-24 UNF against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a 3300 XL 8 mm Proximity Probe. The configuration carried in the order code is: Thread: 3/8-24 UNF. These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 330102-00-79-05-02-05 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Thread | 3/8-24 UNF |
| Max Thread Engagement | 0.563 in |
| Probe Weight | 323 g/m (11.4 oz) |
| Operating Temperature | -52°C to +177°C |
| DC Resistance | 7.45 ± 0.50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc [approx 1.27 mm (50 mils)] |
| Approvals | CSA, ATEX, IECEx. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-330102-00-70-10-02-05-3300-xl-8-mm-proximity-probe | confirm the configuration against your installation |
| bently-nevada-330102-00-72-10-01-05-3300-xl-8-mm-proximity-probe | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 330102-00-79-05-02-05 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
