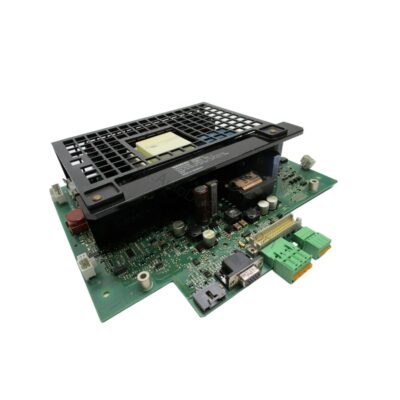

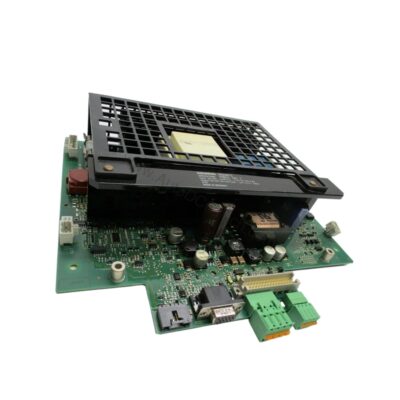

Introduction to the A5E03915589 Inverter Power Board
When a low-voltage converter needs a reliable power supply, the A5E03915589 from Siemens provides a robust solution. This inverter power board is engineered for industrial environments where consistent power delivery is critical. With a wide input range and a stable output, it supports demanding automation tasks.
As part of Siemens' proven converter family, the A5E03915589 is designed to integrate seamlessly into existing drive systems. Its compact form factor and IP00 rating make it suitable for cabinet installation where protection is provided by the enclosure.
Key Features and Technical Specifications
Understanding the exact specifications is essential for selecting the right power board. The A5E03915589 offers the following parameters:
- Input Voltage: 320–1244 VDC
- Input Current: 0.7 A
- Output Voltage: 32 VDC
- Output Current: 3 A
- Output Power: 180 W
- Enclosure Rating: IP00
These specifications are directly from the manufacturer's data, ensuring accuracy for your engineering evaluations. The wide input range allows the board to operate across various DC bus voltages, while the regulated 32 VDC output powers control electronics reliably.
Buyer's Guide: Evaluating the A5E03915589
When considering the A5E03915589 for your system, focus on three critical aspects: input compatibility, output stability, and mechanical fit.
Input Compatibility: The board accepts 320–1244 VDC, making it suitable for high-voltage DC links commonly found in industrial drives. Verify that your system's DC bus voltage falls within this range.
Output Stability: With a fixed 32 VDC output and 180 W capacity, the board can power auxiliary circuits, fans, or control boards. Ensure your load does not exceed 3 A.
Mechanical Fit: The IP00 rating means the board is not protected against dust or water, so it must be installed inside a suitable enclosure. Check the physical dimensions against your cabinet layout.
Installation and Setup
Proper installation is crucial for safe operation. Mount the A5E03915589 on a clean, flat surface inside an enclosure that provides adequate cooling. Ensure sufficient airflow around the board to dissipate heat generated during operation.
Connect the DC input to the designated terminals, observing correct polarity. The output connections should be made with appropriate wire gauge for 3 A. After wiring, verify all connections are secure before energizing.
Always follow Siemens' installation guidelines and local electrical codes. If you are unsure about any step, consult a qualified engineer.
Maintenance and Reliability
Routine maintenance extends the life of the A5E03915589. Periodically inspect the board for dust accumulation, which can impair heat dissipation. Use dry compressed air to remove dust, but avoid touching components directly.
Check that all connectors remain tight and free from corrosion. Monitor the operating temperature; excessive heat can reduce component lifespan. The board's design prioritizes reliability, but environmental factors play a significant role.
By following a simple inspection schedule, you can prevent unexpected downtime and maintain consistent performance.
Common Issues and Troubleshooting
If the output voltage is absent, first verify that the input DC voltage is present and within the specified range. Check the input fuse or circuit breaker. If the output is short-circuited, the board may shut down to protect itself.
Another common issue is overheating, often caused by blocked airflow. Ensure the enclosure vents are clear. If the board fails to operate, contact AutoDCSTech for replacement options.
Product Support and Availability
The A5E03915589 is available through AutoDCSTech. We stock this inverter power board and can ship it promptly to minimize your downtime. Contact our team for current lead times and pricing.
Please verify the exact lifecycle status with AutoDCSTech before ordering, as Siemens may update product lines.
