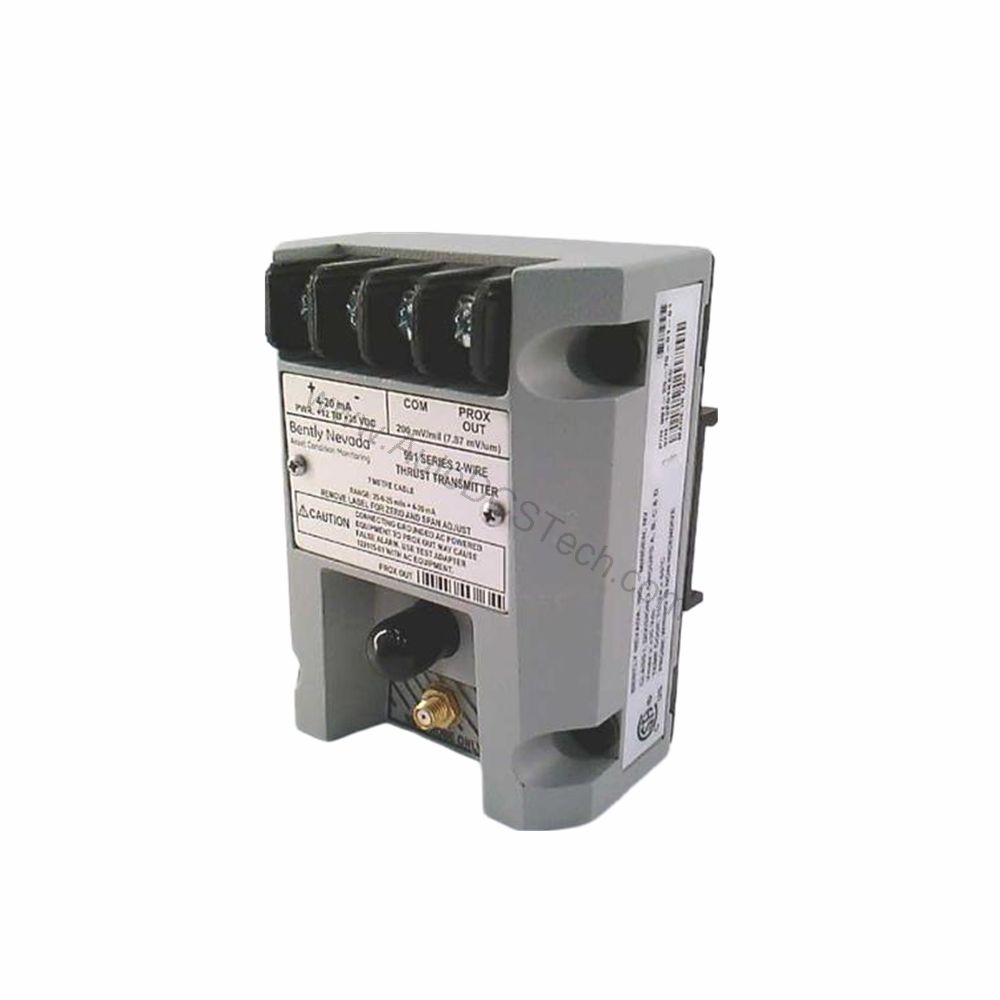

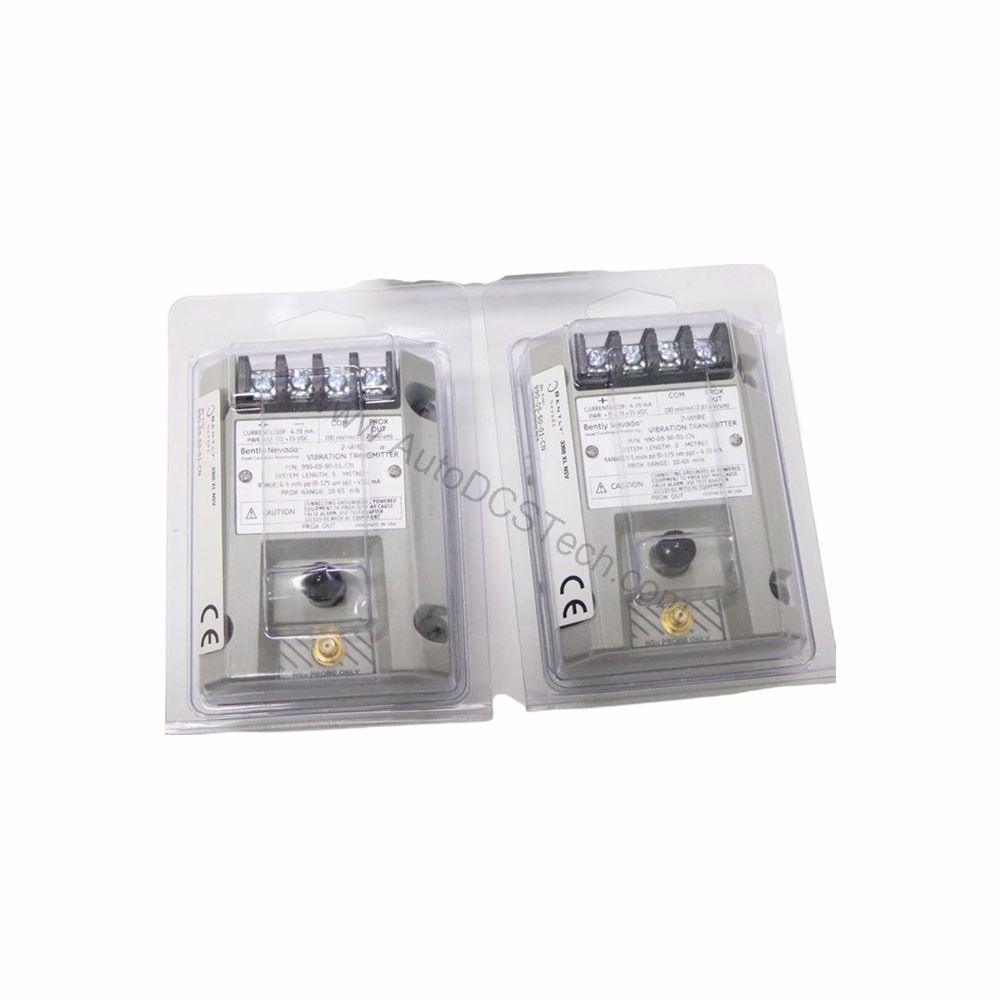

Introduction to the 991-25-70-01-01 Thrust Transmitter
When axial thrust monitoring demands precise, reliable data, the 991-25-70-01-01 from Bently Nevada provides a robust solution. This probe vibration transmitter is engineered for continuous operation in demanding industrial environments. It converts proximity probe signals into a standard 4-20 mA output, enabling seamless integration with PLCs, DCS, and SCADA systems. With a full-scale range of 25-0-25 mils, it is specifically designed for thrust position measurement in rotating machinery.
Key Features and Technical Specifications
The 991-25-70-01-01 is a 2-wire loop-powered transmitter that accepts input from a single non-contacting 3300 NSv proximity probe and extension cable. Its key specifications include:
- Full-scale option: -25 = 25-0-25 mils (0.6-0-0.6 mm)
- System length: 7.0 meters (23.0 feet)
- Mounting: 35 mm DIN-rail clips
- Output signal: 4-20 mA DC (2-wire configuration)
- Power requirement: +12 to +35 Vdc at the transmitter terminal
- Linear range: 0.25 to 1.65 mm for Prox Out
- Accuracy: Within ±1.5% over full scale (typical)
- Maximum loop resistance: 1,000 Ω including cable at 35 Vdc
- Current limiting: 23 mA typical
- Not OK/Signal Defeat: Output goes below 3.6 mA within 100 µs of a Not OK condition; restores within 0.1 seconds
These specifications ensure accurate, repeatable thrust measurement, even in harsh conditions.
Real-World Applications
The 991-25-70-01-01 is ideal for axial position monitoring in turbines, compressors, and large pumps. It is commonly used in power generation, oil and gas, and petrochemical facilities. Its 4-20 mA output simplifies integration with existing control systems, enabling real-time condition monitoring. The DIN-rail mounting option allows for convenient installation in standard industrial cabinets.
Installation and Setup
Installation is straightforward with the 35 mm DIN-rail clips. The transmitter requires a +12 to +35 Vdc power supply at its terminal. The system length of 7.0 meters (23.0 feet) provides flexibility for probe placement. For optimal performance, ensure the probe is correctly positioned and the cable is routed away from high-interference sources. Always follow the manufacturer's manual for detailed wiring and configuration instructions.
Maintenance and Reliability
Routine inspection of the transmitter and probe is recommended to ensure long-term reliability. The unit's robust design withstands operating temperatures from -35°C to +85°C and storage temperatures from -51°C to +100°C. The Not OK/Signal Defeat feature provides rapid fault indication, minimizing downtime. Regular verification of the loop current and calibration is advised per the manufacturer's guidelines.
Compatibility and Integration
The 991-25-70-01-01 is compatible with Bently Nevada 3300 NSv proximity probes and extension cables. Its 4-20 mA output can be directly connected to most PLC analog input modules, DCS systems, and standalone indicators. The 2-wire configuration reduces wiring complexity and cost.
Common Issues and Troubleshooting
If the output signal is not within the expected range, verify the power supply voltage and loop resistance. A Not OK condition may indicate a probe or cable fault. The transmitter's current limiting (23 mA typical) protects the loop from overcurrent. For persistent issues, consult the official Bently Nevada documentation or contact AutoDCSTech for support.
Product Support and Availability
The 991-25-70-01-01 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering. For technical inquiries, contact our team for prompt assistance.
