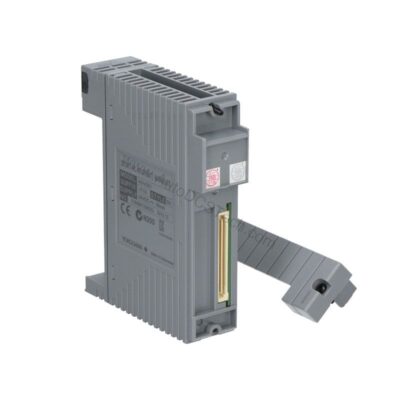

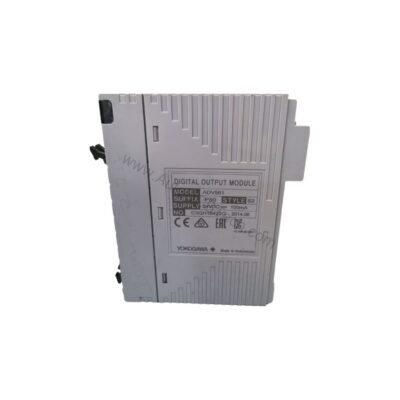

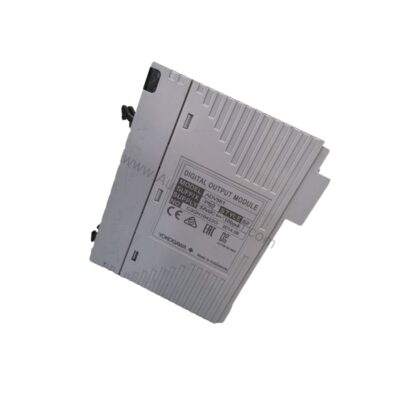

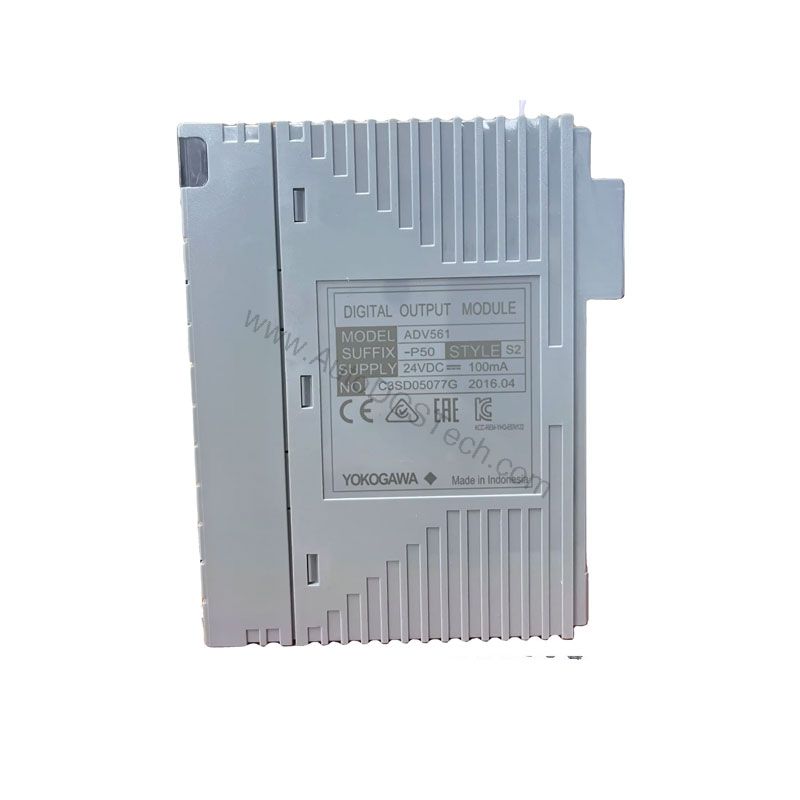

ADV561-P50: Digital Output Module
The ADV561-P50 is the Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24 V DC.
On this unit digital output module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24 V DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | ADV561-P50 |
| Model | ADV561-P50 |
| Product Type | Digital Output Module |
| Output Channels | 64 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 100 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage Maximum | 2 V DC |
| Leak Current (Output OFF) | 0.1 mA |
| Maximum Load Current | 100 mA/channel at 26.4 V |
| Withstanding Voltage | 2 kV AC (output to system), 500 V AC (between commons) |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | ADV561-P50 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
