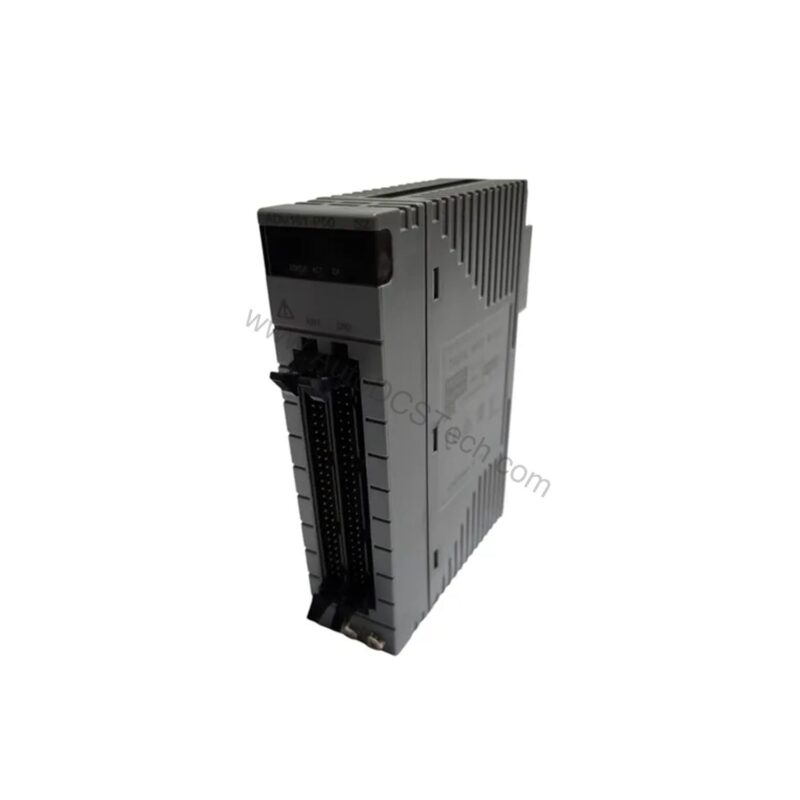

ADV161-P50: Digital I/O Modules
The ADV161-P50 is the Digital I/O Modules covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.30 kg.
This configuration's digital i/o modules is the attribute that drives the replacement decision. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. digital i/o modules sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.30 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | ADV161-P50 |
| Product No. | ADV161-P50 |
| Product Type | Digital I/O Modules |
| Number of input channels | 64 |
| Rated input voltage | 24 V DC (sink/source) |
| Input ON voltage | 20 to 26.4 V DC |
| Input OFF voltage | 5.0 V DC or less |
| Input current | 2.5 mA ±20% per channel |
| Maximum allowable input voltage | 30.0 V DC |
| Withstanding voltage | 2 kV AC (input to system), 500 V AC (between commons) |
| Input response time | 8 ms or less (status input) |
| Maximum current consumption | 550 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | ADV161-P50 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
