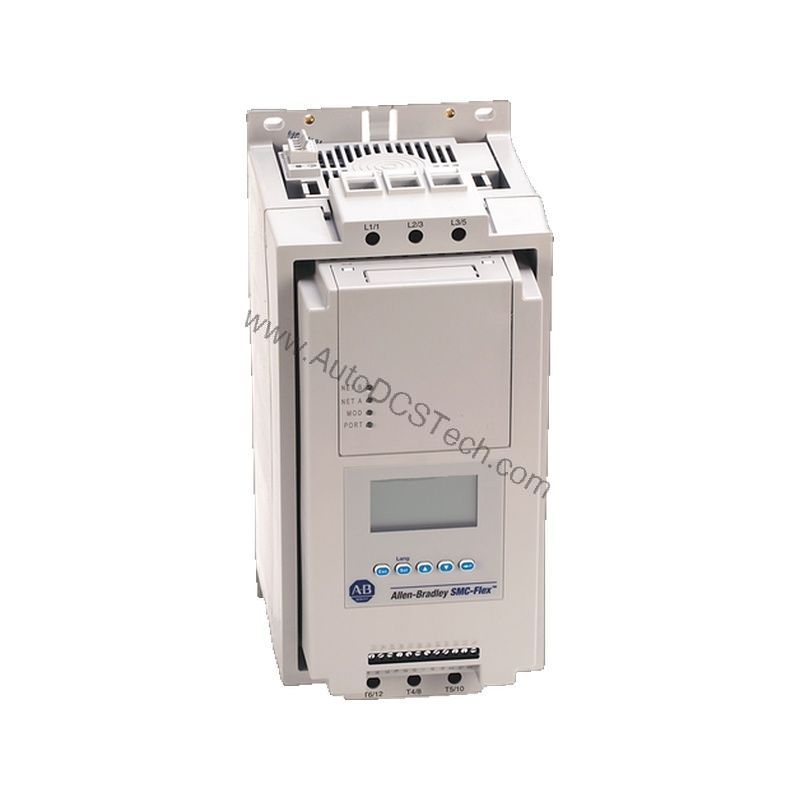

Allen-Bradley 150-F625NZA SMC-Flex Solid State Controller 625A

Technical Specifications Breakdown

Key parameters for the 150-F625NZA are listed below for quick reference:

Industry Applications and Cost Benefits

Pump and Fan Control

In water treatment and HVAC systems, the 150-F625NZA provides smooth acceleration for centrifugal pumps and fans. This reduces mechanical shock on belts, couplings, and impellers, cutting maintenance costs by up to 30%. The open enclosure suits clean indoor environments where panel space is at a premium.

Conveyor Systems

For material handling applications, the controller's 625 A rating supports high-torque starts for loaded conveyors. By limiting inrush current, it prevents nuisance tripping of upstream breakers, avoiding costly production stoppages.

Compressor Applications

Industrial compressors benefit from the SMC-Flex's ability to handle 500 Hp at 460V AC. The soft-start feature reduces peak demand charges from utilities, directly improving operational ROI.

Installation and Setup Guidance

Mount the open-enclosure controller inside a suitable electrical cabinet with adequate ventilation. Ensure the input line voltage matches the 230-690V AC, 3-phase supply. For 625-1250 A units, connect the control voltage to 230/240V AC. Use torque values specified in the manual for power terminals to prevent loose connections that generate heat. Verify that the motor's full-load current does not exceed 625 A.

Maintenance and Reliability

Inspect the controller quarterly for dust accumulation on heat sinks and power semiconductors. Clean with low-pressure dry air. Check all power connections annually for signs of thermal cycling. The solid-state design eliminates contactor wear, reducing spare parts inventory costs. Operate within the rated voltage of 690/Y§V AC to ensure long service life.

Optimize Motor Control with the Allen-Bradley 150-F625NZA SMC-Flex

Industrial facilities face constant pressure to reduce downtime and energy costs while maintaining reliable motor starting. The Allen-Bradley 150-F625NZA SMC-Flex solid state controller delivers a cost-effective solution for medium-to-large AC induction motors. By eliminating mechanical contactor wear and providing soft-start capabilities, this controller reduces inrush current stress on both the motor and the electrical distribution system. The result is extended equipment life and lower total cost of ownership.

Compatibility and Integration

The SMC-Flex line integrates with standard 3-phase AC systems at 50 or 60 Hz. The controller accepts 230-690V AC input, making it suitable for global installations. It works with motors up to 500 Hp at 460V AC. For communication or advanced programming, consult the SMC-Flex user manual for optional modules.

Selection Guide and Purchasing Advice

When selecting a solid state controller, match the continuous current rating to your motor's full-load amps. Verify enclosure compatibility with your environment; the open type requires a separate cabinet. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
