Technical Specifications Breakdown
Key parameters for the EVF9336-EV are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Lenze |
| Product Line Series | Series 9300 |
| Product Type | Frequency Inverter |
| Supply Voltage | 340-456V AC |
| Supply Frequency | 45-65 Hz |
| Rated Motor Power | 200 HP |
| Mains Current | 238A |
| IP Rating | IP20 |
| Mounting Method | Back panel of control cabinet |
| Operating Temperature | 0 °C to +50 °C |
| Design | Standard design |
Industry Applications
This frequency inverter suits applications requiring reliable speed control for motors up to 200 HP. Typical uses include conveyors, pumps, fans, and machine tools where variable speed improves process efficiency. The wide supply voltage range and robust current rating make it a flexible choice for diverse industrial environments.
Installation & Setup Guidance
Mount the unit on the back panel of a control cabinet to ensure proper support and organization. Verify that the supply voltage matches the 340-456V AC range and that the frequency stays between 45-65 Hz. Ensure adequate ventilation around the unit to maintain the operating temperature within 0 °C to +50 °C. Follow standard wiring practices for power and control connections.
Maintenance & Reliability
Regularly inspect the inverter for dust accumulation and ensure the IP20 enclosure remains intact. Check that all mounting hardware is secure and that ambient temperature stays within the specified range. Periodic inspection of connections and cooling paths helps maintain long-term reliability.
Robust Frequency Inverter for Industrial Motor Control

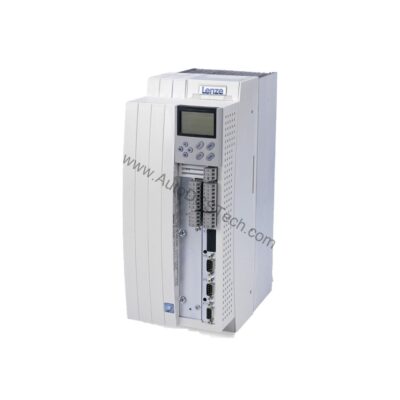

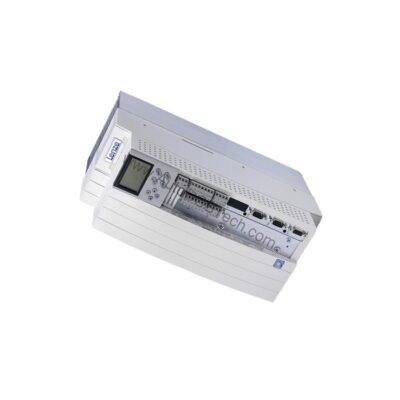

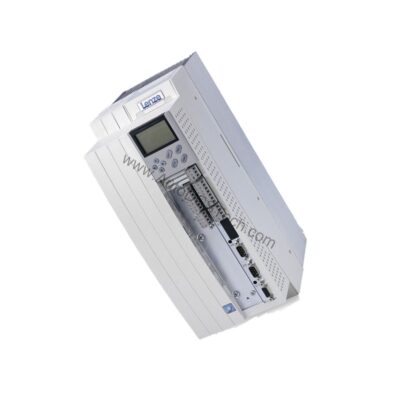

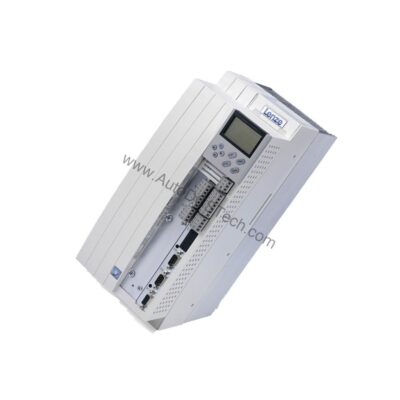

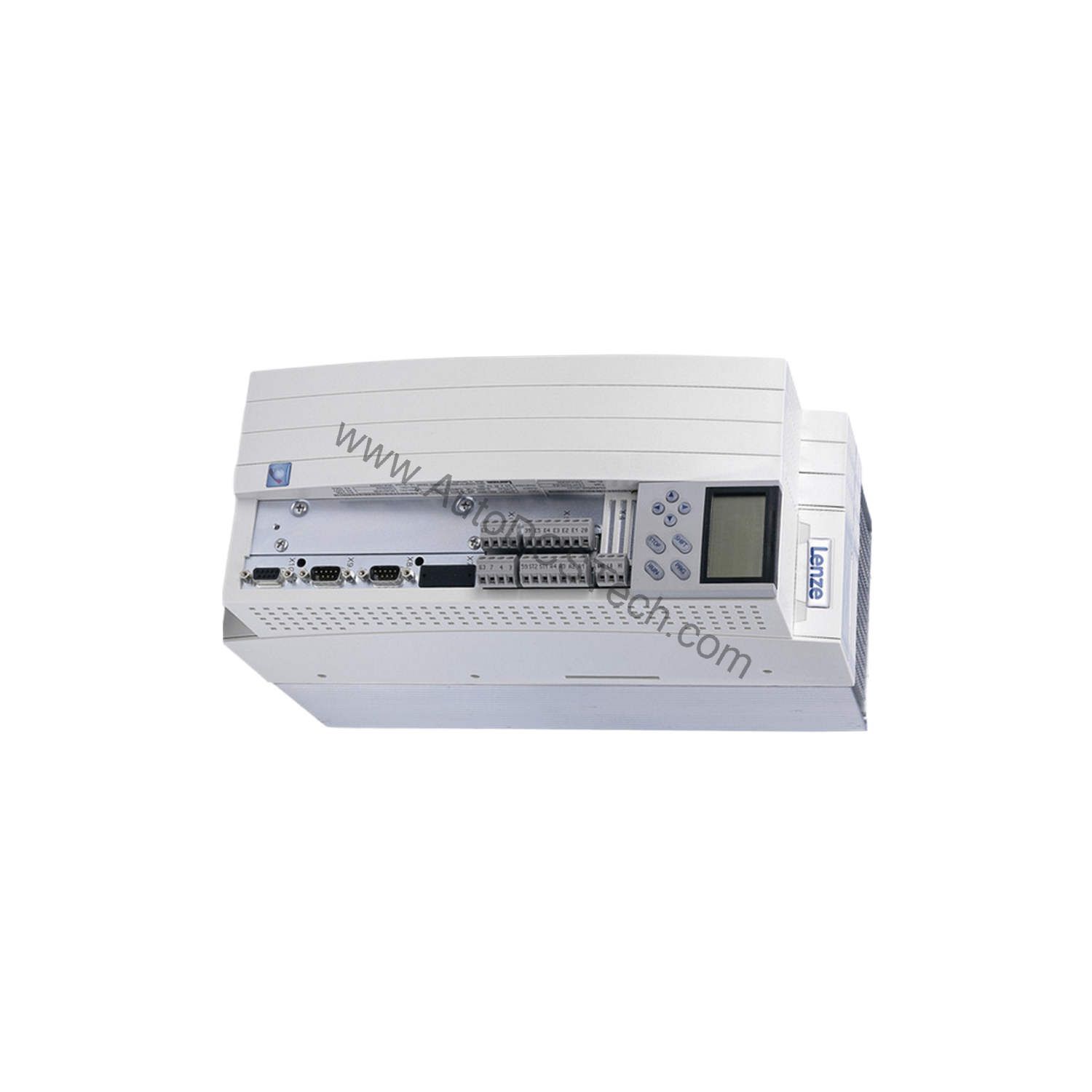

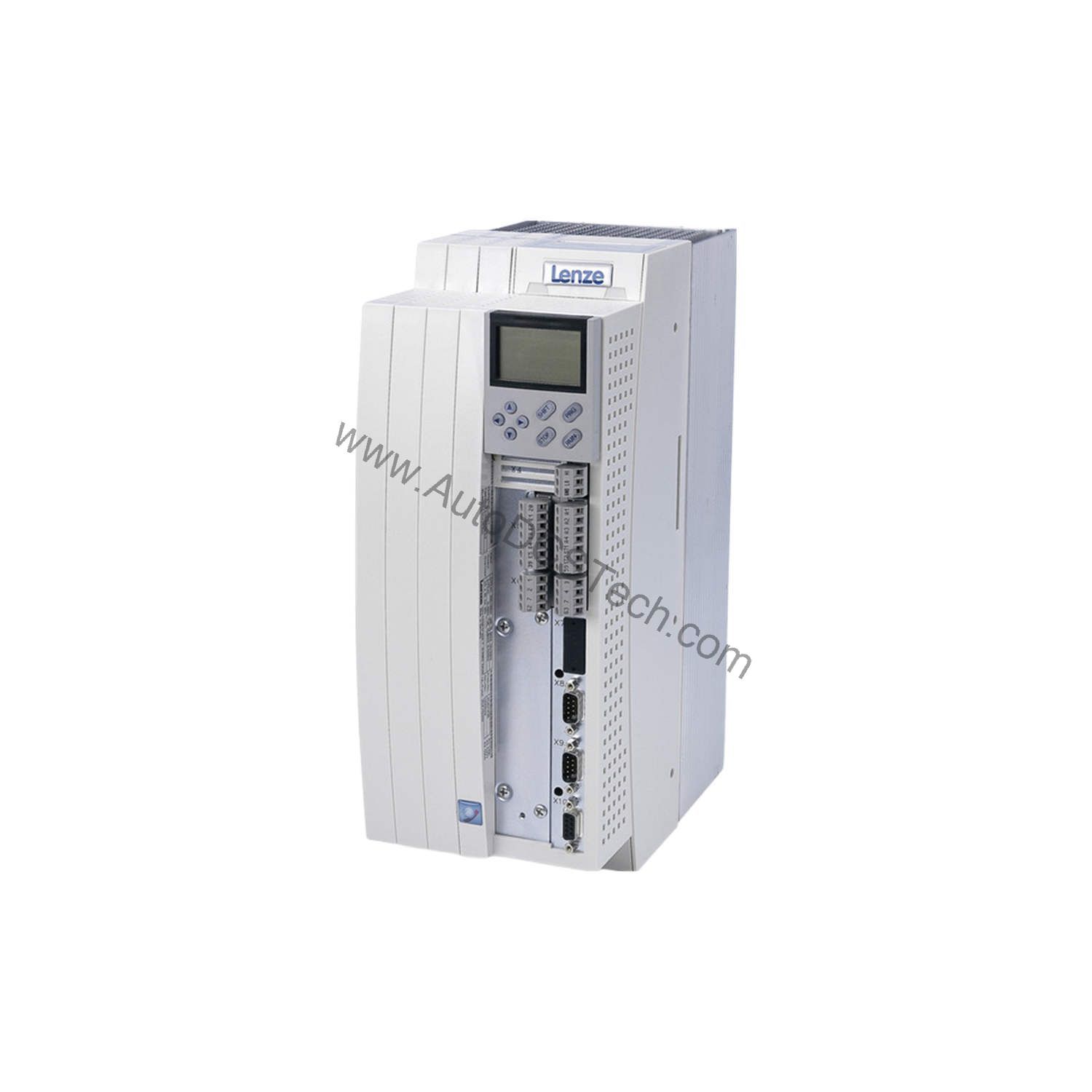

The Lenze EVF9336-EV frequency inverter delivers dependable variable-speed control for demanding industrial applications. Built for back-panel mounting inside control cabinets, this unit integrates cleanly into existing systems. Its robust design supports heavy motor loads while maintaining precise operational parameters.
Compatibility & Integration
The standard design of the EVF9336-EV allows straightforward integration into existing control systems. It does not require an alternative DC supply voltage, simplifying installation. The back-panel mounting method fits typical industrial control cabinets.
Selection Guide & Purchasing Advice
When selecting a frequency inverter, verify that the voltage, current, and power ratings match your motor and supply. The EVF9336-EV offers a solid balance of power and protection for many industrial uses. Contact AutoDCSTech to confirm availability and lifecycle status before ordering. Our team can help you choose the right solution for your application.
Troubleshooting & Common Issues
If the inverter does not start, check the supply voltage and frequency against the specified ranges. Ensure the motor connections are correct and that the load does not exceed the rated 200 HP. Overheating may occur if ambient temperature exceeds +50 °C; improve ventilation or reduce load. For persistent issues, consult the manufacturer documentation or contact AutoDCSTech for support.
Availability & Condition at AutoDCSTech
| Part Number | EVF9336-EV |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
