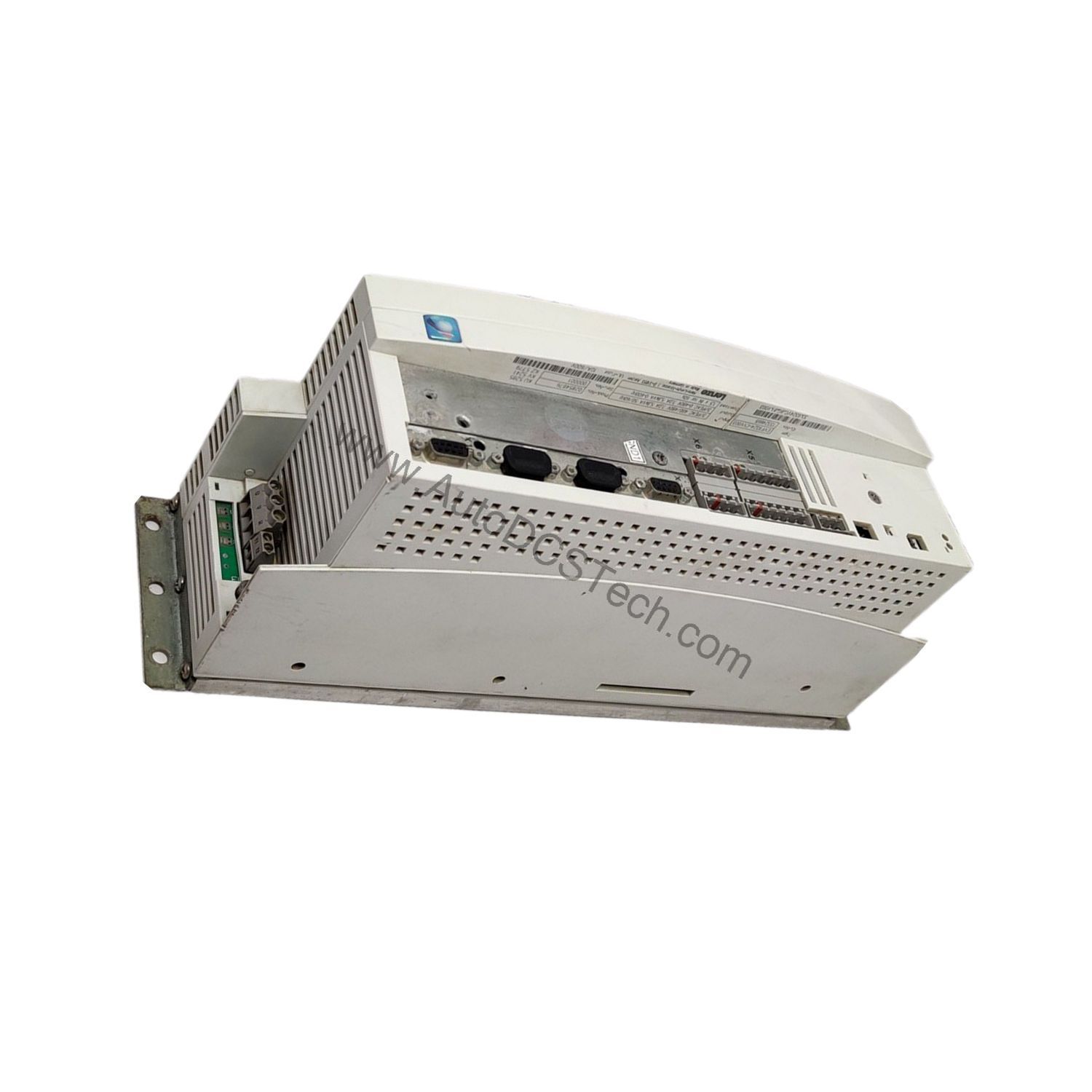

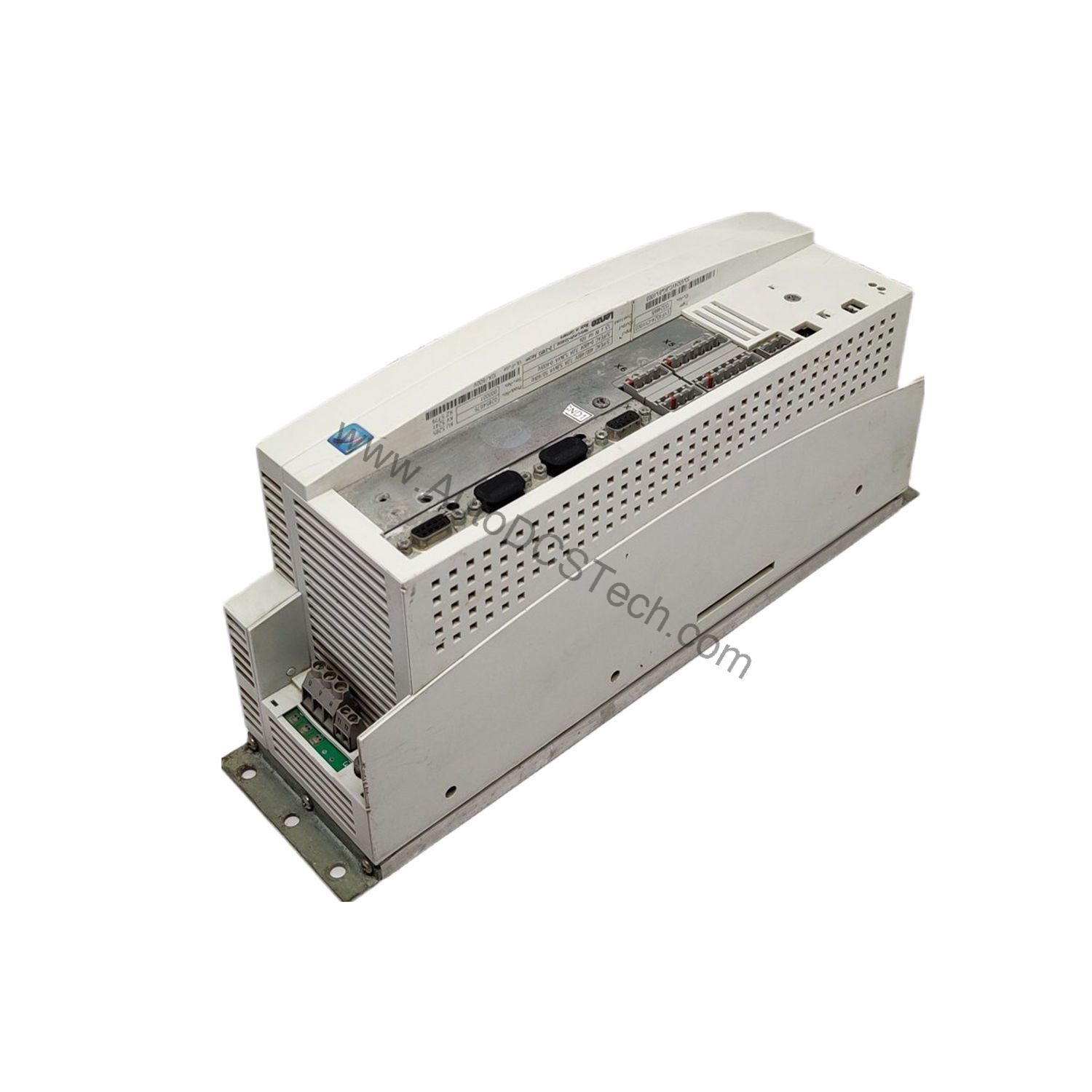

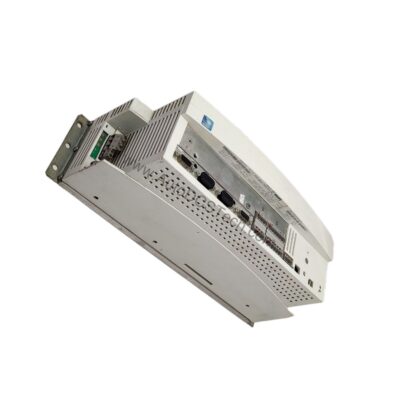

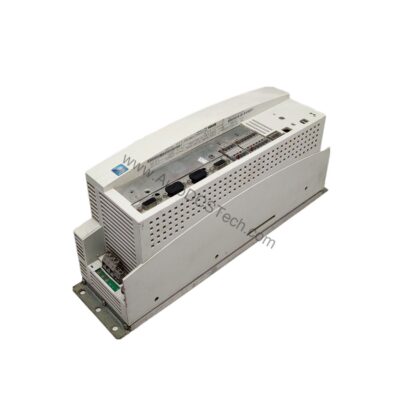

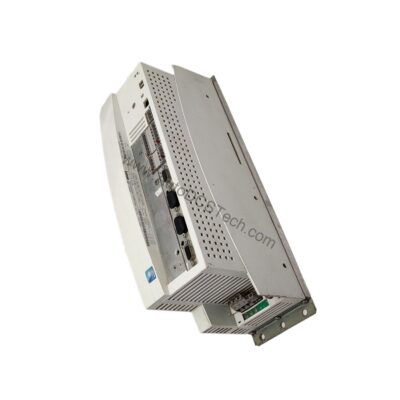

Lenze EVF9324-EV Frequency Inverter | Series 9300, 4 kW

Technical Specifications Breakdown

Key parameters for the EVF9324-EV are listed below for quick reference:

Built for Real-World Applications

The EVF9324-EV is suited for a wide range of industrial applications where precise motor speed control is essential. For example, in conveyor systems, the inverter ensures smooth starts and stops, reducing mechanical stress. In pump and fan applications, it allows you to match motor speed to demand, saving energy. The wide mains frequency range of 45-65 Hz makes it adaptable to different regional power grids, which is a key advantage for machinery manufacturers exporting globally.

Installation and Setup Guidance

This inverter is designed for back panel mounting inside a control cabinet. When installing, ensure adequate airflow around the unit to manage the 165W power loss effectively. Verify that the mains voltage matches the 320-440V AC range before connecting. For installations using a DC bus, the alternative DC supply voltage of 460-620V DC provides added flexibility. Always follow standard safety procedures and lockout/tagout protocols during installation.

Maintenance and Reliability

Regular inspection of the inverter is recommended to ensure long-term reliability. Check for dust accumulation on heatsinks and fans, as this can impair cooling. Periodically verify that all electrical connections remain tight. The robust design of the Series 9300 contributes to dependable operation, but environmental factors such as ambient temperature and humidity should be monitored to stay within safe operating limits.

Optimize Motor Control with the Lenze EVF9324-EV

When you need reliable variable speed control for a 4 kW motor, the Lenze EVF9324-EV from the Series 9300 offers a practical solution. This frequency inverter is engineered for dynamic applications, delivering consistent power output while adapting to various industrial environments. Its design focuses on efficiency and flexibility, making it a solid choice for upgrading your motor control systems.

Compatibility and Integration

The EVF9324-EV is part of the Lenze Series 9300, ensuring seamless integration with other components in this product family. Its ability to operate on either AC mains or DC supply makes it a versatile choice for diverse system architectures. When integrating into an existing automation setup, confirm that the control signals and motor parameters are compatible with the inverter's specifications.

Selection Guide and Purchasing Advice

When selecting a frequency inverter, consider your motor's power rating and the available supply voltage. The EVF9324-EV is a strong candidate for 4 kW motors. At AutoDCSTech, we offer this model and can provide guidance on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team is ready to assist you in finding the right automation components for your needs.

Troubleshooting and Common Issues

If the inverter does not start, check the mains supply voltage and ensure it is within the 320-440V AC range. If the motor runs erratically, verify that the output frequency settings match your application requirements. Overheating can occur if the ambient temperature is too high or if airflow is restricted; inspect the cooling fans and heatsink. For persistent issues, consult the manufacturer's documentation or contact a qualified service engineer.
