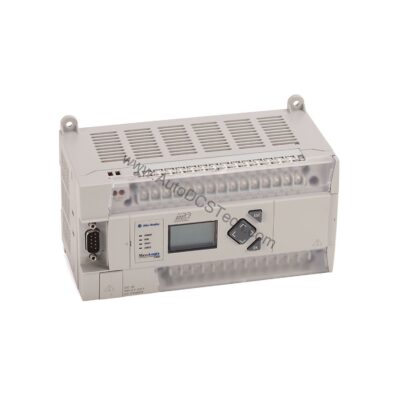

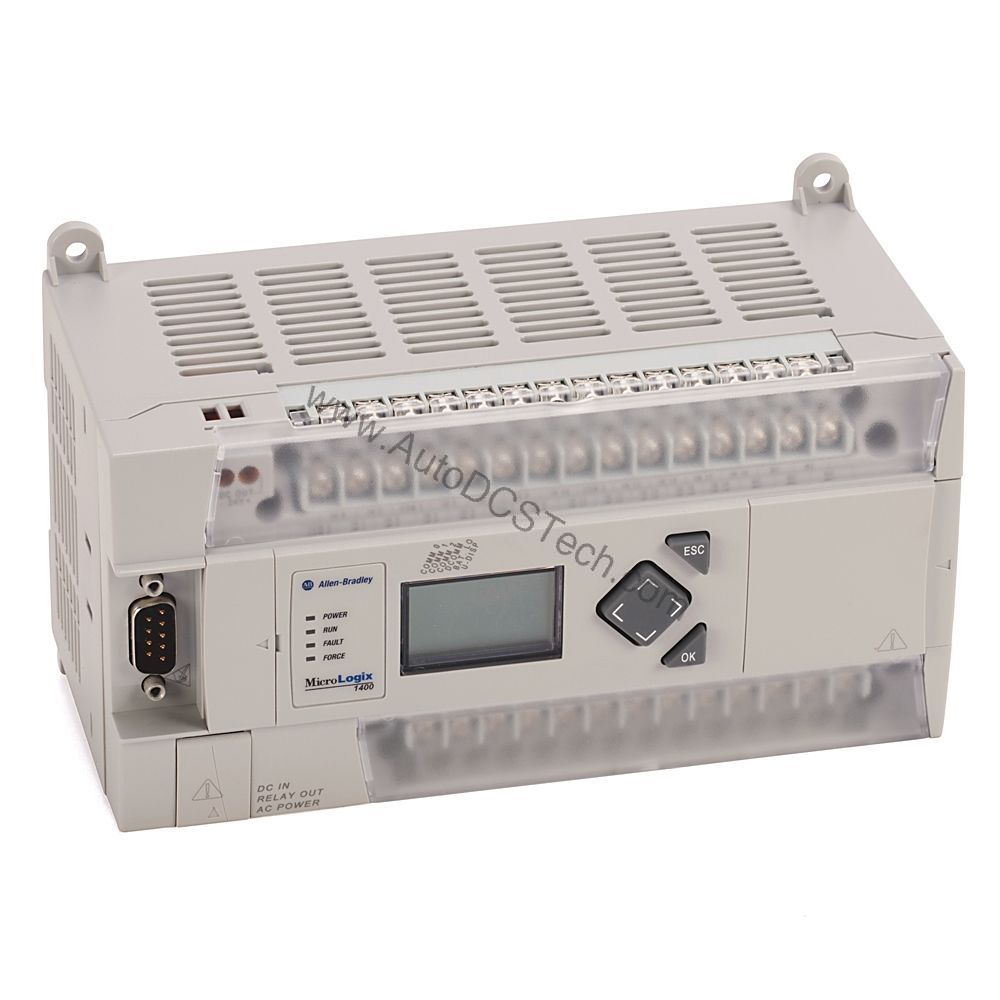

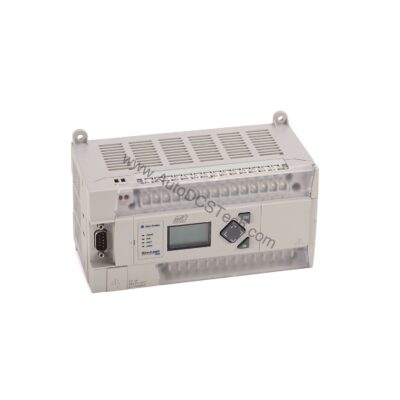

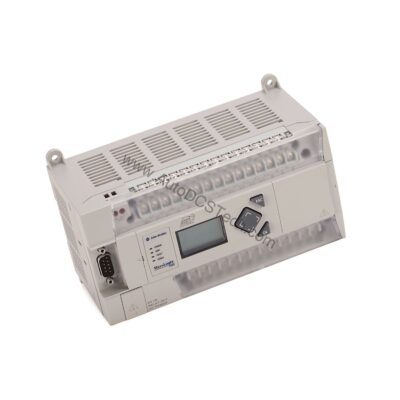

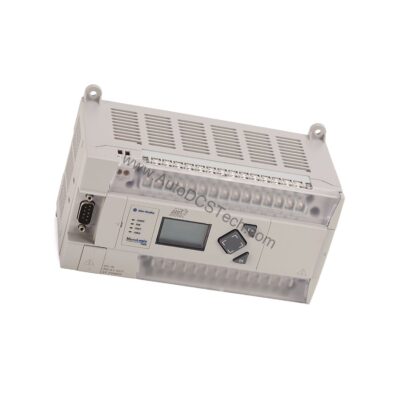

Allen-Bradley 1766-L32AWAA MicroLogix 1400 Controller

Technical Specifications Breakdown

Key parameters for the 1766-L32AWAA are listed below for quick reference:

Industry Applications

Packaging and Material Handling

This controller manages discrete and analog I/O for packaging lines, conveyors, and sortation systems. The 20 digital inputs and 12 relay outputs handle sensor feedback and actuator control, while the analog channels monitor process variables like position or pressure. The Ethernet port enables integration with SCADA for production tracking.

Water and Wastewater Monitoring

With DNP3 protocol support over Ethernet and serial, the 1766-L32AWAA communicates with remote telemetry units and central control systems. The built-in real-time clock schedules data logging and alarm events. Analog inputs read level or flow transmitters, and relay outputs control pumps or valves.

Building Automation

For HVAC or lighting control, this controller provides reliable discrete and analog control. The isolated RS232/485 port connects to variable frequency drives or building management systems. The embedded web server allows operators to monitor status via a standard browser without additional software.

Installation and Setup Guidance

Mount the controller on a DIN rail or panel using the provided slots. Ensure the enclosure is open and suitable for clean, dry industrial environments with circuits not exceeding Over Voltage Category II. Connect the 120-240V AC power supply to the designated terminals, observing the inrush current limits: 25 A for 8 ms at 120V AC, 40 A for 4 ms at 240V AC. Use appropriate branch circuit protection. For serial communication, the primary port uses a 9-pin sub-D RS232C connector, and the secondary port uses a circular 8-pin mini-DIN connector. The Ethernet port is an RJ45 supporting 10/100 Mbps. Program the controller using Rockwell Software’s RSLogix 500 or Connected Components Workbench. Configure communication protocols (DF1, Modbus RTU, Ethernet I/P) in the controller’s system setup.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and ensure ventilation around the unit. The battery-backed RAM preserves user programs and data during power loss; replace the battery every 5 years or as indicated by the controller’s status LED. Verify that all I/O wiring connections are secure and free from corrosion. The open enclosure design requires the controller to be installed in a pollution-free environment to maintain reliability.

Compact Control for Micro Automation

The Allen-Bradley 1766-L32AWAA is a MicroLogix 1400 Controller designed for micro and small automation requirements. This compact PLC from Rockwell Automation integrates digital and analog control capabilities in a single unit, reducing panel space and wiring complexity. With embedded I/O and multiple communication interfaces, it serves as a cost-effective solution for standalone or networked applications.

Compatibility and Integration

The 1766-L32AWAA supports up to seven 1762 expansion I/O modules, allowing system scaling beyond the embedded 32 I/O points. Communication protocols include DF1, ASCII, Modbus RTU, DNP3, DH485 for serial, and Ethernet I/P, DNP3, Modbus TCP/IP for Ethernet. This enables connectivity with HMIs, SCADA systems, and other PLCs. The embedded web server provides remote monitoring via standard browsers. The controller also supports high-speed counters (100 kHz) on DC input models, but the 1766-L32AWAA has AC inputs; for high-speed counting, consider a DC input variant.

Selection Guide and Purchasing Advice

When selecting a MicroLogix 1400 controller, evaluate the required I/O count and types. The 1766-L32AWAA offers 20 digital AC inputs, 12 relay outputs, and 4 analog inputs plus 2 analog outputs. If more I/O is needed, add 1762 expansion modules. Verify the power supply voltage matches your facility (120-240V AC). For applications requiring DNP3 or Modbus TCP/IP, this controller includes those protocols out of the box. AutoDCSTech stocks the 1766-L32AWAA and can advise on availability and lifecycle status. Contact our team for pricing and lead times.

Troubleshooting and Common Issues

If the controller fails to power on, check the AC supply voltage (79-132VAC) and the power supply inrush current rating. Verify that the circuit breaker or fuse is not tripped. For communication issues, confirm the correct protocol (DF1, Modbus RTU, etc.) is selected in the controller’s configuration and that the cable wiring matches the port pinout (9-pin sub-D or 8-pin mini-DIN). If the Ethernet port does not connect, check the IP address settings and cable integrity. The built-in real-time clock may lose time if the battery is depleted; replace the battery and reset the clock in the programming software. For I/O problems, verify the input operating range (79-132VAC) and relay output voltage limits (5-125V DC or 5-264V AC). Use the controller’s status LEDs to diagnose faults: power, run, fault, and I/O indicators.
