Product Overview

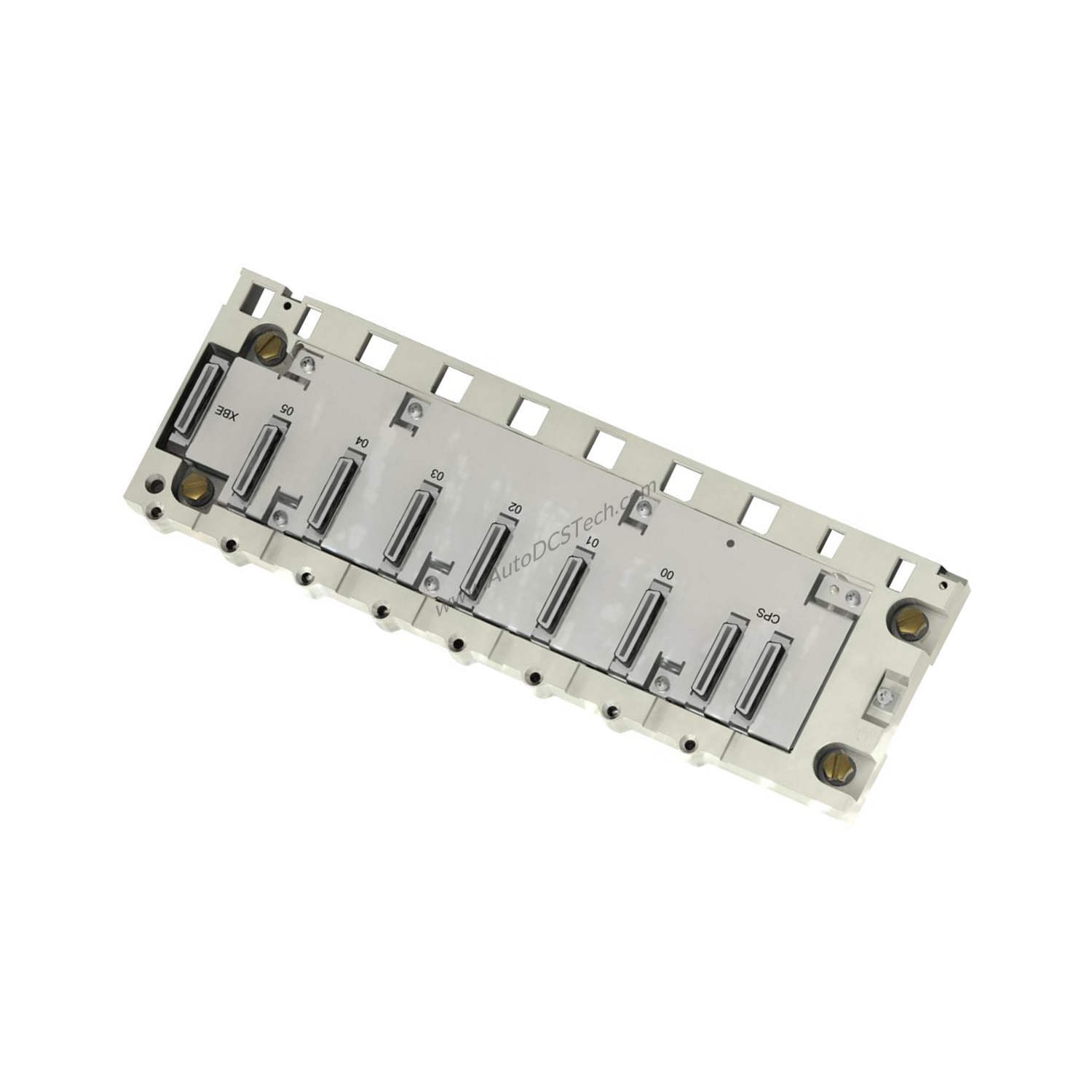

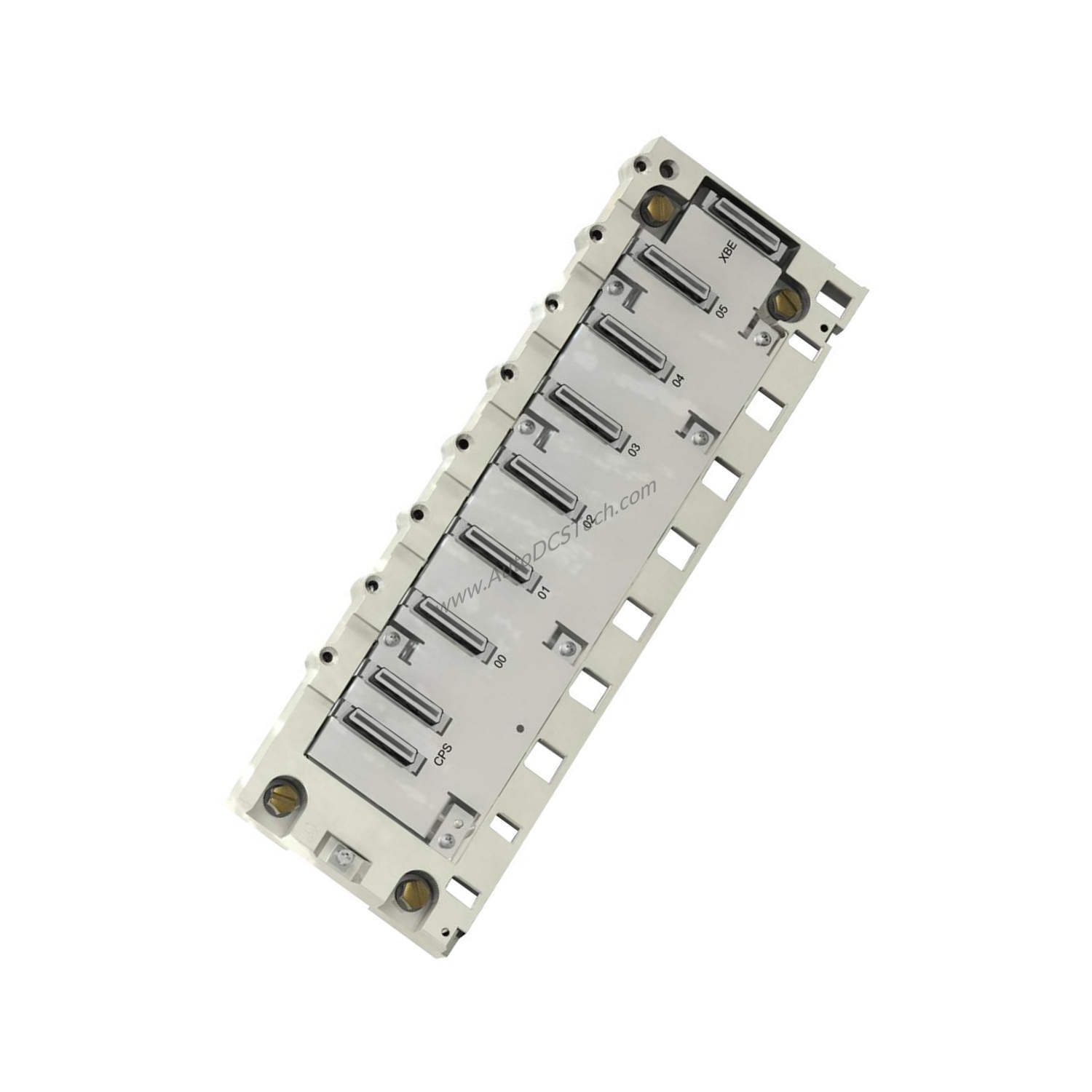

When building a scalable and reliable Modicon M340 automation system, the BMXXBP1200 rack provides the structural backbone you need. This 12-slot rack from Schneider Electric supports a range of modules including power supplies, processors, I/O modules, and specific application modules. Designed for panel or plate mounting, it integrates seamlessly into industrial control cabinets.
Technical Specifications
The BMXXBP1200 offers key parameters that define its performance:
- Number of Slots: 12 bus X slots for flexible module configuration.
- Power Consumption: Only 0.74 W, minimizing energy draw in the cabinet.
- Mounting Options: Fixing by 4 M6 screws for plate mounting or 4 screws (4.32...6.35 mm) for panel mounting.
- Weight: 1.27 kg, making it robust yet manageable for installation.
- IP Protection: IP20 rated for indoor use in clean environments.
- Operating Temperature: 0...60 °C, suitable for typical industrial settings.
- Relative Humidity: 10...95% without condensation.
These specifications ensure the rack supports reliable operation within a Modicon M340 system.
Industry Applications
In manufacturing lines, the BMXXBP1200 rack centralizes control modules for processes like conveyor sorting or packaging. Its 12 slots allow mixing of processor, power supply, and I/O modules to match specific automation needs. For example, a food processing plant can integrate BMXP34 processors and BMXCPS power supplies into this rack for coordinated machine control.
Installation & Setup Guidance
Mount the BMXXBP1200 securely using four M6 screws for plate fixing or four panel screws (4.32...6.35 mm). Ensure the mounting surface is flat and clean. Connect the expansion module via the single XBE connector if additional bus extension is required. Position the rack in a location with ambient temperatures between 0 and 60 °C and relative humidity below 95% without condensation. Verify that the IP20 enclosure protects against solid objects larger than 12 mm but not against moisture; install in a dry cabinet.
Maintenance & Reliability
Routine inspection of the BMXXBP1200 rack should focus on verifying that all module connections are secure and that the mounting screws remain tight. The low power consumption of 0.74 W reduces heat buildup, contributing to long service life. The protective treatment (TC) helps resist corrosion in typical industrial atmospheres. Check the environmental conditions periodically to ensure temperature and humidity remain within specified limits.
Compatibility & Integration
The BMXXBP1200 rack is part of the Modicon M340 automation platform and is compatible with:
- Power Supplies: BMXCPS series.
- Processors: BMXP34 series.
- I/O Modules: Standard digital and analog modules.
- Specific Application Modules: For specialized functions.
It includes one connector (XBE) for expansion modules, allowing system growth beyond the 12 slots.
Selection Guide & Purchasing Advice
Before ordering the BMXXBP1200, verify that your system requires a 12-slot rack and that the mounting method (panel or plate) matches your cabinet design. Confirm compatibility with your chosen BMXCPS power supply and BMXP34 processor. SpareTechPLC stocks this rack and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q: How many modules can the BMXXBP1200 rack hold?
A: It holds up to 12 modules on the bus X backplane, supporting power supplies, processors, I/O modules, and specific application modules.
Q: What is the power consumption of the BMXXBP1200 rack?
A: The rack consumes only 0.74 W, contributing to energy-efficient system operation.
Q: Can the BMXXBP1200 be mounted on a panel?
A: Yes, it supports panel mounting using four screws with a diameter range of 4.32...6.35 mm.
Q: What is the IP rating of this rack?
A: It has an IP20 degree of protection, suitable for indoor use in dry, clean environments.
Q: Is the BMXXBP1200 compatible with BMXP34 processors?
A: Yes, it is designed for compatibility with BMXP34 processors and BMXCPS power supplies.
