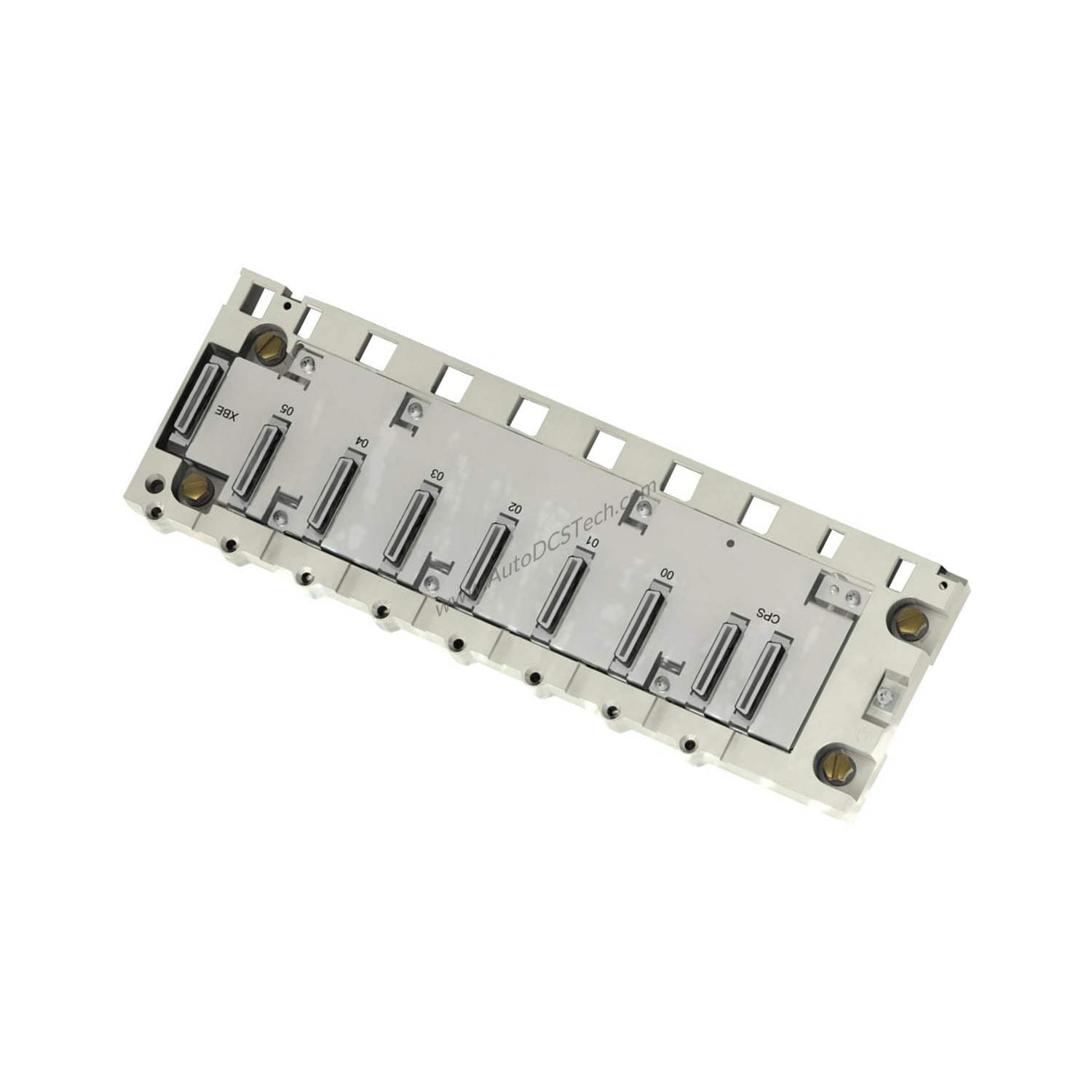

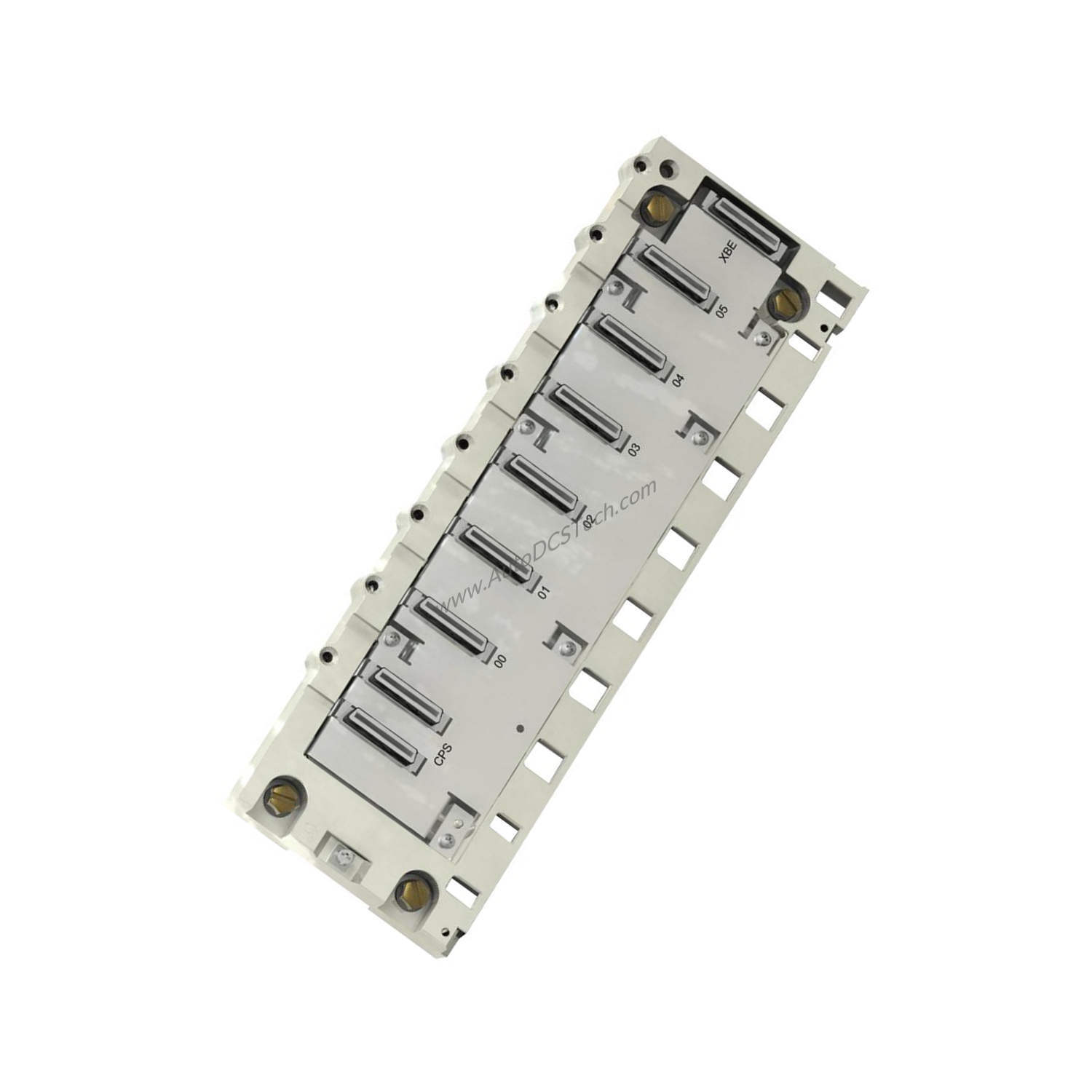

Product Overview: The Schneider BMXXBP0600 Backplane
When building or expanding a Modicon control system, the backplane serves as the foundation for reliable communication between modules. The Schneider BMXXBP0600 backplane provides a robust six-slot bus X architecture designed to host processors, power supplies, and I/O modules in a compact footprint. With its slim 0.7-inch depth and manageable weight of 0.79 kg, this backplane simplifies panel layout and installation in space-constrained industrial environments.
Key Technical Specifications
- Part Number: BMXXBP0600
- Brand & Series: Schneider Electric Modicon
- Number of Slots: 6 bus X
- Power Consumption: 1.68 W
- Dimensions: Height 103.7 mm, Width 307.6 mm, Depth 0.7 in
- Weight: 0.94 kg (2.06 lbs)
- IP Protection: IP20
- Operating Temperature: 32 to 140 °F (0 to 60 °C)
- Relative Humidity: 10 to 95% without condensation
- Mounting: By 4 M4/M5/M6 screws on panel
- Electrical Connection: 1 connector (XBE) for expansion module
- Certifications: CE, UL, CSA, Merchant Navy
- Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201
Industry Applications
The BMXXBP0600 backplane suits a wide range of industrial automation tasks, including manufacturing lines, process control, and material handling systems. Its six bus X slots allow integration of a BMXP34 processor, BMXCPS power supply, and multiple I/O modules for distributed control. The IP20 rating makes it ideal for clean indoor environments such as control cabinets in factories or warehouses. The wide operating temperature range (0 to 60 °C) ensures reliable performance in unconditioned plant floors.
Installation and Setup Guidance
Mount the BMXXBP0600 backplane securely to a panel using four M4, M5, or M6 screws. Ensure the mounting surface is flat and clean to maintain proper alignment. Connect the BMXCPS power supply to the designated slot and install the BMXP34 processor in the appropriate position. Use the XBE expansion connector to link additional backplanes or modules as needed. Verify all connections are tight before powering up the system.
Maintenance and Reliability
Routine inspection of the backplane involves checking for dust accumulation on the bus connectors and ensuring all screws remain tight. Operate within the specified temperature and humidity ranges to prevent condensation and thermal stress. The BMXXBP0600's low power consumption of 1.68 W contributes to overall system energy efficiency and reduced heat generation, extending component life.
Compatibility and Integration
This backplane is designed for seamless integration with Schneider Electric's Modicon ecosystem. Compatible components include the BMXP34 processor, BMXCPS power supply, and a range of I/O modules. The single XBE expansion connector allows daisy-chaining additional backplanes for larger systems. The BMXXBP0600 meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards, ensuring interoperability and safety in industrial control networks.
Selection Guide and Purchasing Advice
Before ordering the BMXXBP0600, verify that your system requires six bus X slots and that your processor and power supply are from the Modicon BMX series. Confirm panel dimensions accommodate the 307.6 mm width and 103.7 mm height. SpareTechPLC stocks this backplane and can assist with compatibility questions. Contact us to check current availability and lifecycle status before placing your order.
Frequently Asked Questions
Q1: What is the difference between the BMXXBP0600 and BMXXBP0800?
A1: The BMXXBP0600 has 6 bus X slots, while the BMXXBP0800 offers 8 slots. Choose based on the number of modules you need to install.
Q2: Can I use the BMXXBP0600 with a BMX P34 2020 processor?
A2: Yes, the BMXXBP0600 is compatible with the BMXP34 processor as listed in the product specifications.
Q3: What is the maximum operating temperature for this backplane?
A3: The BMXXBP0600 operates reliably from 32 to 140 °F (0 to 60 °C).
Q4: Does the BMXXBP0600 include mounting screws?
A4: The fixing mode specifies 4 M4/M5/M6 screws for panel mounting, but screws are typically sold separately. Check your kit contents.
Q5: Is the BMXXBP0600 still in production?
A5: Please verify current lifecycle status and availability with SpareTechPLC before ordering.
