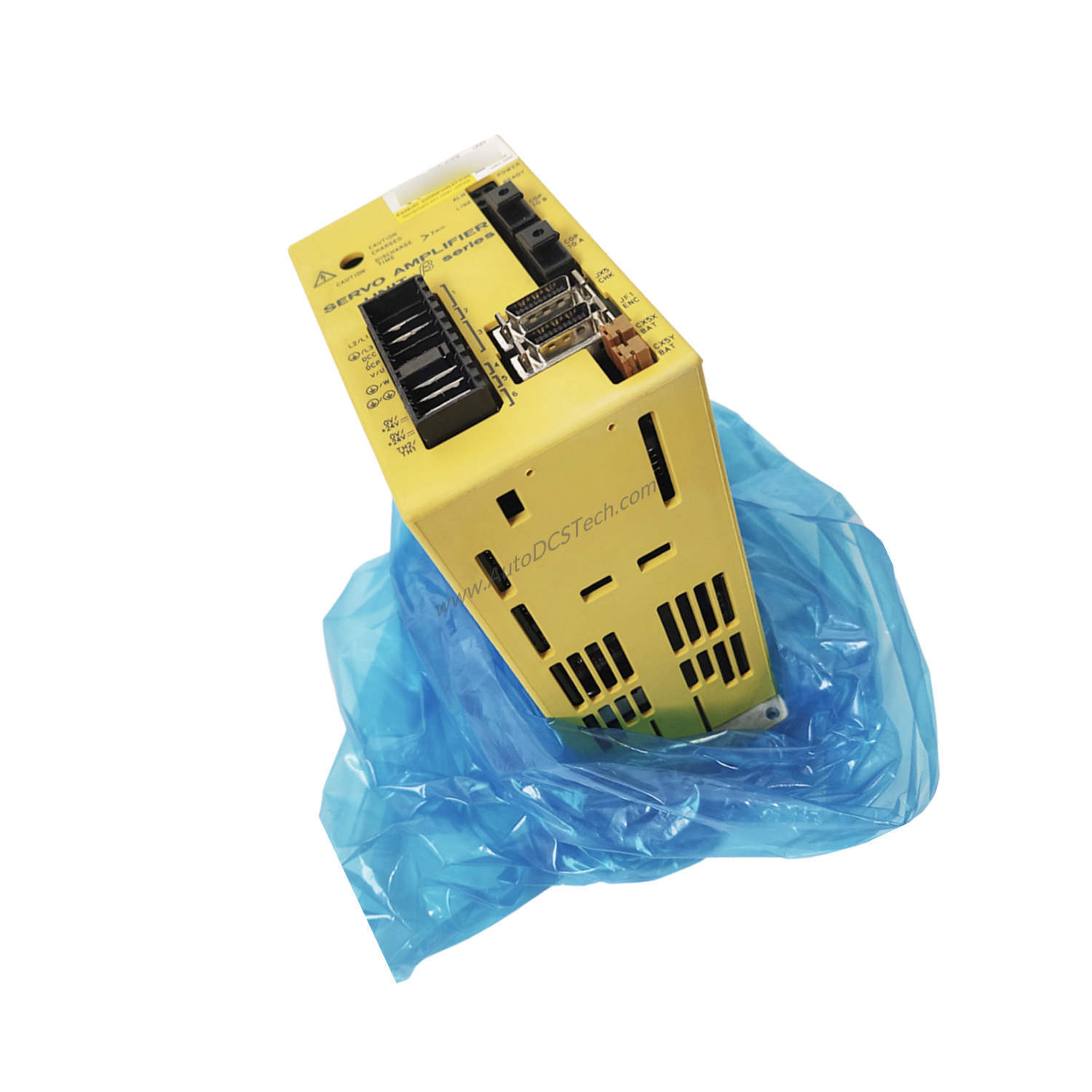

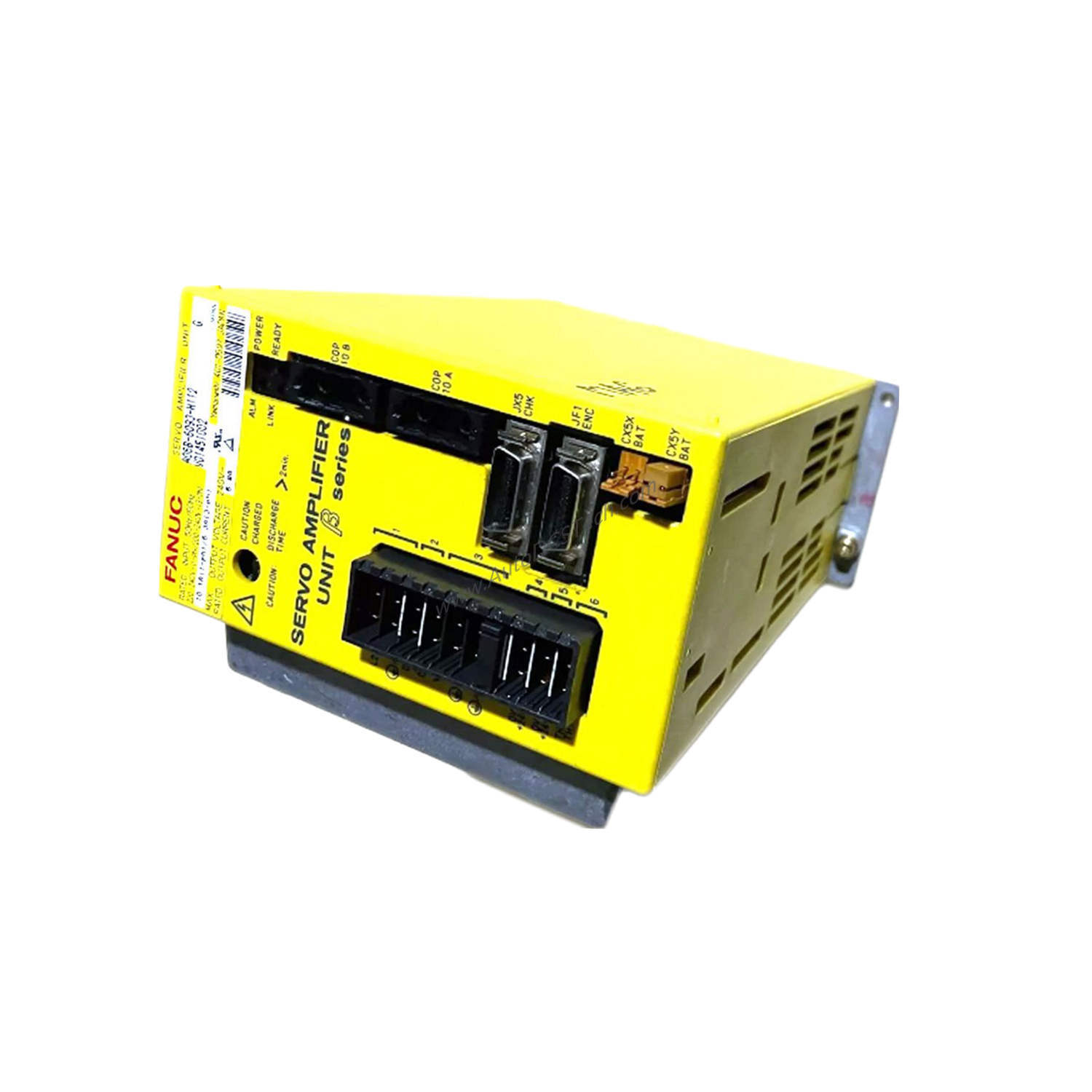

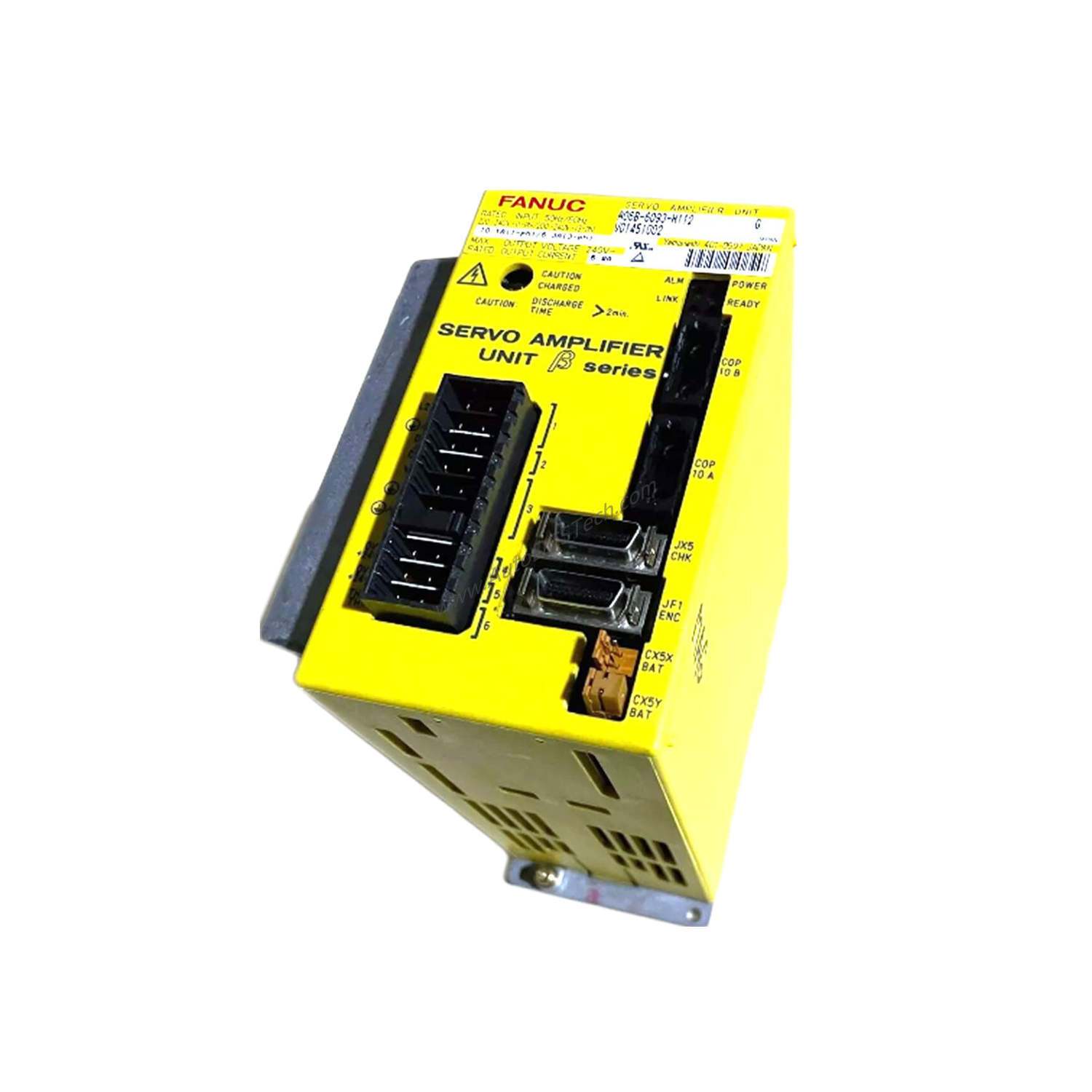

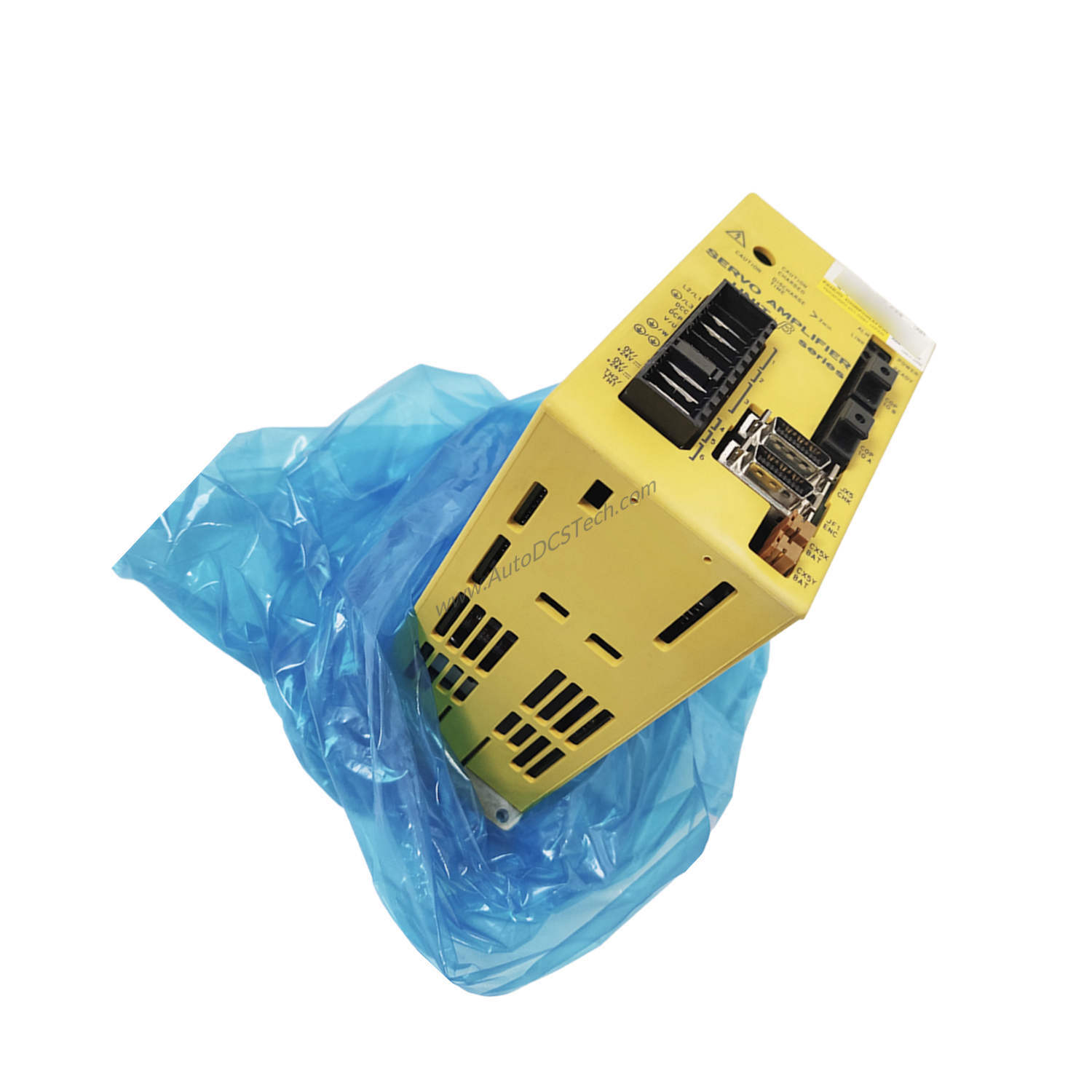

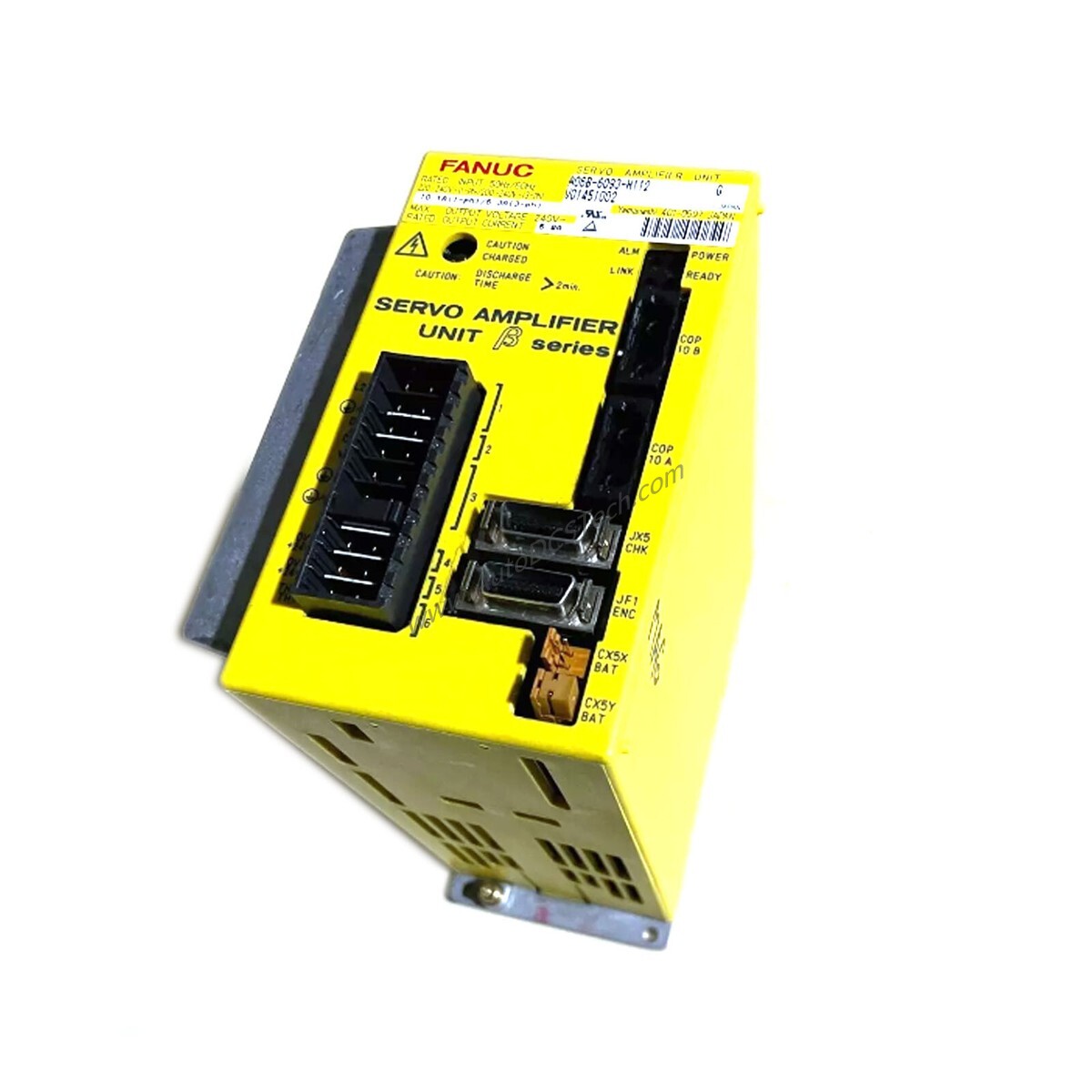

Overview: The FANUC A06B-6093-H151 Servo Amplifier
When precision control is critical in CNC machining, the FANUC A06B-6093-H151 Servo Amplifier (Servo Drive) delivers reliable performance. This A06B series unit is designed specifically for CNC systems, providing the power and communication needed for accurate axis movement. With an input voltage of 240 VAC and a rated output current of 3.2 A max, it suits many mid-range servo motor applications.
Key Technical Specifications
Understanding the core parameters helps you confirm compatibility. The A06B-6093-H151 operates on 240 VAC input and supports a frequency of 50/60 Hz. Its maximum rated output current is 3.2 A. The servo unit type is BETA SERVO UNIT TYPE SVU-12, indicating its place in the FANUC Beta servo family. The I/O Link interface ensures seamless communication with compatible CNC controllers. Cooling is handled by an air-cooled method, allowing operation in ambient temperatures from 0°C to 55°C.
Industry Applications
This servo amplifier is built for CNC systems, such as milling machines, lathes, and machining centers. In a typical retrofit project, replacing an older drive with the A06B-6093-H151 can restore precision and reduce downtime. Its vertical or wall-mounting design saves cabinet space, making it a practical choice for control panel upgrades.
Installation & Setup Guidance
Mount the A06B-6093-H151 vertically or on a wall using the provided mounting points. Ensure adequate airflow around the unit for air cooling. Connect the I/O Link interface to your CNC controller per the system wiring diagram. Verify the input voltage is 240 VAC and the frequency matches your supply (50 or 60 Hz). Always follow the manufacturer's safety guidelines during installation.
Maintenance & Reliability
The A06B-6093-H151 includes overload and overcurrent protection to safeguard against common electrical faults. Its air-cooled design requires minimal maintenance—periodically check that cooling vents are clean and unobstructed. Operating within the 0°C to 55°C temperature range helps ensure long service life. Regular inspection of connections and mounting integrity is recommended.
Compatibility & Integration
This servo amplifier integrates with FANUC CNC systems via the I/O Link interface. It is part of the Beta servo unit family (SVU-12), so it works with compatible Beta series servo motors. Before purchasing, verify that your controller supports I/O Link communication and that the motor matches the 3.2 A output current rating.
Selection Guide & Purchasing Advice
When selecting the A06B-6093-H151, confirm your application requires a 240 VAC input and that your motor's current draw does not exceed 3.2 A. Check the servo unit type (SVU-12) against your system's requirements. SpareTechPLC stocks this FANUC servo amplifier and can assist with availability and lifecycle status. Contact us before ordering to confirm stock and any replacement options if needed.
Frequently Asked Questions
Q: What is the input voltage requirement for the A06B-6093-H151?
A: The servo amplifier requires an input voltage of 240 VAC.
Q: What is the maximum output current of this drive?
A: The rated output current is 3.2 A max.
Q: Can the A06B-6093-H151 be mounted horizontally?
A: No, the mounting specification is vertical or wall-mounted only.
Q: What type of cooling does this unit use?
A: It uses air cooling.
Q: What communication interface does it have?
A: It uses an I/O Link interface.
