Product Introduction

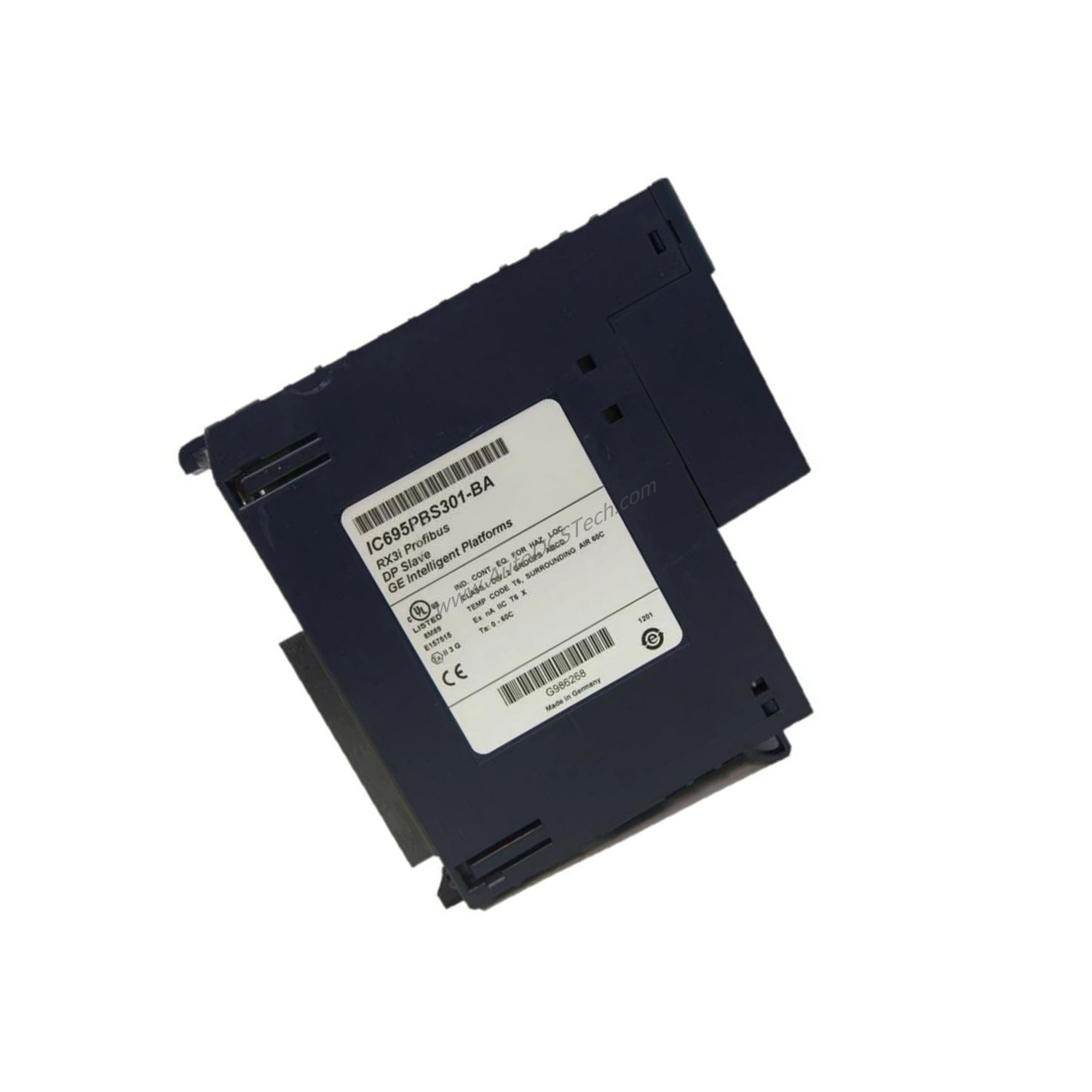

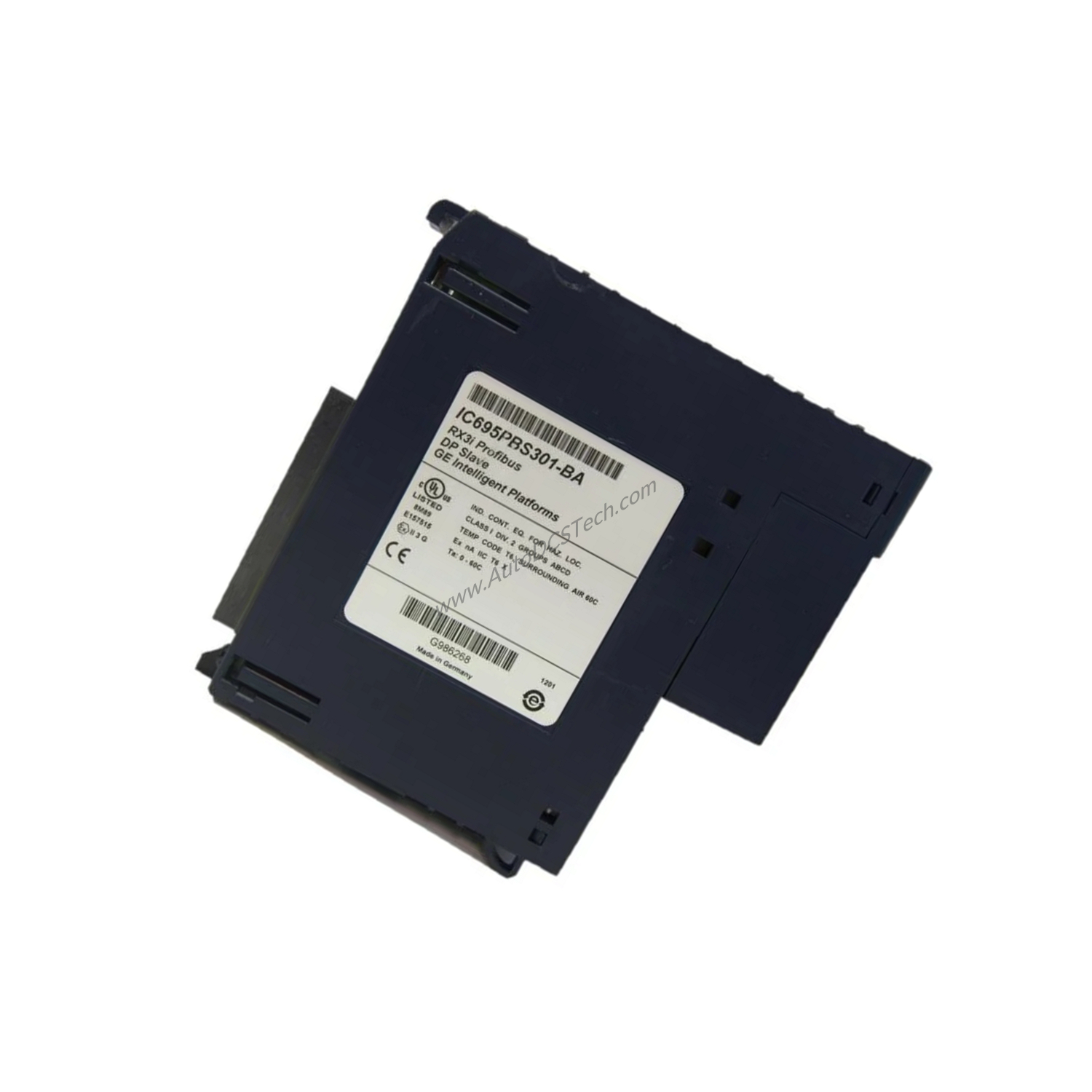

When your industrial network demands reliable slave communication over PROFIBUS DP, the GE Fanuc IC695PBS301 delivers a compact and efficient solution. Part of the RX3i PacSystems series, this PROFIBUS slave module is engineered to integrate seamlessly into automation architectures requiring deterministic data exchange. It provides LED indicators for module status, PROFIBUS status, and network status, enabling quick visual diagnostics.
Technical Specifications Breakdown
The IC695PBS301 operates with a power consumption of 440 mA at 3.3 V DC, ensuring low energy draw in control cabinets. It supports a storage temperature range of -40 to 85 degrees Celsius and an operating temperature range of 0 to 60 degrees Celsius, making it suitable for demanding industrial environments. The module occupies a single slot and features a 9-pin connector for PROFIBUS DP network attachment. It is compatible with universal backplanes and specifically supports RX3i PCI backplane compatibility.
Industry Applications
In manufacturing lines where centralized control requires distributed I/O, the IC695PBS301 acts as a reliable slave node. For example, in a packaging facility, this module can interface with a PROFIBUS DP master to exchange up to 244 bytes of input and output data, enabling real-time monitoring of sensors and actuators. Its wide operating temperature range allows deployment in non-conditioned areas such as warehouse conveyor systems.
Installation & Setup Guidance
Mount the IC695PBS301 into any single slot of an RX3i universal backplane. Ensure the backplane is powered down before insertion. Connect the PROFIBUS DP cable to the 9-pin D-sub connector, observing proper termination and baud rate settings as per network configuration. After power-up, verify the green PROFIBUS OK LED illuminates to confirm backplane reset and power presence. The yellow bicolor network LED indicates telegram transmission, while the bicolor MOD Status LED shows module operating status.
Maintenance & Reliability
Periodically inspect the IC695PBS301 for dust accumulation on the connector and LED indicators. The module's solid-state design minimizes wear, but environmental factors like humidity and temperature extremes should remain within the specified 0 to 60 degrees Celsius operating range. Regular network health checks using the LED indicators help preempt communication faults. Follow manufacturer guidelines for any firmware updates via WinLoader software through the host controller.
Compatibility & Integration
The IC695PBS301 integrates with any PROFIBUS DP master device and is compatible with RX3i PacSystems backplanes, including PCI backplane configurations. It supports all standard PROFIBUS data rates and DP-V1 Read-Write and Alarms messages. The module exchanges data automatically with the master, acknowledging received messages and transmitting upon request. Firmware upgrades are performed indirectly through the host controller CPU using WinLoader utility.
Selection Guide & Purchasing Advice
Before ordering the IC695PBS301, verify your backplane compatibility (universal or RX3i PCI) and confirm that your PROFIBUS DP master supports slave modules with up to 244-byte data loads. Ensure adequate slot availability in your chassis. SpareTechPLC stocks this module and can assist with availability checks. Contact our team to confirm lifecycle status and current pricing.
Frequently Asked Questions (FAQs)
Q: What is the power consumption of the IC695PBS301?
A: The module consumes 440 mA at 3.3 V DC.
Q: What temperature range can the IC695PBS301 operate in?
A: Operating temperature is 0 to 60 degrees Celsius; storage temperature is -40 to 85 degrees Celsius.
Q: How many slots does the IC695PBS301 require?
A: It occupies a single slot in the backplane.
Q: What type of connector does the IC695PBS301 use for PROFIBUS?
A: It uses a 9-pin D-sub connector.
Q: Can the IC695PBS301 be used with PCI backplanes?
A: Yes, it has backplane compatibility with RX3i PCI.
