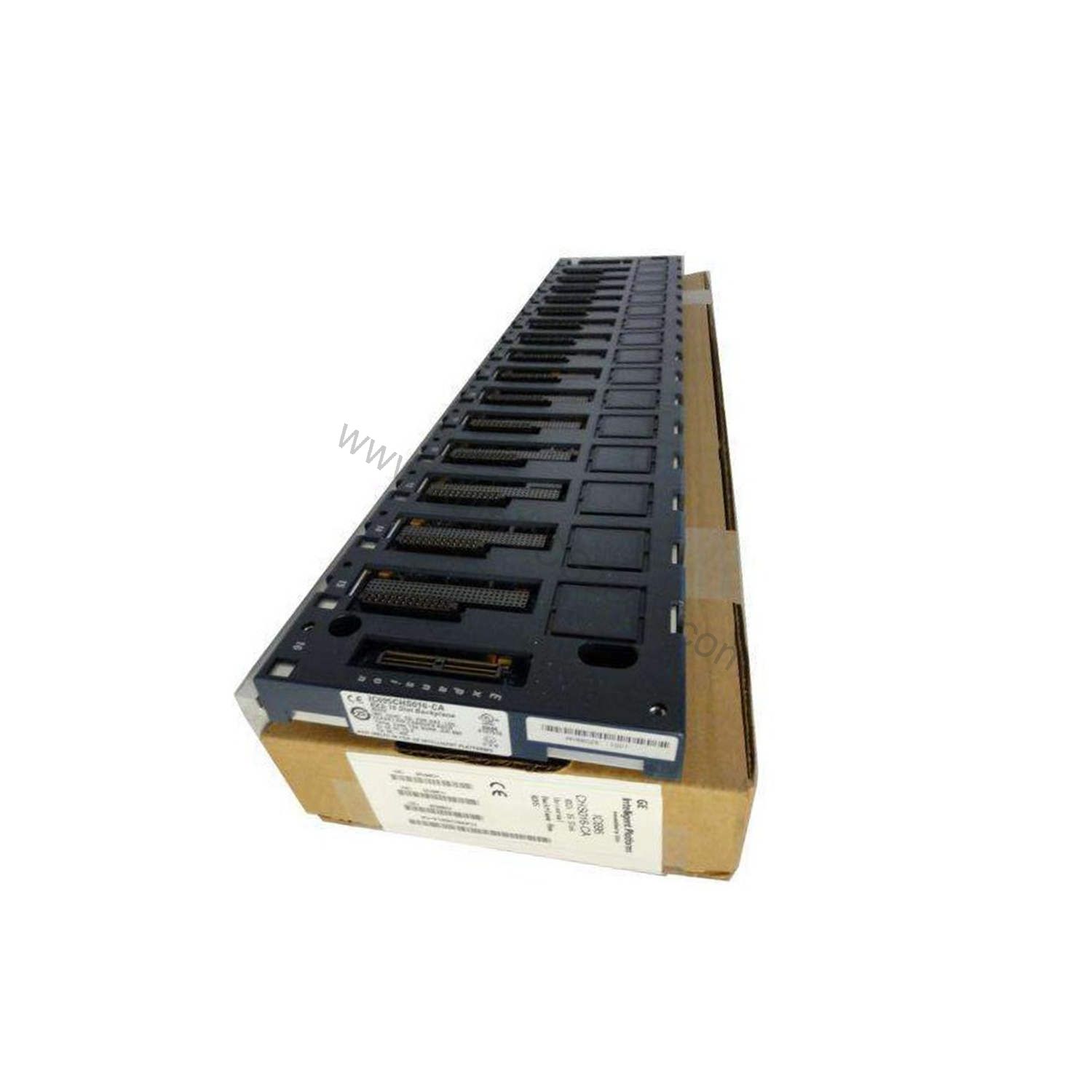

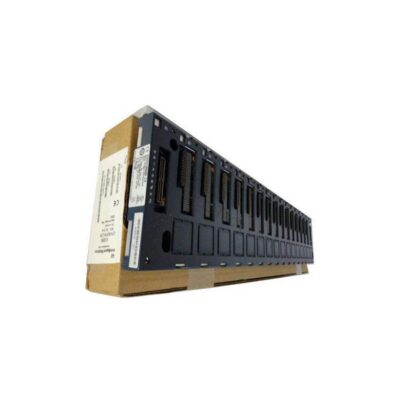

IC695CHS012-CA GE 12-Slot RX3i Universal Backplane

IC695CHS012-CA: Solving Rack Density and Bus Integrity in RX3i Systems

An integrator expanding a PACSystems RX3i line faced a familiar constraint: adding I/O without fragmenting the bus architecture. The IC695CHS012-CA addresses this directly. As a 12-slot universal backplane, it provides a single mounting platform where PCI and high-speed serial traffic coexist. Consequently, modules seat into a verified mechanical and electrical interface rather than a collection of adapters.

This backplane belongs to the PACSystems RX3i series, originally developed by GE Fanuc and GE Intelligent Platforms. Emerson, the current owner, maintains the platform identity. The IC695CHS012-CA therefore carries forward an established rack format while supporting modern module populations.

Key Technical Specifications of the IC695CHS012-CA

• Slots: 12 standard slots for RX3i module placement.
• Bus architecture: Dual bus combining PCI and high-speed serial.
• Expansion: Serial expansion connector for remote backplane connection.
• Mounting: Rack-mounted configuration for control cabinets.
• Series: PACSystems RX3i platform compatibility.
• Original manufacturer: GE Fanuc / GE Intelligent Platforms.

The dual bus is the defining engineering feature. Because PCI and high-speed serial paths are both present, the backplane supports mixed module sets without a separate communication carrier. In practice, this reduces cabinet wiring and preserves signal integrity across all twelve slots.

Installation and Rack Integration

Rack-mounted installation begins with verifying cabinet depth and rail alignment. The backplane then fastens into the enclosure before any module insertion. Afterward, modules slide into the twelve standard slots and engage the dual bus connectors. For distributed architectures, the serial expansion connector links a remote backplane. This extends the system without duplicating the controller chassis. Always follow the official RX3i installation manual for torque and grounding values.

Reliability and Lifecycle Status

Official Emerson production status for the IC695CHS012-CA is unverified. The unit remains available through aftermarket channels as of September 2026. Therefore, verify current lifecycle status and availability with AutoDCSTech before ordering. In service, inspect the backplane periodically for connector wear, dust accumulation, and mechanical stress. Since the bus carries both PCI and serial traffic, a compromised connector can affect multiple modules. Environmental factors such as cabinet temperature and vibration deserve routine attention.

IC695CHS012-CA Integration Notes

The backplane operates within the PACSystems RX3i ecosystem. It accepts RX3i modules across its twelve slots and supports remote expansion through the serial connector. When integrating into a wider control network, confirm that any required gateways or connection modules match the host controller. Cabling and gateway selection should be verified with the supplier to maintain engineering-grade precision.
